Bulls Eye - 2.0In Crawler Wheel Blue 4 Pc

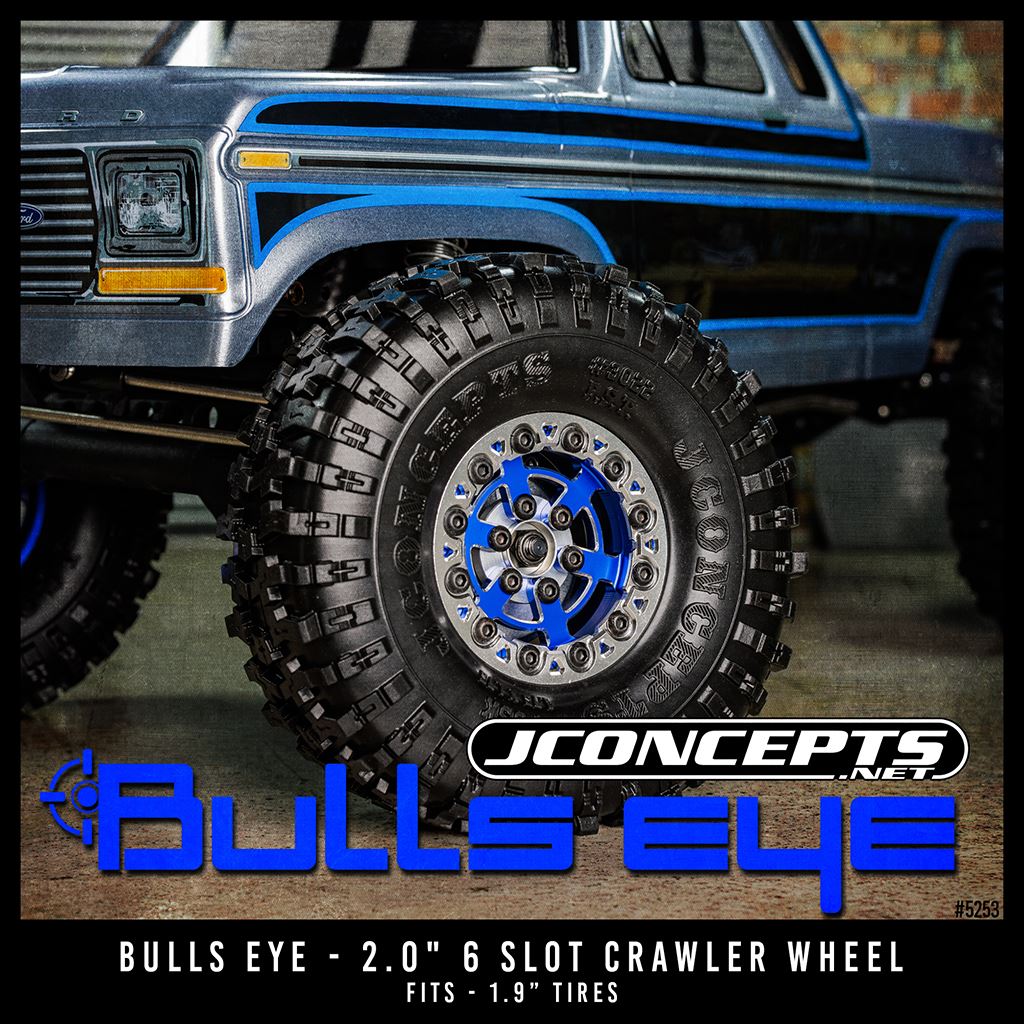

JConcepts adds another 2.0” crawler wheel to the bustling line-up of accessories for the super capable trail trucks on the market. The Bulls Eye wheel with JConcepts blue anodizing has a distinct look and positive offset makes this a premier option for competition machines. The larger diameter provides more surface area to work with and the #gojconcepts designers took advantage of the space to add six triangular pass-through sections and six on edge slots to completely open of the design. At the end of each sectional, locating screws rest to bolt on hex adaptors.

The floor of the design has a positive offset position away from the center of the wheel. The outer loop maintains a hard-edge look with plenty of rigidity and on a different plane giving the wheel a look of depth. The Bulls Eye wheel is machined in aluminum material, blue anodized and in a 2^nd operation chamfered edges highlight a top-end look. Simple design, rugged dependability, high-end performance, and luxurious looks provided by the new wheel is unmatched in the JConcepts line-up. The inside of the wheel is clean and smooth with outer bead, inner radius blend looking sleek while looking on the inside of the rig.

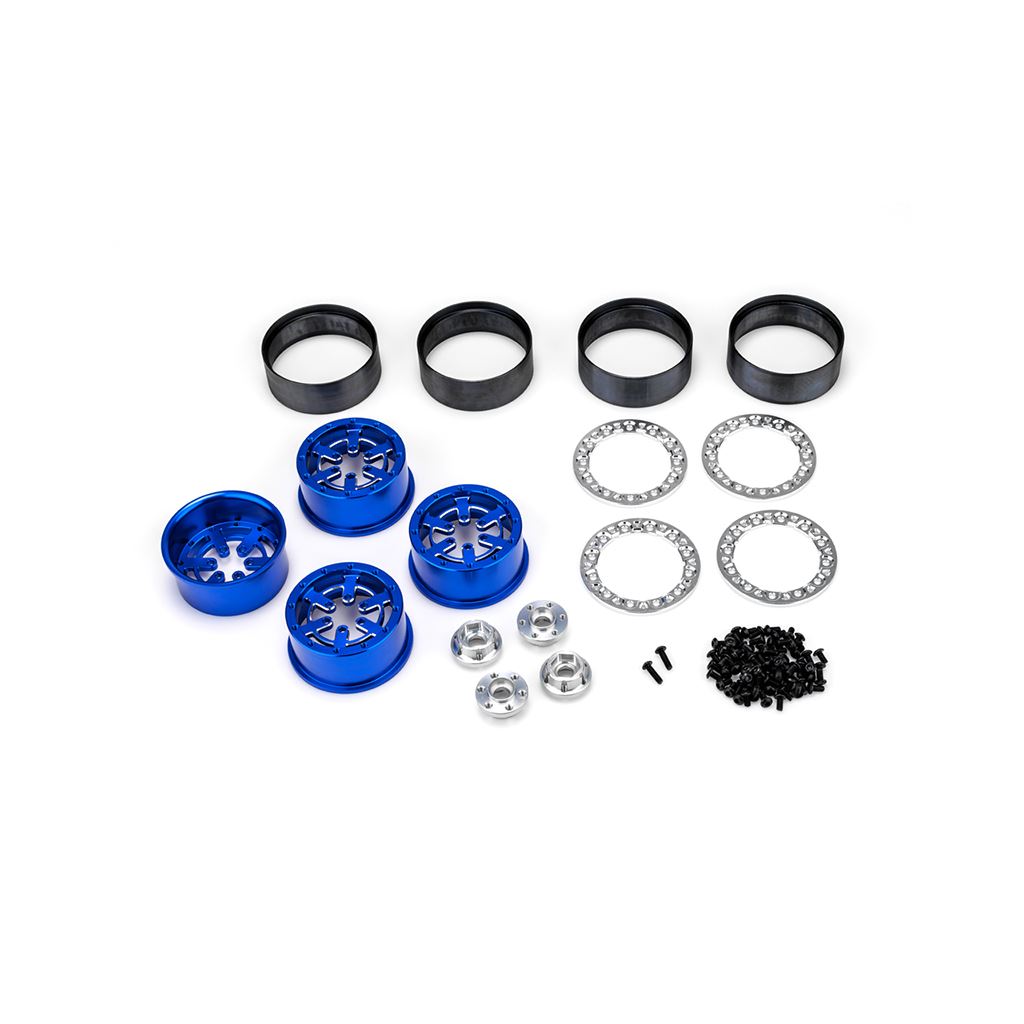

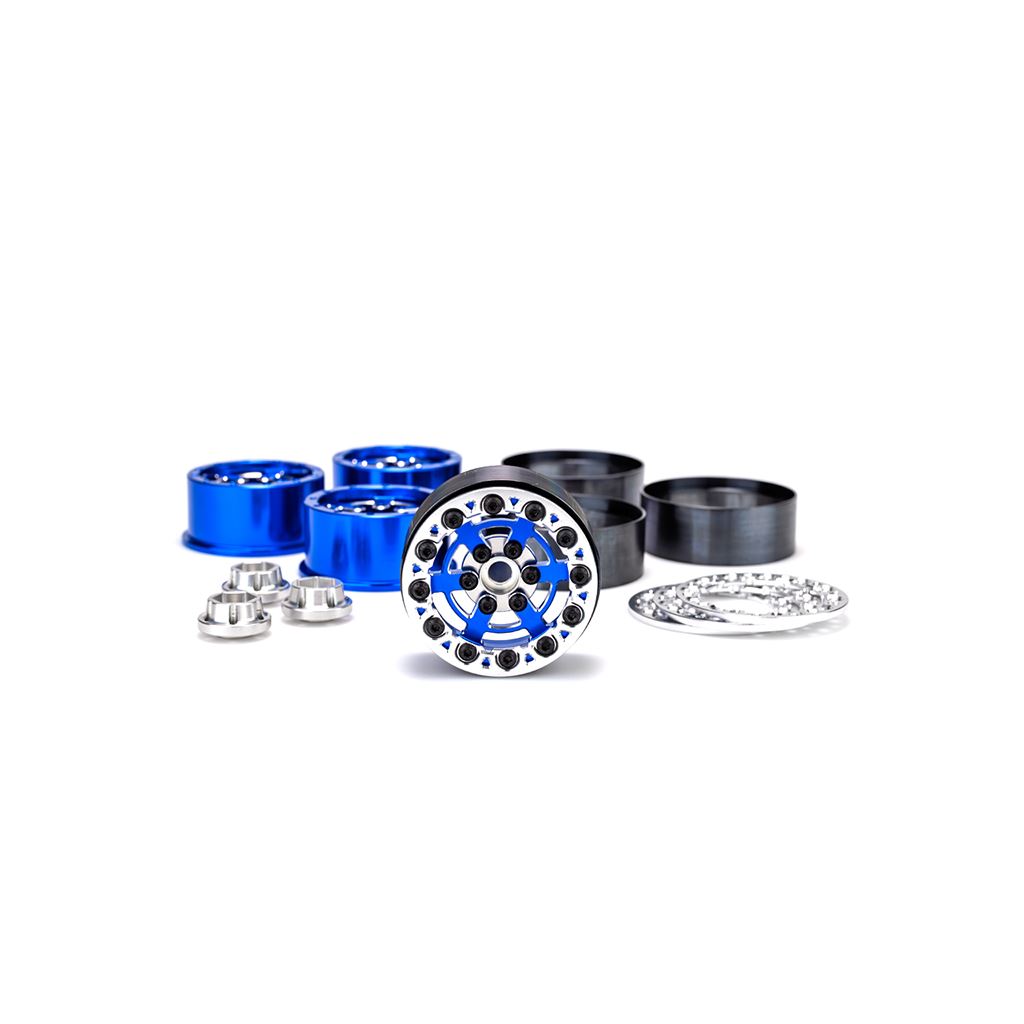

Six heavy-duty 3mm BHCS fasteners lock in the included 4.5mm hex adaptor, while twelve BHCS fasteners secure the bead lock ring to the wheel. The bead lock stands out as the pass-through triangle milled sections allow the blue wheel to shine through to the outside world. Twelve lower hung flange areas rotate about the center and provide additional room for the securing button head screws. Chamfered sections provide additional finished look details to finish off the design.

The fasteners in the bead lock sit into counterbore sections to almost eliminate any overhang completely from the BHCS hardware. The clear anodized bead lock combined with the outstanding look of the blue wheel enhances just about any rig out in the field or in any build presentation. The all-steel construction inner bead locking ring is rigid and provides a steady force to grip 1.9” and 2.0” tire beads. The new wheel has optional parts available to add additional width to the vehicle. JConcepts 5.5, 6.5, 7.5, and 8.5mm aluminum adaptors bolt directly to the Bulls Eye to completely tune the wheel to any course or surface.

The JConcepts team builds, tests, and travels the world to support the brand and gathers valuable driver feedback in search of the best appearing and performance items on the market. The product is designed in the U.S.A. and always backed by JConcepts customer service, supported, and developed by professionals with style. Look for reputable dealers and distributors and demand authentic products – choose JConcepts.

Note: The Bulls Eye wheel package contains 2x M3x12 BHCS screws to help begin the build process of the JConcepts wheels. Since a tight bead mount is critical to performance, it’s easier to begin a build using the included long screws in opposite directions on the wheel. Start the process by installing the screws and actively push or maneuver the beads of the tire into place with a flat head screwdriver. After the bead lock ring starts to lower and tire beads take a set, start securing the remaining screws on the bead lock ring and evenly lowering the bead lock with screws until the final clamp against the wheel is obtained. Remember to replace the M3x12 starter screws with M3x6 to finalize so no screw overhangs exist inside the wheel.

Optional parts:

#3443-005 - JConcepts 12mm crawler hex adaptor, 2pc - 5.5mm

#3443-006 - JConcepts 12mm crawler hex adaptor, 2pc - 6.5mm

#3443-007 - JConcepts 12mm crawler hex adaptor, 2pc - 7.5mm

#3443-008 - JConcepts 12mm crawler hex adaptor, 2pc - 8.5mm

Features:

• Bulls Eye blue anodized aluminum wheel
• 2.0” bead size, fits – 1.9” bead mounting tires
• 6 slots, 6 triangle-based wheel pattern concept
• Stepped geometry adds depth to the design
• Positive offset allows wheel to sit over suspension components
• Steel inner bead locking hoop
• Aluminum and machined bead lock with heavy detail
• Includes 4.5mm wheel adaptor
• Heavy-duty 3mm BHCS hardware
• 2x additional longer screws included for wheel build


•
  (Fits – 1.9" bead mount diameter crawler tires)
