Castle Creations  |  CC010-0175-00

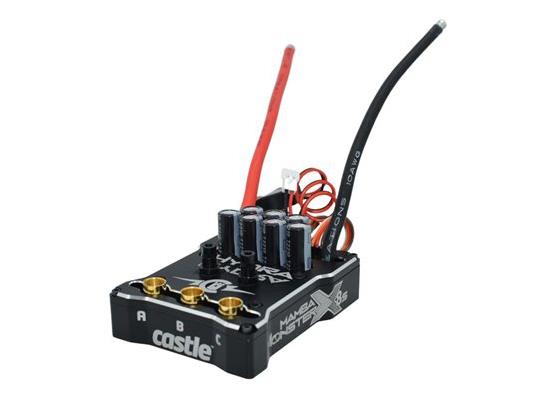

Castle Creations HYDRA X 8S, 33.6V ESC, 8A PEAK BEC

£314.49
RRP: £339.99
Save £25.50
Notify me when available
Product Overview

Introducing the newest addition to the world of RC hobby boats, the HYDRA X 8S. With its sleek design and powerful performance, it will push RC boats to their limits for the ultimate thrill ride on the water!

The HYDRA X 8S is based on our popular and powerful Mamba Monster X 8S. We've removed the air cooled heatsink and added a water-cooled heatsink. The final touch is an aluminum top plate that gives it a sleek and polished appearance. Attached to the top plate are two .17" aluminum water fittings and uses standard 10-32 UNF threads. The HYDRA X 8S is the ultimate enhancement that propels high-performance monohulls, up to 36 inches in length, to new heights.

CRYO-DRIVET, Castle's proprietary breakthrough technology, integrates unique software to reduce heat and dramatically increase performance. Thousands of times per second, the Hydra X 8S software minimizes the amount of time the electrical components spend generating heat. The results are more power handling, cooler ESC temperatures and longer runtimes and ultra-high performance.

It's easy to dial in ESC settings, update ESC firmware and view data logs with Castle Link USB programming kit (coupon for USB adapter included with purchase) and a WindowsT PC, or wirelessly with the convenience of the new B-LinkT BluetoothT Adapter and Castle Link app for Android or iOS. Additional tuning flexibility is available with on-the-fly adjustments from a compatible transmitter via the Auxiliary wire. It's as easy as connecting the white signal wire to an open radio channel and enabling the feature in Castle Link by selecting what Auxiliary function is preferred.

COPPERHEAD 10 FEATURES:
  • Input Voltage Range 2S-8S LiPo (33.6v max)
  • Sensorless, SmartSense and Brushed Running Modes
  • Powerful Integrated 8A Peak Adjustable BEC (5.5V-8.0V)
  • CRYO-DRIVE Technology minimizes the amount of time the ESC's electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs
  • ESC is housed in a rugged CNC aluminum case and potted in waterproof epoxy to protect the electronics and promote efficient heat transfer
  • Machined water-cooled heatsink with .17" water fittings.
  • Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters
  • Data logging capability to capture and record performance data from your vehicle
  • Auxiliary wire functionality for "on-the-fly" adjustments using your transmitter
  • Audible alerts for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff
  • Convenient transmitter programming for six common adjustable settings including cutoff voltage and drag brake
  • Castle Link USB programming kit (coupon included with purchase)
  • Optional smartphone-based programming with the B-LINK Bluetooth Adapter (sold separately) and Castle Link all available on Google Play or Apple App Store)

Hydra X 8S ESC COMES WITH:
  • Hydra X 8S ESC with water fittings for 1/8" tubing
  • Castle Creations Decals
  • Coupon for free Castle Link USB
  • Hydra X 8S Quick Start Guide
Extended Features
Castle's newest software technology, CRYO-DRIVE minimizes the amount of time the ESC's electrical components spend generating heat by optimally controlling which components are being used while driving the motor. This is happening thousands of times per second, which greatly reduces the rate at which the ESC heats up. This results in significantly improved thermal performance during partial throttle operation where the majority of driving occurs. Your setup will be able to handle higher gear ratios, in heavier vehicles, with longer runs.

When paired with a Castle 4-POLE 12-SLOT SENSORED MOTOR SmartSense software, enabled by default in the Castle Link Programming Suite, will use the motor's sensors to provide smooth starts, excellent torque, and low-speed drivability. Once the motor is turning, it seamlessly transitions to Castle's ULTRA-EFFICIENT sensorless mode with electric timing. Smooth sensored startups and high-efficiency sensorless running makes the Hydra XLX2 system produce more power and less heat. QUIETSENSET is an innovative advancement in the design of sensored motors to deliver the highest precision and most efficient startup.

For over 20 years Castle engineers have been setting the bar for industry leading software functionality. The Castle Link Programming Suite is your ticket to creating the perfect setup. To gain access to the host of tuning parameters, simply redeem the coupon for the Castle Link adapter included with your Hydra XLX2 purchase and download the simple to install software from our website and you are ready to personalize your controller's settings. You can now wirelessly program your ESC with the free Castle Link Mobile App and the purchase the B-Link Bluetooth Adapter. Click here for settings overview for the Hydra X 8S.

You can now WIRELESSLY PROGRAM settings with the free Castle-Link app available on the Apple App store or Google Play for Android devices and the Castle B-LinkT BluetoothT Adapter (sold separately). It is compact and lightweight installed in your vehicle, for anytime programming!

Hydra X 8S is telemetry ready, which means owners of Futaba 4PX, 7PX, 7PXR, and T10PX transmitters will be able to purchase the Castle Creations Telemetry Link for S.BUS2. Real-time data such as ESC temperature, voltages, and RPM can be monitored to ensure performance advantages and spare you the "unknown" parameters that all R/C enthusiasts experience at some point. Telemetry data provides another level of protection and can increase performance.

Housed in a rugged CNC-machined aluminum case and then potted in waterproof epoxy. This not only protects the electronics but ensures any heat generated in the controller can easily be dissipated through the case.

Hydra X 8S features Audible Alerts that will notify you via audible chimes of possible issues with calibrations and error conditions to help diagnose problems.
