Castle Creations  |  CC010-0155-16

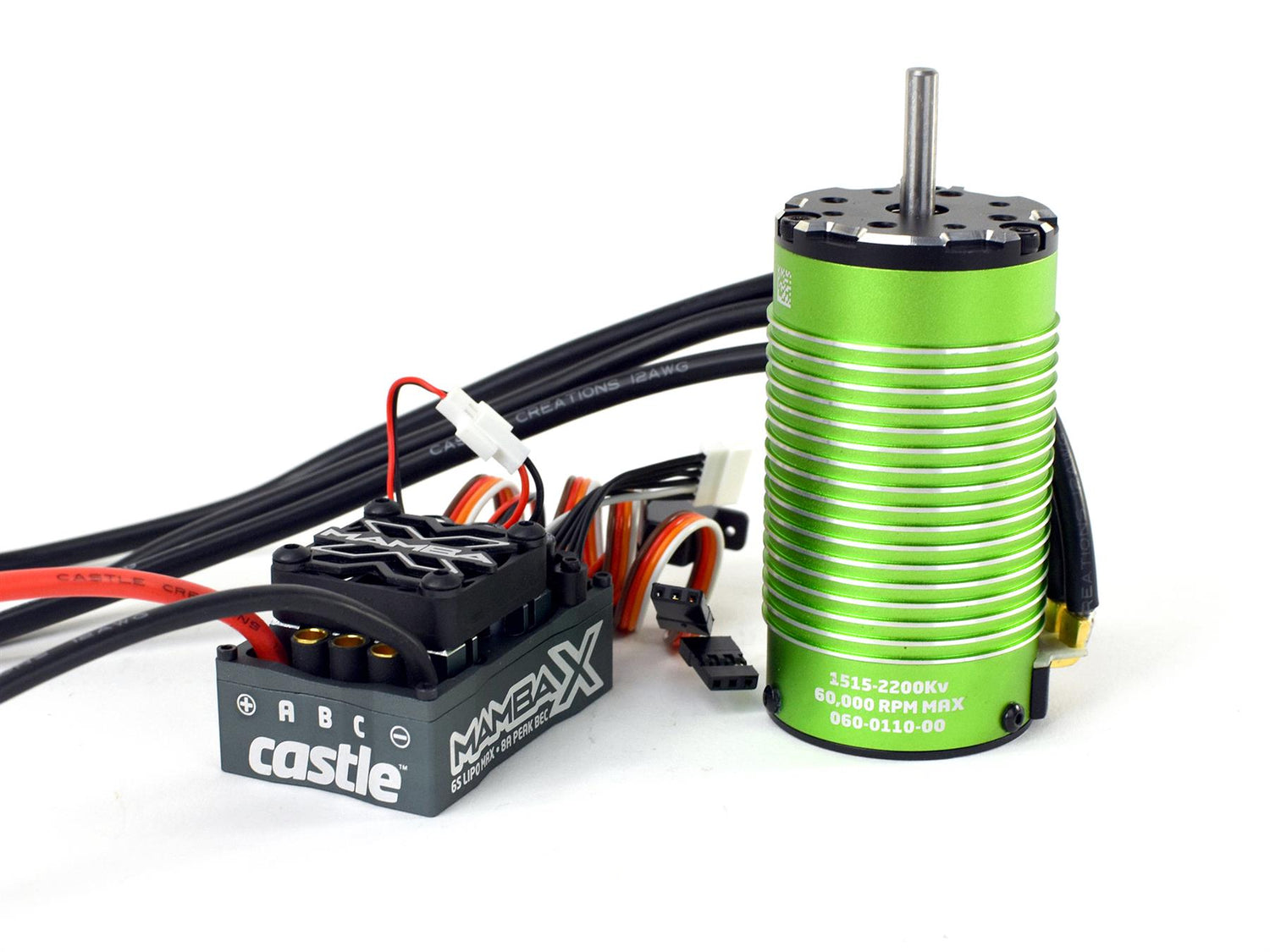

Castle Creations Mamba X, Sensored, 25.2V Wp Esc & 1515-2200Kv V2 Combo

£323.69
RRP: £349.99
Save £26.30
Notify me when available

Overview

Castle Creations commitment to excellence drives them to refine the user experience, optimize performance, and ensure that every aspect of our products are meticulously designed to provide the utmost satisfaction. Let's face it, even the best products have room for refinement, which is why we are excited to introduce the newly redesigned 1515-2200Kv V2, a new spin on one of the most popular motors we've ever produced! The transformation has included several improvements, most contributed by new stator and rotor assembly upgrades that, in turn, allow for even HIGHER EFFICIENCY, REDUCED TEMPERATURES, AND SMOOTHER START-UPS!

In The Box

  • Mamba X ESC with Sensor Harness and 1515-2200kv V2 sensored motor
  • Mamba Decals
  • Driver's Ed Guide/ Quick Start Guide

ESC Features

  • Wide 2s-4s input voltage range for powering a wide variety of applications
  • Sensored, Sensorless and SmartSense Running Modes
  • Brushless and brushed motor operation
  • Powerful Integrated 8A Peak Adjustable BEC (5.25V-8.0V)
  • Data logging capability to capture and record performance data from your vehicle
  • Auxiliary wire functionality for "on-the-fly" adjustments using your transmitter
  • Compatible with S.BUS2 Telemetry Link and Futaba T4PX and T7PX transmitters
  • Convenient transmitter programming for six common adjustable settings including cutoff voltage and drag brake
  • Dial in ESC settings, update ESC firmware and view data logs with Castle Link USB programming kit (coupon for USB adapter included with purchase, Castle Link software located here)
  • Optional smartphone-based programming, firmware updates and data log viewing with the B-LINKT Bluetooth Adapter (sold separately) and Castle Link software for iOS or Android
  • ESC is housed in a rugged CNC aluminum case and potted in waterproof epoxy to protect the electronics and promote efficient heat transfer
  • Waterproof design for all weather conditions
  • Factory equipped thermally controlled (and removable) 30mm cooling fan
  • 12 AWG high strand count silicone coated copper power wires
  • Integrated Capacitors and 4mm Bullet Connectors add durability in extreme conditions
  • Audible Alerts and LED Alerts for easy diagnoses of common issues such as motor-over-temperature and low-voltage cutoff

Motor Features

  • Input Voltage range: 2s-6s LiPo
  • Redesigned rotor and stator assemblies.
  • Reduced magnetic cogging, producing less residual drag brake.
  • Increased efficiency, resulting in lower temperatures and longer run times.
  • Smoother start-up, reducing cogging or stuttering when starting from a stop.
  • Rebuildable design allows replacement of front end bell/bearing assembly or rotor/shaft assembly.
  • High-Strength Kevlar Wrap and 180C Grade Neodymium Sintered Magnets
  • Oversized NMB Bearings and High-Temperature, High-Purity Copper Windings
  • Castle 10 AWG, High-Strand-Count Silicone-Insulated Wire with 4.0mm Bullet Connectors
  • High-Performance 0.2mm Steel Lamination Stacked Stator
  • Oversized, low-resistance, gold-plated solder tabs
  • Sensor board with High Quality Temperature-Stabilized Sensors
  • T6 Aluminium CNC Machines Front/Rear End bell

Data Logging

Enabled by default, the Mamba X captures and records performance data from your vehicle. This allows you to view a detailed turn-by-turn record of what your ESC actually experienced during the run. You will be able to record real-time data such as motor RPM, battery current and voltage, ESC and motor temperature, throttle input, and more. Download and analyze the collected data via Castle Link and make adjustments to maximize both performance and battery life. You can use the Quick Connect Duo (sold separately) to allow you to access both wires into a single Castle Link connection.

On-The-Fly Adjustment

The Mamba X allows "on-the-fly" adjustments to be made through the AUX wire once enabled in Castle Link. Once you have selected an AUX wire function, that setting can then be tuned from your transmitter while driving. Torque control, max throttle, max brake and drag brake adjustments are a sampling of the available modes. This real-time tuning allows you to quickly and easily fine-tune your system.

Castle Link

For 25 years Castle engineers have been setting the bar for industry leading software functionality. The Castle Link Programming Suite is your ticket to creating the perfect setup. To gain access to the host of tuning parameters, simply redeem the coupon for the Castle Link adapter included with your Mamba X purchase and download the simple to install software from our website and you are ready to personalize your controller's settings. Users will receive free access to all firmware updates, including added features sets using the Castle Link USB Programming Kit or the Castle Link App and a B-Link Bluetooth Adapter.

Bluetooth Interface

You can now WIRELESSLY PROGRAM settings with the free Castle-Link app available on the Apple App store or Google Play for Android devices and the Castle B-LinkT BluetoothT Adapter (sold separately). It is compact and lightweight installed in your vehicle, for anytime programming!

SmartSense

When paired with a Castle 4-POLE 12-SLOT SENSORED MOTOR SMARTSENSE software, enabled by default in the Castle Link Programming Suite, will use the motor's sensors to provide smooth starts, excellent torque, and low-speed drivability. Once the motor is turning, it seamlessly transitions to Castle's ULTRA-EFFICIENT sensorless mode with ELECTRONIC TIMING. Smooth sensored startups and high-efficiency sensorless running makes the Mamba X system produce more power and less heat. QUIETSENSET is an innovative advancement in the design of sensored motors to deliver the highest precision and most efficient startup.

Telemetry Link

Mamba X is telemetry ready, which means owners of Futaba T4PX or 7PX Transmitters will be able to purchase the Castle Creations Telemetry Link for S.BUS2. Real-time data such as ESC temperature, voltages, and RPM can be monitored to ensure performance advantages and spare you the "unknown" parameters that all R/C enthusiasts experience at some point. Telemetry data provides another level of protection and can increase performance.

Alerts

Mamba X also features updated Audible Alerts that will notify you of possible issues with calibrations and error conditions to help diagnose problems in the field.


N/A
Castle Creations

Castle Creations Mamba X, Sensored, 25.2V Wp Esc & 1515-2200Kv V2 Combo

£323.69

Overview

Castle Creations commitment to excellence drives them to refine the user experience, optimize performance, and ensure that every aspect of our products are meticulously designed to provide the utmost satisfaction. Let's face it, even the best products have room for refinement, which is why we are excited to introduce the newly redesigned 1515-2200Kv V2, a new spin on one of the most popular motors we've ever produced! The transformation has included several improvements, most contributed by new stator and rotor assembly upgrades that, in turn, allow for even HIGHER EFFICIENCY, REDUCED TEMPERATURES, AND SMOOTHER START-UPS!

In The Box

ESC Features

  • Wide 2s-4s input voltage range for powering a wide variety of applications
  • Sensored, Sensorless and SmartSense Running Modes
  • Brushless and brushed motor operation
  • Powerful Integrated 8A Peak Adjustable BEC (5.25V-8.0V)
  • Data logging capability to capture and record performance data from your vehicle
  • Auxiliary wire functionality for "on-the-fly" adjustments using your transmitter
  • Compatible with S.BUS2 Telemetry Link and Futaba T4PX and T7PX transmitters
  • Convenient transmitter programming for six common adjustable settings including cutoff voltage and drag brake
  • Dial in ESC settings, update ESC firmware and view data logs with Castle Link USB programming kit (coupon for USB adapter included with purchase, Castle Link software located here)
  • Optional smartphone-based programming, firmware updates and data log viewing with the B-LINKT Bluetooth Adapter (sold separately) and Castle Link software for iOS or Android
  • ESC is housed in a rugged CNC aluminum case and potted in waterproof epoxy to protect the electronics and promote efficient heat transfer
  • Waterproof design for all weather conditions
  • Factory equipped thermally controlled (and removable) 30mm cooling fan
  • 12 AWG high strand count silicone coated copper power wires
  • Integrated Capacitors and 4mm Bullet Connectors add durability in extreme conditions
  • Audible Alerts and LED Alerts for easy diagnoses of common issues such as motor-over-temperature and low-voltage cutoff

Motor Features

  • Input Voltage range: 2s-6s LiPo
  • Redesigned rotor and stator assemblies.
  • Reduced magnetic cogging, producing less residual drag brake.
  • Increased efficiency, resulting in lower temperatures and longer run times.
  • Smoother start-up, reducing cogging or stuttering when starting from a stop.
  • Rebuildable design allows replacement of front end bell/bearing assembly or rotor/shaft assembly.
  • High-Strength Kevlar Wrap and 180C Grade Neodymium Sintered Magnets
  • Oversized NMB Bearings and High-Temperature, High-Purity Copper Windings
  • Castle 10 AWG, High-Strand-Count Silicone-Insulated Wire with 4.0mm Bullet Connectors
  • High-Performance 0.2mm Steel Lamination Stacked Stator
  • Oversized, low-resistance, gold-plated solder tabs
  • Sensor board with High Quality Temperature-Stabilized Sensors
  • T6 Aluminium CNC Machines Front/Rear End bell

Data Logging

Enabled by default, the Mamba X captures and records performance data from your vehicle. This allows you to view a detailed turn-by-turn record of what your ESC actually experienced during the run. You will be able to record real-time data such as motor RPM, battery current and voltage, ESC and motor temperature, throttle input, and more. Download and analyze the collected data via Castle Link and make adjustments to maximize both performance and battery life. You can use the Quick Connect Duo (sold separately) to allow you to access both wires into a single Castle Link connection.

On-The-Fly Adjustment

The Mamba X allows "on-the-fly" adjustments to be made through the AUX wire once enabled in Castle Link. Once you have selected an AUX wire function, that setting can then be tuned from your transmitter while driving. Torque control, max throttle, max brake and drag brake adjustments are a sampling of the available modes. This real-time tuning allows you to quickly and easily fine-tune your system.

Castle Link

For 25 years Castle engineers have been setting the bar for industry leading software functionality. The Castle Link Programming Suite is your ticket to creating the perfect setup. To gain access to the host of tuning parameters, simply redeem the coupon for the Castle Link adapter included with your Mamba X purchase and download the simple to install software from our website and you are ready to personalize your controller's settings. Users will receive free access to all firmware updates, including added features sets using the Castle Link USB Programming Kit or the Castle Link App and a B-Link Bluetooth Adapter.

Bluetooth Interface

You can now WIRELESSLY PROGRAM settings with the free Castle-Link app available on the Apple App store or Google Play for Android devices and the Castle B-LinkT BluetoothT Adapter (sold separately). It is compact and lightweight installed in your vehicle, for anytime programming!

SmartSense

When paired with a Castle 4-POLE 12-SLOT SENSORED MOTOR SMARTSENSE software, enabled by default in the Castle Link Programming Suite, will use the motor's sensors to provide smooth starts, excellent torque, and low-speed drivability. Once the motor is turning, it seamlessly transitions to Castle's ULTRA-EFFICIENT sensorless mode with ELECTRONIC TIMING. Smooth sensored startups and high-efficiency sensorless running makes the Mamba X system produce more power and less heat. QUIETSENSET is an innovative advancement in the design of sensored motors to deliver the highest precision and most efficient startup.

Telemetry Link

Mamba X is telemetry ready, which means owners of Futaba T4PX or 7PX Transmitters will be able to purchase the Castle Creations Telemetry Link for S.BUS2. Real-time data such as ESC temperature, voltages, and RPM can be monitored to ensure performance advantages and spare you the "unknown" parameters that all R/C enthusiasts experience at some point. Telemetry data provides another level of protection and can increase performance.

Alerts

Mamba X also features updated Audible Alerts that will notify you of possible issues with calibrations and error conditions to help diagnose problems in the field.
