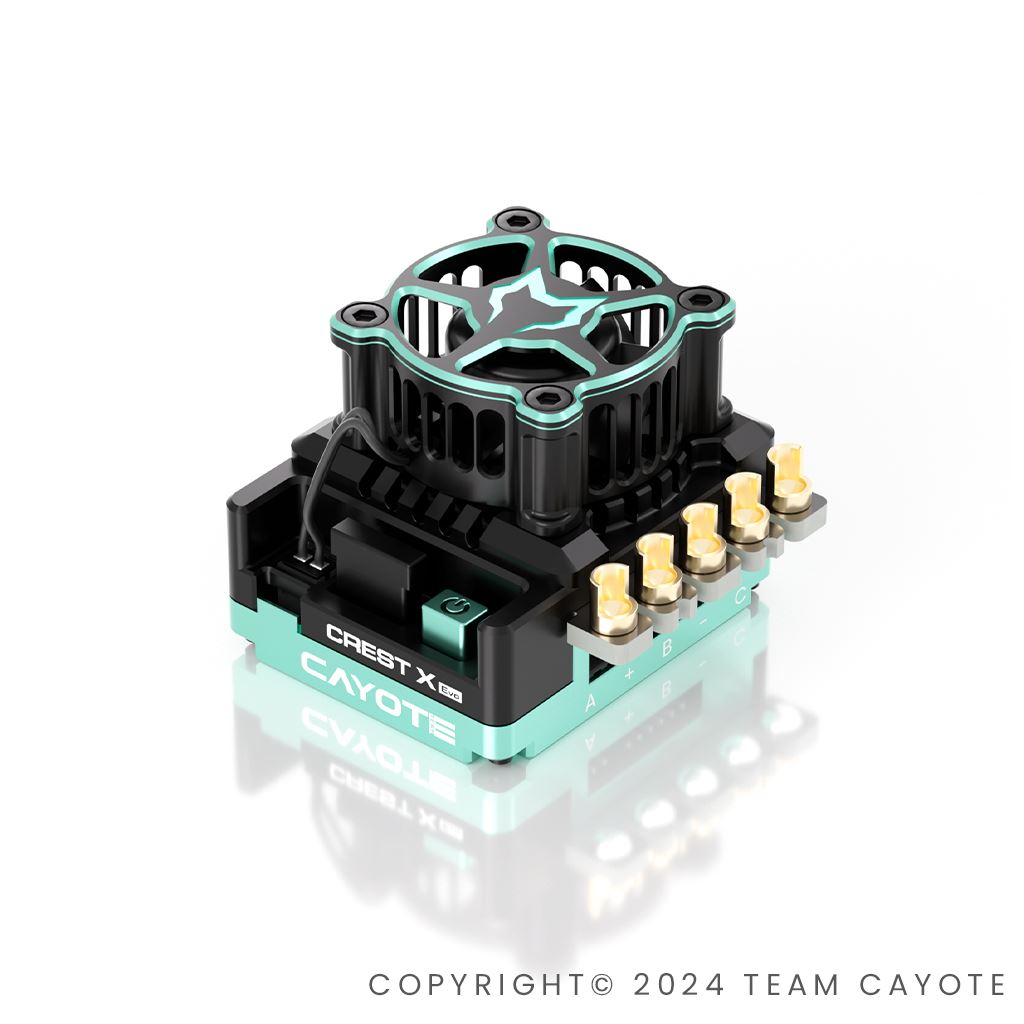

Cayote Racing Crest X Evo 1/10Th Competition Esc
Save £10
Couldn't load pickup availability
EVO Power & EVO Precision
The CREST X EVO sets a new standard for the race winning Cayote CrestX line of ESC products. The Crest X was initially designed for professional racing competition, and adding all our worldwide racing esperience feedback from our high performance top driver team, the CREST X EVO is the new ultimate tool for boosting your track performance.
Key Highlights:
- 5x processing power with ARM Cortex-M4 108MHz
- Metal-framed 4-vent cooling fan for optimal airflow
- Wireless control via BTUNE App: tuning, data logging & firmware updates
- Built-in protections: reverse polarity, fail-safe, low voltage, stall
- Up to 64° Boost & Turbo for instant acceleration
- External switch interface for clean and flexible setups
Key Specifications:
- Metal-Framed Fan with Four-Vent Cooling System
- Exceptional Computing Power, Lightning-Fast Response
- Customizable External Switch Interface
- Advanced Reverse Polarity Protection + Full Safety Suite
- Wireless Control via BTUNE Module
- APP data logging function
- Leading the Speed-up Revolution
- Precise Throttle & Brake PWM Frequency Tuning
Continuous/Peak Current
160A / 1100A
BEC Output
Ultra-stable switch Vregulation 6V/7.4V; cont. current 6A/8A peak
Support Vehicle Type
1/10th TC; 1/10th Off Road/Etc.
Dimension
37.9 x 31.4 x 30mm
Weight
55g
Cooling Fan
25x25x10mm, 6-7.4V BEC
Basic Information
Compatibility
Motor: 1/10th TC≥4.5T;1/10th Off Road≥5.5T
Motor Mode: Sensored and Sensorless Brushless Motors
Battery: 2S LiPo
Wire Gauge
Output Wires: Black-13AWG-180MM*3
Input Wires: Red-13AWG-180MM*1
Black-13AWG-180MM*1
ESC Programming Via
Xlink Program Box Compatible
B-Tune Connect (Optional)
Internal Program (Port)(APP Control)
-
