Combo Max10 G2S 140A & 3665Sd 4000Kv G3

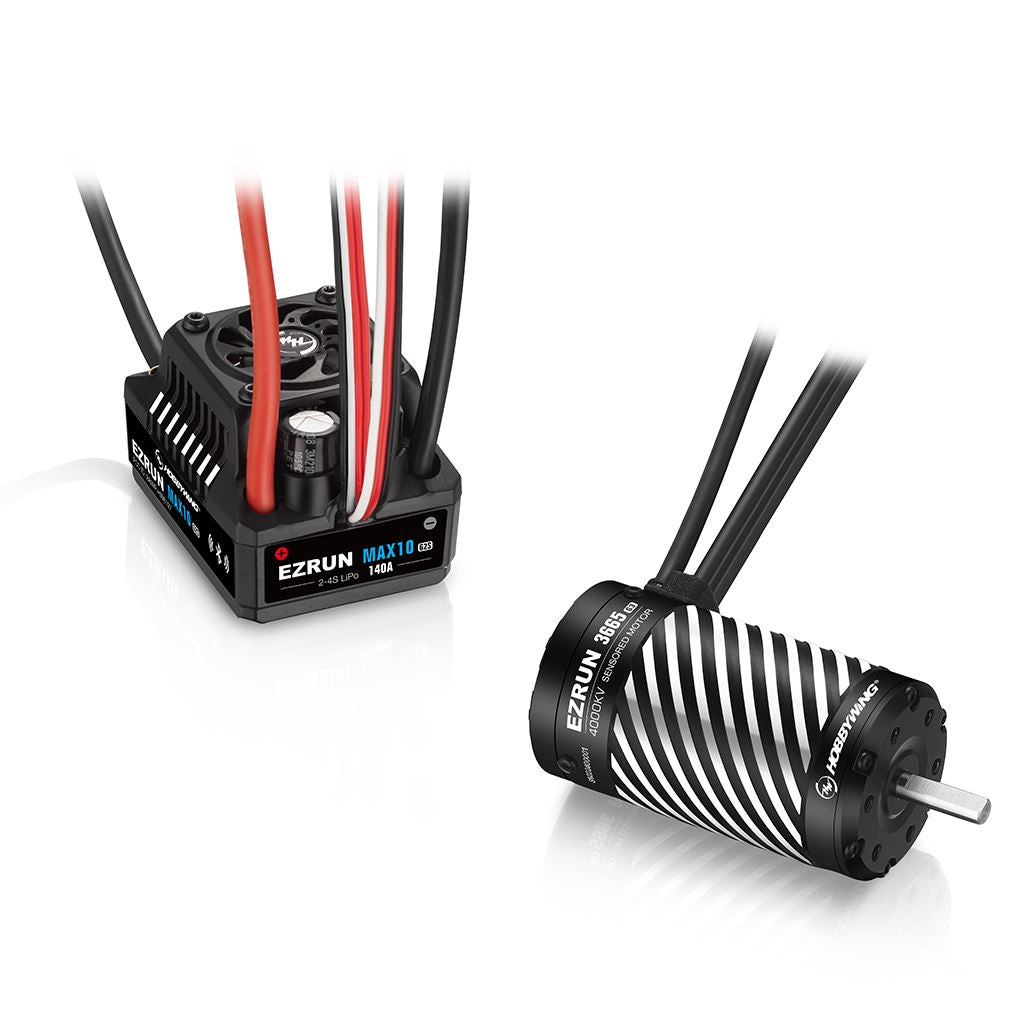

Introducing the EzRun MAX10 & 3665SD 4000KV G3 Brushless Motor Combo.

The EzRun MAX10 G2S sensored ESC is designed to deliver strong acceleration together with stable, linear power output. Instant throttle response allows for aggressive launches, while refined low-speed control improves precision in technical sections. Whether under hard acceleration, steady high-speed running or over jumps, the system maintains consistent power delivery, offering enhanced control and improved overall drivability across the entire speed range.

Integrated Bluetooth Connectivity
The ESC features a built-in Bluetooth module within the power switch, allowing direct connection to the HW LINK App without the need for additional programming devices. Users can conveniently adjust parameters, access data logs and perform firmware updates via smartphone, making setup and maintenance straightforward and efficient.
Note: The data includes throttle input, voltage, current, temperature, speed, etc.

Integrated Data Logging
The ESC incorporates an internal data logging function capable of recording up to 10 minutes of the most recent runtime data. After each run, users can connect via the HW LINK App to review stored data in graphical format. This allows convenient monitoring of key operating parameters and provides a clear overview of both ESC and motor performance.
Note: Due to transmission distance of bluetooth, the effective distance is only about 5m!

Efficient Cooling System
The ESC features a frameless fan design that enables high airflow discharge from the sides, improving overall cooling efficiency. Combined with an integrated heatsink housing, heat generated during operation is rapidly dissipated. This helps maintain stable operating temperatures, ensuring consistent performance even under demanding conditions.

Intelligent Fan Control
The ESC is equipped with an intelligent fan control system that automatically adjusts fan operation based on real-time temperature. When temperatures remain low, the fan stays off, and once a preset threshold is reached, it activates automatically. This system helps reduce noise and power consumption while maintaining accurate and efficient thermal management.

Turbo Timing Technology
The ESC supports adjustable Turbo timing up to 32 degrees. When paired with HOBBYWING EzRun 3652/3665 G3 motors, the system delivers a noticeable Turbo effect, with maximum RPM increased by up to approximately 25%. This provides enhanced top-end performance while maintaining controlled power delivery.
Note: Turbo function cannot be enabled for non-Hobbywing motors.

Rated to IP67 standards, the ESC offers strong resistance against water and dust particles. This level of protection allows reliable operation in a wide range of weather conditions and demanding environments.

Capacitor Thermal Protection
The ESC features built-in capacitor overheat protection designed to reduce the risk of damage caused by excessive load conditions. By preventing potential capacitor failure, the system adds an additional layer of safety and helps protect the ESC from severe damage.

Dual Programming Options
The ESC offers two convenient methods for parameter adjustment. Users can connect wirelessly via Bluetooth using the HW LINK smartphone app, or with a LCD programming box. These options provide flexibility across different usage scenarios, allowing drivers to tune the system according to their personal preference.

Applications:
1/10th On-road & Off-road
Cont. / Peak Current: 140A/880A
Lipo Cells: 2-4S Lipo,
BEC Output: 6V / 7.4V / 8.4V@6A
Size / Weight: 53 × 39.5 × 37.2mm / 125g (Included input wires & connectors)
Motor Limit: With 2S Lipo: KV 6000 3652 size motor
With 3S Lipo: KV 4000 3665 size motor
With 4S Lipo: KV 2600 4268 size motor


Motor Information

EzRun 3665 SD G3

The new generation adds performance.

The evolution of a sensored motor, increases performance.
The EzRun 3652/3665 SD G3 features an improved waterproof sensored cable interface and an upgraded sensored mode to achieve motor temperature protection and perfectly matches the EzRun MAX10 G2 ESC.

Powerful hardware configuration, efficiency is greatly improved.

The high-precision Hall sensor components ensures that the rotor position output is always accurate and consistent, achieving excellent linearity and a great throttle control.

The EzRun 3652/3665 G3 motor adopts a high precision bearing that is waterproof in the front end of the motor.
The rear end of the motor uses precision iron cover with a smaller structure to improve the capacity, and at the same time, provides a higher bearing speed while keeping resistance low. The operation is smoother and more reliable.

Compared to the G2 motor
The overall efficiency is 3% up.

More effective while the maximum output power has increased by 5%

The motor temperature is greatly reduced under the same load conditions

The stable power and high output of the motor, makes throttle control for maneuvers (power wheelies, straight line power, and clearing jumps) much easier.

The motor adopts a modular detachable structure design.
The motor adopts a modular detachable structure design for easy disassembly and daily maintenance. This helps to prolong the lifespan of the motor and maintaining the efficiency of the motor simple.

Applicable to All Weather & Track Conditions
The IP-67 waterproof system guarantees excellent waterproofing and dustproofing protection. The whole power system is able to drive on a variety of surfaces including mud, sand, ice, snow and water without damaging the power unit.

Specifications

Type
Scale: 1/10th
Brushed / Brushless: BL
Sensored / Sensorless: SD
Pole Count: 4

Relevant Parameters
KV Rating: 4000KV
LiPo Cells: 2-4S
No-Load Current(A): <8.2A

Size & Weight
O.D.(mm): 37
Length (mm): 68.5
Shaft Diameter (mm): 5
Weight (g): 297g
Front Bearing: D16*D5*T5
Rear Bearing: D11*D5*T5

Other Parameters
1/10th Short Course Truck Truggy/Monster
