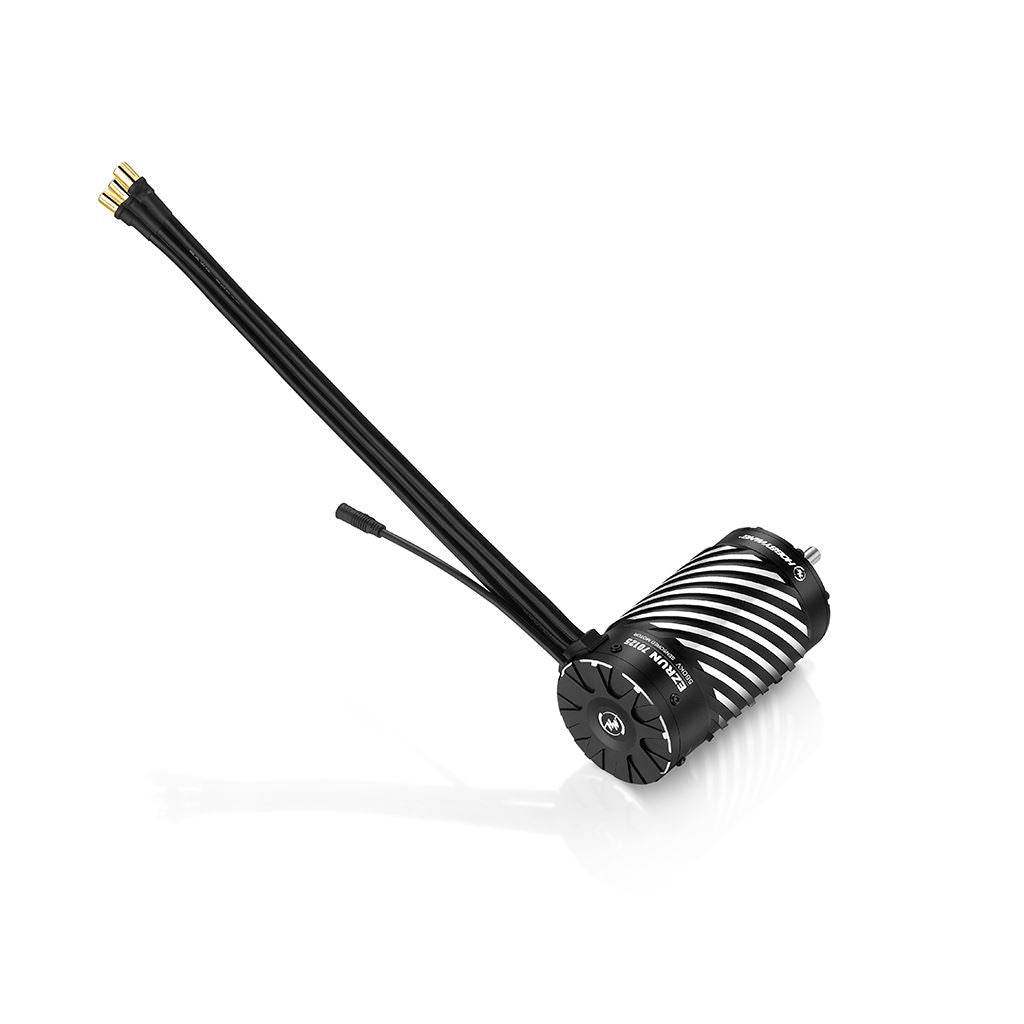

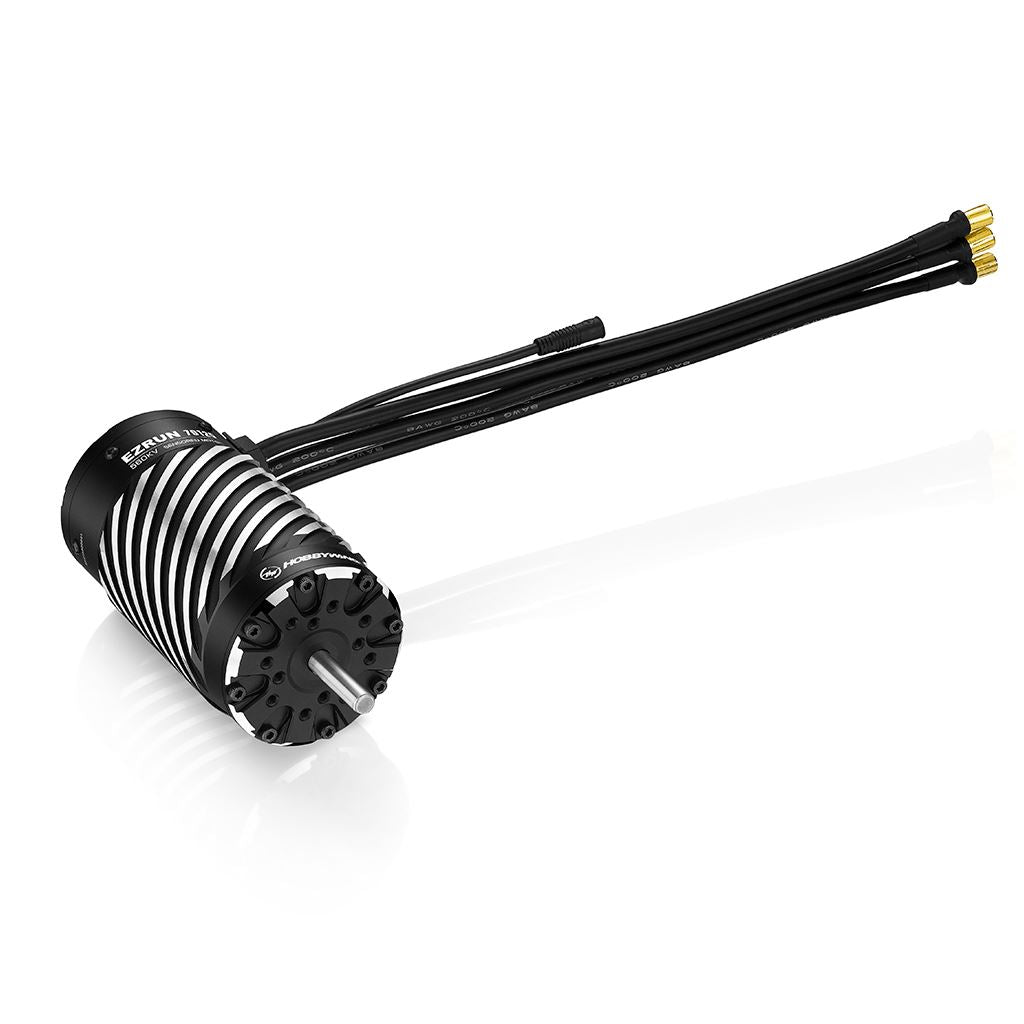

EZRUN - 70125SD - 560KV 1/5th Motor
Save £115
Couldn't load pickup availability
The exquisite look combined with an innovative heat dissipation structure of the casing truly brings out a product Hobbywing is proud of.
Fully sensored mode,High power
The EZRUN series of motors are known to be dynamic and dominant. They are built differently to meet the needs of various demands on the market. It has a strong output power with an excellent linearity at low speed and is operating on full-sensored mode.
Applicable to All Weather & Track Conditions
The IP-67 waterproof system guarantees excellent waterproofing and dustproofing protection. The whole power system is able to drive on a variety of surfaces including muddy, sandy, icy, snowy and water without damaging the power unit.
A perfect combo with the EzRun MAX4 HV ESC
The motor achieves perfect compatibility when used together with the EzRun MAX4 HV ESC. It provides ultra-large torque, precise handling performance, and brings a smooth and comfortable control experience to the users.
Ultra-high efficiency effectively reduces the operating temperature of the motor
Hobbywing technology helps to solve the degradation caused by motor overheating. It ensures that the motor is always in good working conditions.
Practical design for easy disassembly and maintenance
The motor adopts a modular detachable structure design for easy disassembly and daily maintenance. This helps to prolong the lifespan of the motor and maintaining the efficiency of the motor is simple
New sensored cable interface
The Max4 HV ESC is equipped with a new type of sensored cable interface. It is high recommended to use the motors from Hobbywing as the waterproof protection level is at the highest level (IP67).
New sensored cable interface
The Max4 HV ESC is equipped with a new type of sensored cable interface. It is high recommended to use the motors from Hobbywing as the waterproof protection level is at the highest level (IP67)
Note: This ESC also supports wires with the standard interfaces on the market.
High quality materials and excellent product design
The materials (Motor casing, bearings, ultra-thin silicon steel sheets, high temperature-resistance copper wire, explosion-proof rotor, high-tolerance alloy shalf) are carefully selected and approved by our in-house engineers. Hobbywing is serious in providing users with an extraordinary performance for a long period of time.
Specification
Scale - 1/5th
Brushed/Brushless - BL
Sensored/Sensorless - SD
Pole Count - 4
KV Rating - 560KV
LiPo - 8-12s
No-load Current(A) - 3.6A
O.D. (mm) - 70
Length (mm) - 125
Shaft Diameter (mm) - 8.0
Weight (g) - 1995g
Front Bearing - D22*D8*T7
Rear Bearing - D22*D8*T7
Applications - 1/5th Heavy Duty Off Road, Truck
-
