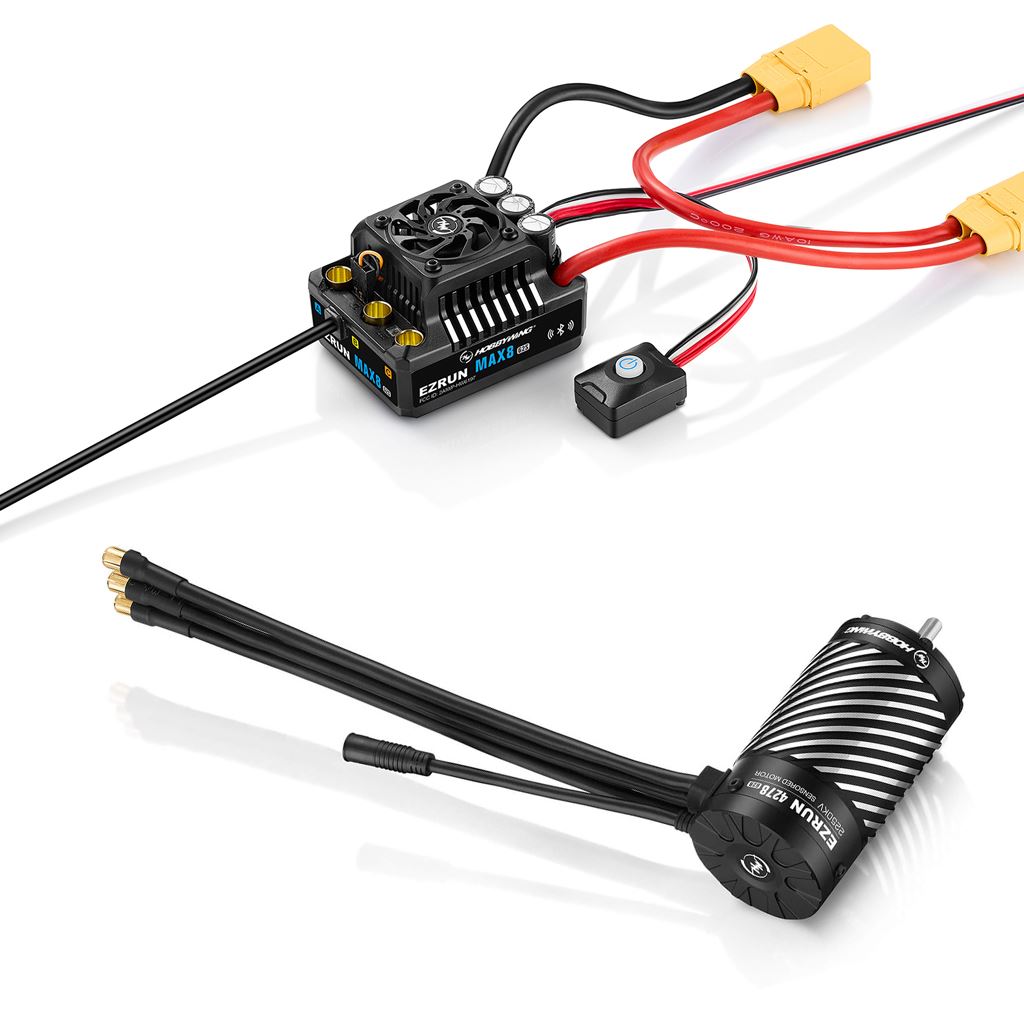

Ezrun Combo Max8 G2S & 4278Sd 2250Kv G2R
Save £15.80
Couldn't load pickup availability
EzRun MAX8 G2S Optimized hardware, increases in stability and reliability.
Extreme output, easy to control.
The ESC has power, yet smooth and linear throle response. This balance of power and control allows drivers to drive their vehicles at the limit comfortably.
Optimized hardware, increases in stability and reliability.
Based on the Max8 G2 ESC, the brand new G2S ESC is equipped with optimized hardware design application such as intelligent freewheeling technology. The stability and reliability of the ESC has been further
improved.
Built-in Bluetooth, directly connected to the mobile APP
The ESC has a built-in Bluetooth module. It allows you to connect to the mobile APP directly without plugging any device. It is simple and convenient to perform parameter seings, data reading, firmware upgrades and other operations.
Note: The data includes throle amount, voltage, current, temperature, speed, etc.
Specifications
Cont. / Peak Current: 160A/1050A
Motor Type: Sensored and sensorless
brushless motor
Lipo Cells: 3-6S Lipo
Programming Method:
iOS or Android smart phone
(installed with the HW LINK app)
Size / Weight: 60 x 48 x 40.5mm / 192g
(Included input wires&connectors)
Motor Limit: With 4S Lipo: KV 3000
With 6S Lipo: KV 2400 4278 size motor
BEC Output: 6V / 7.4V / 8.4V adjustable, continuous current 6A (Switch-mode)
Fan intelligent start and stop function
The ESC fan does not run when the ESC temperature is low; The fan automatically turns on when the ESC temperature reaches the preset value. The intelligent
start and stop function of the fan not only reduces noise, saves power, but also ensures that the ESC works in a good temperature range.
Built-in data logging function, ease of obtaining power operating status.
The ESC has a built in data rcoerding module. Store up to 10 minutes of your most recent run. Using the HW Link V2 App, you can view the data saved to the ESC. In addition, the module allows you to view Real Time Data from the ESC for bench top testing and viewing of the data outputs.
Note: Due to transmission distance of bluetooth, the eective distance
is only about 5m!
Efficient cooling system
A frameless fan with patented technology is used. The large flow of air from the side of the fan eectively blows the heat away from the integrated housing radiator to ensure that the ESC is always in the
optimal operating temperature.
High level of protection
The protection level reaches IP67, with excellent waterproof and dust-proof performance. It is able to cope with harsh environments, various climate conditions and has all-weather operation capabilities.
Note: The above-mentioned IP67 protection level is splash-proof, water-resistant, and dust-proof under normal use. It is not permanently effective, and the protective performance may decrease due to daily wear and aging. Do not soak in water for a long time, otherwise the product may be damaged.
1/8th power system turbo timing technology
Turbo timing that is adjustable up to 32 degrees. Using turbo allows motor RPM to be increased through advanced ESC electronic timing.
Capacitor overheating protection
The Capacitor protection prevents damage to the power caps from overheating from overloads or extreme conditions. This protects the ESC from damage.
Super Built-in BEC
The ESC has a built-in super BEC with a maximum output current of up to 15A. The output voltage can be switched in three levels of 6V/7.4V/8.4V. Drivers are able to enjoy using high-voltage servos with this function.
Waterproof Sensor Harness
The proven Hobbywing waterproof sensor harness provides an element proof solution for sensor based systems.
Note: Supports normal adaptor sensored motors, it requires an additional adapter wires for other motors.
Best Combination: EzRun 4278/4268 SD G2
Suitable for;
On-road
Monster
Off-road
Short Course Truck
------------------
Motor Information
Sensored Design - Linear Smooth Response
The motors are powerful, and linear. When paired with the matching ESC, the performance is unmatched.
Perfect match for EzRun MAX8 G2S ESC.
These motors are paired perfectly with the EZRun MAX8 G2S. The ESC can identify the matching motor, and provide the best performance. When paired with the matching ESC, the overheat protection can be used to prevent any motor damage from overheating.
Ready to take on all conditions
The motor features Hobbywing's patented waterproof design for both the output shaft position and wire outlet housing. Combined with a new type of induction line interface, it achieves an IP67 protection rating,
ensuring outstanding waterproof and dustproof performance. It effortlessly withstands various weather conditions and harsh environments.
Durable Materials
It adopts high-hardness aluminum alloy CNC shell,high-quality bearings of first-line brands, ultra-thin silicon steel sheets of first-line brands, high temperature-resistant oxygen-free copper wires, and high-toughness alloy output shafts to provide excellent performance for the motor. Performance provides a solid guarantee.
Specification
Scale - 1/8th
Brushed/Brushless - BL
Sensored/Sensorless - SD
Pole Count - 4
KV Rating - 2250KV
LiPo - 3-6s
No-load Current(A) - 5.3A
O.D. (mm) - 42
Length (mm) - 78
Shaft Diameter (mm) - 5.0
Weight (g) - 465g
Front Bearing - D16*D5*T5
Rear Bearing - D11*D5*T5
Applications - 1/8th Buggy, Monster Trcuk
-
