Maverick  |  MV150240

Flx10-4S120 Esc

£89.29
RRP: £93.99
Save £4.70
Home Delivery Available to order

        Allow 7-10 day(s) for order dispatch

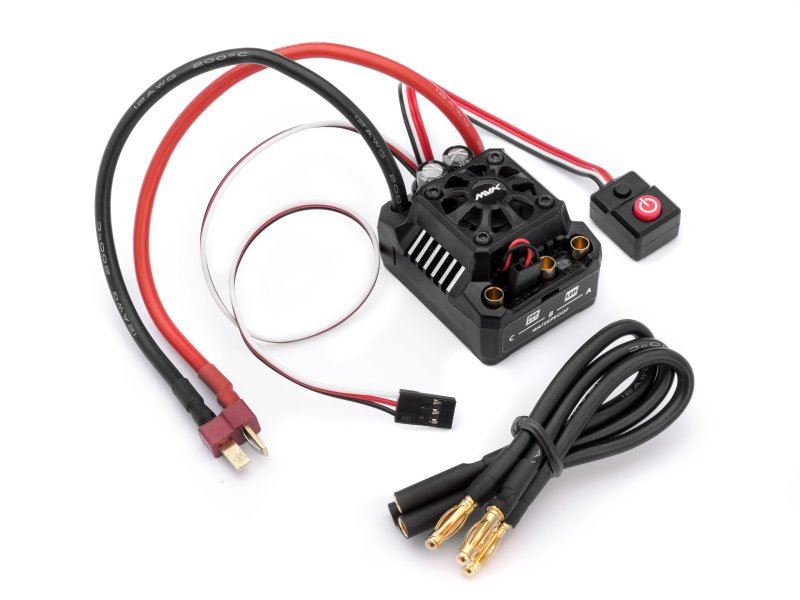

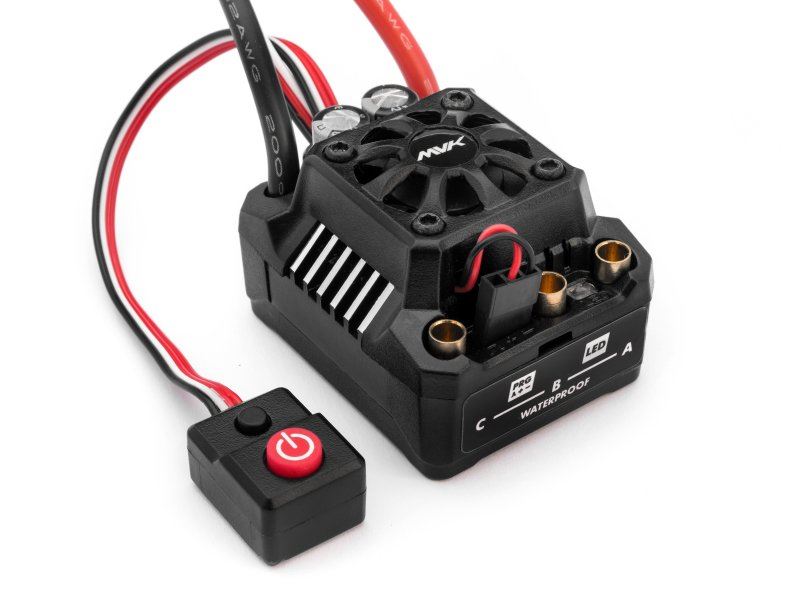

The FLX10-4S120 Flux ESC is the perfect match for the
FLX10-3674-2250KV 1/10th scale brushless motor - it's able to
handle up to 4S LiPo and pump upto 120 amps of power to the
motor for amazing stunts, colossal top speeds, and wheel-spinning
sideways action!


Complete waterproof protection means you can take your truck
equipped with the FLX10-4S120 ESC into territory that would scare
off other drivers: puddles, mud, and more! A large fan sits on top
of the case inside a protective cover to keep things cool when the
weather's warm and you've been driving hard. Finally, a sealed
electronic push button on/off switch with a long cable let you put
the button just about anywhere you want on your car or truck.


Technical Specifications:

Input Voltage: 2-4S LiPo

Continuous Current: 120A

Burst Current: 830A

Motor Limit: 2S LiPo <6000KV, 3S <4000KV, 4S <3000KV

BEC: 6V/7.4V Switching BEC, 4A Continuous Current

Battery Connector: T-Plug

Motor Connector: 4.0mm Bullet

Dimensions: 49x39.5x347mm (W/Fan)

Weight: 105g

Application: 1/10th Buggy/Monster Truck


The FLX10-4S120 ESC & FLX10-3674-2250KV  Motor
requires very powerful batteries to get the most out of them -
please make sure that you use the right combination! HPI highly
recommend the use of high quality LiPo batteries. Using batteries
with low ratings, or the use of lower quality LiPo batteries, may
cause damage to your batteries and/or speed control. Using
batteries below the specified ratings may void the warranty of the
speed controller and/or batteries.


NOTE: Before driving in wet conditions, make sure that other
electronics fitted to the vehicle are safe to use (marked as
water-resistant or waterproof), or that they are fully enclosed and
protected from water and moisture (such as in a sealed
receiver/battery case). Fans mounted on speed controllers are not
water resistant - we recommend to disconnect the fan from the ESC
before driving in wet conditions and allow it to dry fully before
reconnecting the fan power. Lubricate exposed metal drivetrain
parts such as bearings, outdrives and diff shafts before driving in
wet conditions. Motors are not intended for submerged use and may
be damaged if used when under water. After driving in wet
conditions, make sure to rinse off dirt and any corrosive liquids
like saltwater with plain water and re-lubricate metal drivetrain
parts.

Download PDF instructions for #150240 (10.6 MB)
