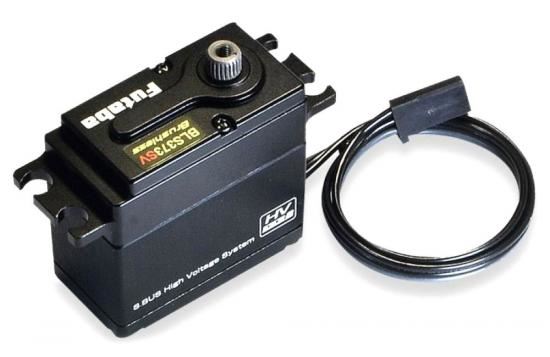

Futaba BLS373SV Servo - HV Brushless S-Bus2 (0.11s/37Kg) (P-SBL373SV)
Save £13.80
Couldn't load pickup availability
• 37kg/cm torque with a metal gearbox
• High-Voltage
• Brushless motor
• Strong ball bearings
• Robust aluminium housing
• High resolution
• High accuracy
• Low-wear potentiometer
• Water resistant
Advantages of brushless motor technology:
• 30% faster response time
• Better acceleration
• More resistant to vibration and shock
• High efficiency, thus lower engine heating
• No carbon brush wear, resulting in 5 times engine life
• Special gearbox with minimum backlash
• Cobalt Samarium Motor Magnets
• Highest resolution
• Same power consumption as conventional digital servos
The following parameters are programmable:
• S.BUS channel assignment
• Servo Reversal
• Servo type (Normal/Retractable landing gear)
• Soft start (On/Off)
• Mode selection in case of signal failure Hold or Free
• Soft servo run (On/Off)
• Servo position (Servo Tester)
• Servo-pitch adjustment +/- 300 µs (about 30 degrees)
• Servo speed
• Dead band setting
• Servo travel adjustment (left and right individually)
• Starting power
• Attenuation
• Holding force
• ID storage
Specifications | |
---|---|
Case | Metal |
S.BUS | S.Bus & S.Bus2 |
Futaba SR Mode | Yes |
Weight | 84g |
Bearings | Ballraced |
Torque | 31 kg/cm @ 6V |
Torque | 37 kg/cm @ 7.4V |
Voltage | 4.8 - 7.4V |
Speed | 0.11 sec/60° @ 7.4V |
Speed | 0.14 sec/60° @ 6V |
Dimensions | 40.5 x 21.0 x 38.4mm |
Electric Motor | Brushless |
-
