Hobao Hyper 1/8 Vs2 Electric Truggy Arr

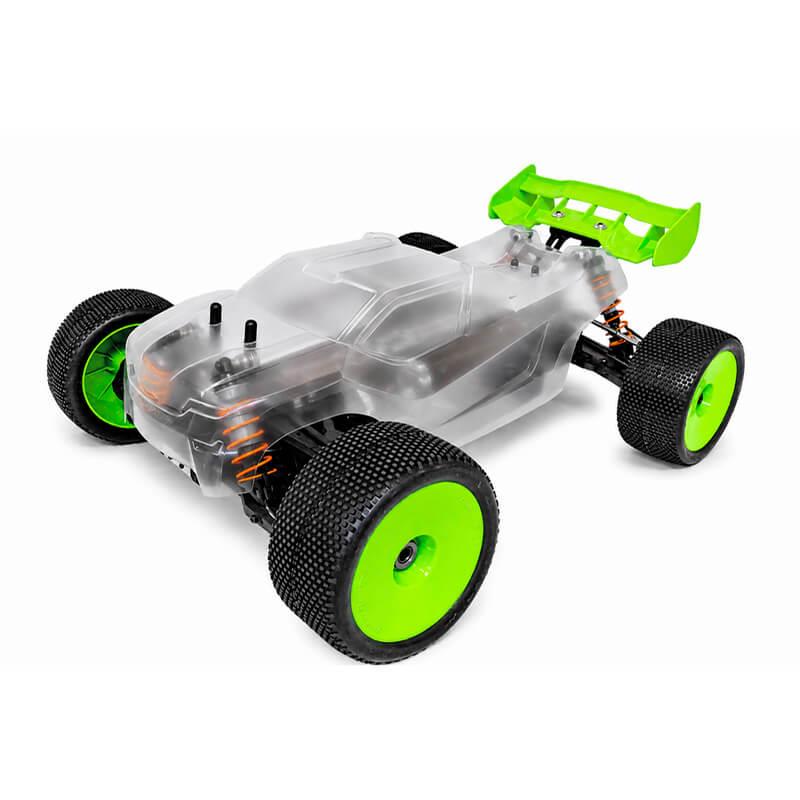

HOBAO HYPER 1/8 VS2 ELECTRIC TRUGGY ARR

HoBao’s latest entry into the off-road truggy market, the Hyper VSTE is designed for serious off-road performance, whether at the track or for extreme bashing.

This fully featured truggy combines a lightweight CNC-machined 7075 aluminium chassis with front and rear stainless-steel skid plates for additional protection from those big landings, together with a durable heavy-duty metal drivetrain and fully adjustable suspension.

With hardened-steel driveshafts, front, centre and rear oil-filled geared differentials, 17mm large-bore aluminium shocks and reinforced suspension arms, the Hyper VSTE is built to handle demanding driving conditions.
The Hyper VSTE features a flexible battery layout, allowing the chassis to be configured for either a single or dual-battery setup. The single battery tray can be positioned at the front, centre or rear, giving drivers the ability to fine-tune the vehicle’s weight distribution and centre of gravity.

CNC-machined aluminium components, adjustable steering and suspension geometry, front and rear anti-roll bars and 17mm wheel hex hubs provide a strong and highly tuneable platform.

HoBao also offers a wide range of optional upgrades for drivers looking to take the VSTE’s performance even further. These include carbon-fibre components, aluminium suspension arm holders with inserts, titanium turnbuckles, aluminium differential and gearbox components, and alternative springs and pistons.

When it comes to premium performance with a heavy-duty stance, the HoBao Hyper VSTE is ready and waiting.

Features

• CNC-machined 7075 aluminium chassis, 3mm thick, lightweight and hard-anodised.
• Front and rear stainless-steel skid plates.
• 2mm aluminium centre top brace with laser engraving and wire pass-through design.
• Optional carbon-fibre centre top brace.
• Hardened-steel driveshafts and drive cups throughout.
• Front, centre and rear differentials with metal bevel gears and anti-leakage housings.
• Large-bore 17mm aluminium shocks with adjustable rings.
• 4mm high-hardness alloy-steel shock shafts.
• CNC-machined 7075 aluminium shock towers, 5mm thick.
• Adjustable steering crank with 7075 aluminium rack and hard spring.
• Ball-bearing-equipped servo saver.
• Hard-anodised aluminium upper and lower pivot balls.
• Reinforced composite upper and lower suspension arms.
• Widened upper suspension arms for increased torsional resistance and durability.
• Front and rear anti-roll bars.
• Adjustable roll centre, camber, caster, toe and anti-squat settings.
• Configurable single or dual-battery layout.
• Adjustable battery tray compatible with standard shorty and standard-length batteries.
• CNC aluminium cam-lock motor mount.
• 17mm front and rear wheel hex hubs.
• 3.9-inch dish wheels with 17mm hex.
• 3.7-inch mini rectangle pin tyres.
• Full set of ball bearings included.
• Adjustable caster and camber.

Specifications

Chassis: CNC 7075 aluminium, 3mm thick
Drivetrain: 4WD
Differentials: Front, centre and rear
Pinion Gear: 10T, MOD 1
Ring Gear: 46T, MOD 1
Centre Spur Gear: 45T, MOD 1
Shock Bodies: 17mm ID large-bore aluminium
Shock Shafts: 4mm high-hardness alloy steel
Shock Towers: CNC 7075 aluminium, 5mm thick
Wheel Hex: 17mm front and rear
Wheels: 3.9-inch dish wheels
Tyres: 3.7-inch mini rectangle pin
Battery Configuration: Single or dual battery
Battery Compatibility: Standard shorty and standard-length batteries
Motor Mount: CNC aluminium cam-lock style
Motor Compatibility: Below 50mm diameter*
Ball Bearings: Full set included
Caster: Adjustable
Camber: Adjustable

Please Note: *Motors exceeding 42mm in diameter cannot be used with the motor support. A 40mm motor requires the black plastic hoop, while a 42mm motor can be installed directly with the motor support.

Required To Complete

• 2-channel radio system.
• ESC and motor.
• High-torque steering servo.
• Tyre glue.
• RC body paint.
• Suitable LiPo battery/batteries with XT90 connector(s).
• LiPo battery charger.
• 4 x AA batteries for transmitter.
