Hobbywing Combo Max10 G2S 80A Esc 3652Sd 4500Kv Blk G3 Motor
Save £2.90
Couldn't load pickup availability

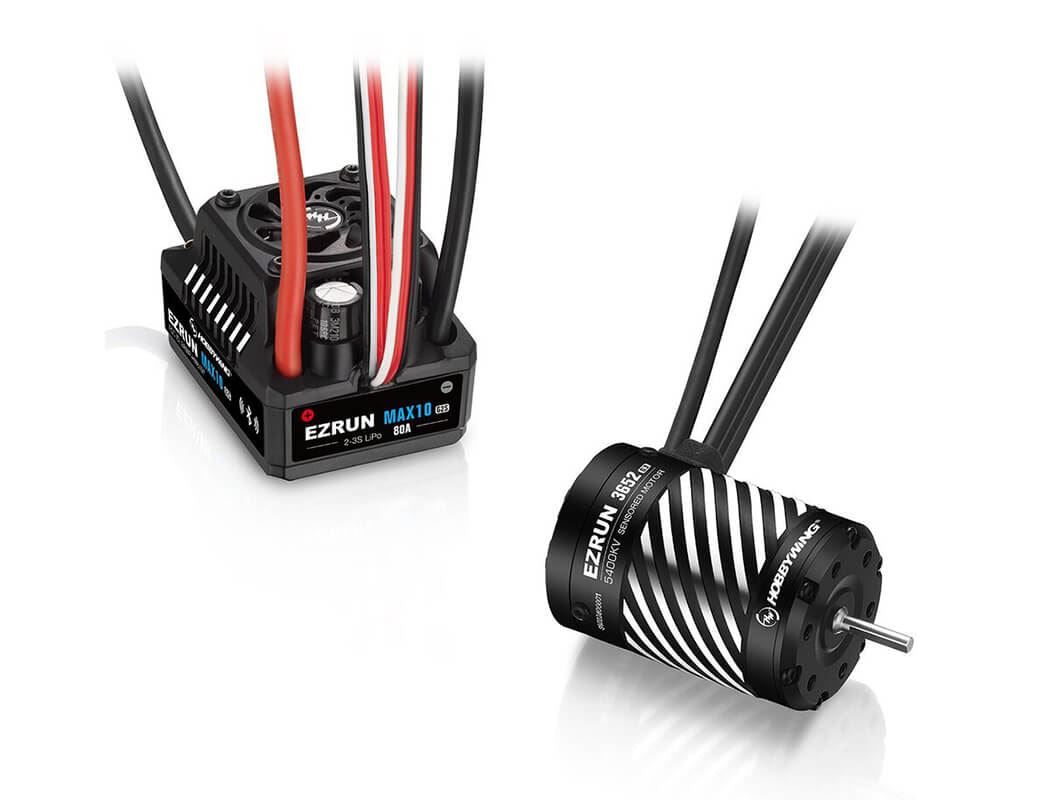

HOBBYWING COMBO MAX10 G2s 80A ESC 3652SD 4500KV BLK G3 MOTOR
The Hobbywing Ezrun MAX10 G2S 80A Brushless Combo pairs the Ezrun MAX10 G2S 80A ESC with the matching Ezrun 3652SD G3 5400kV motor— a factory-matched power system designed for 1:10 scale RC cars.
The MAX10 G2S is the logical evolution of the MAX10 G2: it offers the same performance and housing but features an ESC that can be configured without any additional devices. The integrated Bluetooth module sits inside the switch, connecting seamlessly to your smartphone via the HW-LINK app for programming, data logging, and firmware updates. New compared to the G2 model are internal data recording and a third BEC voltage step of 8.4V for high-voltage servos.
This combo shines especially in its synergy: Turbo Timing can only be activated with supported Hobbywing motors and boosts maximum RPM by up to ~25%. The motor overheat protection also functions exclusively with compatible Hobbywing motors, both features readily available with the included Ezrun 3652SD G3 motor.
Features
- Integrated Bluetooth module in the switch for direct smartphone programming without extra devices.
- Internal data logging of the last 10 minutes of runtime, graphically analyzable via the HW-LINK app.
- Turbo Timing up to 20 degrees — with the included motor, achieves approximately 25% higher maximum speed.
- BEC with three voltage levels: 6V, 7.4V, and 8.4V at 5A in switch mode.
- Frameless temperature-controlled fan with side exhaust.
- IP67-rated water and dust resistance for both ESC and motor, including waterproof sensor cable.
- Overheat protection for capacitors.
- Protective functions for undervoltage, overheating, and signal loss.
- 4-pole rotor delivering high torque, fast acceleration, and stable performance.
- CNC-machined aluminum housing and precision bearings in the motor.
Specifications
ESC (Ezrun MAX10 G2S 80A)
Type: 1/10 brushless, sensored and sensorless
Current (continuous/peak): 80A / 520A
Input voltage: 2-3S LiPo
BEC: adjustable 6V / 7.4V / 8.4V, 5A continuous (switch mode)
Motor limits: 2S LiPo KV ≤ 6000; 3S LiPo KV ≤ 4200 (for 3652/3665 motors)
Turbo Timing: Up to 20 degrees
Fan: Yes, powered via BEC
Programming: Bluetooth via HW-LINK app; also supports LCD programmer box & OTA module
Waterproof rating: IP67
Dimensions: 53 x 39.5 x 37.2 mm
Weight: 125 g (including cables and connectors)
Use cases: 1/10 On-Road, Buggy, Rally, and Short Course Truck
Motor (Ezrun 3652SD G3)
Type: Brushless, sensored
KV rating: 5400kV
Idle current: ≤ 6.8A
Voltage: 2S LiPo
Poles: 4
Length: 53 mm
Diameter: 37 mm
Shaft diameter: 3.175 mm
Weight: 227 g
Waterproof rating: IP67
Application: 1/10 On-Road / Off-Road Short Course Truck (light-duty)
Please Note: For 7.4V or 8.4V BEC output, a minimum 3S battery is required. Bluetooth range is approximately 5 meters due to device design.
-
