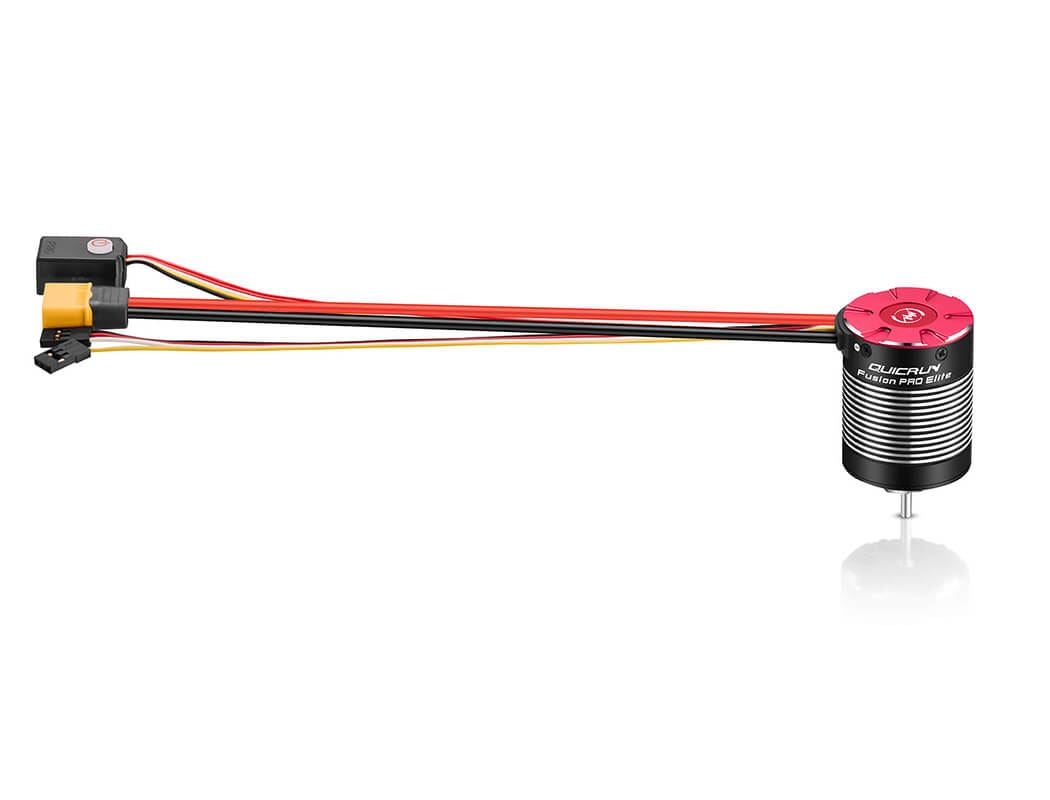

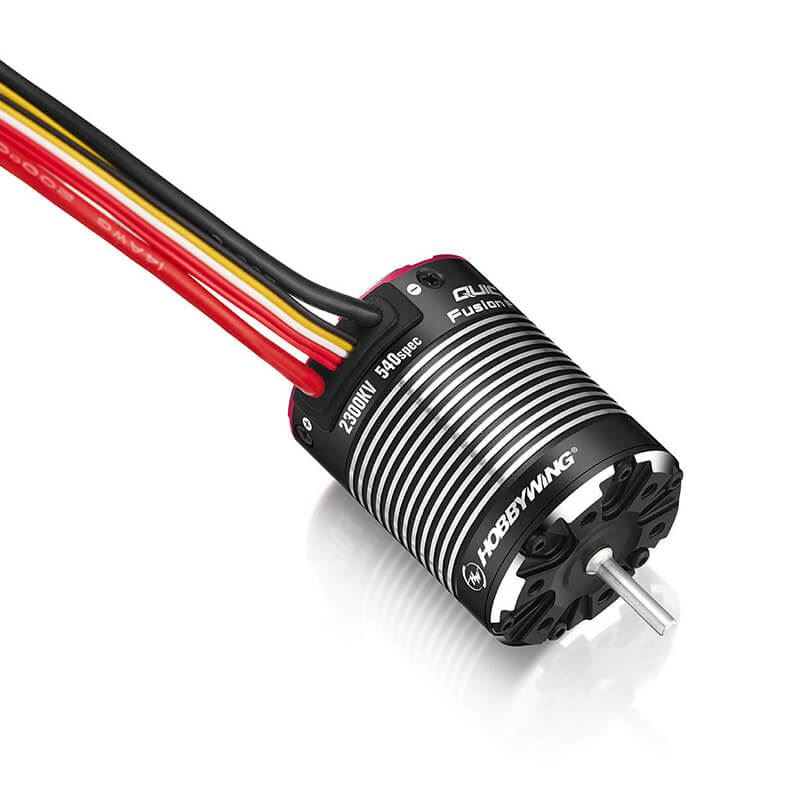

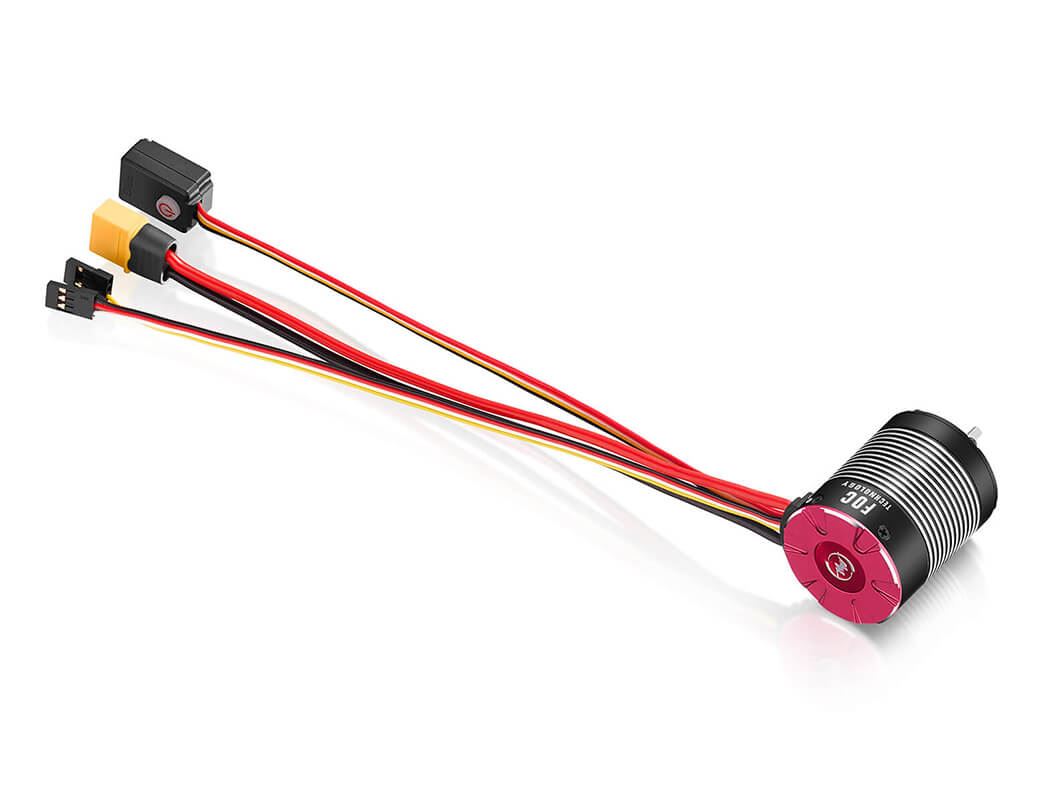

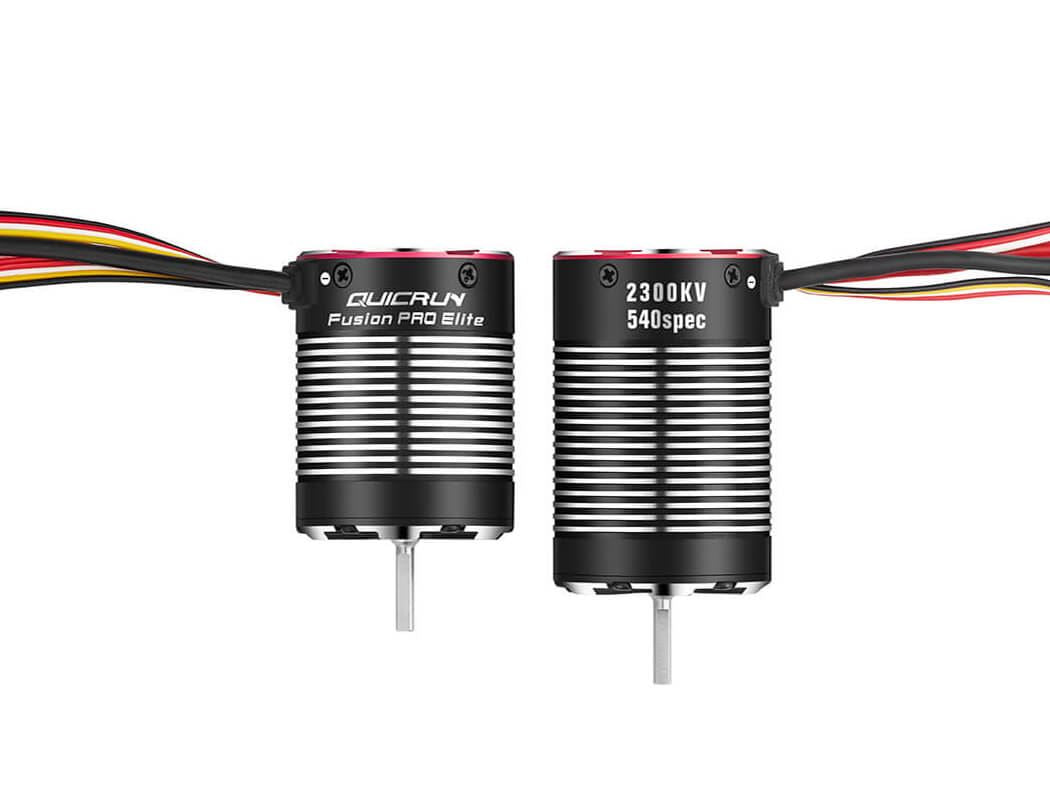

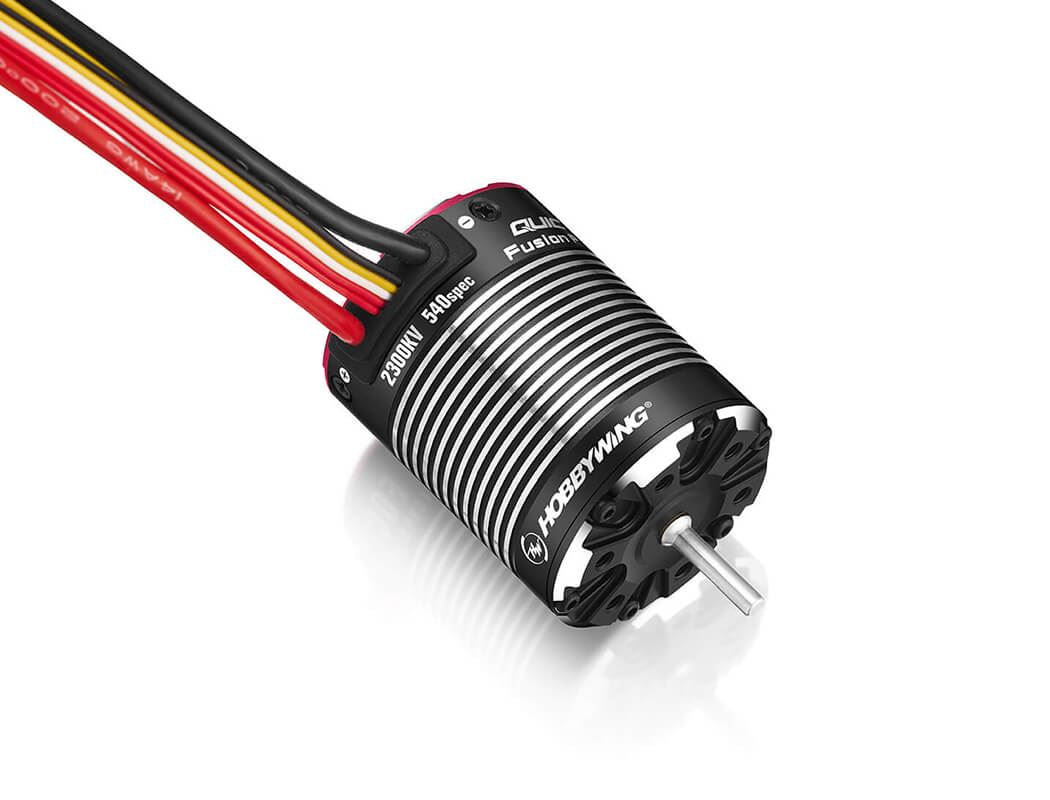

Hobbywing Quicrun Fusion Pro Elite Crawler 2300Kv
Save £9.40
HOBBYWING QUICRUN FUSION PRO ELITE CRAWLER 2300KV
Features
- Featuring an ultra-short integrated design with a length of just 48.5 mm, this motor is 9.5 mm shorter than the Pro Standard version and 1.3 mm shorter than the AXE 540. It fits most 10th-scale crawler chassis on the market, allowing for cleaner, more streamlined wiring layouts.
- FOC (Field-Oriented Control) Driving Mode: The FOC driving mode enhances the power system of rock crawlers, delivering strong low-speed torque. This provides superior performance compared to standard brushless setups and is even preferred over brushed setups for overall feel.
- The system offers high efficiency, reduced heat, and extended runtime, with the motor running quietly and smoothly.
- The entire system has an IP67 protection grade, enabling operation in all conditions.
- Intelligent torque output and speed closed-loop control ensure precise handling.
- Active drag brake force adjustment provides superior holding power on inclines.
- The strong built-in switch-mode BEC supports continuous/peak current up to 5A and adjustable voltages of 6V, 7.4V, or 8.4V, capable of driving high-torque and high-voltage servos.
- Real-time parameter adjustments are possible using the transmitter’s AUX channel.
- Multiple protection functions include battery low-voltage protection, overheat protection, throttle loss protection, and lock-up protection.
- The system supports LED and LCD Program Box Pro/G2 for convenient ESC parameter settings.
Specifications
Scale: 1/10th
Brushed/Brushless: Brushless
Sensored/Sensorless: Sensored
Waterproof: Waterproof
Cont./Peak Current: 50A/150A
Input Voltage: 2-4S LiPo,6-12 Cells NiMH
BEC Output: 6V/7.4V/8.4 adjustable,continuous current 5A (Switch mode)
KV: 2300KV
Motor Poles: 4
Input Wires: Black-14AWG-220mm*1 Red-14AWG-220mm*1
Input Connectors: XT60
ESC Programing via:
SET Button on ESC: Not Supported
LED Program Box: Supported
LCD G2 Program Box/LCD PRO: Supported
OTA Programmer: Not Supported
Program Port: Independent programming port(switch position)
Firmware Upgrade: Independent programming port(switch position)Not Supported
Diameter / Length of motor: 37mm/48.5mm
Shaft diameter / exposed shaft length: 3.175mm/16mm
Weight: 178.5g (including wires&connectors)
Applications / Vehicles: 1/10th Crawlers
