Jammer, 2.2In Crawler Wheel Natural 4Pcs

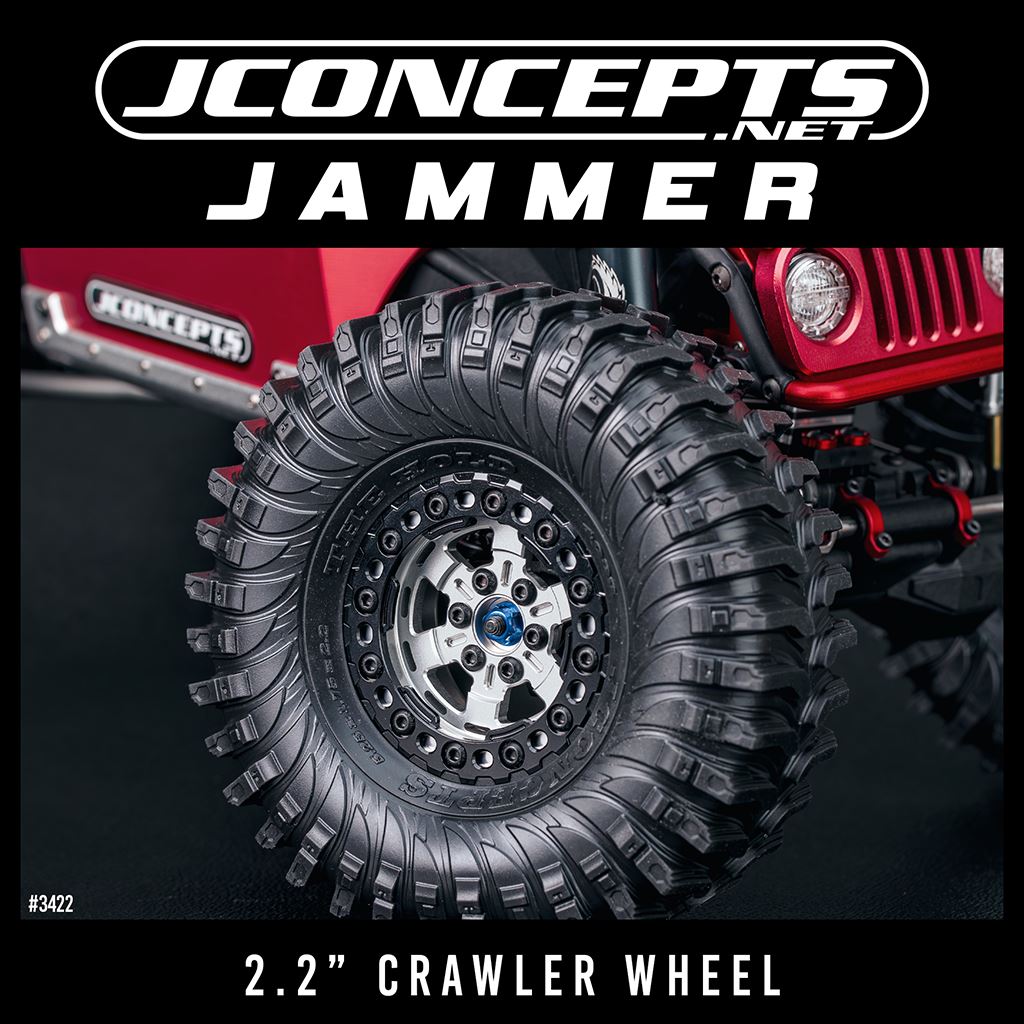

Adding a large 2.2” bead mounting wheel to the assortment of JConcepts crawler wheels was a high priority. The Jammer wheel with clear anodizing has a natural look but multiple levels to the design of the wheel face. The larger diameter provides more surface area to work with and the #gojconcepts designers took advantage of the space to add six triangular pass-through sections to open the appearance. Vertical slots added in between each hex adaptor screw location add a separation to the feel.

The floor of the design has a positive offset position away from the center of the wheel, but the design steps up creating a new wrinkle to the appearance. The hard edge with chamfer ends into the creation of the inner hoop of the wheel giving an actual lip or visual representation of horizontal plane. Also included, new mini slots aligned in each of the twelve instance features on the face of the wheel. The inside of the wheel is clean and smooth with outer bead, inner radius blend looking sleek while looking on the inside of the rig.

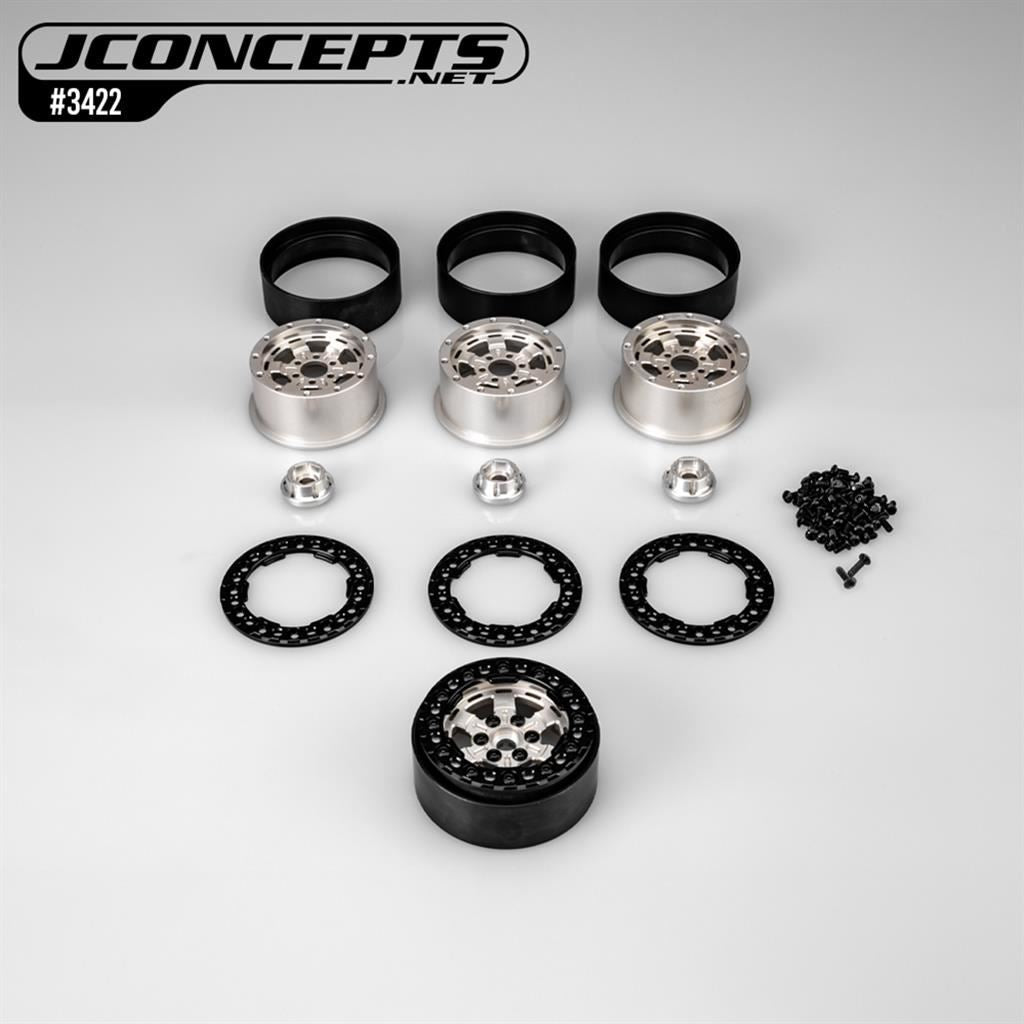

Six heavy-duty 3mm BHCS fasteners lock in the included 4.5mm hex adaptor, while twelve BHCS fasteners secure the bead lock ring to the wheel. The bead lock stands out as the pass-through hole / slots allow the silver and natural wheel to shine through to the outside world. An angular cut is added to the top of the bead lock tucking back the outside lip and individual recessed notches border the outside giving a touch and go feel to the assembly. Add in the six extra tabs hanging down and the bead lock rings have all the class of a special unit vehicle.

The fasteners in the bead lock sit into counterbore sections to almost eliminate any overhang completely from the BHCS hardware. The anodized bead lock combined with the natural look of the silver wheel enhance just about any 2.2” rig out in the field or in any build presentation. The all-steel construction inner bead locking ring is rigid and provides a steady force to grip the 2.2” tire beads. The new wheel has optional parts available to add additional width to the vehicle. JConcepts 5.5, 6.5, 7.5, and 8.5mm aluminum adaptors bolt directly to the Jammer to completely tune the wheel to any course or surface.

The JConcepts team builds, tests, and travels the world to support the brand and gathers valuable driver feedback in search of the best appearing and performance items on the market. The product is designed in the U.S.A. and always backed by JConcepts customer service, supported, and developed by professionals with style. Look for reputable dealers and distributors and demand authentic products – choose JConcepts.

Note: The Jammer wheel package contains 2x M3x12 BHCS screws to help begin the build process of the JConcepts wheels. Since a tight bead mount is critical to performance, it’s easier to begin a build using the included long screws in opposite directions on the wheel. Start the process by installing the screws and actively push or maneuver the beads of the tire into place with a flat head screwdriver. After the bead lock ring starts to lower and tire beads take a set, start securing the remaining screws on the bead lock ring and evenly lowering the bead lock with screws until the final clamp against the wheel is obtained. Remember to replace the M3x12 starter screws with M3x6 to finalize so no screw overhangs exist inside the wheel.

Optional parts:
#3443-005 - JConcepts 12mm crawler hex adaptor, 2pc - 5.5mm
#3443-006 - JConcepts 12mm crawler hex adaptor, 2pc - 6.5mm
#3443-007 - JConcepts 12mm crawler hex adaptor, 2pc - 7.5mm
#3443-008 - JConcepts 12mm crawler hex adaptor, 2pc - 8.5mm

Features:
•Jammer aluminum wheel, clear anodizing
•2.2” bead size, fits – 2.2” bead mounting tires
•6 Tri-angular all-through design
•Vertical and horizontal slots throughout
•Stepped geometry adds depth to the design
•Positive offset allows wheel to sit over suspension components
•Steel inner bead locking hoop
•Aluminum and machined bead lock with heavy detail
•Includes 4.5mm wheel adaptor
•Heavy-duty 3mm BHCS hardware
•2x additional longer screws included for wheel build
(Fits – 2.2" bead mount diameter crawler tires)
