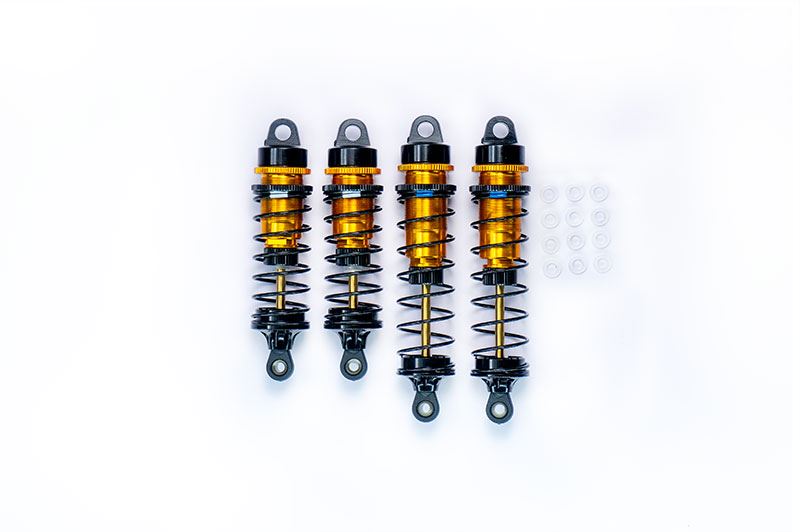

Koswork Ae Rc10 Big Bore 12Mm Buggy Shock Set (F&R) (4) Gold/Black
Save £2.10
Couldn't load pickup availability
*Direct replacement & upgrade for Team Associated RC10
*3 different color combinations available
*Big bore shock set with 12mm pistons
*Gold color or hard coated black color aluminum shock bodies
*Polished inner shock body for slick & friction free performance
*CNC machined 12mm pistons, made of self-lubricating material
*Ti-Nitride coating shock shafts for long life and smooth action
*Aluminum shock caps allow the utmost durability and consistency
*Aluminum shock collars & bottom caps with knurled portion for increased grip
*Aluminum shock spring retainers/cups provide a solid foundation for the shock springs
*Optional springs and pistons available for fine tuning
*Experience the benefits of better bump handling, more traction and consistent performance
*Made In Taiwan
*Cars, parts, accessories & others are not included.*
Specification:
5mm hole on the top of shock cap
Shock ball ends designed for 5.8mm balls
Piston: Front 2×1.5mm / Rear 2×1.6mm
Stroke: Front 24mm / Rear 28.8mm
Overall length: Front 84.2mm / Rear 99mm
Compatibility:
Team Associated RC10

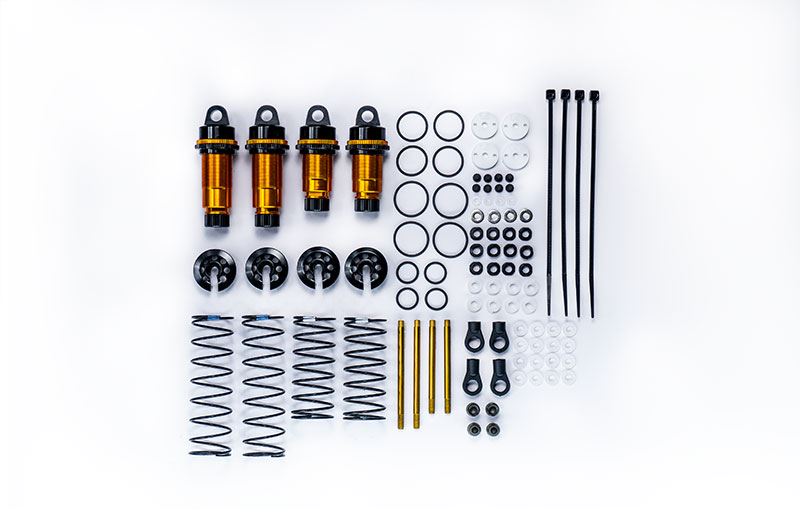

Parts List:
KOS04801-34 34mm Front Alum Shock Body Hard Coated Black for 12mm Shock (2)
KOS04801-34GD 34mm Front Alum Shock Body Gold for 12mm Shock (2)
KOS04801-41 41mm Rear Alum Shock Body Hard Coated Black for 12mm Shock (2)
KOS04801-41GD 41mm Rear Alum Shock Body Gold for 12mm Shock (2)
KOS04803 Alum Shock Cap for 12mm Shock Black (2)
KOS04805BK Black Long 12.2mm Alum Shock Spring Retainer/Cup for 12mm Shock (2)
KOS04805GD Long 12.2mm Alum Shock Spring Retainer/Cup for 12mm Shock Gold (2)
KOS04805TA Long 12.2mm Alum Shock Spring Retainer/Cup for 12mm Shock Blue (2)
KOS04806 O-Ring 12x1mm for Shock Cap 12mm Shock (4)
KOS04807 Shock Spacer & Hat bushing Set for 12mm Shock
KOS04808BK Lower Shock Cap Black (2) 12mm & 13mm Shock AE
KOS04808GD Lower Shock Cap Set Gold (2) 12mm & 13mm Shock
KOS04808TA Lower Shock Cap Set Blue (2) 12mm & 13mm Shock
KOS04809 O-Ring 8x1mm for Lower Shock Cap (4) 12mm & 13mm Shock
KOS04811 O-Ring 14x1mm for Threaded Collar 12mm Shock (4)
KOS04812BK Threaded Collar w/O-rings Black for 12mm Shock AE Tamiya (2)
KOS04812GD Threaded Collar w/O-rings Gold for 12mm Shock (2)
KOS04812TA Threaded Collar w/O-rings Blue for 12mm Shock (2)
KOS04821 Front Shock Shaft TiN Coated 3×41.25mm (2) 12mm & 13mm Shock
KOS04826 Rear Shock Shaft TiN Coated 3×47.75mm (2) 12mm & 13mm Shock
KOS04831-215 2×1.5mm Shock Piston, for 12mm shock AE (2)
KOS04831-216 2×1.6mm Shock Piston, for 12mm shock AE (2)
KOS04841-6 Shock Ball End / Eyelet (for 5.8mm ball) 13.4mm (4)
KOS04841-7 Shock Ball End / Eyelet (for 5.8mm ball) 15.9mm (4)
KOS04846BK Black Short 9.2mm Alum Shock Spring Retainer/Cup for 12mm Shock (2)
KOS04846GD Short 9.2mm Alum Shock Spring Retainer/Cup for 12mm Shock Gold (2)
KOS04846TA Short 9.2mm Alum Shock Spring Retainer/Cup for 12mm Shock Blue (2)
KOS04850-8.5T Front Shock Spring White (44mm, 1.2/8.5T, 3.4 lb/in, ID 16.4mm, 12/13mm Shock) AE (2)
KOS04851-9T Rear Shock Spring Blue (61mm, 1.1/9T, 2.2 lb/in, ID 16.4mm, 12/13mm Shock) AE (2)
KOSBS204 2x4mm Button Head Hex Hardened Steel Screw (w/container) (8)
KOS402506-05 2.6x6x0.5mm 2.5mm Steel Washer / Shim Shiny (8)
KOS40204-05NY 2x4x0.5mm 2mm Nylon Washer / Shim White (8)
KOS02001 Low Friction X Ring (w/special o-ring grease) (for 3mm shaft) (8pcs)
KOS40306-1NY 3x6x1mm 3mm Nylon Washer / Shim White (8)
KOS04311 Kyosho 5.8mm Hard Anodized 7075 Flanged Pivot Ball (4)
Option Parts:
KOS04311 Kyosho 5.8mm Hard Anodized 7075 Flanged Pivot Ball (4)
KOS04313 Kyosho 5.8mm Hard Anodized 7075 Pivot Ball (4)
KOS04804 5mm Shock Cap Bushing for 12mm Shock (4) Black for Koswork, Kyosho & Tamiya
KOS04831-217 2×1.7mm Shock Piston, for 12mm shcok (2)
KOS04850-9T Front Shock Spring Green (44mm, 1.2/9T, 3.1 lb/in, ID 16.4mm, 12/13mm Shock) AE (2)
KOS04850-8T Front Shock Spring Grey (44mm, 1.2/8T, 3.6 lb/in, ID 16.4mm, 12/13mm Shock) AE (2)
KOS04850-7.5T Front Shock Spring Blue (44mm, 1.2/7.5T, 3.9 lb/in, ID 16.4mm, 12/13mm Shock) AE (2)
KOS04850-7T Front Shock Spring Yellow (44mm, 1.2/7T, 4.3 lb/in, ID 16.4mm, 12/13mm Shock) AE (2)
KOS04850-6.5T Front Shock Spring Red (44mm, 1.2/6.5T, 4.6 lb/in, ID 16.4mm, 12/13mm Shock) AE (2)
KOS04850-6T Front Shock Spring Orange (44mm, 1.2/6T, 5.1 lb/in, ID 16.4mm, 12/13mm Shock) AE (2)
KOS04850FSET Front Shock Spring Set (44mm, 3.6/3.9/4.3/4.6/5.1 lb/in, 12/13mm Shock) AE (5 Pairs)
KOS04851-10.5T Rear Shock Spring Green (61mm, 1.1/10.5T, 1.8 lb/in, ID 16.4mm, 12/13mm Shock) AE (2)
KOS04851-10T Rear Shock Spring White (61mm, 1.1/10T, 1.9 lb/in, ID 16.4mm, 12/13mm Shock) AE (2)
KOS04851-9.5T Rear Shock Spring Grey (61mm, 1.1/9.5T, 2.0 lb/in, ID 16.4mm, 12/13mm Shock) AE (2)
KOS04851-8.5T Rear Shock Spring Yellow (61mm, 1.1/8.5T, 2.3 lb/in, ID 16.4mm, 12/13mm Shock) AE (2)
KOS04851RSET Rear Shock Spring Set (61mm, 1.8/1.9/2.0/2.3 lb/in, 12/13mm Shock) AE (4 Pairs)
-
