Kyosho Kc10 Toyota Land Cruiser 60 Crawler 4Wd 1:10 Readyset

KC10 Series TOYOTA LAND CRUISER 60

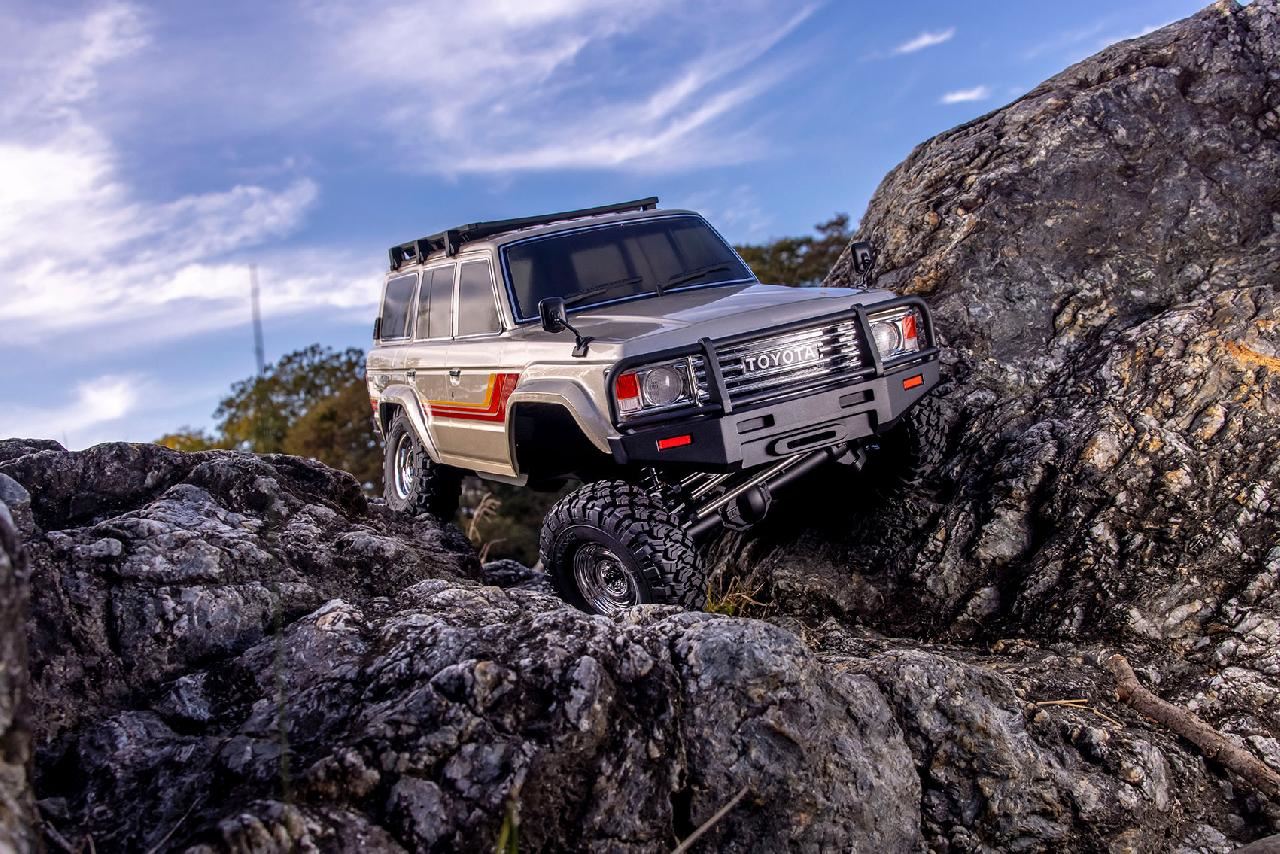

Experience the off-road adventure of crawling over rocky terrain and rugged trails in one of the most dynamic R/C categories. Kyosho’s 1/10 scale electric crawler Toyota Land Cruiser 60 is a striking blend of scale realism and serious off-road capability, powered by the all-new KC10 chassis.
At its core is a high-rigidity, pressed steel main frame paired with a sophisticated suspension setup incorporating 3-link front with lateral rod and 4-link rear system. Combined with a shaft-driven 4WD drivetrain, it delivers impressive crawling performance across the most challenging terrain.
The KC10 series gearbox comes standard in the Readyset with the internal gears required for both a 2-speed transmission and the DIG function. The DIG function allows the rear wheels to be locked while maintaining drive to the front wheels, enabling incredibly tight turning radii during operation.
In factory default condition, the 2-speed transmission is fixed in first gear (low), and the DIG function is set to OFF. By installing the optional CLW001 2-Speed Kit, shifting to second gear (high) can be controlled using the third channel of the transmitter. In addition, installing the optional CLW002 DIG Kit allows the DIG function to be switched ON and OFF. (A separate 4-channel transmitter is required to operate both the shifting function and the DIG function simultaneously.)

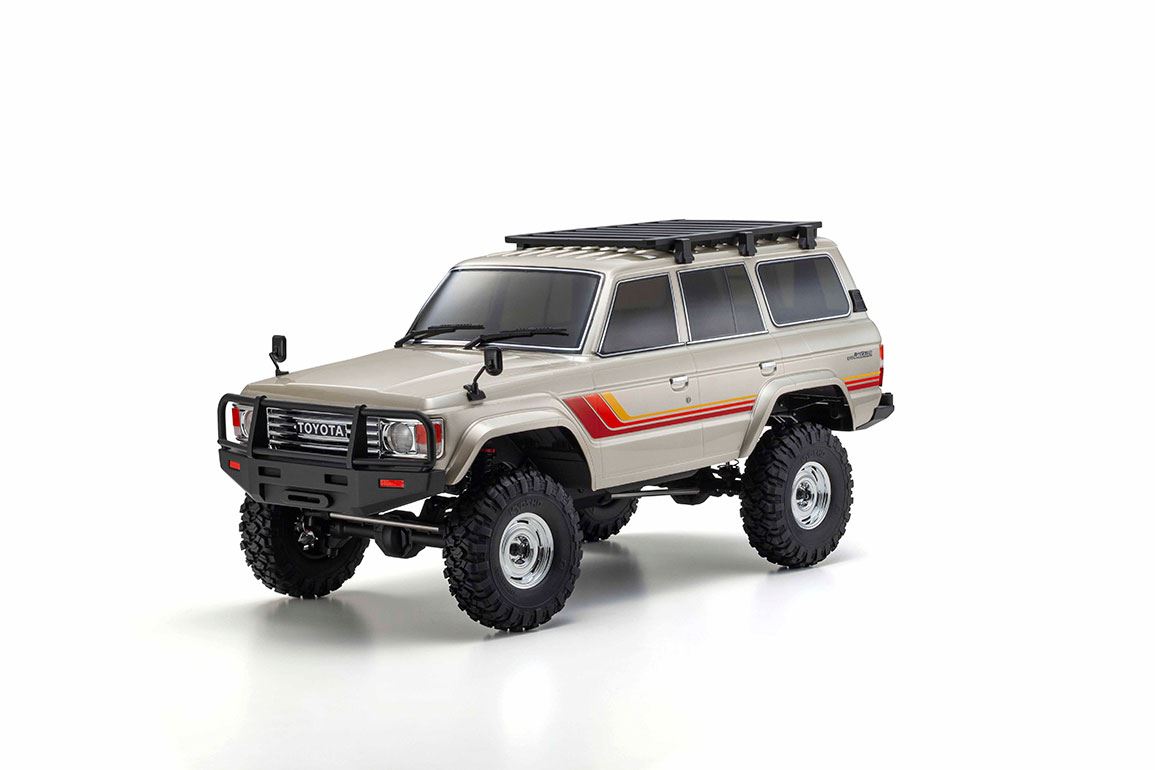

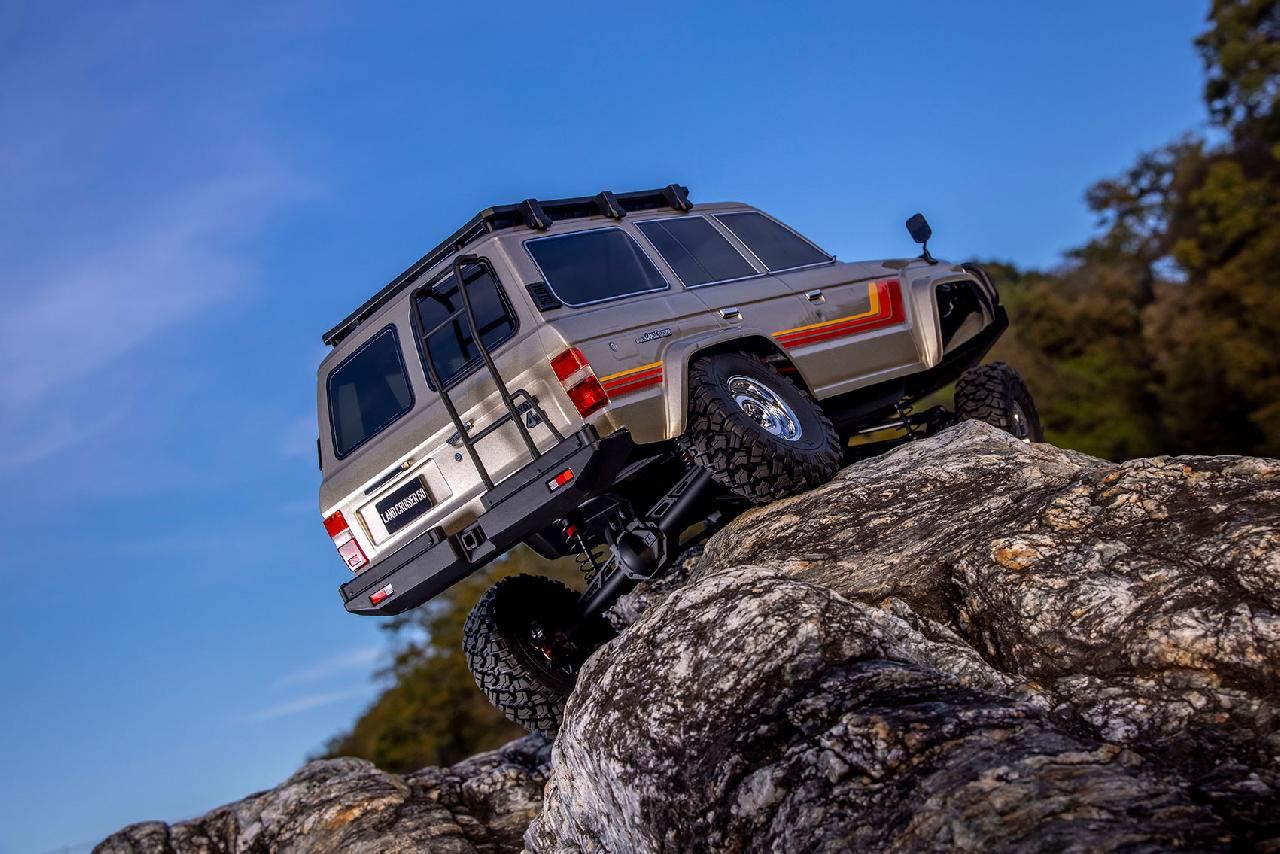

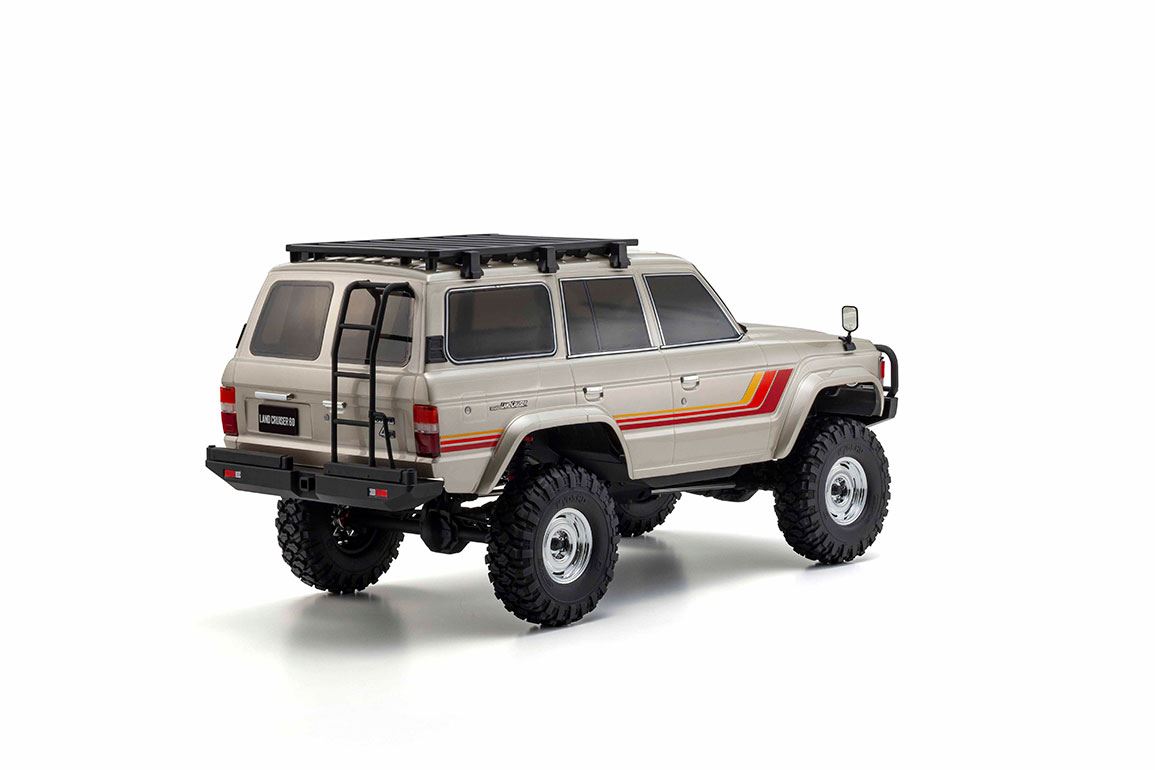

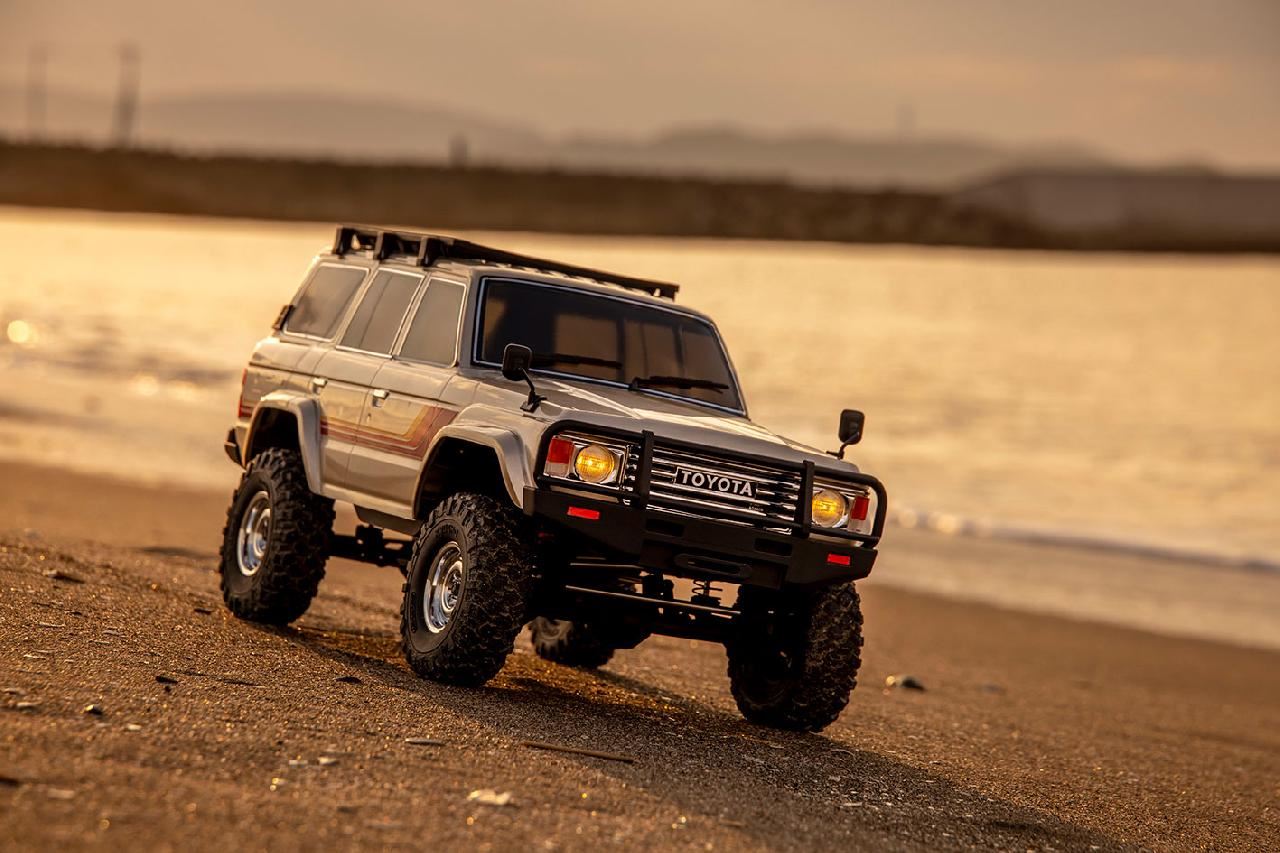

The body is a faithful reproduction of the iconic Toyota Land Cruiser 60, complete with a separate roof rack and rear ladder for added realism. A clipless body mounting system eliminates visible pins, enhancing the clean, scale look.

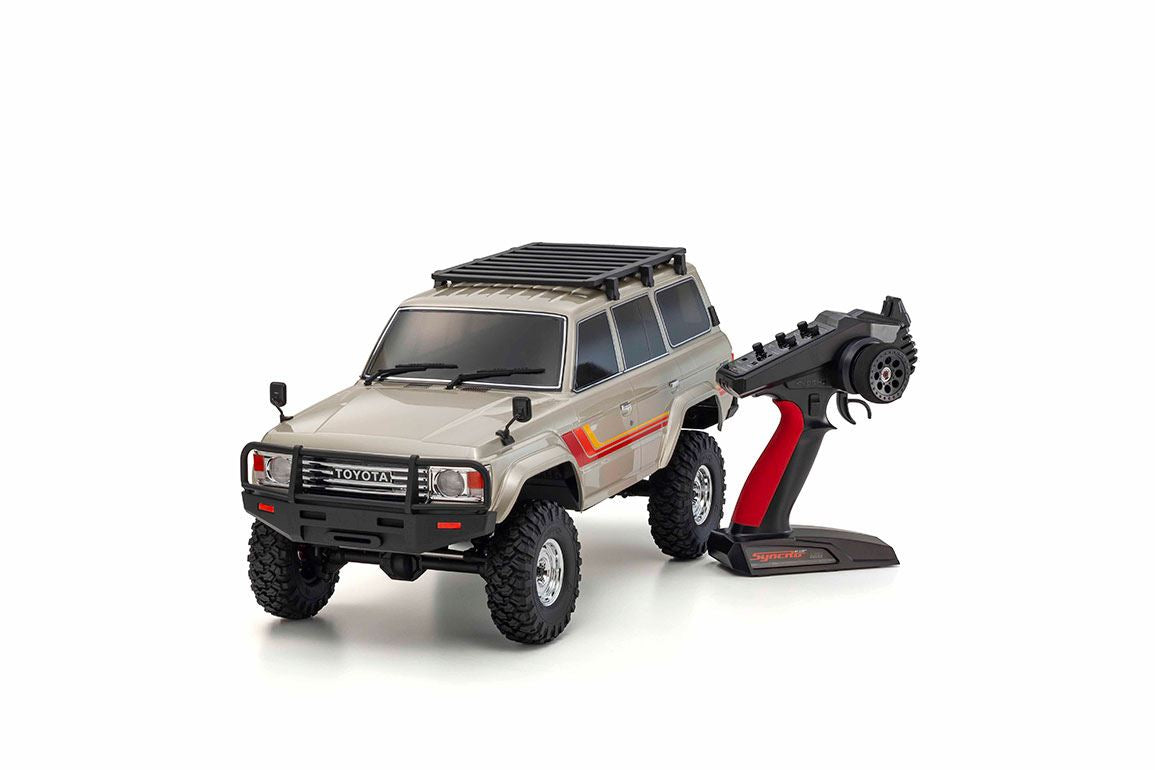

Fully assembled as a Readyset, it includes a pistol-grip transmitter so you can hit the trails straight out of the box.
With the rugged KC10 chassis and unmistakable Land Cruiser styling, this model delivers the full thrill of off-road crawling in stunning 1/10 scale detail.

- Pairs the newly developed KC10 chassis with a high-quality body for an impressive 1/10 scale electric crawler experience.
- Fully assembled Readyset includes chassis, body, transmitter, and all R/C electronics.
- Features officially licensed, highly detailed Toyota Land Cruiser 60 body for authentic scale realism.
- Oil shocks include multiple piston hole options for a wide range of suspension tuning.
- Comes standard with newly developed 15kg high-torque servo for precise steering control.
- A newly developed, robust 550-size 32T motor delivers powerful and reliable torque.
- Pre-installed receiver is protected in a dust- and water-resistant case for enhanced durability.
- Includes Syncro 2.4GHz KT-231P+ pistol-grip transmitter with adjustable settings.
- Full lineup of optional parts available, including DIG unit, 2-speed transmission, counterweights, LED light kits, and more.
- Main motor battery and charger sold separately.

<Technical Data>

- Length: Approx 552mm
- Width: 236mm
- Height: 255mm
- Wheelbase: 317mm
- Tread: 208mm(F)/208mm(R)
- Weight Approx 3080g
- Gear Ratio: 21.0:1
- Tire Width : 37mm
- Tire Diameter : 110mm
- Max Speed TBA km/h Run Time : TBA min

<Readyset Contents>

- Factory assembled chassis with graphics
- Servo (KS60111-15M)
- SYNCRO KT-231P+ transmitter and KR-331 Receiver unit
- Kyosho ESC and 32T motor

<Required for Operation>

- 7.2V-8.4V NiMh or 7.4 Li-Po battery and charger
- AA-size alkaline batteries x 4 or Ni-MH batteries x 4 for transmitter
