Master Unit Ex-Next Basic Upgrade /Wkr-420Xt(Shrt)

[Specifications]
# Power supply: AAA size dry battery x4,
Ni-MH battery x4,
Li-Fe battery (2cell 6.6V)*,
Li-Po battery (2cell 7.4V)*,
(Batteries are sold separately.)
# Current: 200mA or less
# Channel: PWM 4ch
*Maximum setting ID number of serial are different by each products.
# Frequency: 2.4GHz
# Radio Mode: XT
# Model memory 50

[Compatible Products]
# Steering Unit
Drop extension unit 2.1(recommend)
Drop extension unit 2

# Grip Unit
Expert Grip Unit2(right)
Expert Grip Unit LDT

# Compatible receiver: KR-420XT, KR-242XT, MINI-Z EVO 2 Receiver Unit for KO Compatible Transmitter, MINI-Z EVO Receiver Unit EX-NEXT MC-8

*The combination with the KR-242XT does not support Advanced Mode. Please use the KR-420XT for Advanced Mode.
*Can not use LCD Xpansion unit EXP-104 series.
*Can not use FHSS or DSSS receiver. (KR-418FH KR-415FHD,KR-210S etc)
*The product photos on this site are prototypes, which may be different to production models.

Made in Japan

Basic Model with a Simple Design
A basic version of the "EX-NEXT" equipped with the XT system that delivers ultra-fast response. By minimizing exterior decorations, we’ve successfully reduced costs and are now offering this renewed model at a more affordable price. The internal specifications and functions remain unchanged, allowing you to enjoy the high-end performance with greater ease.

Good value upgrade set for KIY customer who using EX-RR, LDT, etc.
If you already have a KIY CONCEPT radio, you can upgrade to the latest EX-NEXT by replacing it with the master unit, LCD expansion, and receiver of this set. You can use the latest operation performance at the minimum cost without wasting your unit.

Also, If you use with Drop extension unit 2,1, you will have more good feeling.
*You can use legacy Drop extension unit 2 too.
*There is no difference in performance between the conventional Drop Extension Unit 2.1 and BASIC.

What is KIY Concept.
KIY (Kustomize it Yourself) CONCEPT, which consists of a detachable unit that can be attached and detached with one touch without tools, creates a new driving style. You can freely combine it with each unit and operate it in your own style.

Products that can be combined

Drop Extension Unit2.1
Drop Extension Unit2
Drop Extension Unit(Soft Spring included)
Drop Extension Unit
3D Extension Unit for KIY
ST Unit Stick Type for KIY
Steering Unit EX-1
Expert Grip Unit LDT
Expert Grip Unit2(right)
Expert Grip(right)
Expert Grip (left)
Right Hand Grip Unit
Left Hand Grip Unit

Antennaless, lightweight, compact Master unit.
The weight of the master unit has been reduced to the utmost limit. Achieves both optimal weight balance and usability. Furthermore, by making the antenna short and compact, outstanding maneuverability has been achieved. Furthermore, the LCD unit can be installed by rotating it 90° according to the driver's preference.

Equipped with a new standard "XT" that achieves the fastest communication speed in the industry.
You can choose and use from "XT advanced mode" which is the world record response for one way communication and "XT telemetry mode" which is compatible for Telemetry ( 2 ways communication).

XT Advanced Mode
An all new control software and radio communication software of the EX-NEXT has been developed. World record class communication response and High resolution control are installed.
"XT Advanced mode" that is the highest speed in EX-NEXT is about 3 times the speed of the EX-RR.
The performance far exceeds the conventional high-speed communication.

High-speed communication in the XT advanced mode improves the information density that will be sent to the receivers.
You will feel a "Fine and smooth maneuvering feeling" by unprecedented high-definition and high-resolution control when operating.

*The included KR-242XT is exclusively for XT Telemetry. To use XT Advanced Mode, please prepare a KR-420XT.

XT Telemetry mode
EX-NEXT supports "XT Telemetry mode" that uses 2-way communication. When "4S series servos" that support serial compatible are connected to the B/S port in the new receiver KR-420XT, you can use "REAL TIME ICS". So, you can easily change parameters of servos from the transmitter without accessing the car directly. Setting your car with more freedom and more detail without compromise.

Also, even using the XT Telemetry mode that is 2-way communication, the High-speed response is still faster thanthe EX-RR.

High speed supported by Serial servo.
Currently mainstream servo control method is performed by PWM control. PWM control method uses pulse width to send position of servos output from receiver. Serial control method uses a digital signal value to send the position of the servo output. So, communication speed of the Serial control method will be significantly faster than a PWM control method, time ofthe servo’s action from your operation input is shorter. Operating feeling will be ultra high speed like operating thecar directly.

<Compatible servos> RSx4S / BSx4S Series

Ultra small receiver KR-242XT
Includes KR-242XT, which is even more compact than KR-418FH. The short antenna type, which is easy to handle, allows the antenna to stand directly on the receiver.

By connecting a 4S servo to the B / S port, you can operate the servo serially. Also, if you connect to 1 to 4CH, you can use the conventional servo. It also supports HCS by switching the port mode.

*The KR-242XT is exclusively for XT Telemetry and does not support XT Advanced Mode.

LCD extension unit 2 with various functions
LCD expansion unit 2 EXP-201 supports various RF modes, response modes, and various setting items added from EX-NEXT. Easy setting is possible with easy-to-understand menu structure and button operation. This product has a new ICS servo setting function. It supports not only 4S serial servos but also conventional ICS servos. You can change the servo parameters by connecting the servo directly to expansion 2 without using a PC or servo model selector. In addition, it is necessary to change the ID when using multiple 4S servos serially, but it can be easily assigned from this product.

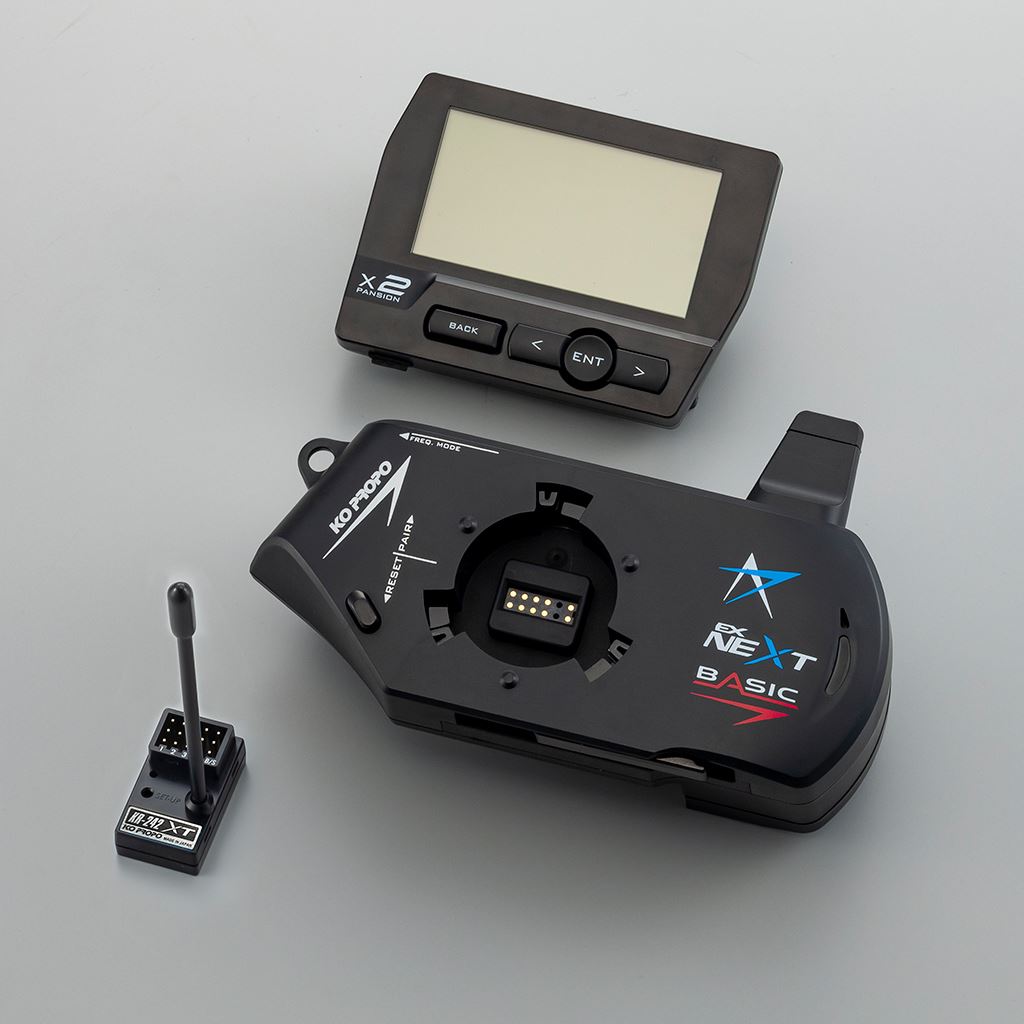

Contents
Master Unit EX-NEXT (Black SP) x1
LCD Xpansion Unit2 EXP-201 x1
Receiver: KR-242XT (Short antenna) ×1
