Futaba  |  MSD8369

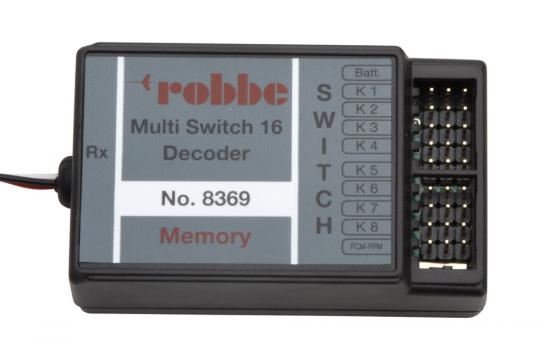

Multi-Switch 16 Decoder for Futaba F-Series Transmitters (Not FX)


£62.99
RRP: £69.99
Save £7
Notify me when available
One decoder is required per multi-switch module on the receiver side. A decoder needs one servo channel only and controls 16 switching channels. With memory function - both channels on a control switch can be switched on at the same time. The memory function can be switched off. The short circuit protected, reverse polarity protected and over temperature protected output stage makes this decoder almost indestructible. Up to three decoders can be used on an F14.

• Short circuit protected
• Reverse polarity protected
• High output currents switchable
• Selectable memory function

Set Contents:
• Multi-Switch 16 Decoder
• User Manual

Recommended Accessories:
• P-CBF14N
• P-CBF14NB
• P-MSM8084
Specifications
Switch Functions 16
Weight 30g
Max Current 1.8V Per Output
Dimensions 62 x 32 x 24mm
Voltage Batt = 4.8-24V & Rx = 4.8-6V
No Load Current 50 mA
Futaba

Multi-Switch 16 Decoder for Futaba F-Series Transmitters (Not FX)

£62.99
One decoder is required per multi-switch module on the receiver side. A decoder needs one servo channel only and controls 16 switching channels. With memory function - both channels on a control switch can be switched on at the same time. The memory function can be switched off. The short circuit protected, reverse polarity protected and over temperature protected output stage makes this decoder almost indestructible. Up to three decoders can be used on an F14.

• Short circuit protected
• Reverse polarity protected
• High output currents switchable
• Selectable memory function

Set Contents:
• Multi-Switch 16 Decoder
• User Manual

Recommended Accessories:
• P-CBF14N
• P-CBF14NB
• P-MSM8084
Specifications
Switch Functions 16
Weight 30g
Max Current 1.8V Per Output
Dimensions 62 x 32 x 24mm
Voltage Batt = 4.8-24V & Rx = 4.8-6V
No Load Current 50 mA
