Power Hd  |  HD-WB-120KG

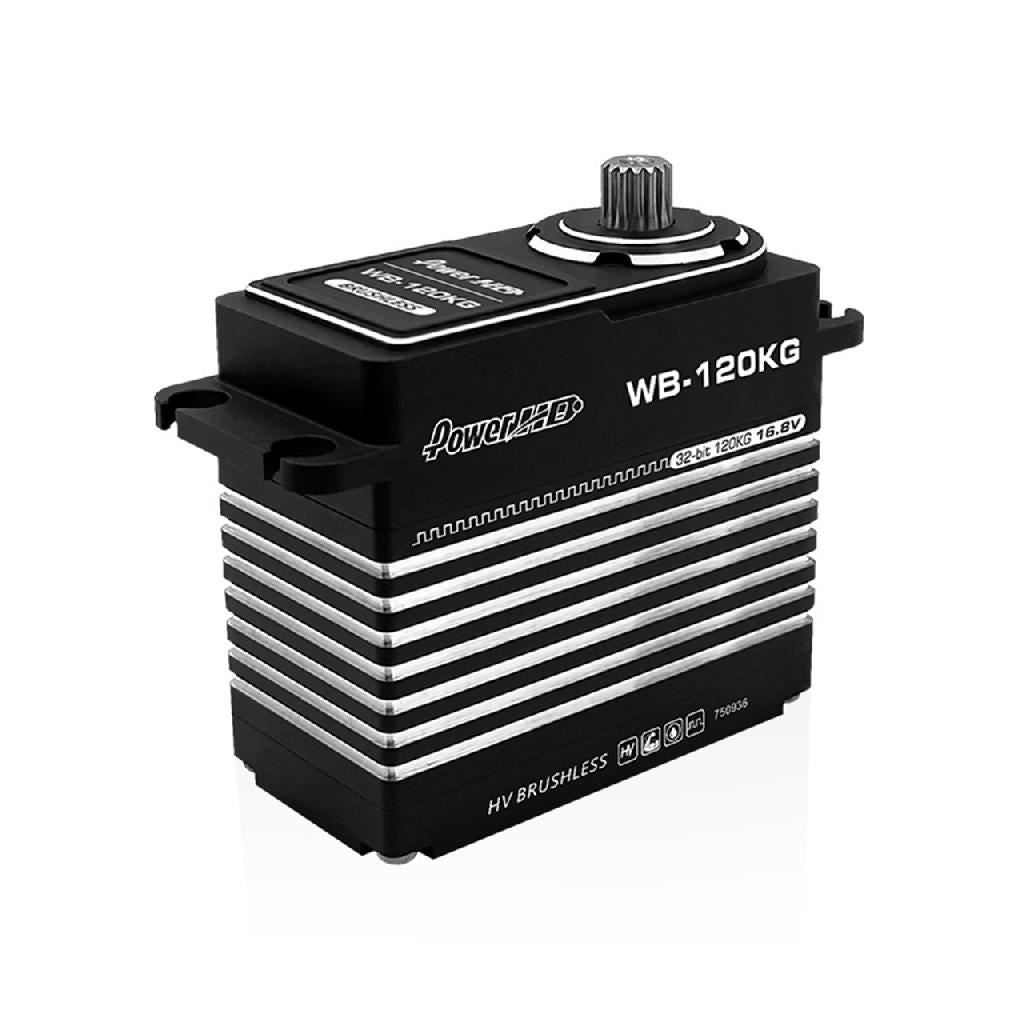

Power Hd Servo Wb-120Kg 12.6V Alu Case Mg 120Kg/0.10S (Large Scale)


£175.49
RRP: £179.99
Save £4.50
Notify me when available
Torque(6.0V): 36.0 kg-cm / (499.9 oz/in)
Torque(7.4V): 42.0 kg-cm / (583.3 oz/in)
Torque(8.4V): 50.0 kg-cm / (694.4 oz/in)
Torque(12.6V): 80.0 kg-cm / ( 1111.0 oz/in )
Torque(14.8V): 98.0 kg-cm / ( 1360.9 oz/in )
Torque(16.8V): 120.0 kg-cm / ( 1666.5 oz/in )
Speed: 0.14 sec (12.6V) │ 0.12 sec (14.8V) │
Speed: 0.10 sec (16.8V)
Operating Voltage:12.6 ~ 16.8 DC Volts
Weight: 212 g (7.48 oz)
Horn gear spline: 15T
Motor Type: Brushless Motor
Gear Type:Steel
Max current: 8A
Operating Temperature:-10℃~60℃
Working frequency:1520μs / 333hz
Size:59.5 x 29.5 x 54.4 mm ( 2.34 x 1.16 x 2.14 in)
The HD-WB-120KG is fitted with 2 plugs : Use the 4S balance lead to power up the servo (Power input 12.6V~16.8V)



Power Hd

Power Hd Servo Wb-120Kg 12.6V Alu Case Mg 120Kg/0.10S (Large Scale)

£175.49
Torque(6.0V): 36.0 kg-cm / (499.9 oz/in)
Torque(7.4V): 42.0 kg-cm / (583.3 oz/in)
Torque(8.4V): 50.0 kg-cm / (694.4 oz/in)
Torque(12.6V): 80.0 kg-cm / ( 1111.0 oz/in )
Torque(14.8V): 98.0 kg-cm / ( 1360.9 oz/in )
Torque(16.8V): 120.0 kg-cm / ( 1666.5 oz/in )
Speed: 0.14 sec (12.6V) │ 0.12 sec (14.8V) │
Speed: 0.10 sec (16.8V)
Operating Voltage:12.6 ~ 16.8 DC Volts
Weight: 212 g (7.48 oz)
Horn gear spline: 15T
Motor Type: Brushless Motor
Gear Type:Steel
Max current: 8A
Operating Temperature:-10℃~60℃
Working frequency:1520μs / 333hz
Size:59.5 x 29.5 x 54.4 mm ( 2.34 x 1.16 x 2.14 in)
The HD-WB-120KG is fitted with 2 plugs : Use the 4S balance lead to power up the servo (Power input 12.6V~16.8V)
