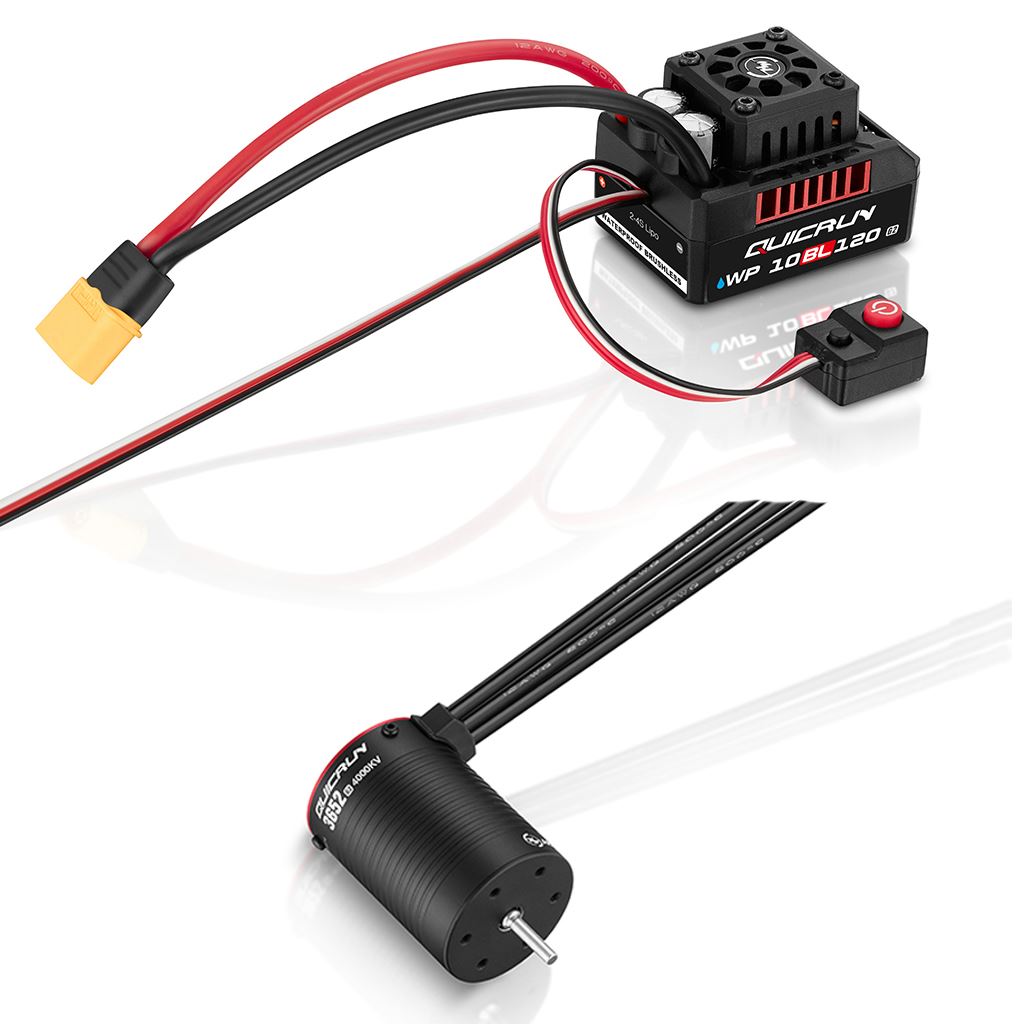

QUICRUN Combo QR10BL120 G2 & 3652SL 3250KV G2

QuicRun WP 10BL120 G2 Brushless Electronic Speed Controller and QUICRUN QR10BL120 G2 & 3652SL 3250KV G2 Combo.

ESC

Intelligent freewheeling technology, greatly improved performance
The innovative intelligent freewheeling technology enables higher driving efficiency and lower operating temperature of the ESC,and further improves the stability and reliability of the ESC.

Powerful built-in BEC
The ESC has a built-in BEC with a continuous current of 5A and supports a maximum output current of up to 10A.
The output voltages are switchable between 6V, 7.4V. This ensures that the ESC is able to support the demanding high-torque servos in the market.

Efficient cooling system
The integrated radiator design, combined with the patented copper thermal conduction sink on the internal power board of the ESC, facilitates the rapid conduction of internal heat to the radiator, and the fan is added to dissipate heat. These results an efficient heat dissipation system to ensure that the ESC is always in a good heat dissipation state.

Built-in capacitor
Super large built-in capacitor, The built-in capacitor of the ESC is as high as 1640uF.
External capacitors are not needed for 10th scale models on the market and helps improves ease of use.

High protection level, all-weather operation
The IP-67 waterproof Rating guarantees excellent waterproof and dustproof protection.
The whole power system is able to drive on a variety of surfaces including mud, sand, ice, snow and water without damaging the power unit.
Note: The IP67 protection level mentioned above is splash-resistant, water-resistant and dust-resistant under normal use, and splash, water and dust resistance are not permanently effective, and the level of protection may decline due to aging. Do not soak for a long time to avoid damaging the product.

Specifications

Scale - 1/10th
Brushed/Brushless - BL
Sensored/Sensorless - SL
Waterproof - Yes

Cont./Peak Current - 120A/760A

Input
1-4S LiPo

BEC Output
Switch Mode 6V/7.4V @5A

Wires & Connectors
Input Wires - Black-12AWG-150mm*1 / Red--12AWG-150mm*1
Input Connectors - 4.0mm Gold (female)

ESC Programing via
SET Button on ESC - Not Supported
LED Program Box - Supported
LCD Program Box - Supported
OTA Programmer - Not Supported
Programming Port - Separate Programming Port

Firmware
Firmware Upgrade - Not Supported

Size & Weight
Size - 52.8*39.8*38.2mm
Weight - 119g (Including wires & connectors)

Applications
Motors - Sensorless / Sensored Brushless Motor (only in sensorless mode)

Vehicles
1/10th Short course truck, Monster truck

KV Rating/T Count - 3652、3660 Size Motor


Motor

The output of the motor is powerful and explosive.
Taking 3652-3250KV as an example and comparing it with the same specification, there is 10% increase in power.

Excellent performance, temperature is lowered
The motor efficiency is significantly higher when comparing it with the same specification.
Taking 3652-3250KV as an example, the efficiency of the rear section is 8% higher, motor temperature is lower under the same load condition.

Explosion-proof rotor design, strong and reliable
The rotor is designed with front and rear aluminum end plates, which greatly improves the overall balance. At the same time, the rotor is wound with high-strength tensile materials and has strong explosion-proof ability.

Solid material, strong and reliable
Provides a solid guarantee for the long-term excellent performance of the motor.

Detachable design for easy maintenance
The motor adopts a modular detachable structure design, which is convenient for routine cleaning and maintenance, effectively prolonging the service life of the motor and maintaining the working efficiency of the motor.

Specification

Scale - 1/10th
Brushed/Brushless - BL
Sensored/Sensorless - SL
Pole Count - 4
KV Rating - 3250KV
LiPo - 2-3s
No-load Current(A) - 4.0A
O.D. (mm) - 36
Length (mm) - 52
Shaft Diameter (mm) - 3.175
Weight (g) - 224g
Front Bearing - D13*D5*T4
Rear Bearing - D13*D5*T4
