Quicrun Outer 3530Sl 2200Kv Black
Save £1.70
Couldn't load pickup availability

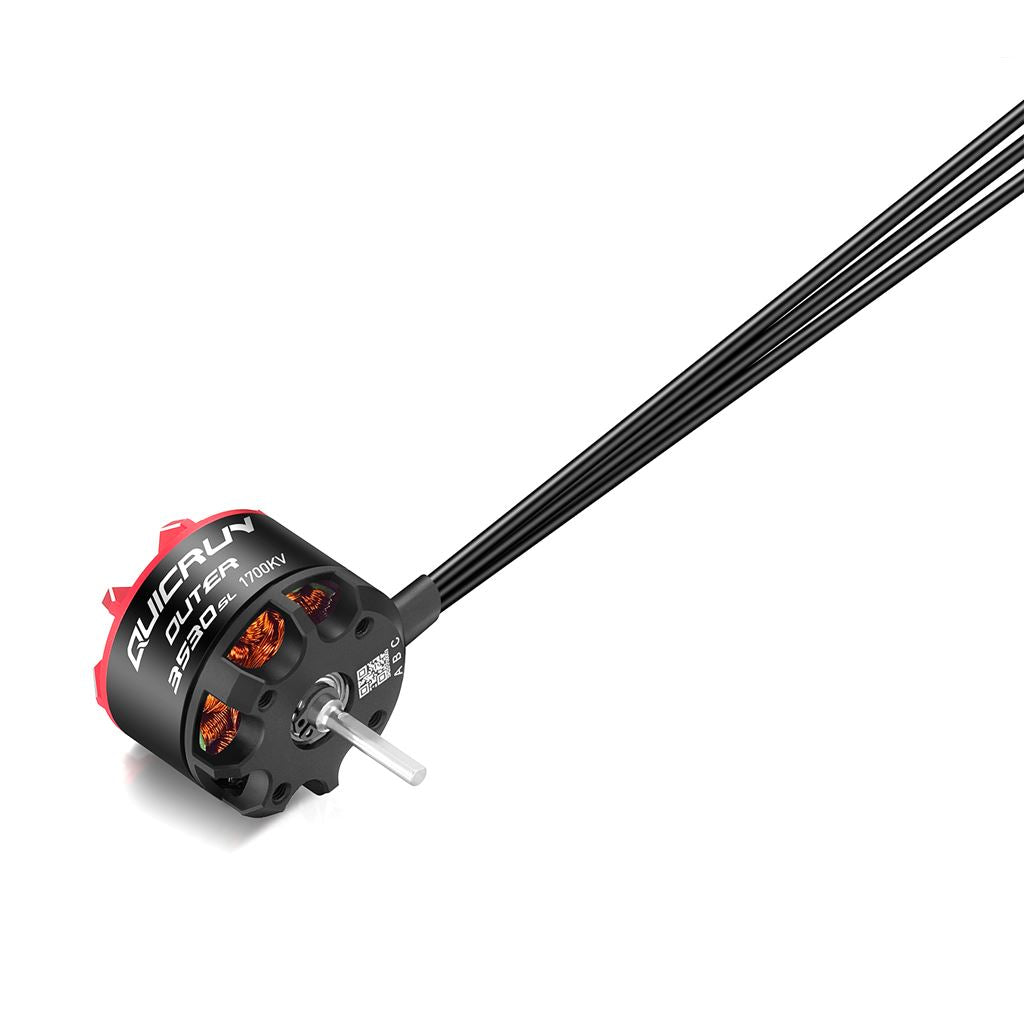

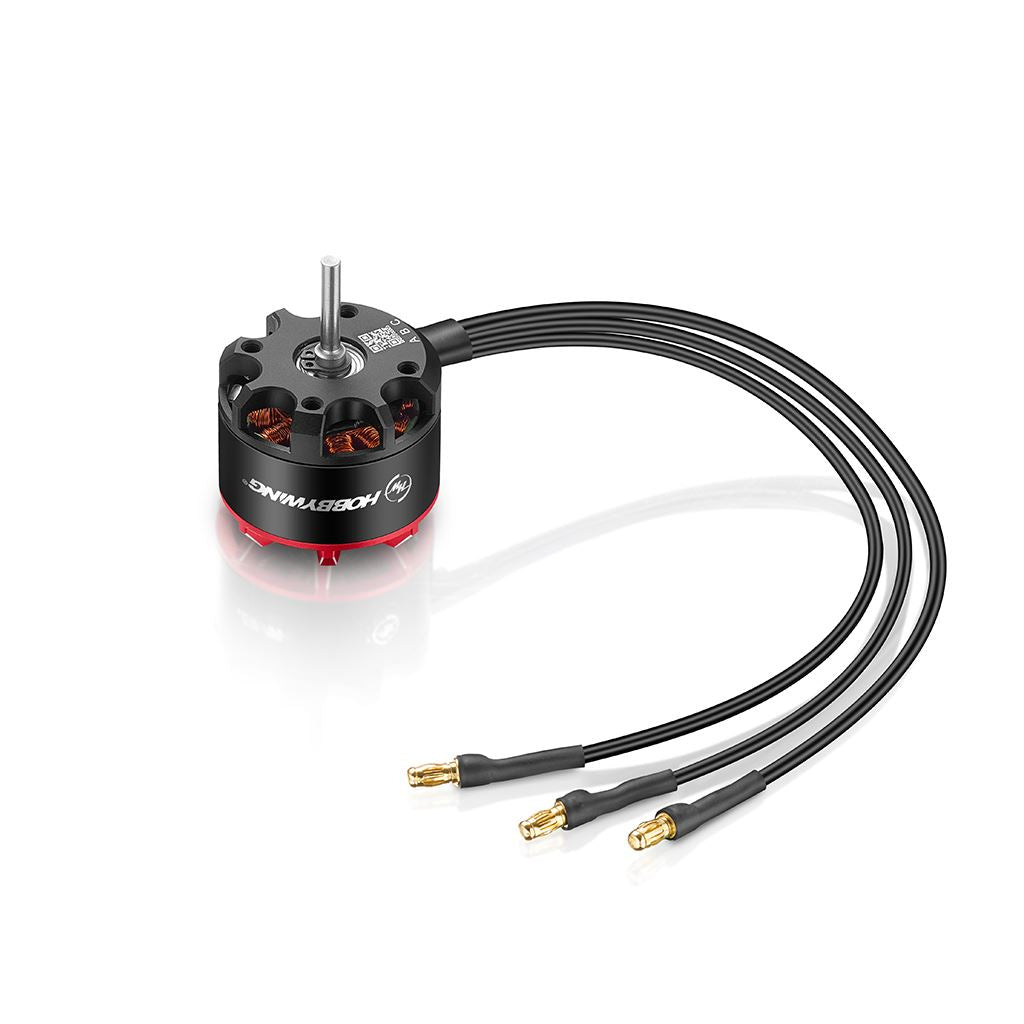

Introducing the QuicRun Outer 3530 SL Brushless Motor from Hobbywing.
Compatible with QuicRun WP 10BL80 Crawler ESC
The motor comes standard with 3.5mm male connectors, allowing plug-and-play compatibility with the QuicRun WP 10BL80 Crawler ESC. No soldering is required.
Outstanding Linear Throttle Response
The rotor is precisely balanced to reduce vibration and energy loss.
Widely Compatible
The motor is equipped with 4*M3 mounting holes. Mounting holes spaced 25mm apart making it compatible with the majority of1/10th and 1/12th scales vehicles available on the market.
Flexible Silicone Motor Wires
The motor uses silicone wires to connect to the ESC to allow clean installation and wire management.
Low Cogging
The motor has a low cogging eect and minimal torque ripple , ensuring exceptionally smooth and stable performance at low speeds and delivering superior throle control.
Modular Design
The motor features a modular, removable construction makes routine cleaning and maintenance easy.
It helps maintain optimal performance. Extend the lifespan of the motor.
Top Tier Iron
Core
220℃ High-performance Enameled Wire
Precision-grade Bearings
High-quality Materials
The motor is constructed with permit iron cores from top-tier brands, 220℃ high-performance enameled wire, and precision-grade bearings. These high-spec components provide a solid foundation for long-lasting durability and consistent performance.
Type
Scale - 1/10th, 1/12th
Brushed/Brushless - BL
Sensored/Sensorless - SL
Pole Count - 14
Relevant Parameters
KV Rating - 2200
LiPo Cells - 2-4S
No-load Current(A) - 5
Size & Weight
O.D.(mm) - 35
Length (mm) - 30
Shaft Diameter (mm) - 3.175
Weight (g) - 102
Other Perameters
ESC - QUICRUN WP 10BL80 Crawler
Vehicles - 1/10th、1/12th Crawlers
-
Brand
-
Part Number
-
EAN
