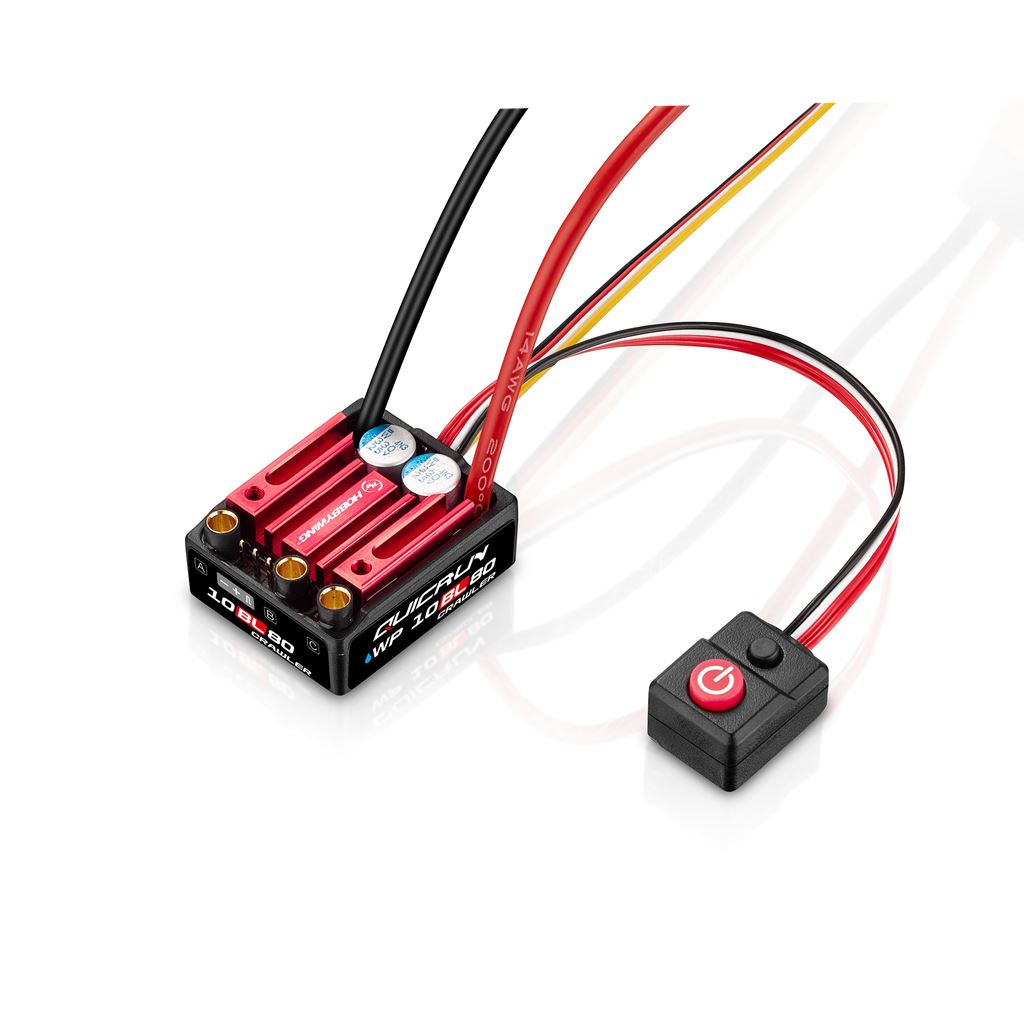

Quicrun Wp -10Bl80 Crawler Esc
Save £2.20
Couldn't load pickup availability
Compact, Powerful, and Capable.
Compact Dimensions
36×30×15.5mm
The ESC delivers high-performance output of4S/80A
It features strong low-speed torque, low startup speed, and smooth operation, making it an ideal power choice for 1/10th scale crawling.
Real-Time Drag Brake Adjustment, Precise Control
The ESC supports AUX channel control of drag brake force. By connecting the Aux input signal wire to an available channel on the receiver, you can adjust the drag brake power as you drive from your remote control.
Built-in BEC Supporting High-voltage Servos
The integrated high-voltage BEC provides up to 11A of output current. Supports selectable output voltages of6V/7.4V/8.4V. It easily powers high-torque, high-voltage servos, meeting a wide range of demands.
Supports Brushed and Brushless Modes
The ESC is compatible with both Brushless and Brushed motors.
Note: The ESC has been factory pre-set to brushless mode by default. When connecting a brushed motor, be sure to connect the “A” and “C” wires and switch the ESC to “Brushed Motor” mode. Operating in the wrong mode may cause damage to the ESC.
Supports Fan Installation
The ESC includes mounting holes for a cooling fan to be installed. Depending on vehicle load and appplication requirements, users can choose whether to install the fan to ensure the ESC operates within the ideal temperature range (around 60℃ on the case).
Easy Installation, Ready for Immediate Usage

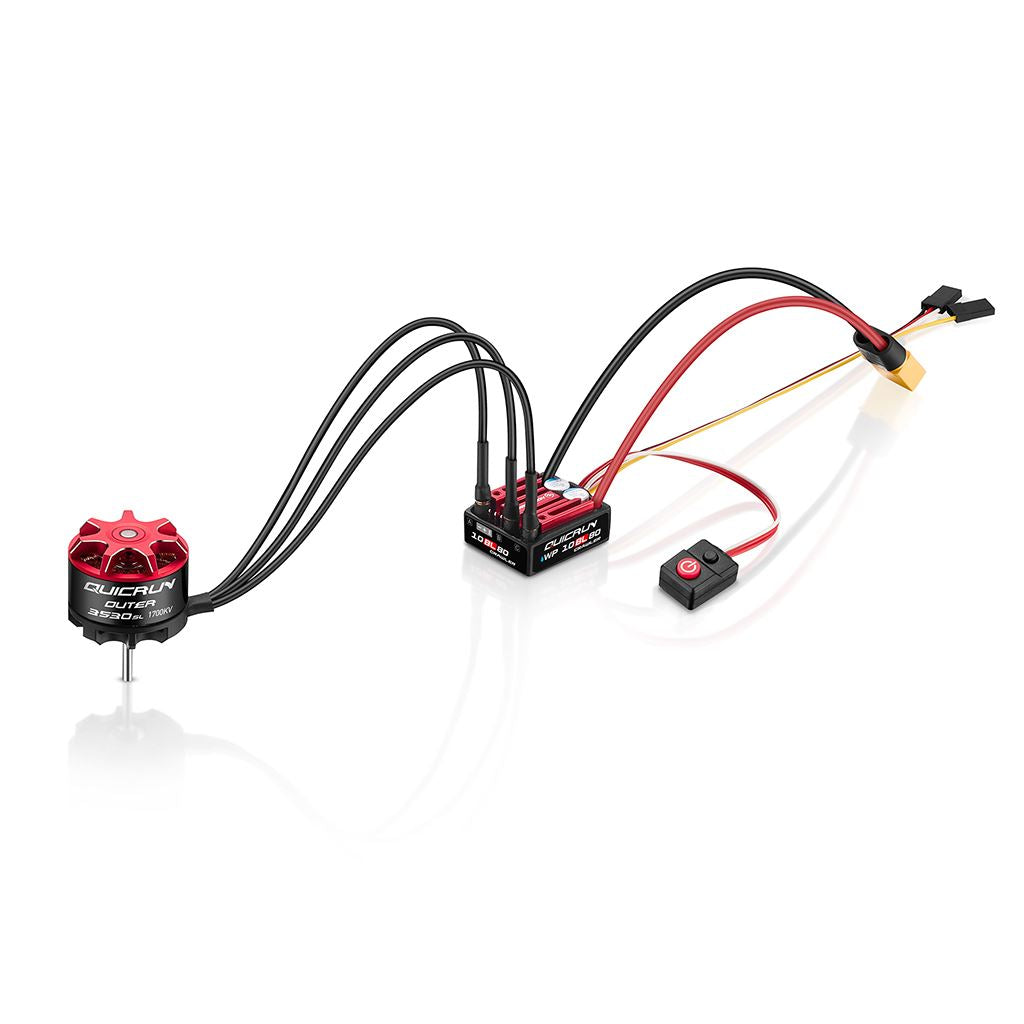

The ESC comes equipped with integrated 3.5mm female connectors on the output side, enabling seamless connection to HOBBYWING motors or other motors with compatible plugs. No soldering is needed.
High Level Protection
The ESC’s protection rated IP67, offering outstanding waterproof and dustproof performance. It can be used in muddy, sandy, icy, snowy, or wet terrain under various weather conditions without concern.
Note: The IP67 rating provides protection against splashes, water exposure, and dust under normal use but is not permanent. Protective performance may degrade over time due to agin. Do not submerge the product for extended periods, as this may cause damage.
Compatible with both LED and LCD Program Boxes
The ESC supports both the LED Program Box and the more advanced LCD Program Box PRO, giving users the flexibility options for setup and adjustment to suit different tuning needs.
Compatible with both LED and LCD Program Boxes
The ESC supports both the LED Program Box and the more advanced LCD Program Box PRO, giving users the flexibility options for setup and adjustment to suit different tuning needs.
Note: A fan and screws are included in the package by default.
Extensive Parameter Settings
The ESC offers 13 adjustable parameters, including essential options commonly used in crawler power systems, such as drag brake force and drag brake rate. Drivers can fine-tune settings precisely to meet the requirements of different conditions and terrain.
- Running Mode
- Drag Brake Force
- Neutral Range
- Motor Type
- Drag Brake Rate
- FOC Power
- Cutoff Voltage
- Max.Reverse Force
- Low Speed Throttle
- Motor Rotation
- Max.Brake Force
- BEC Voltage
- Punch
Specifications
Type
Scale - 1/10th
Brushed/Brushless - BL &BR
Sensored/Sensorless - SL
Waterproof - Yes
Specifications
Cont./Peak Current - 80A/240A
Input Voltage - 2-4S LiPo
BEC Output - 6V/7.4V/8.4V,5A
Wires & Connectors
Input Wires -Black-14AWG-175mm*1,Red-14AWG-175mm*1
Output Connectors - 3.5MM Gold (female)
Output Wires - No
Input Connectors - XT60
ESC Programing via
SET Button on ESC - Supported
LED Program Box - Supported
LCD G2 Program Box - Supported
LCD PRO Program Box - Supported
OTA Programmer - Not Supported
Program Port - Independent program port
Data Recording
Extreme Value - Not Supported
Real-Time Data - Not Supported
Historical Data (Graph) - Not Supported
Firmware
Firmware Upgrade - Not Supported
Size & Weight
Size -36*30*15.5mm
Weight -47.8g( Included wires & connectors)
Applications
Motors -Sensorless / Sensored Brushless Motor
Vehicles - 1/10th Crawlers
KV Rating/T Count - Outer 3530SL sensorless outrunner motors; 540, 555 including other brushed motors
-
