Rc4Wd 1/14 8X8 Forge Hydraulic Dump Truck

RC4WD 1/14 8X8 FORGE HYDRAULIC DUMP TRUCK

The Forge is one of the most powerful R/C Hydraulic Dump Trucks available today. It is highly detailed and based on the European style dump trucks. It is engineered specifically for the tough demands of transporting gravel, sand, asphalt, snow, wood chips or rocks. Created for the customer who requires reliability and high production in bulk earth moving or construction projects. It's made with CNC machined metal parts, fully assembled, ready to work!

Be ready for the massive power through the 930KV high speed output brushless hydraulic system.

Features

• Hard Plastic European Style Front Cab
• Full Metal 3 Speed Transmission (Planetary Gears)
• Transfer Case (Billet Aluminum)
• Super Scale Leaf Spring Suspension Setup
• Scale Rims (Stainless Steel / Billet Aluminum)
• Remote Lockable Front and Rear Axle (Locking Differential)
• Full Metal Front and Rear Axle Housing
• Steel Scale Drive Shaft
• Realistic Front Cab Latch
• LiPo Cutoff
• Steel Ladder
• Spare Tire Included
• Molded Functional Fuel Tank
• Automatic Trailer Gate (Do Not Attempt to Open by Hand)
• Rear Light Guard (Protects Against Rocks)
• Scale Light Buckets (Fits 3-5mm LED)
• Recommended Payload: 15kg / 33lbs
• Maximum Lift Power: 42kg / 92lbs
• Fully Painted
• Scale Wheel/Tire
• Cylinder Maximum Thrust: 109kg / 231lbs
• Brushed Driven Motor
• 930KV Brushless Motor-Driven Micro Hydraulic Pump
• First Gear 1/113, Second Gear 1/86.4, Third Gear 1/62.1 (Transmission)
• Basic 10 Channel 2.4Ghz Radio

Specifications

Length: 690mm / 27.1in
Width: 190mm / 7.4in
Height: 270mm / 10.6in
Weight: 9.8kg / 21.6lbs
Axle Gear Ratio: 9:1
Theoretical Load: 15kg / 33 lbs

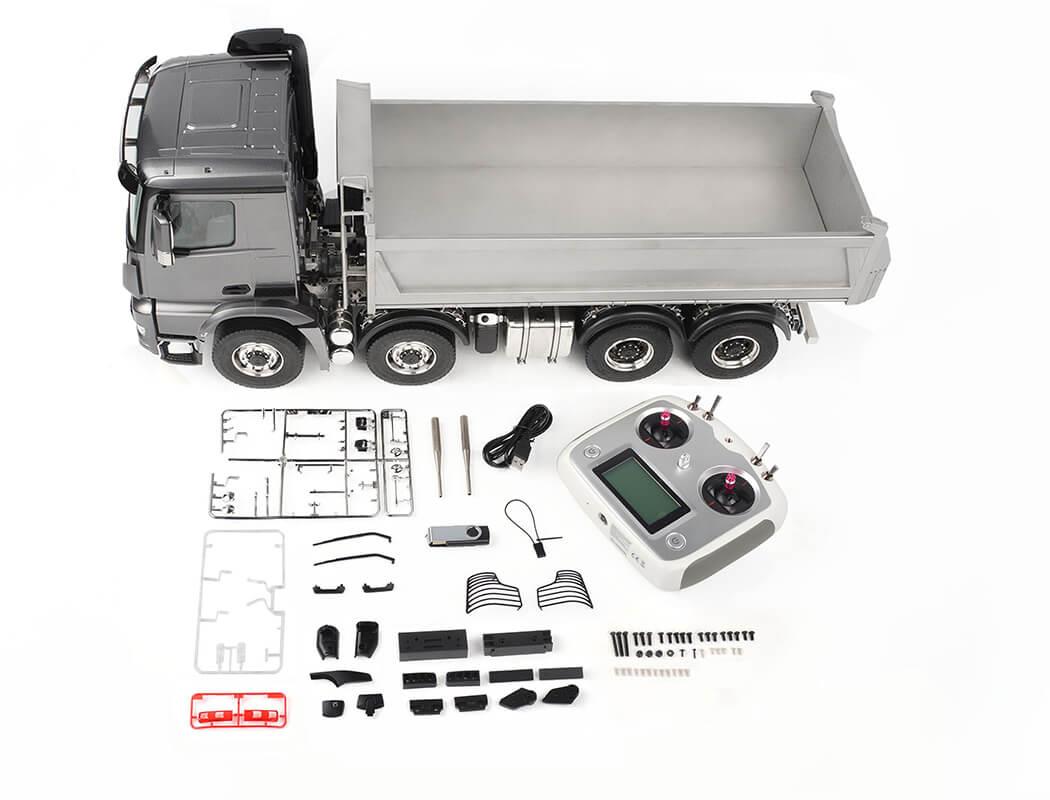

What's Included

• 1x 1/14 8x8 Forge Hydraulic Dump Truck

Required To Complete

• 5000mAh 11.1V 50C 3S1P LiPo Battery Pack with XT60 Plug (Battery size must be no bigger than 140mm in length, 45mm in width, and 25mm in height)
• Compatible Battery Charger
• 4 x AA Batteries for Radio
• Chevron AW ISO 32 Hydraulic Oil 14oz (Z-X0042)

Notes

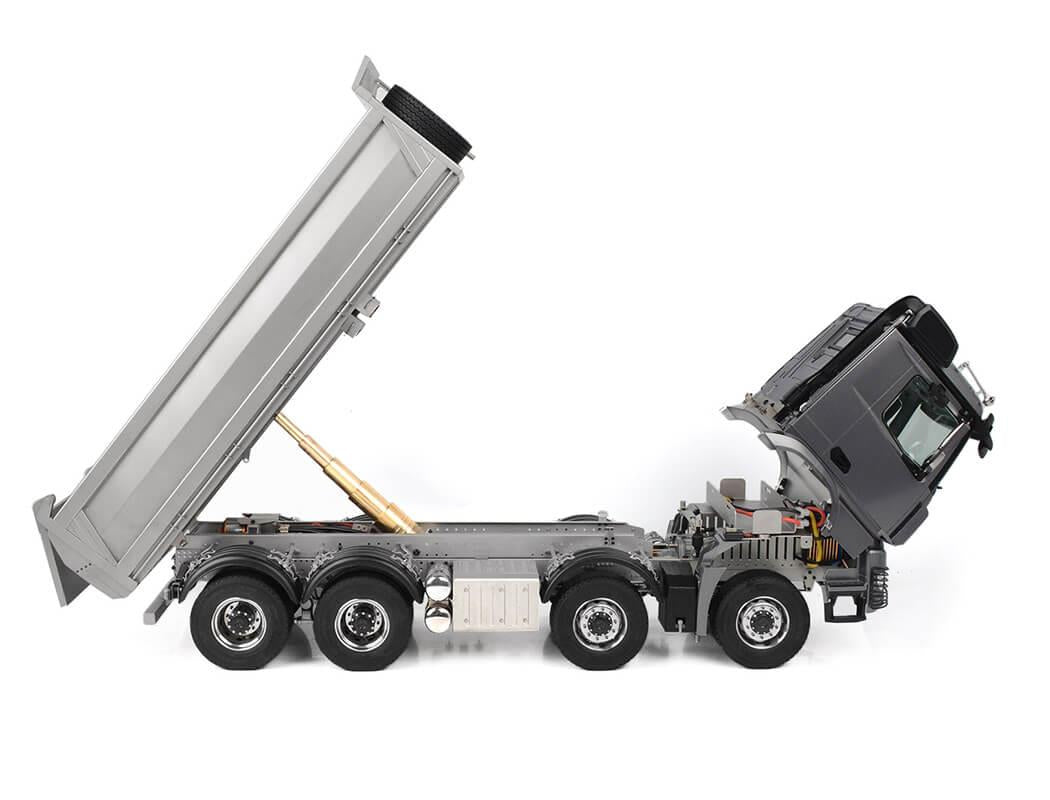

• When you raise the rear dump, do not leave it at the highest position. It will create a lot of pressure and potentially blow up the oil tube. Stay no more than 2 seconds and drop the dump to a lower position.
• Do not use hand to pull the rear door. You will break the door locking mechanism.
• Do not use more than 3S battery. (11.1 volt(s))
• Once the hydraulic cylinder (dump) reaches its maximum height, do not push further.
• Must turn on the transmitter before starting the ESC.
• ESC Supports XT60 Connector
• While some components may come assembled, we recommend checking the hardware and screws are all properly secure, especially after shipping. As an option, you may want to apply thread lock to some of the installed hardware.
• Use good quality hex drivers to avoid stripping screw heads.
• Use thread lock when putting metal screws into metal parts.
• Steps marked with an asterisk (*) require threadlock.
• Use threadlock sparingly.
• Do not over tighten screws, otherwise, you may strip the thread.
• This product is for experienced R/C users. Not recommended if you just started with R/C.
• The axle hubs can be screwed off but may require nylon tipped pliers if they are on really tight.
• This Product Is Professionally Pre-assembled
