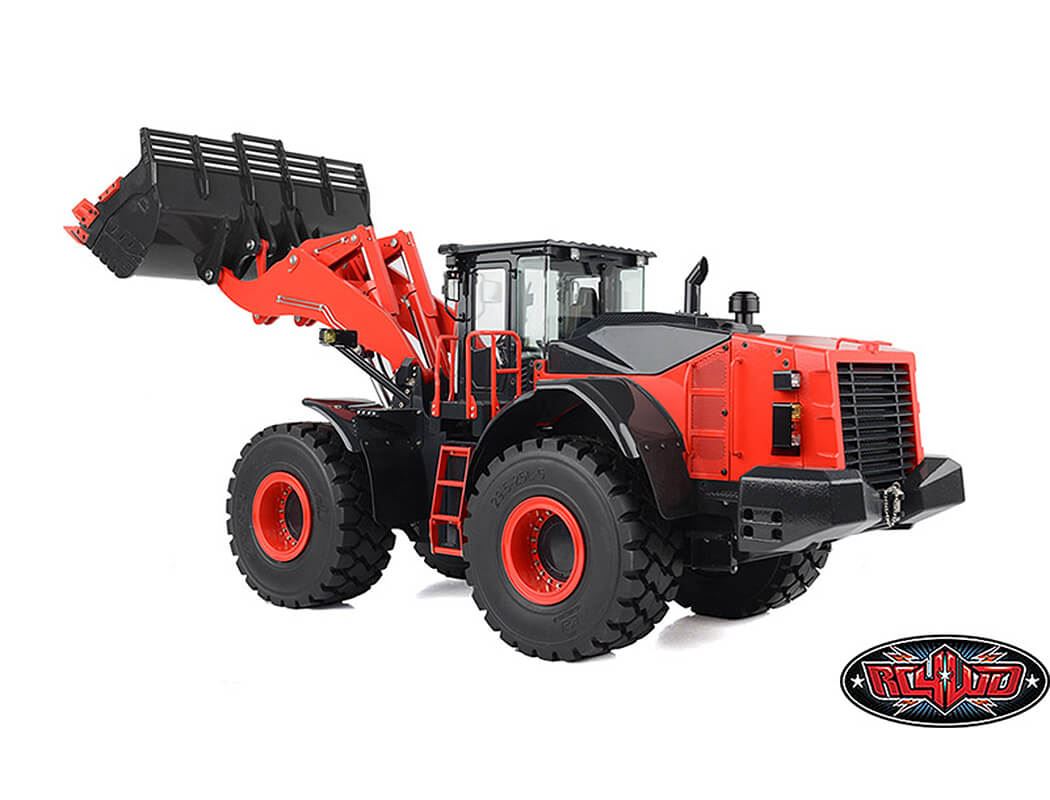

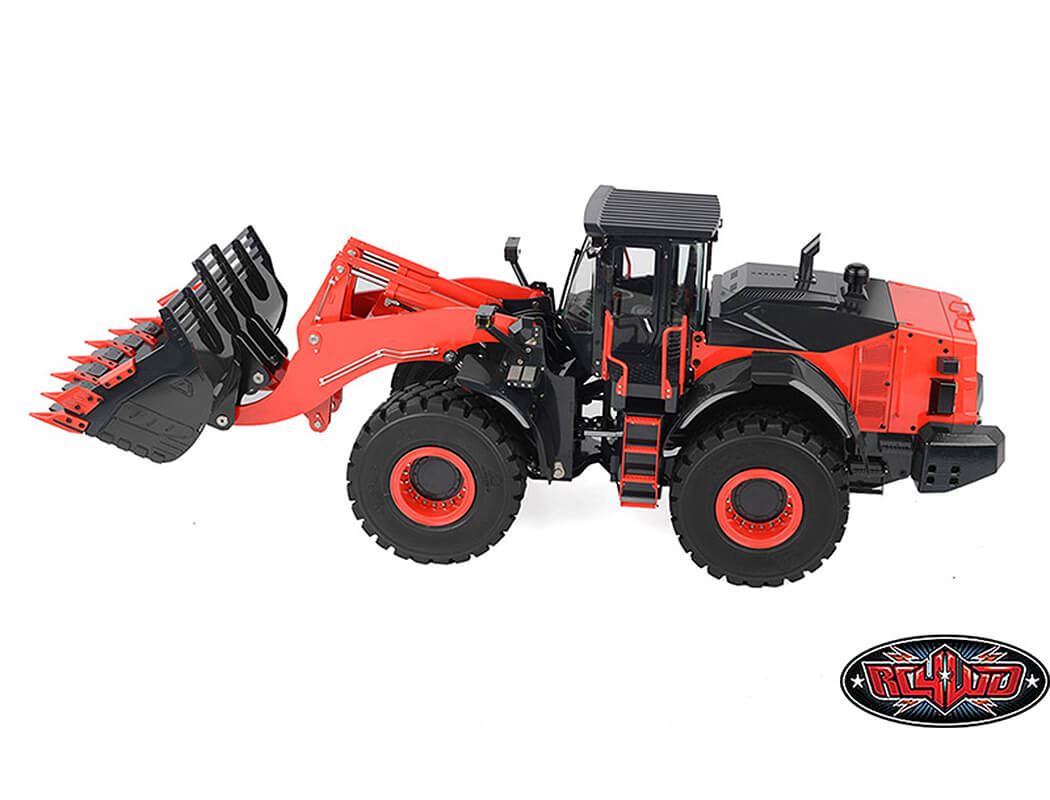

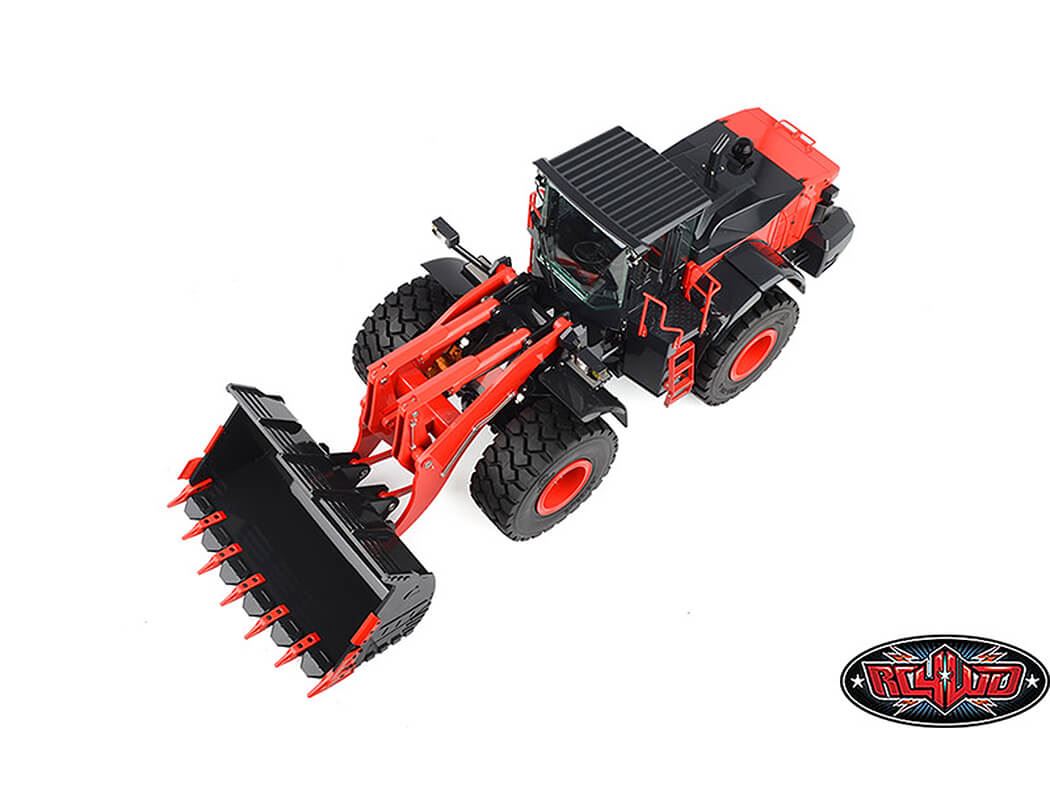

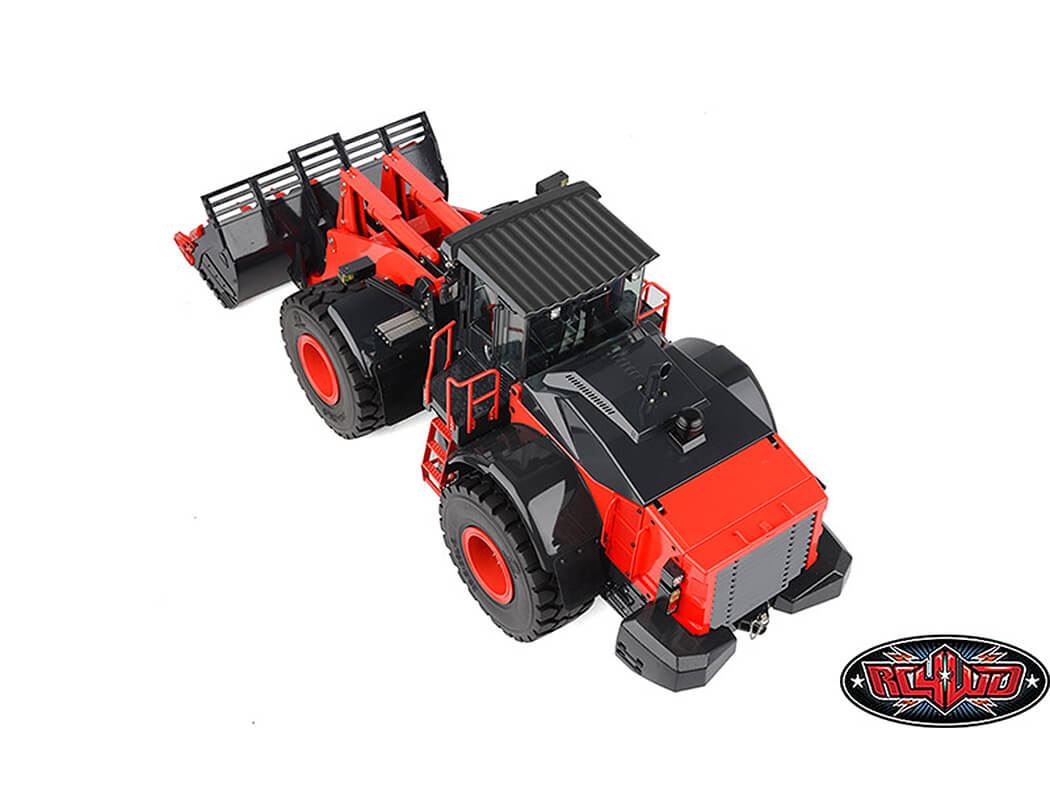

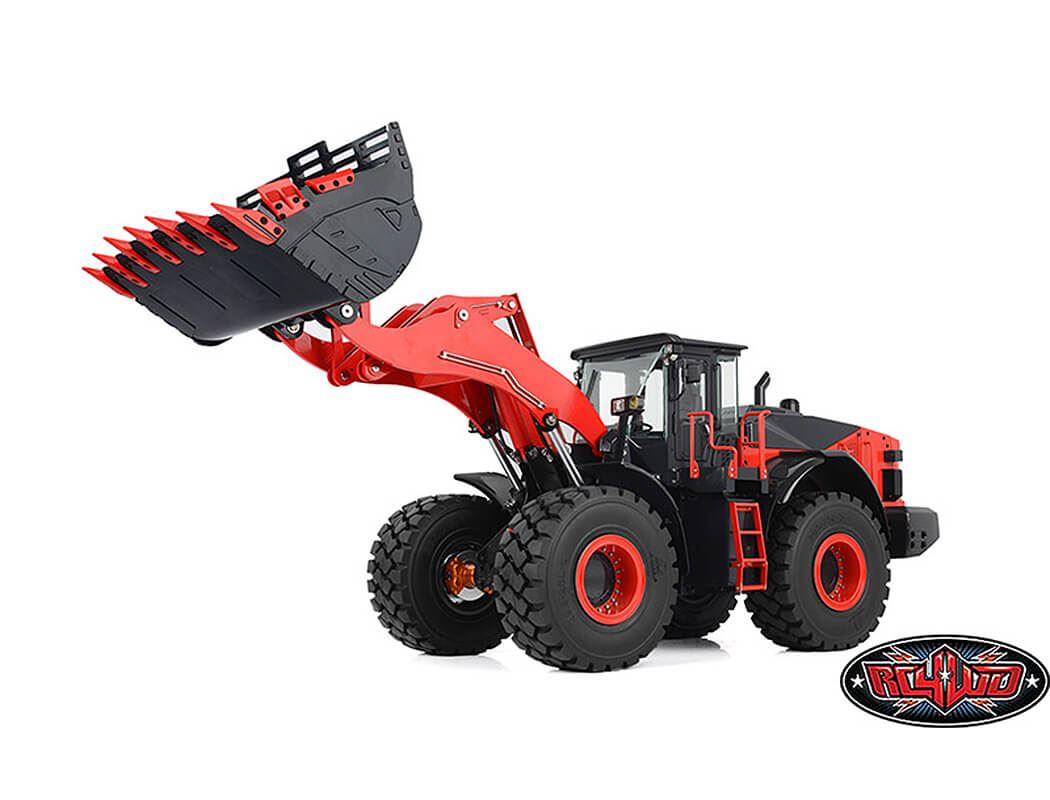

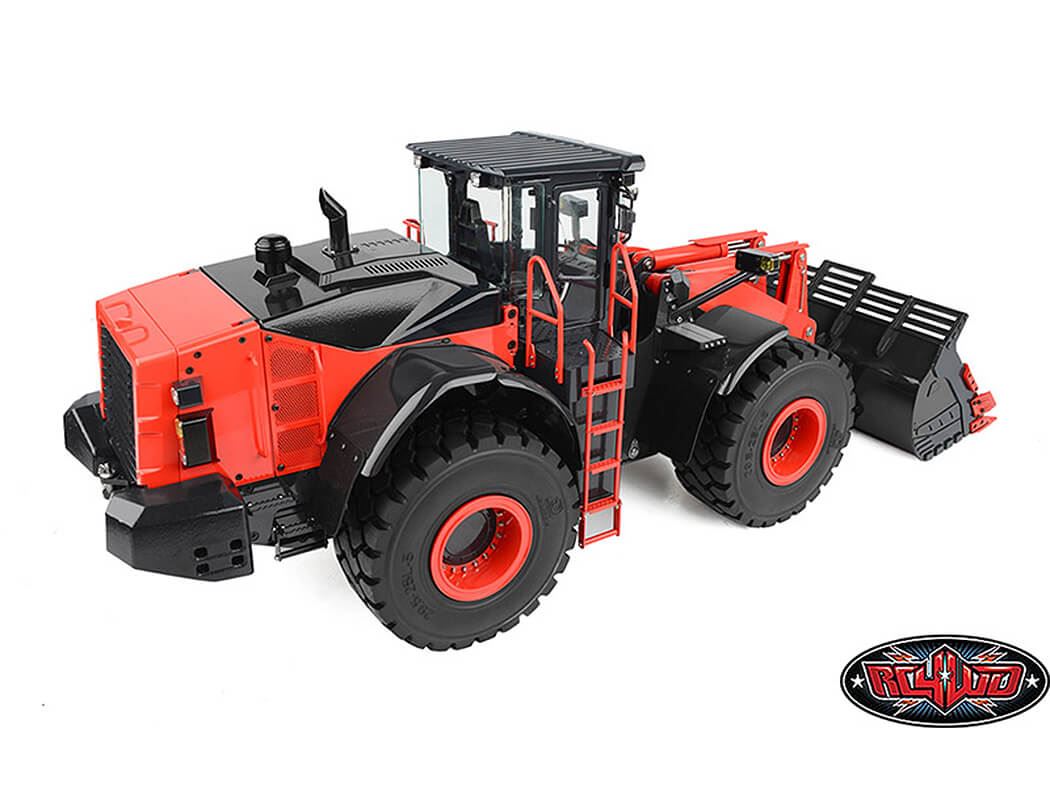

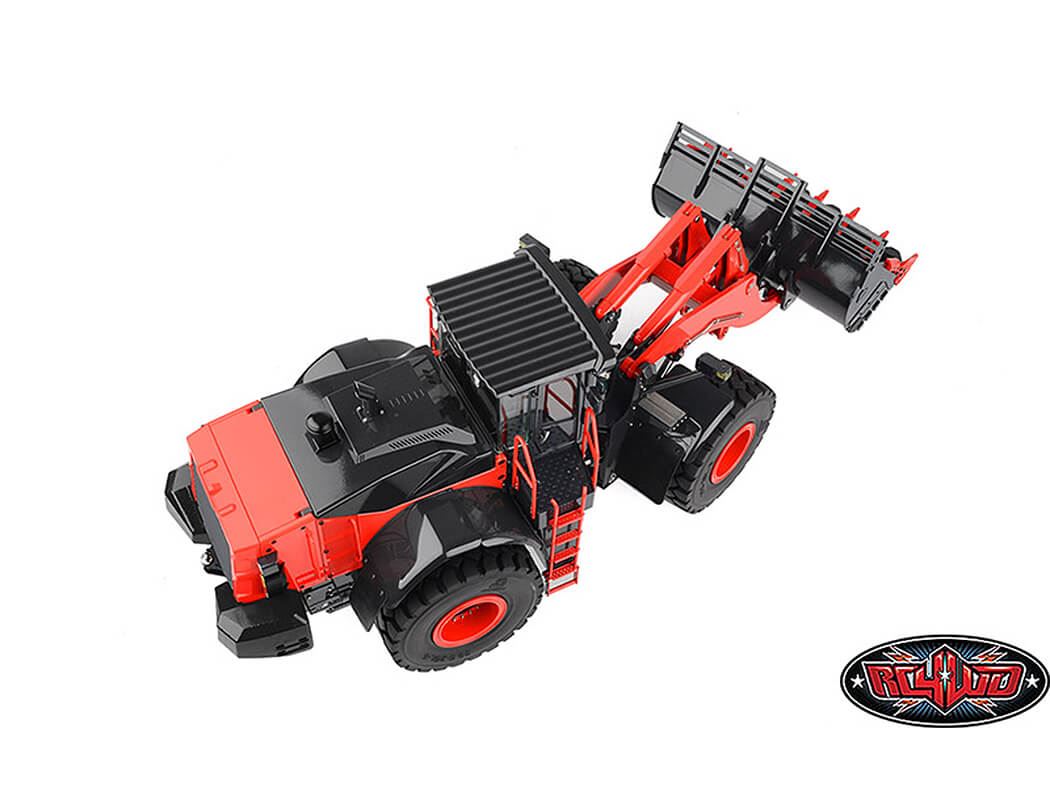

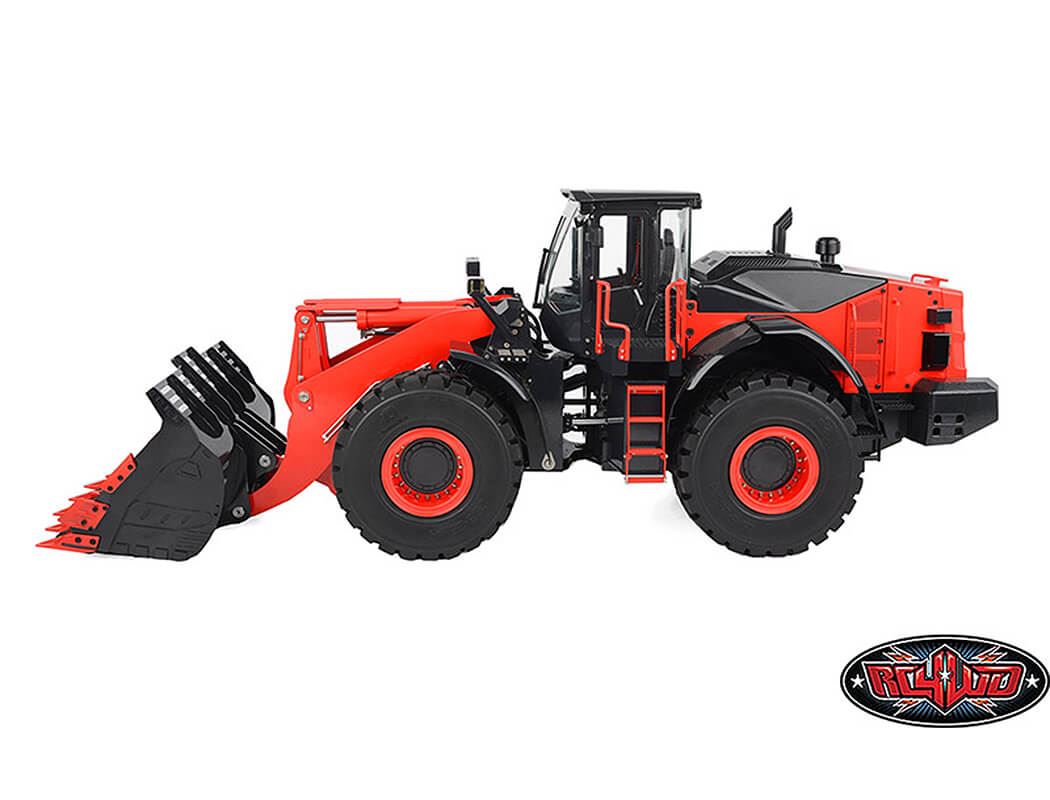

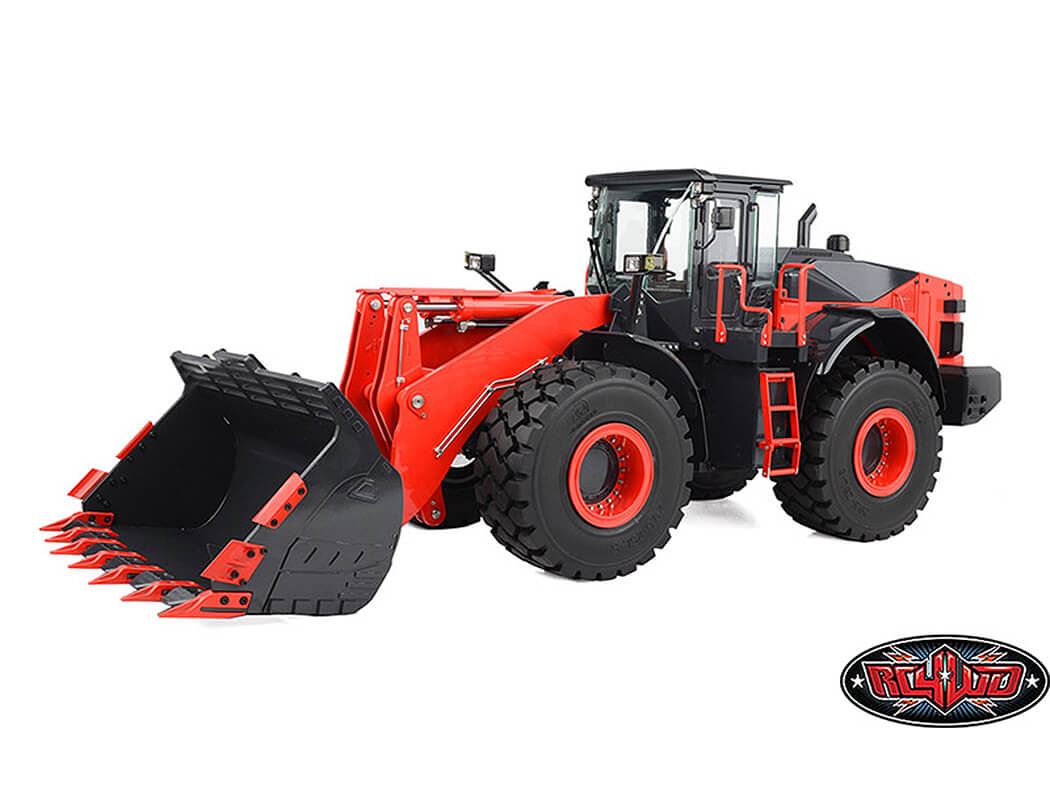

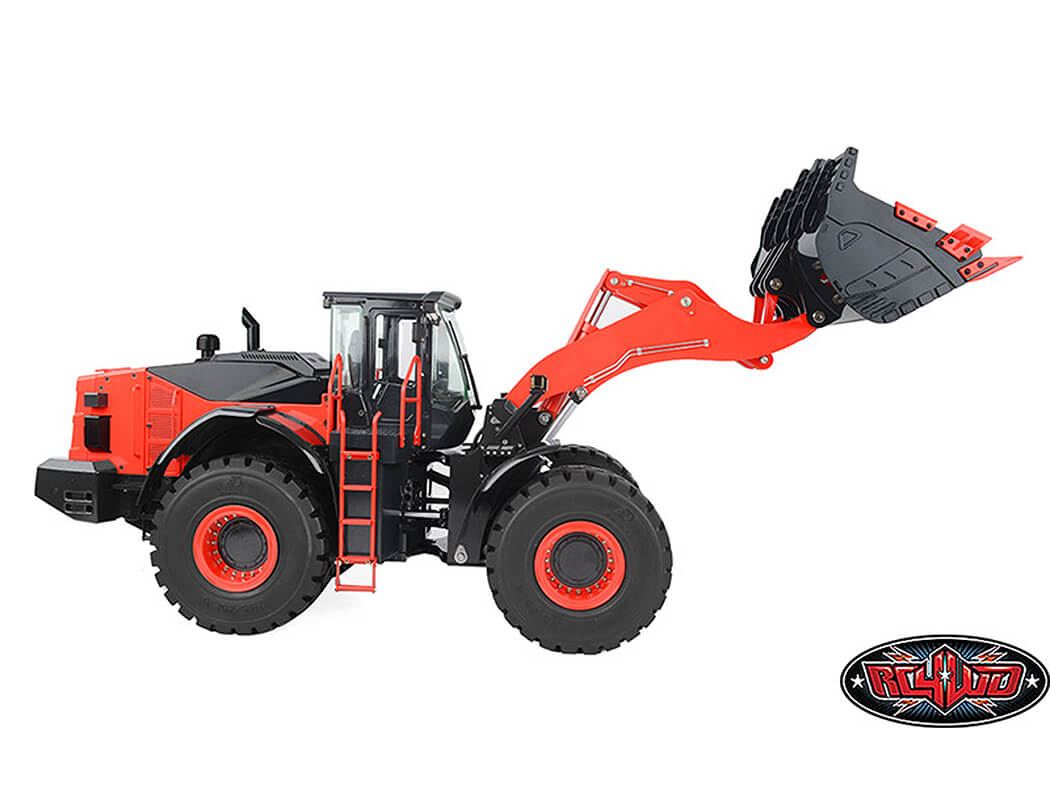

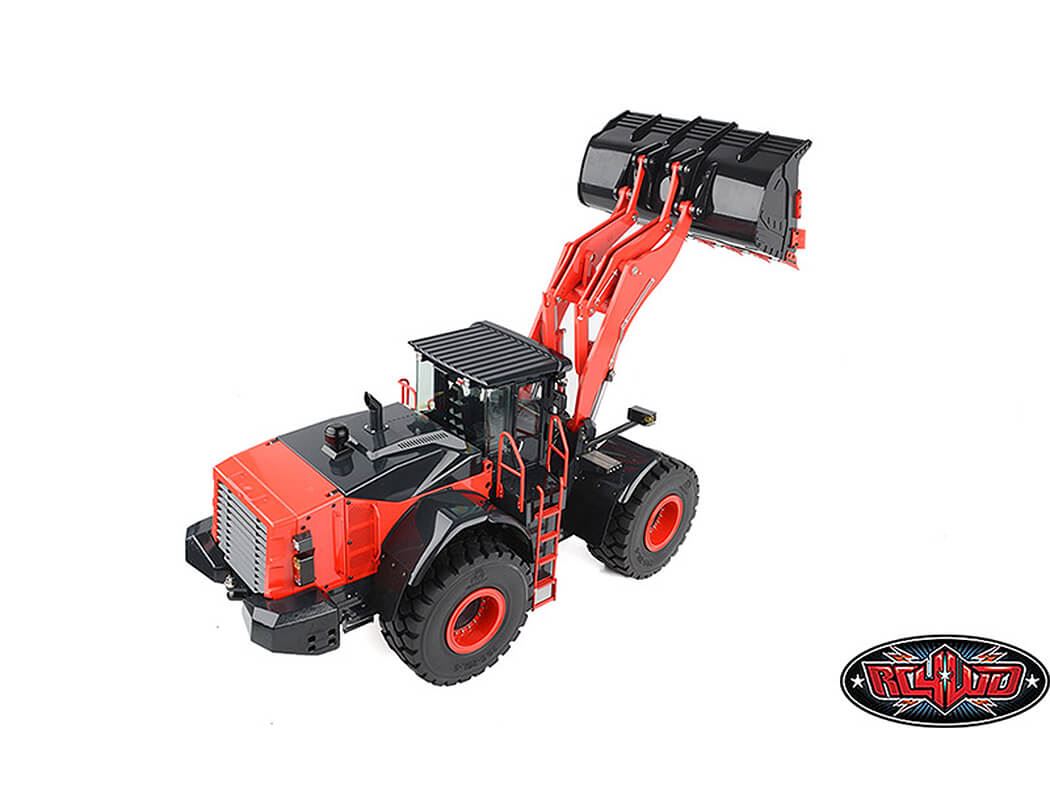

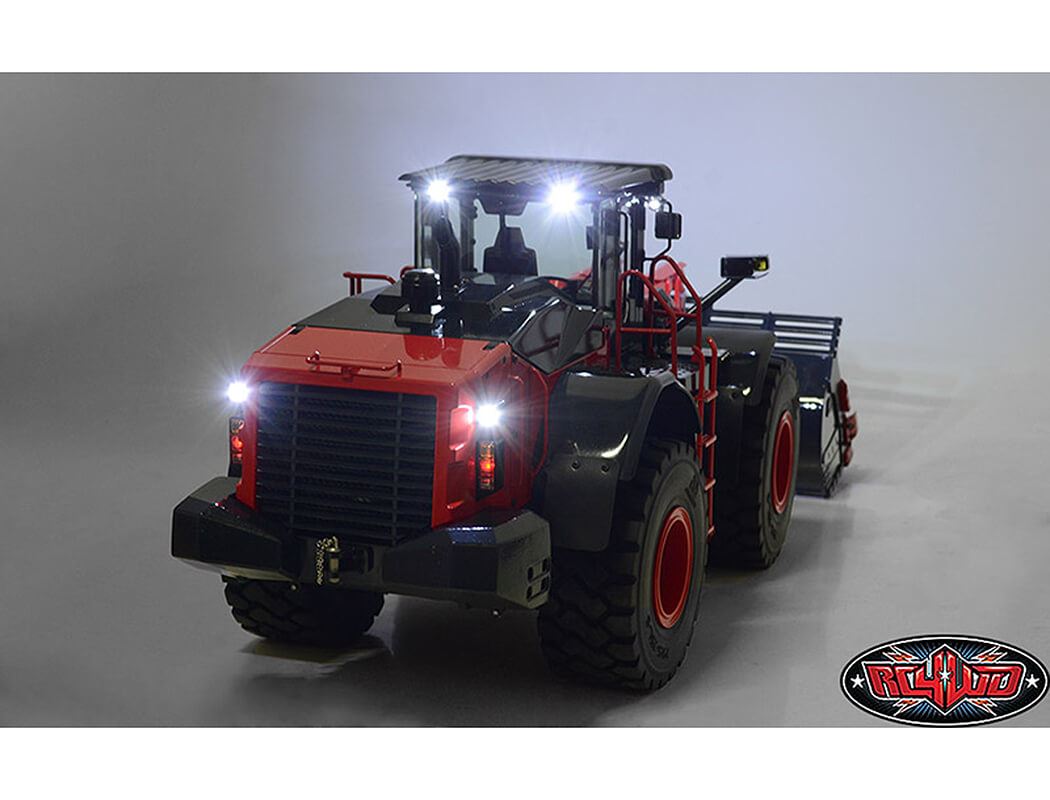

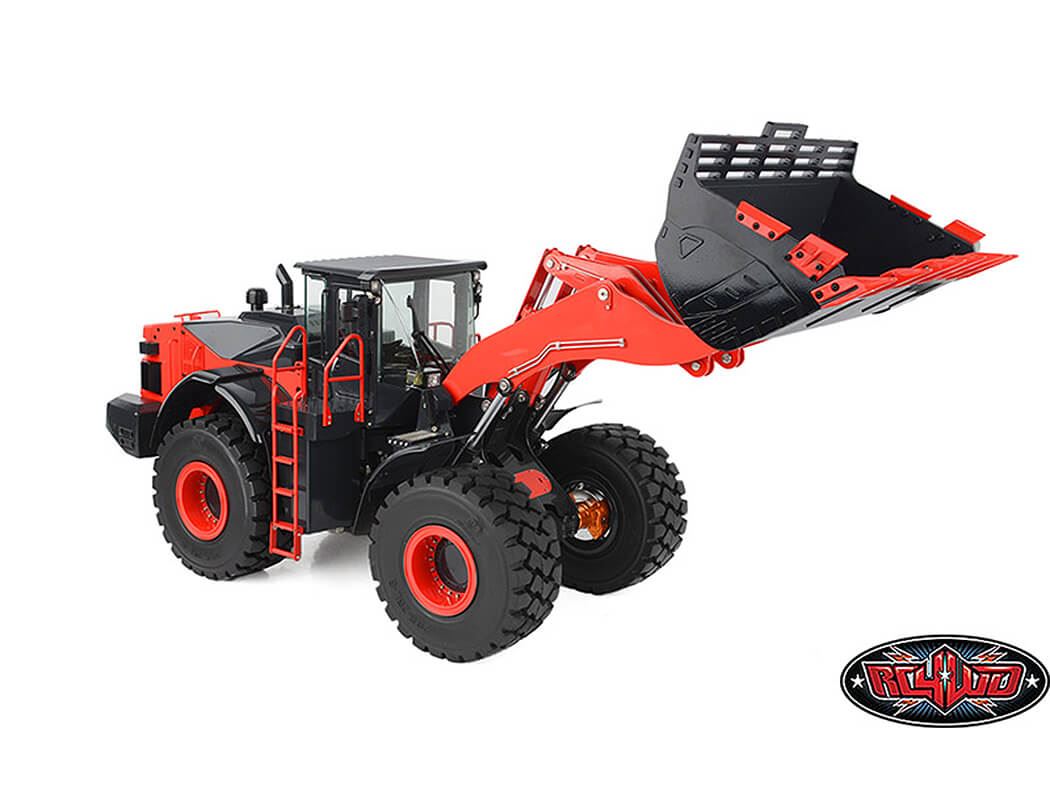

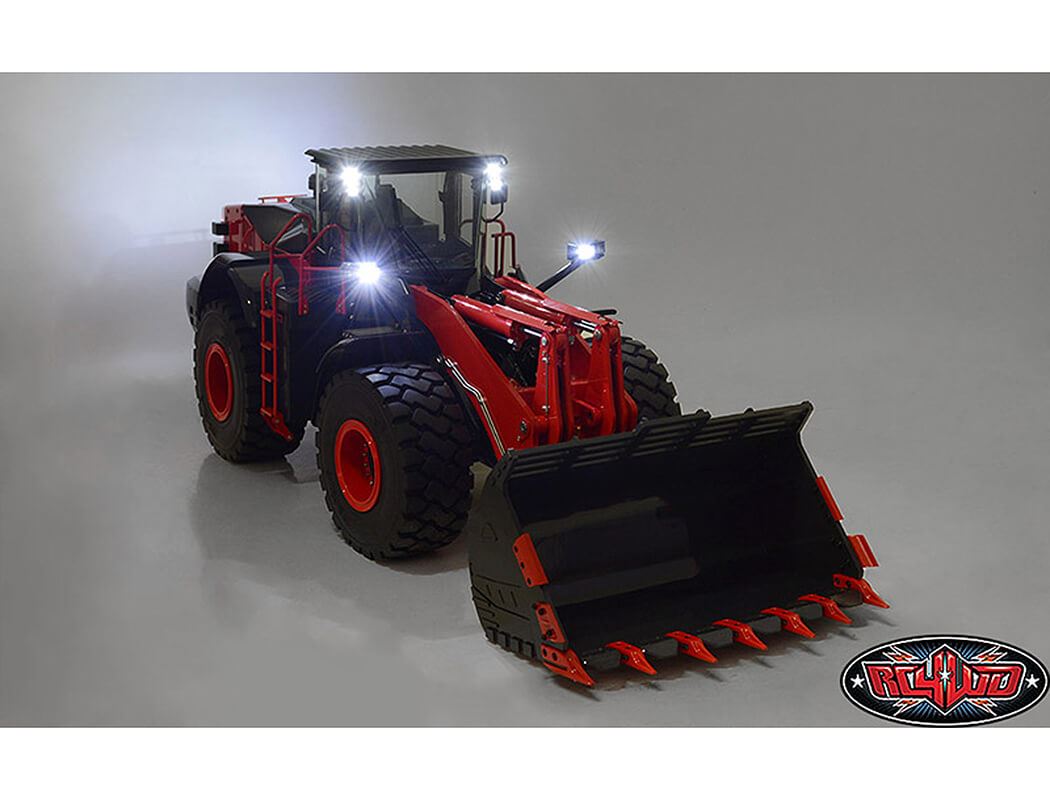

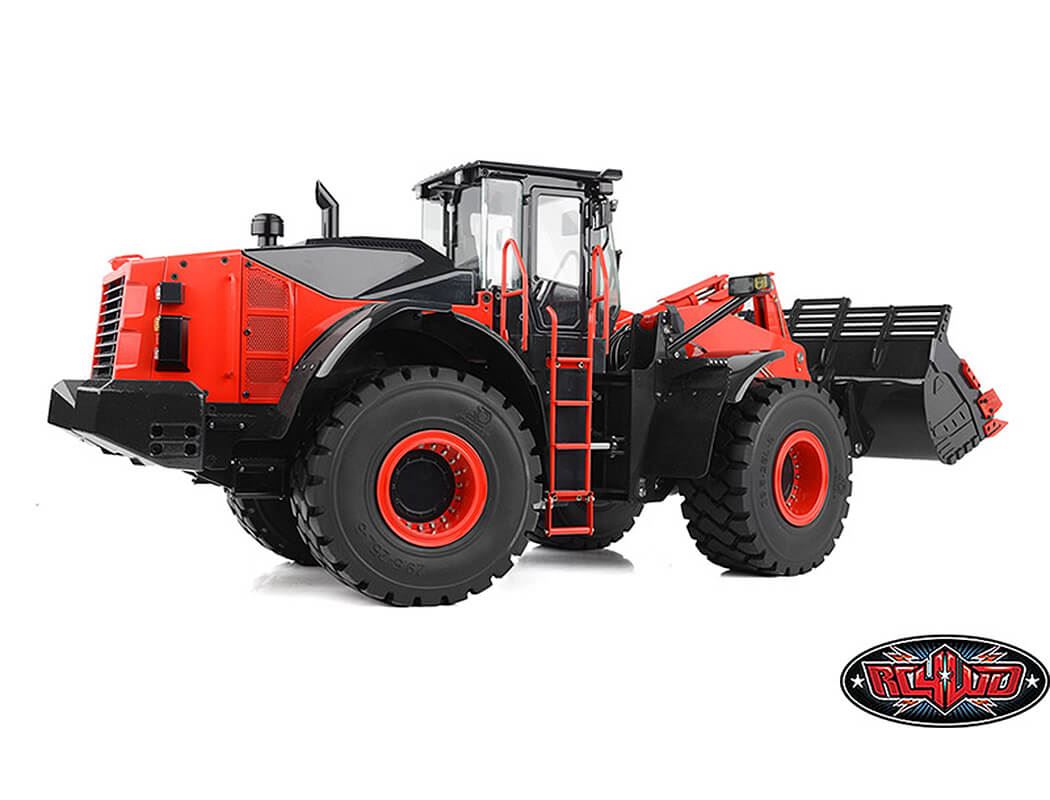

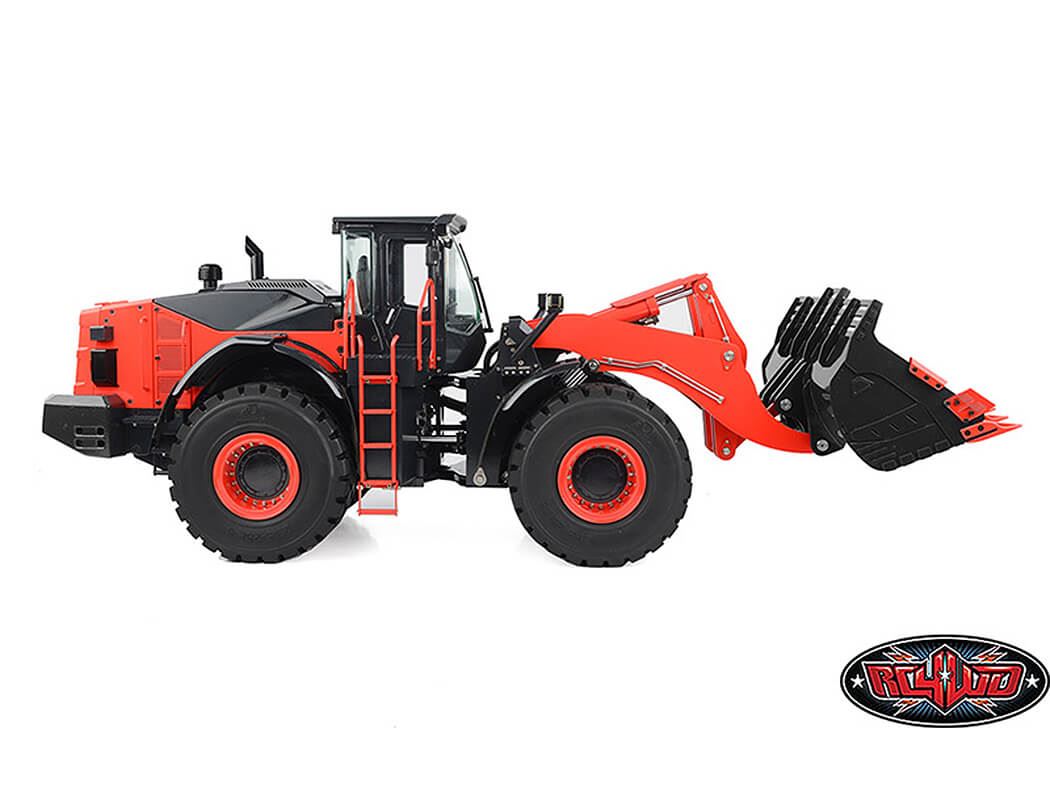

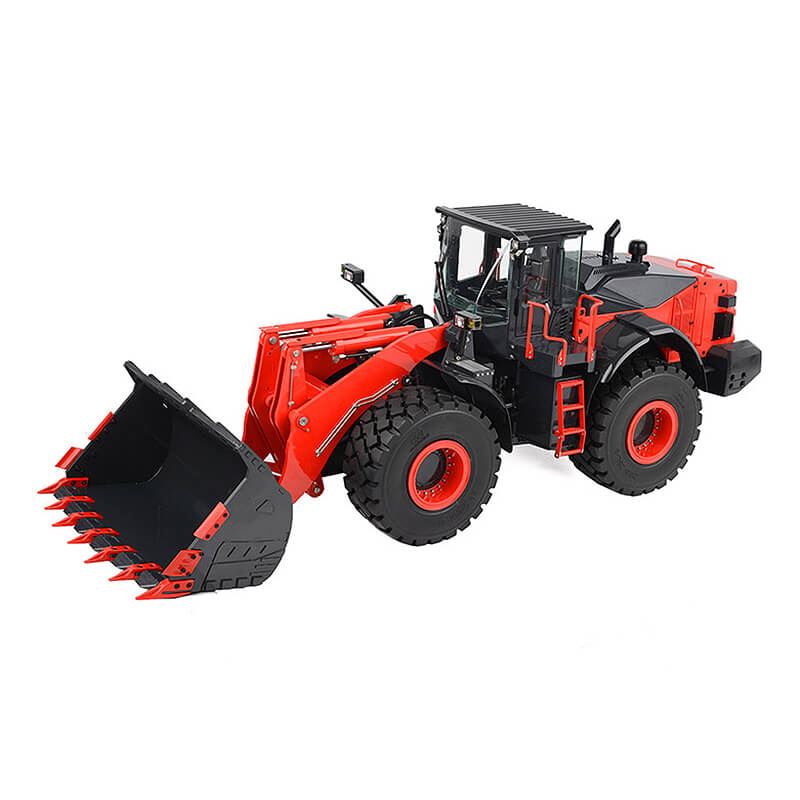

RC4WD 1/14 SCALE EARTH MOVER Z W370 HYDRAULIC WHEEL LOADER RT
Couldn't load pickup availability

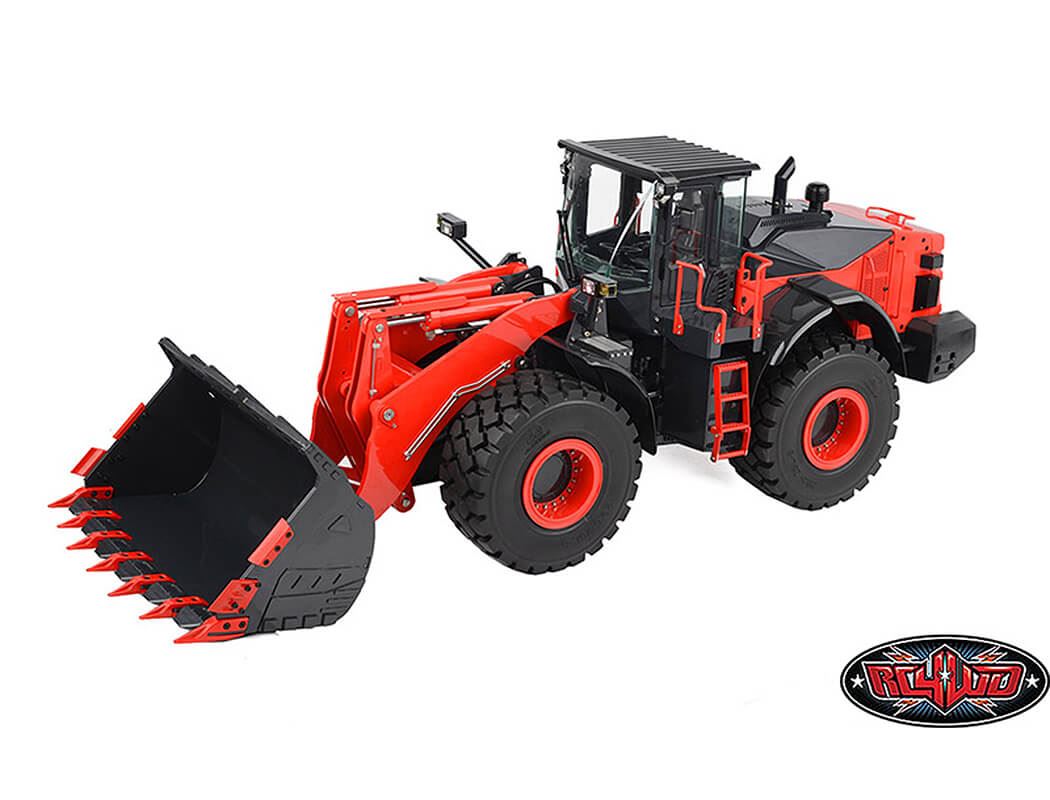

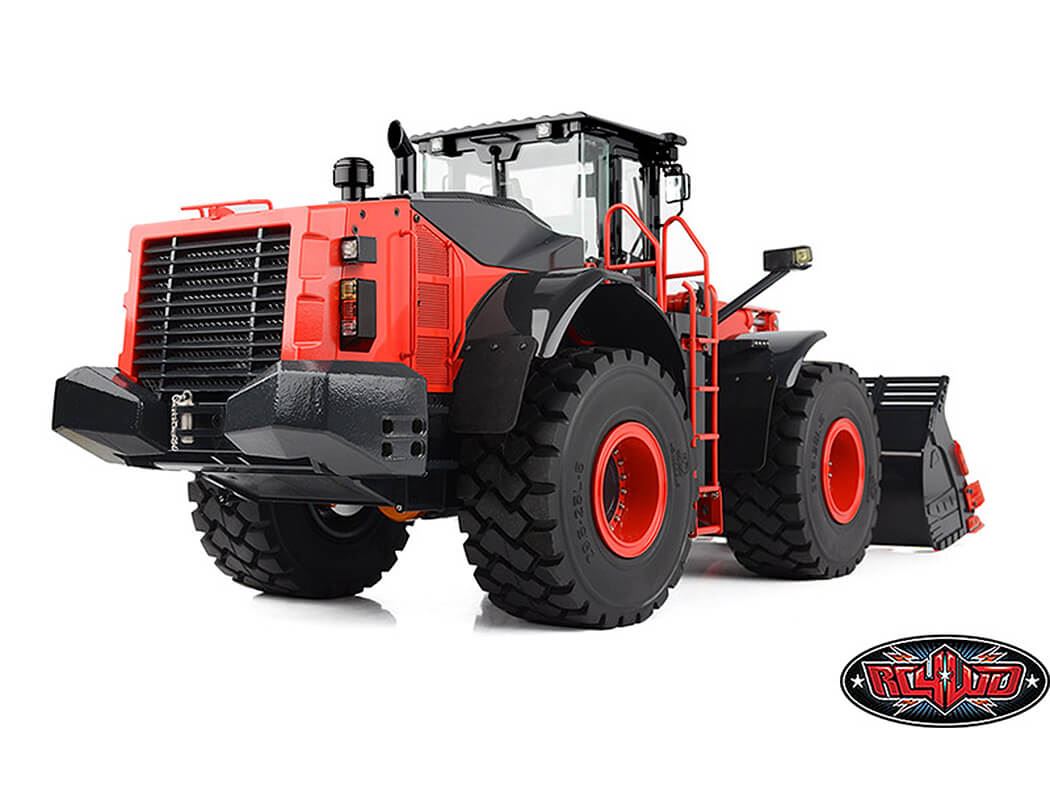

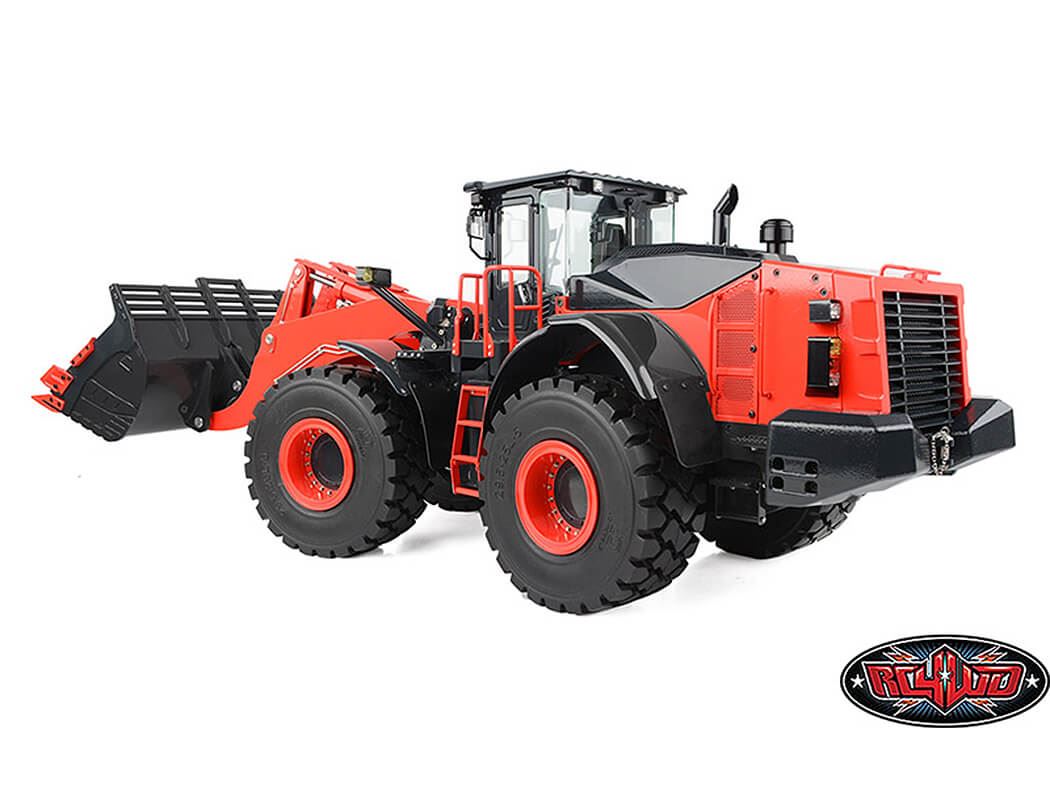

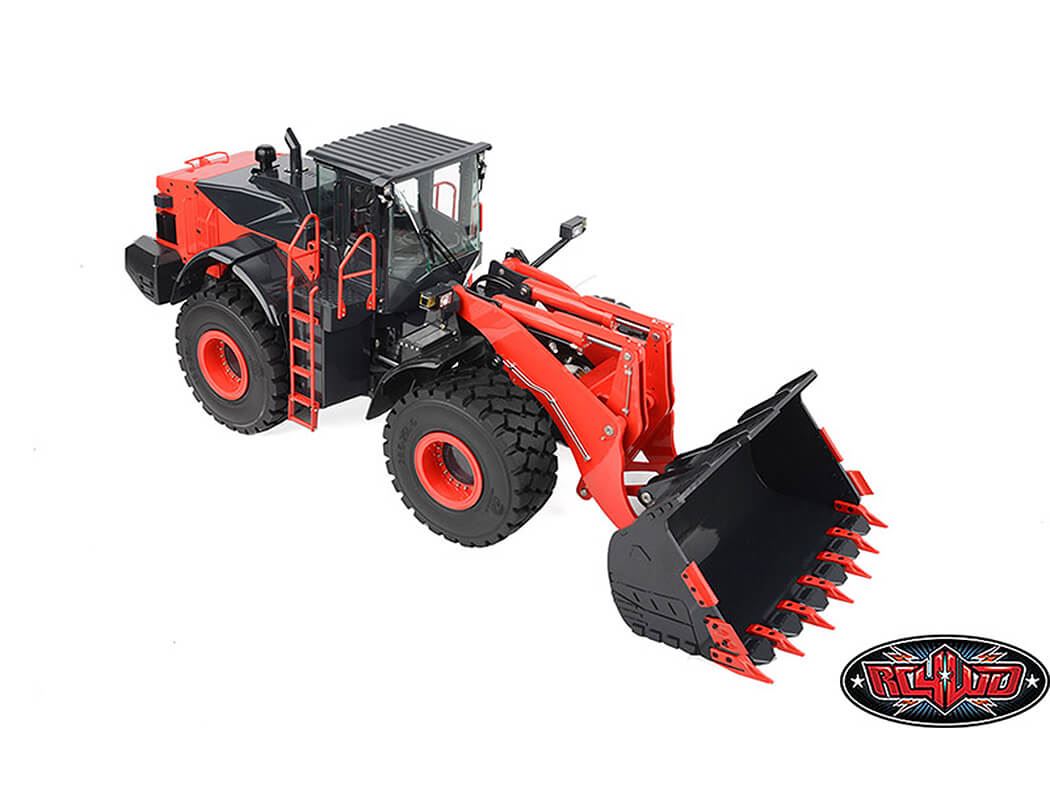

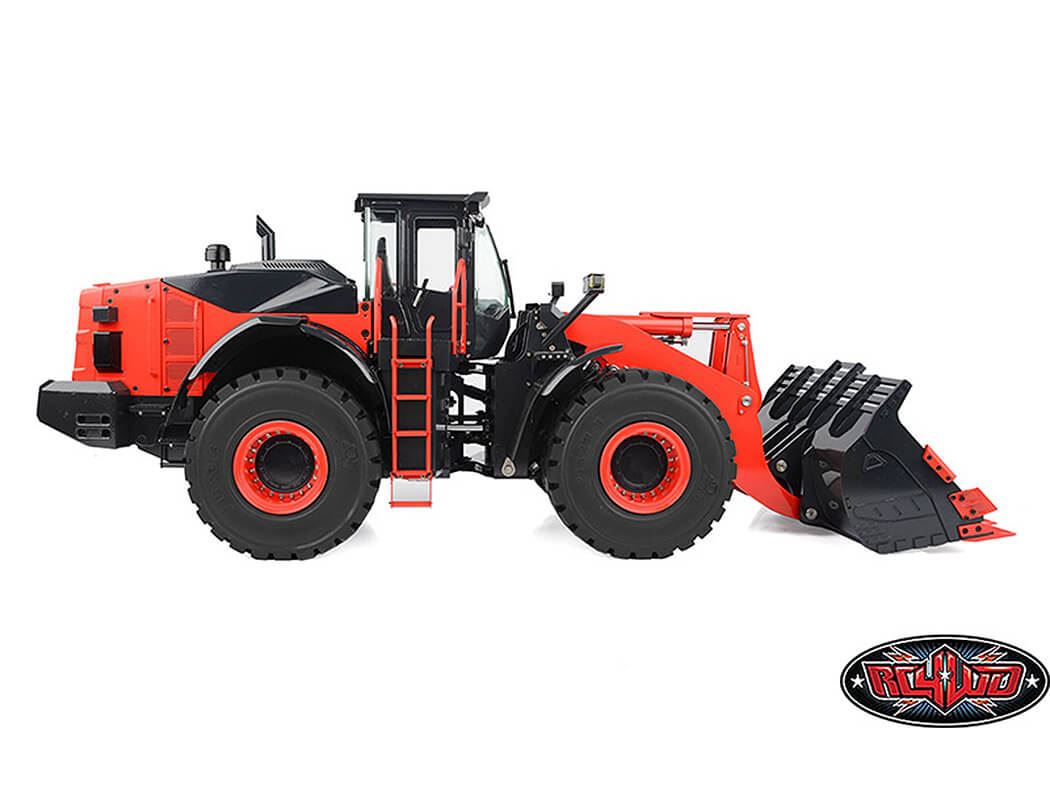

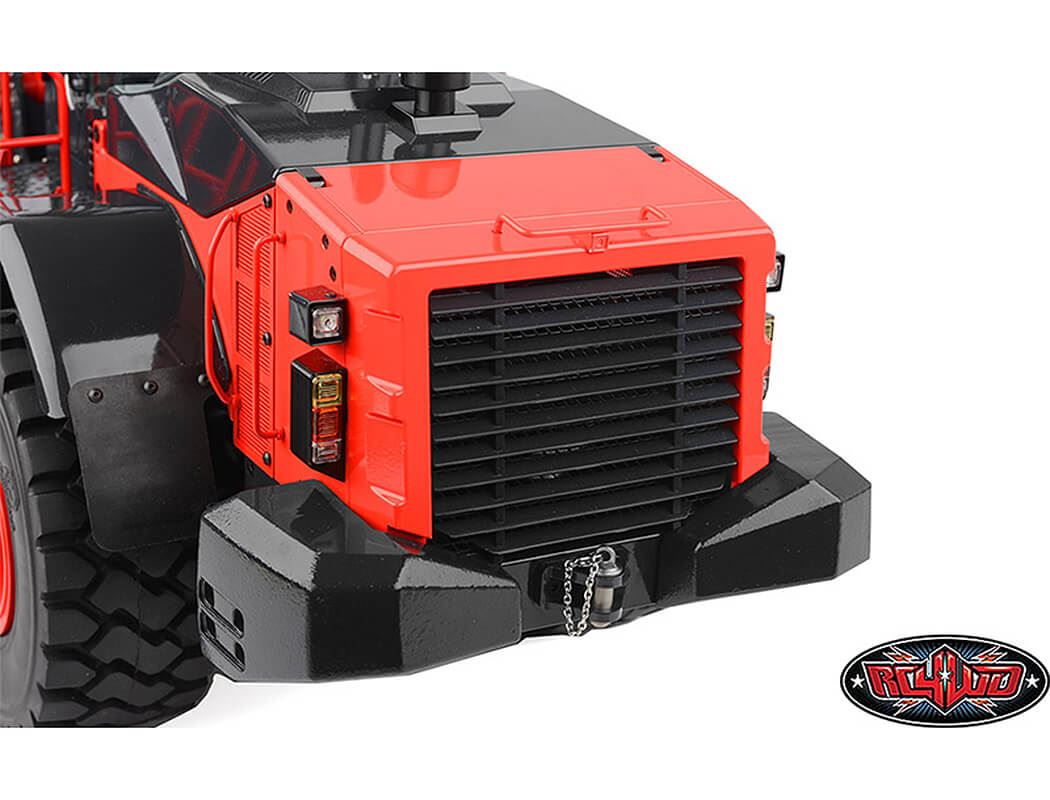

RC4WD 1/14 SCALE EARTH MOVER Z W370 HYDRAULIC WHEEL LOADER RT
Features
- CNC Machined Metal Parts
- Molded Steel Bucket
- 10 Channel 2.4Ghz Radio
- Optimized Steel Hydraulic System

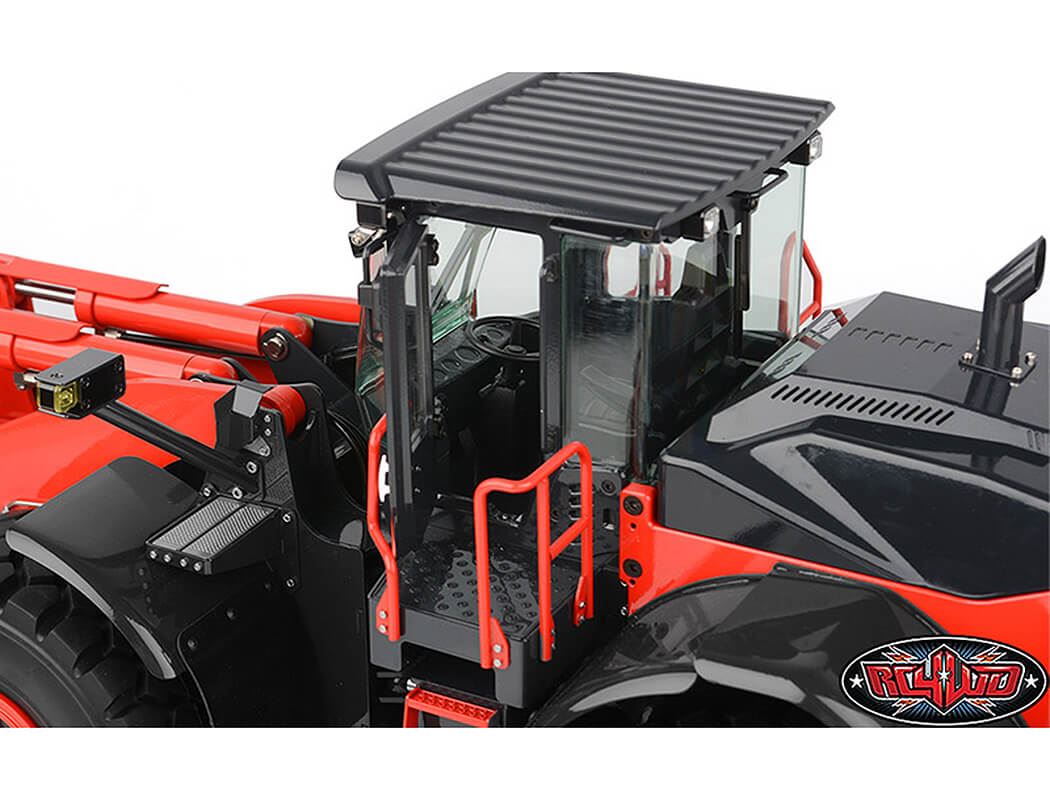

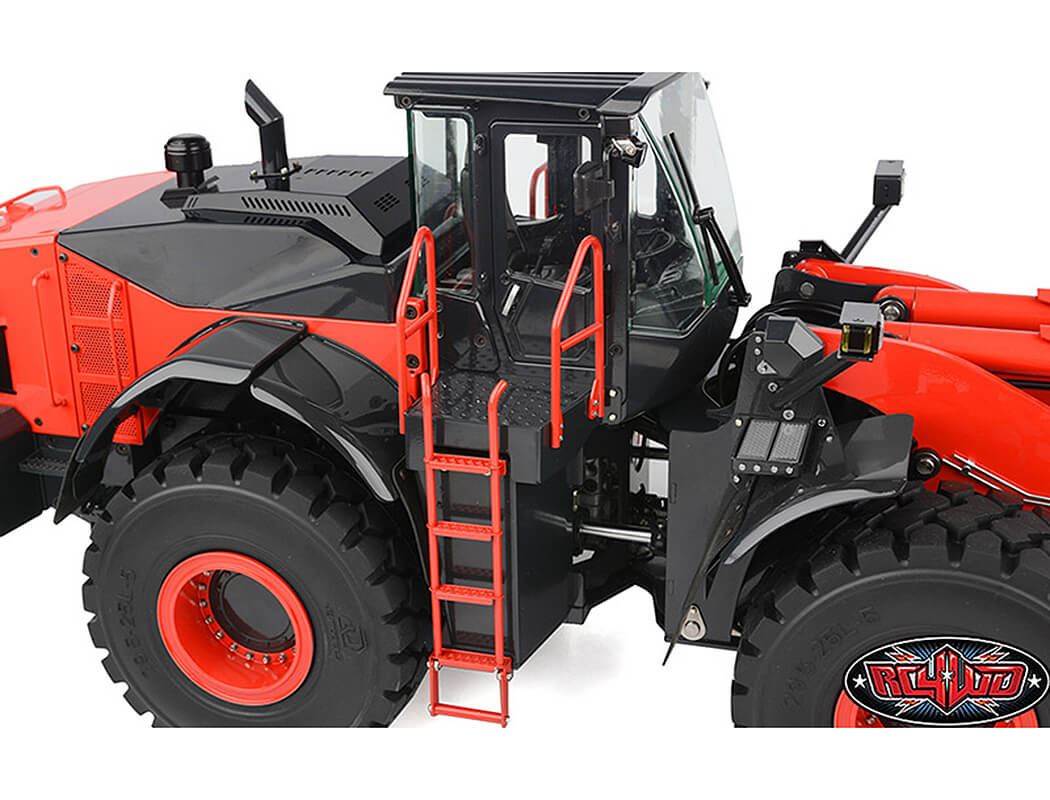

- Scale Operator Station (can fit a driving figure)
- 137MM Model Special Tires
- Reliable Hydraulic Valve and Adjustable Pump
- High Pressure Nylon Hoses (OD 4.5mm, ID 2.5mm)
- Powder Coated in Red

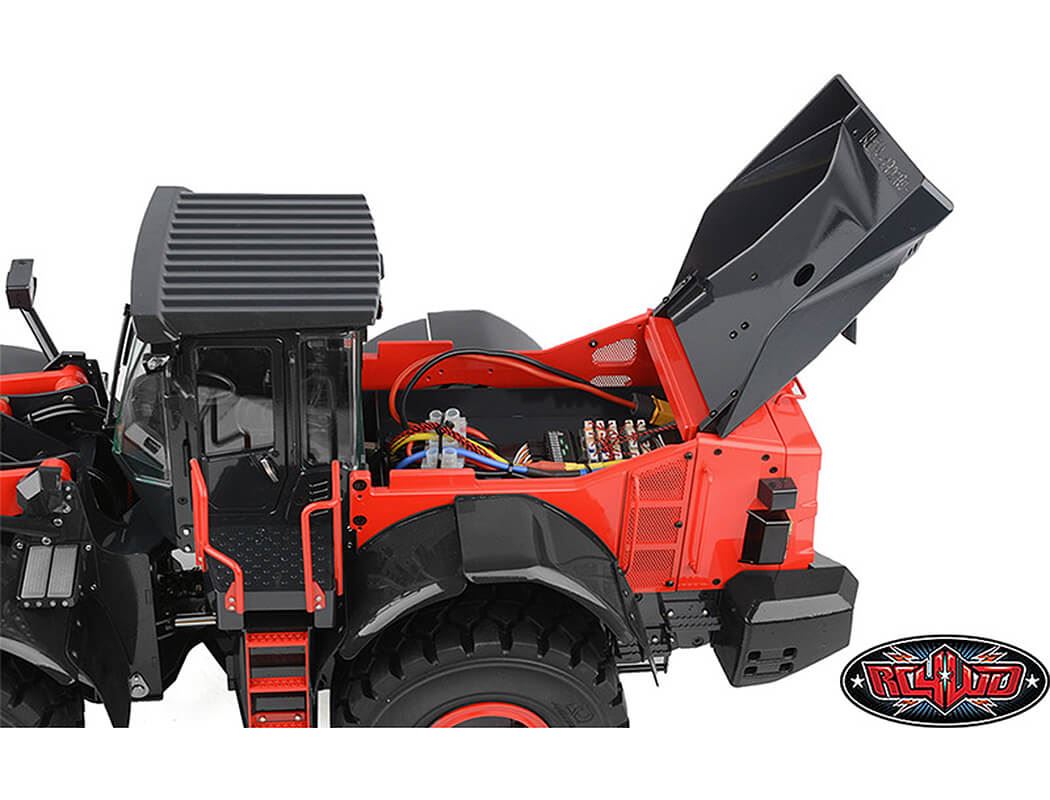

- Brushless System (hydraulic)
- 40A Brushless ESC with BEC
- 270KV Brushless Monster Torque Motor
- Realistic Non Functional Disk Break
- Wheel with Planetary Gearbox Built-in
- 2 Speed Full Metal Transmission (1:64 and 1:16 gear ratio)
- Realistic Full Metal Axles
- Run Time is: 30 minutes (5000 mAh Battery)
- LiPo Cutoff
Specifications
Scale: 1:14
Length: 27.9in / 710mm
Width: 9.84in / 250mm
Height: 10.5in / 268mm
Wheel Base: 9.92in / 252mm

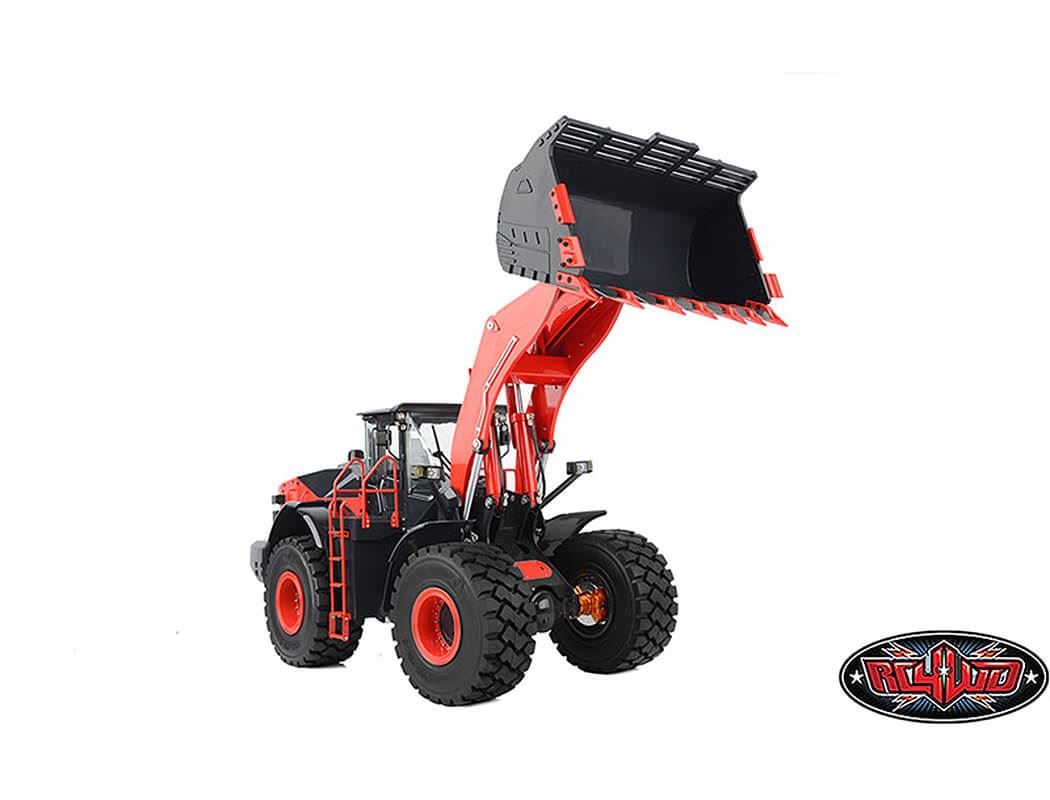

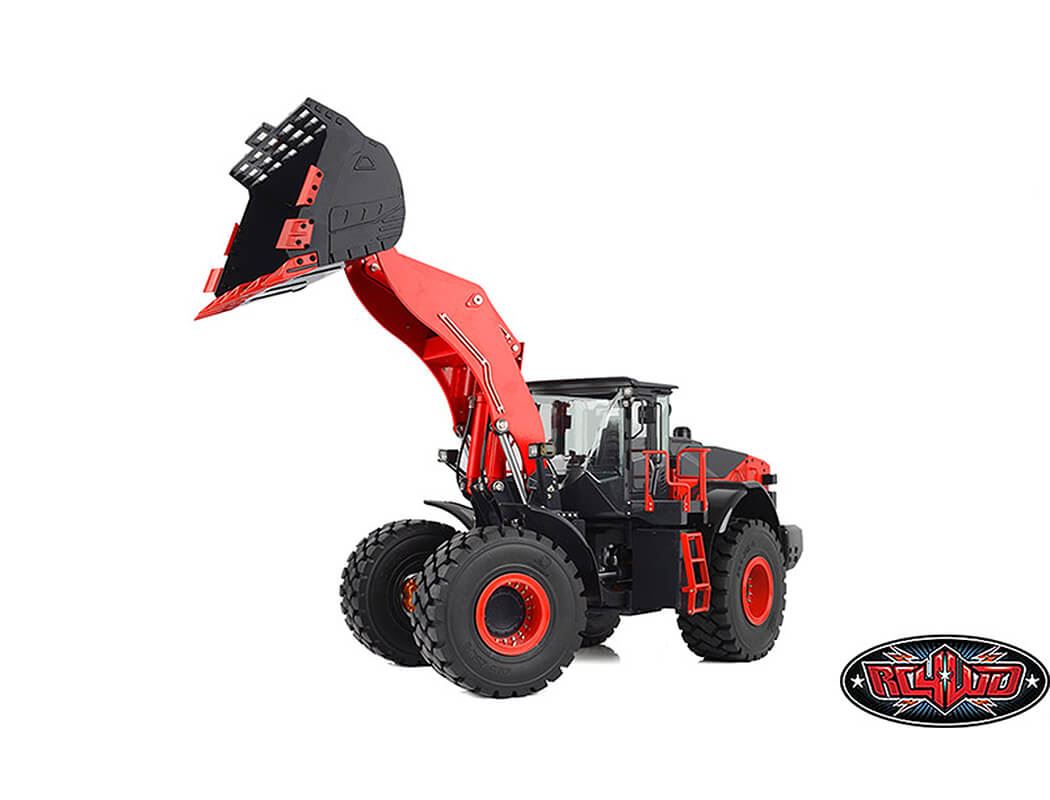

Maximum Bucket Height: 18.1in / 461mm
Operating Oil Pressure: 3.50 Bar, 50.75 psi
Maximum Bucket Up and Down Angle: 46 to 64 degrees
Maximum Bucket Left and Right Angle: 38 degrees
Maximum Bucket Force: 40kg / 88lbs
Dead Weight: 16.5kg / 36.3lbs
Total Mass Load: 32kg / 70lbs
Theoretical Rise: 15kg / 33lbs (Boom Lift).Theoretical Traction: 30kg / 66lbs
Hydraulic Pump: Flow 0.8 L / MIN, Rated Pressure 2.5 MPA Ultimate Pressure 5 MPA

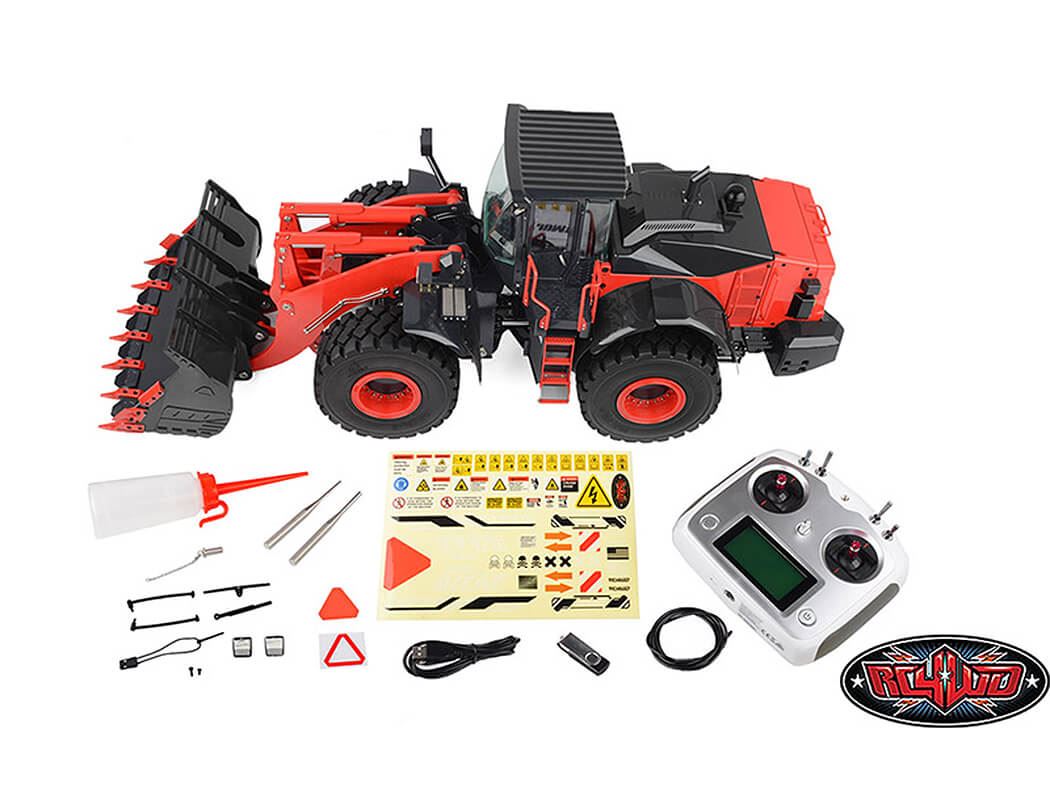

What's Included
- 1 x 1/14 Scale Earth Mover ZW370 Hydraulic Wheel Loader RTR (Limited Edition)
Required To Complete
- 5000mAh 11.1V 50C 3S1P LiPo Battery Pack with XT60 Plug (Battery size must be no bigger than 140mm in length, 45mm in width, and 25mm in height)
- Compatible Battery Charger
- 4 x AA Batteries for Radio (Z-S1718)
- Chevron AW ISO 32 Hydraulic Oil 14oz (Z-X0042)
Notes
- While some components may come assembled, we recommend checking the hardware and screws are all properly secure, especially after shipping. As an option, you may want to apply thread lock to some of the installed hardware.
- ESC Supports bullet Connector.
- Use good quality hex drivers to avoid stripping screw heads.
- Use thread lock when putting metal screws into metal parts.
- Battery Size should be within 140x45x25MM (LxWxH).
- This JDM Product ships in carton packaging.
- The transmission shaft adopts the latest constant angular speed double transmission shaft, which makes the power transmission smoother (Our website videos will complement this content).
- The valve is an upgraded version, which is more than double the response and controllability of the old model.
- This Product Is Professionally Pre-Assembled.
-
