Rc4Wd 1/14 Scale Rtr Earth Digger 36 0L Hydraulic Excavator (Yellow

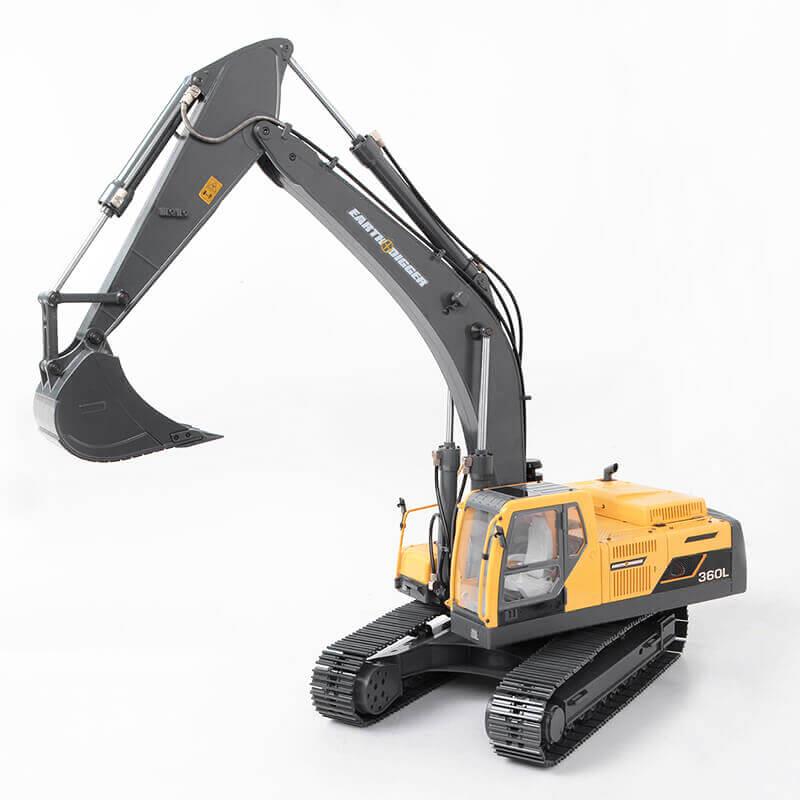

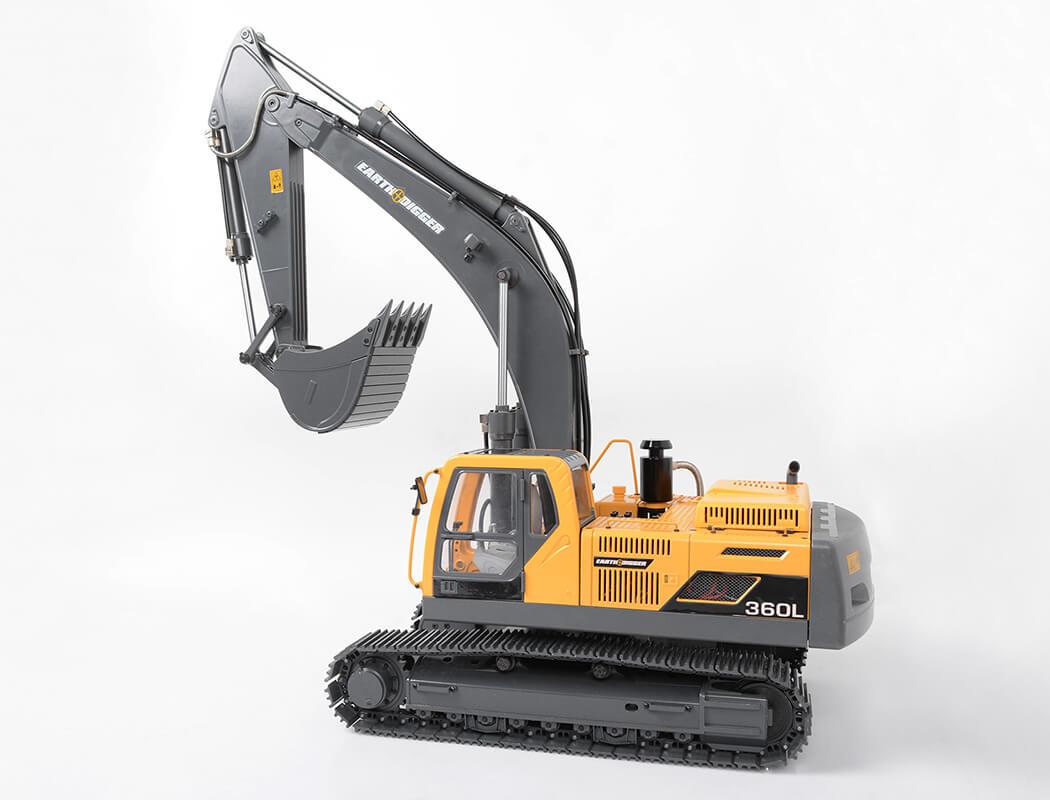

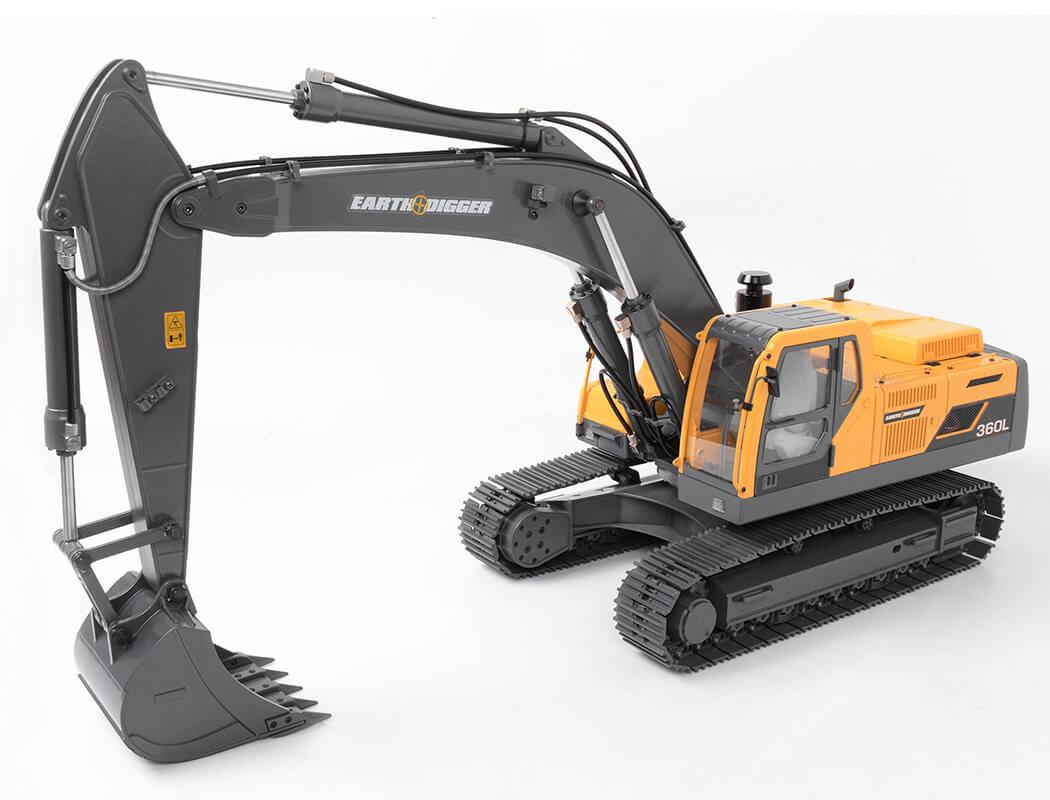

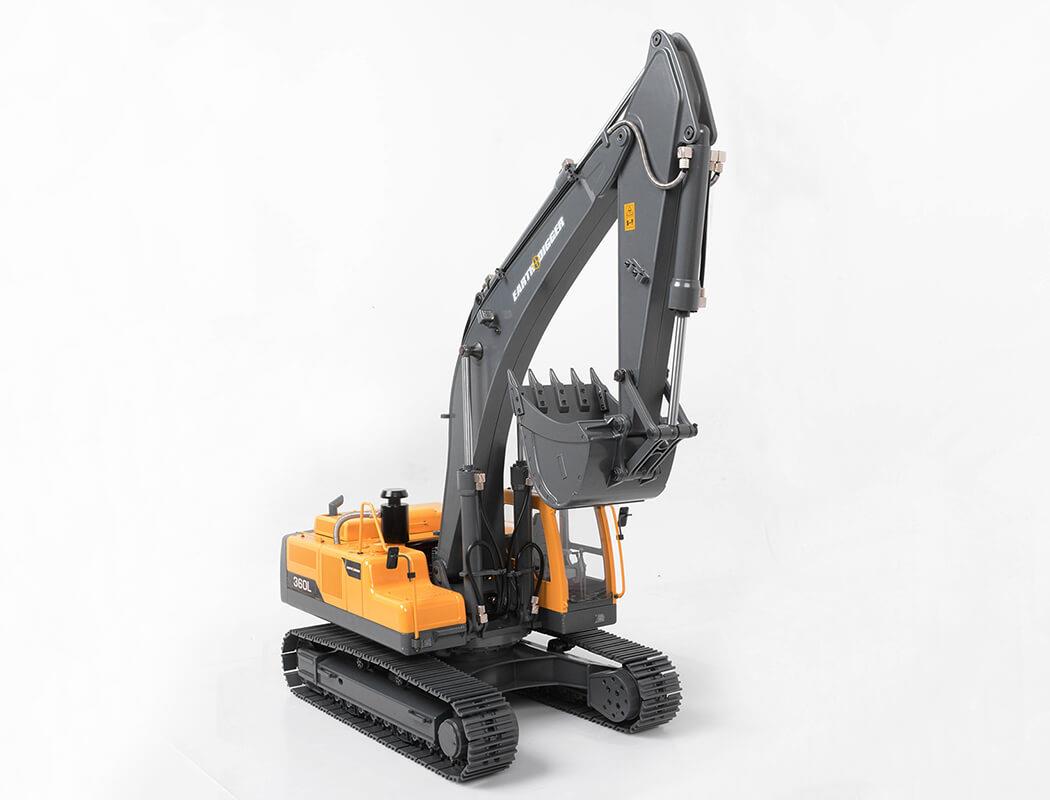

RC4WD 1/14 SCALE RTR EARTH DIGGER 360L HYDRAULIC EXCAVATOR (YELLOW)
The 1/14 Scale Earth Digger 360L Hydraulic Excavator 360L is even more powerful than its predecessor! Built for those that want reliability, unmatched looks and brute strength for getting that project done. Created with CNC machined metal parts, it's fully assembled and ready to dig!
Be ready for the massive power delivered through the high output brushless system. Let's get digging!
Features
- Alloy Zinc and Alloy Aluminum Casting (except Hydraulic Pump)
- Custom 8 Channel 2.4Ghz Radio
- Preinstalled High Intensity Light Sockets (Wire and bulbs are not included)
- Optimized Steel Hydraulic System
- Scale Driving Figure Ready (Not included)
- Alloy Zinc Molded Tracks (50mm Width)
- Efficient Undercarriage
- Reliable Hydraulic Valve and Adjustable Pump

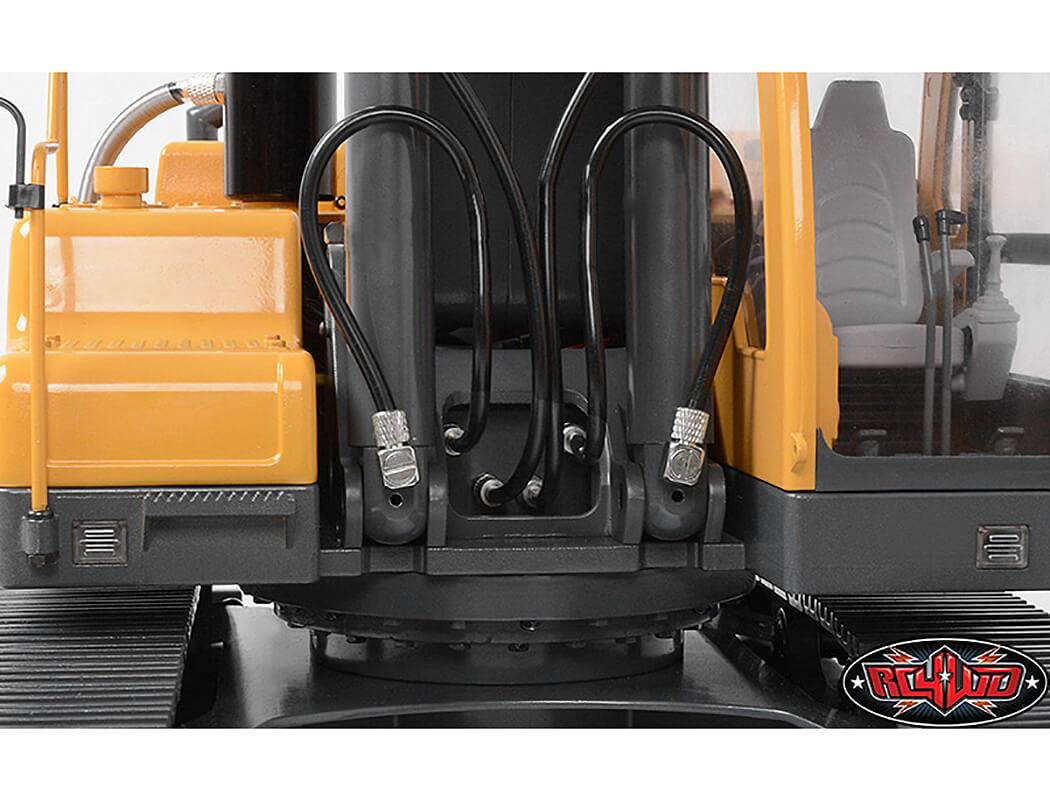

- Heavy Duty Hoses (OD 4.5mm Nylon, ID 2.5mm)
- Undercarriage May Rotate 360 Degrees (Endless)
- Powder-coated in Yellow and Grey
- Massive Brushless System (Including driving and turning)

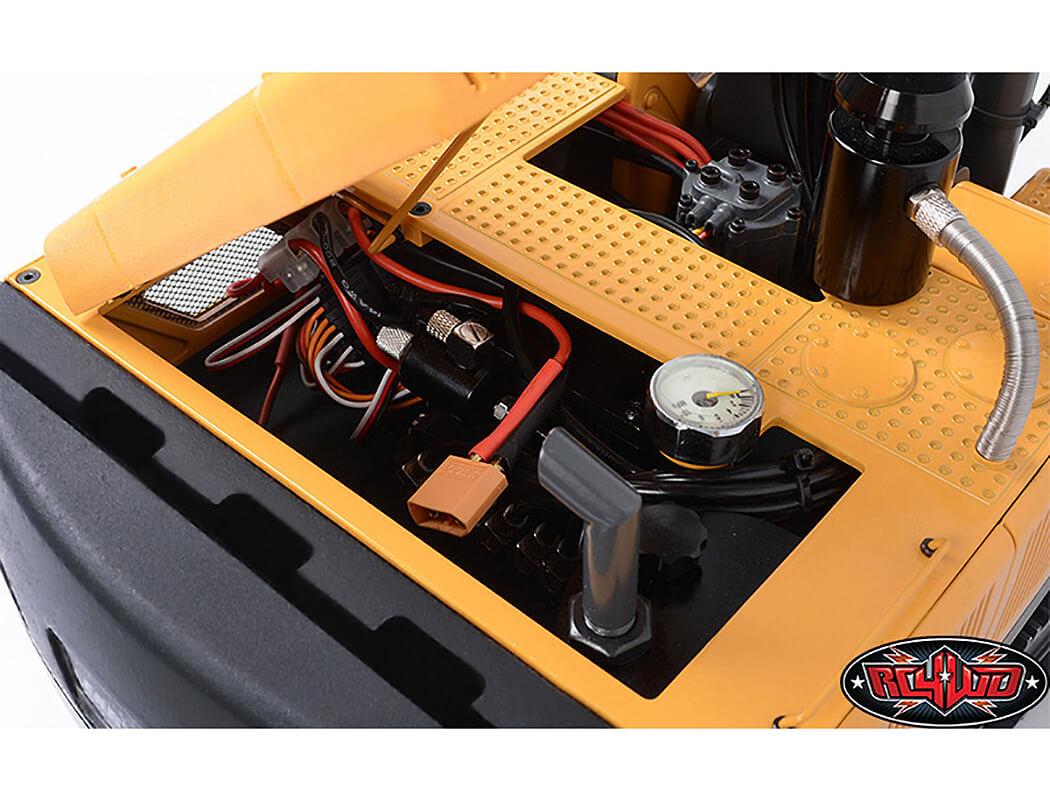

- Hydraulic System 60A Brushless ESC, Driving and Turning System 30A Brushless ESC
- 270Kv Brushless Monster Torque Motor, Shaft dia. 3.0mm
- XT60 Power Plug Female
- Run Time: 20 Minutes based on 4200mAh, 11.1V Battery
- Steel Machined Oil Pump (60mm x 60mm x 93mm)
- Digging Force: 15kg / 33lbs
- Max Lifting Force: 70Kg / 154lbs
- Driving Speed: 360 Meter per hour
- Lipo Cutoff
Specifications
Scale: 1:14
Length: 823mm / 32.4in
Width: 234mm / 9.21in
Height: 260mm / 10.2in
Operating Oil Pressure: 2.5Mpa

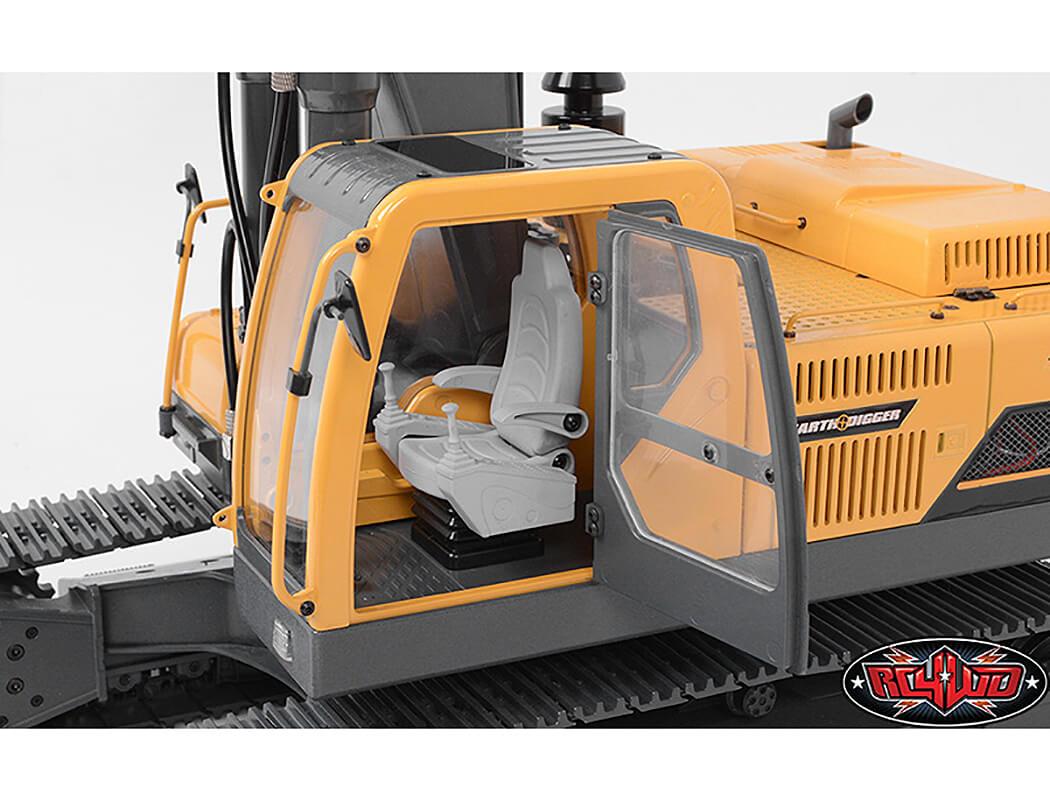

Inside Cab Length: 4.72in / 120mm
Inside Cab Width: 2.55in / 65mm
Inside Cab Height: 4.21in / 107mm
Deadweight: 26Kg / 57lbs
What's Included
- 1x 1/14 Scale RTR Earth Digger 360L Hydraulic Excavator (Yellow)
Required To Complete
- Supply Voltage: 12V, XT60 Connector, We recommend=3S, 25C LiPo Battery.
- Compatible Battery Charger
- 8 x AA Batteries for Radio
- Chevron AW ISO 32 Hydraulic Oil 14oz (Z-X0042)
Notes
- Battery Size should be within 160x51x73MM(LxWxH).
- Must turn on the transmitter before starting the ESC.
- ESC Supports XT60 Connector
- This unit doesn't have a low voltage cut off. You will want to purchase a LiPo Battery Low Voltage Alarm to protect your battery. This is a common item in RC and should be available at most major online hobby shops.
- While some components may come assembled, we recommend checking the hardware and screws are all properly secure, especially after shipping. As an option, you may want to apply thread lock to some of the installed hardware.
- Use good quality hex drivers to avoid stripping screw heads.
- Use thread lock when putting metal screws into metal parts.
- Steps marked with an asterisk (*) require thread lock.
- Use thread lock sparingly.
