Rc4Wd Gelande Ii Rtr W/2015 Land Rover Defender D90 Body
Save £12.99
Couldn't load pickup availability

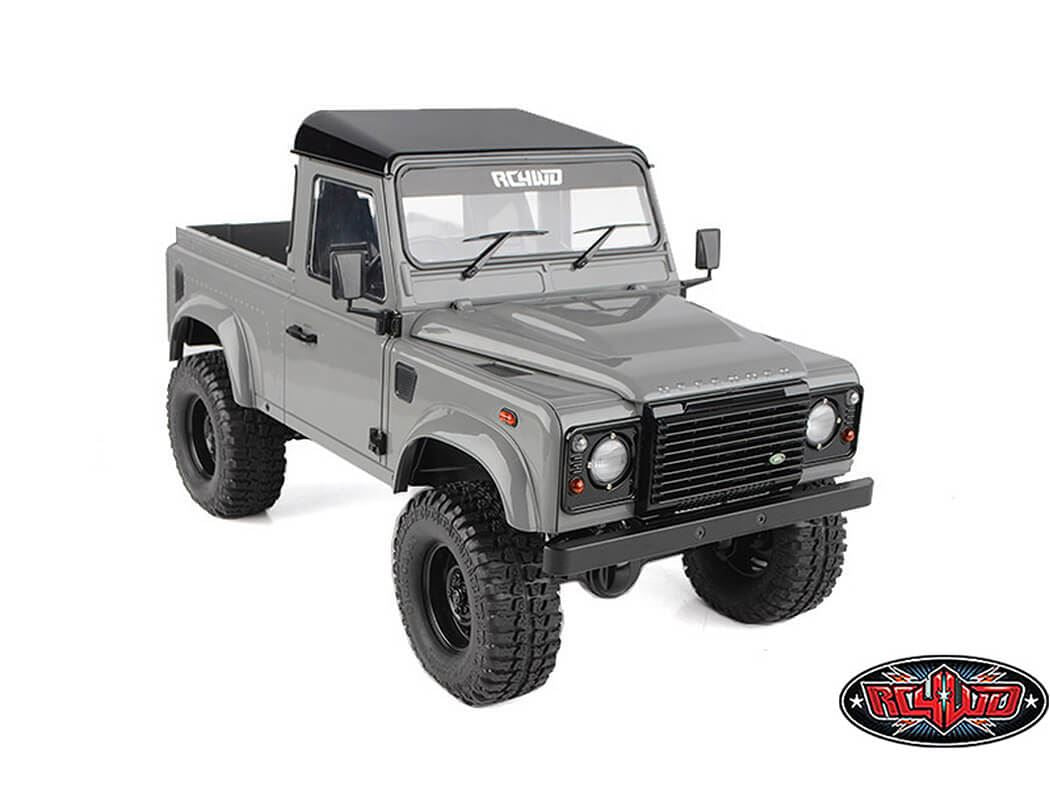

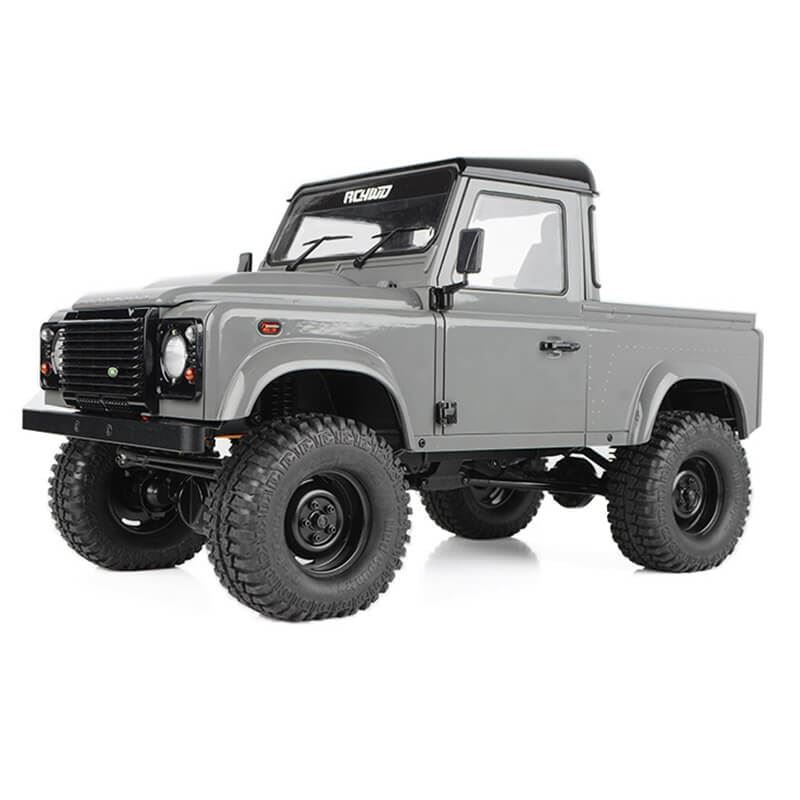

RC4WD GELANDE II RTR WITH 2015 LAND ROVER DEFENDER D90 BODY SET (GREY)
Features
- 2015 Land Rover Defender D90 Body Set
- Basic Lighting System
- TDI Engine Bay
- Landies Vintage 1.9" Stamped Steel Beadlock Wheels
- Dick Cepek 1.9" Mud Country Scale Tires
- Yota II Ultimate Scale Cast Axle V2 (XVD)
- Dual Spring Scale Black Shocks 80mm V3
- Inner Fender Set
- 540 Crawler Brushed Motor 45T
- R3 Single Speed Transmission
- Center Mounted Hammer Transfer Case
- Twister High Torque Metal Gear Digital Servo
- Outcry III Waterproof ESC
- 6-Cell 3000mAh NIMH Battery W/ XT60 Plug
- Universal NIMH Peak Battery Charger
- XR3 3-Channel 2.4Ghz Transmitter/Receiver Radio
- Exclusive Decal Sheet
Drivetrain

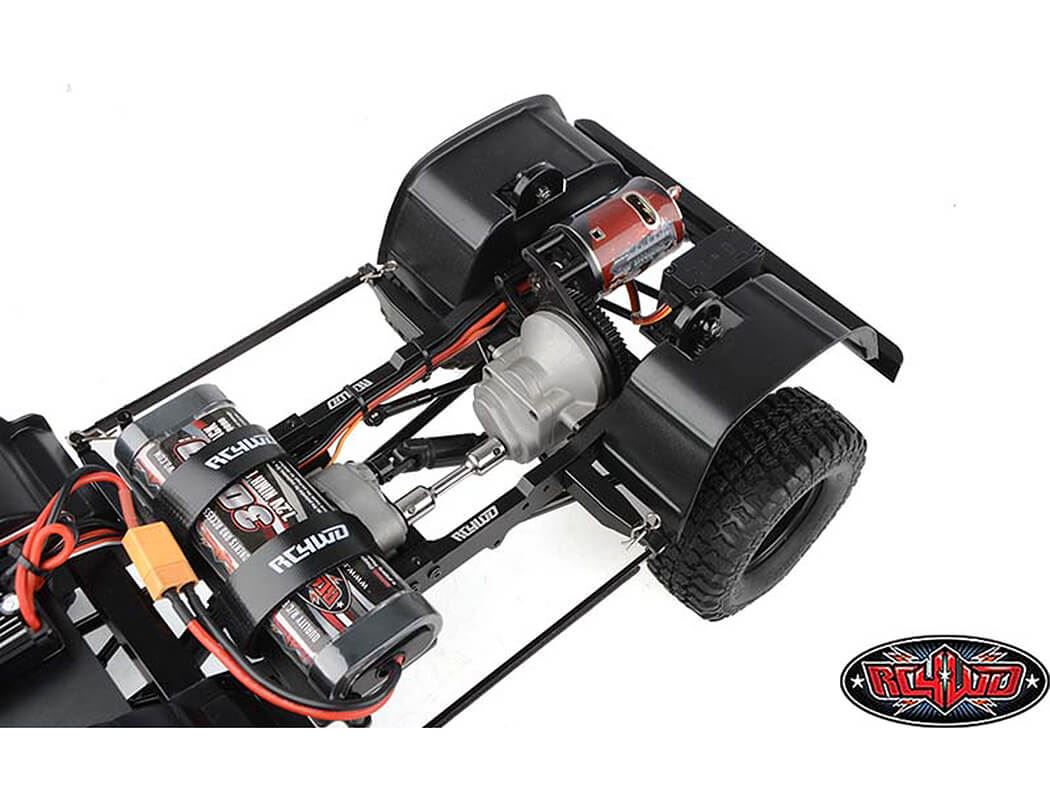

The R3 Single Speed Transmission comes with a tough cast metal case and wider gears for durability and a Delrin Spur with Slipper Clutch for performance. It also features a sturdy billet aluminum motor mount for added toughness.
The Gelande II includes the new Hammer Transfer Case. Packed with scale detail, the Hammer features a cast metal exterior and heavy-duty .8 Mod widened gears for durability.
Drawing on the success of the RC4WD MOA Gear Sets, the Gelande II drivetrain has the most durable gears RC4WD has to offer, capable of staying on the trail day after day.

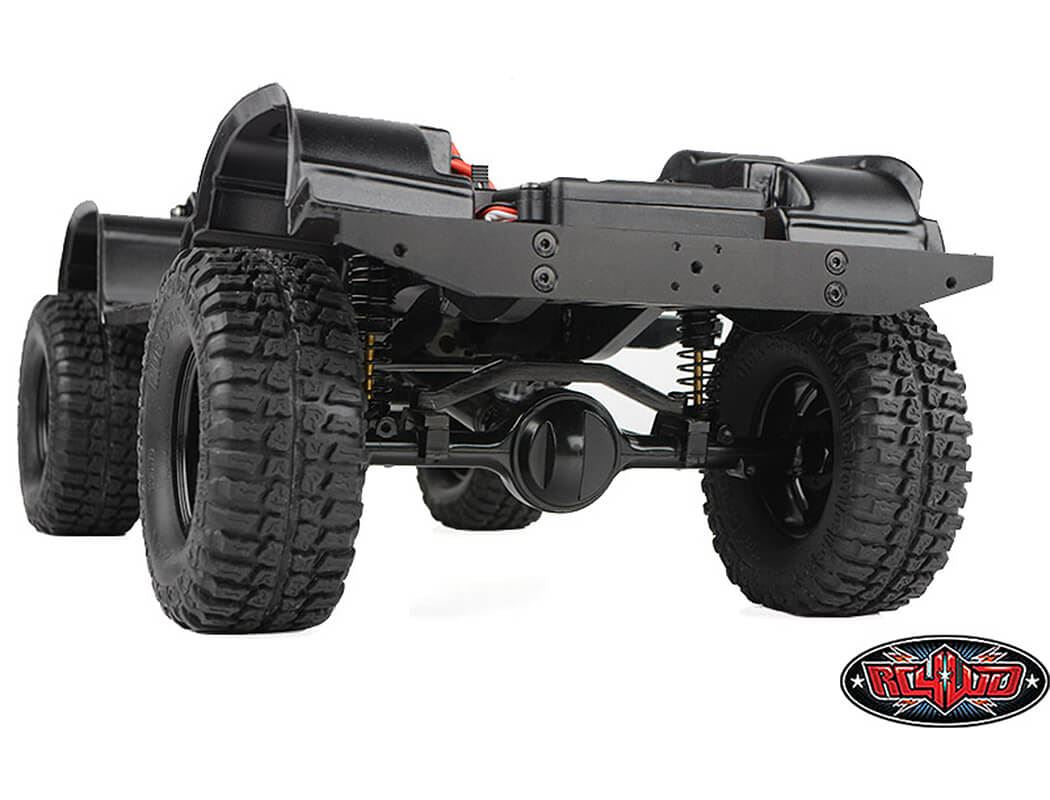

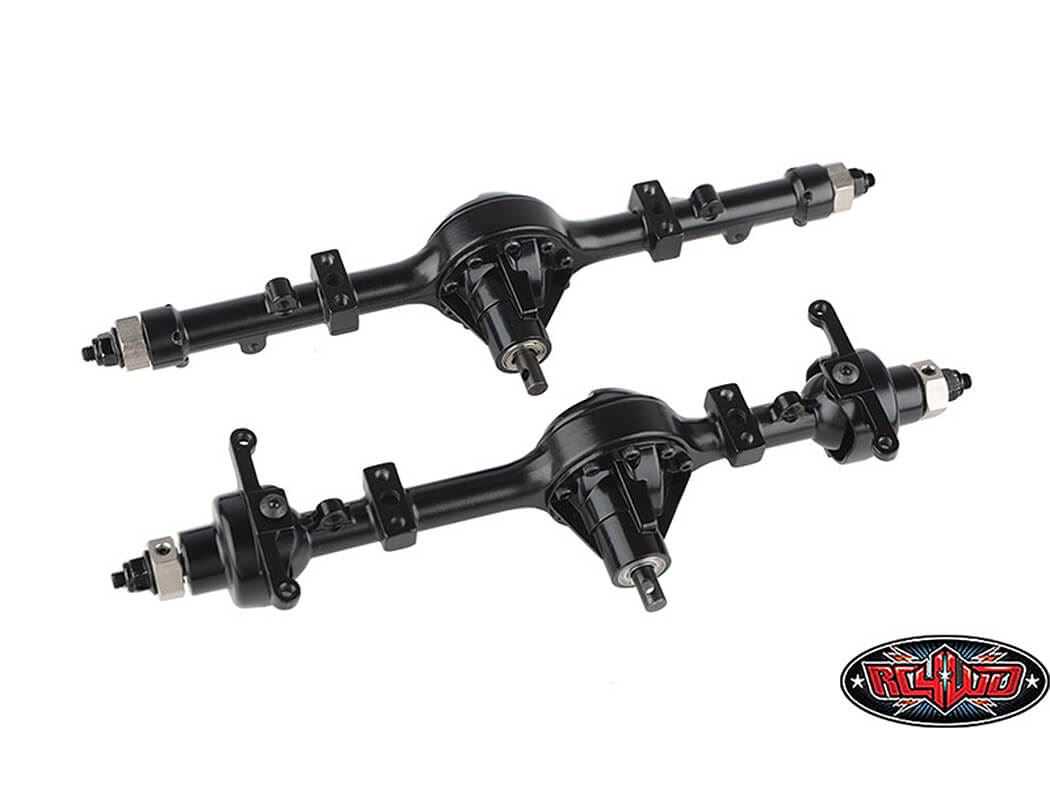

The most scale-accurate axles on the market, the RC4WD Yota II Ultimate Scale Cast Axles V2 (XVD) feature innovative 8-degree round knuckles, unique removable diff covers, lower mounting points, and a compact offset pumpkin in the front.
The driveshafts on the Gelande II Chassis feature heavy-duty uni-joint metal shafts for great driveline angles and durability on the trail.
Suspension

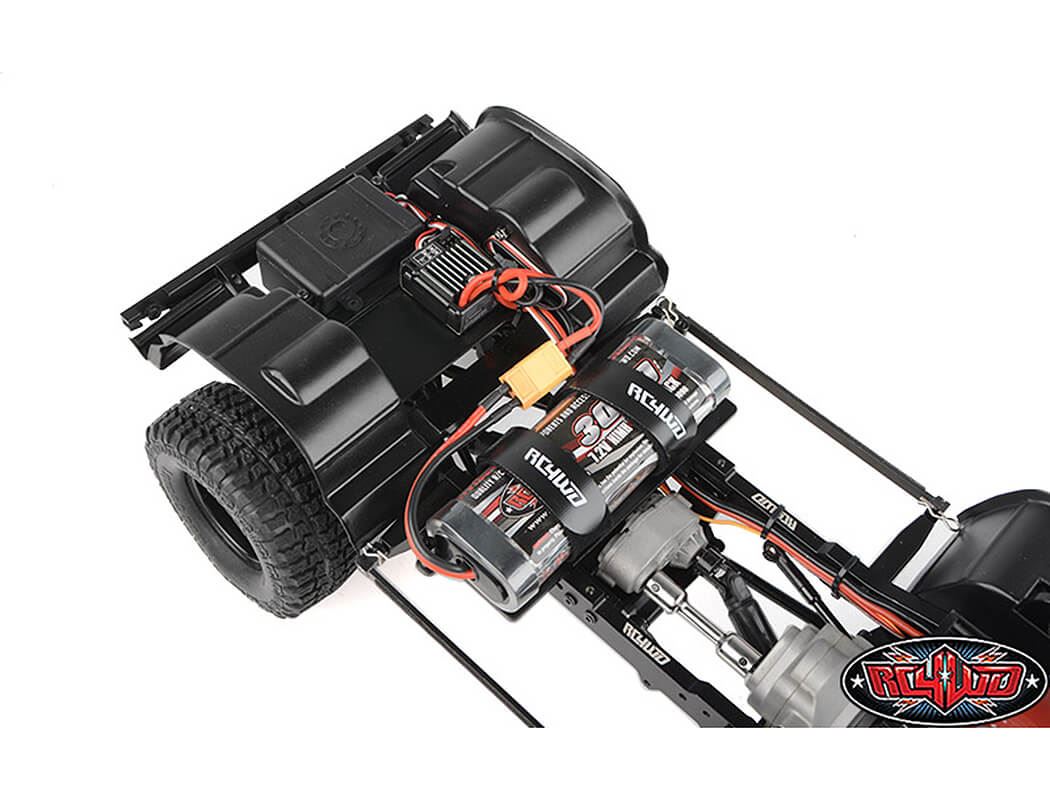

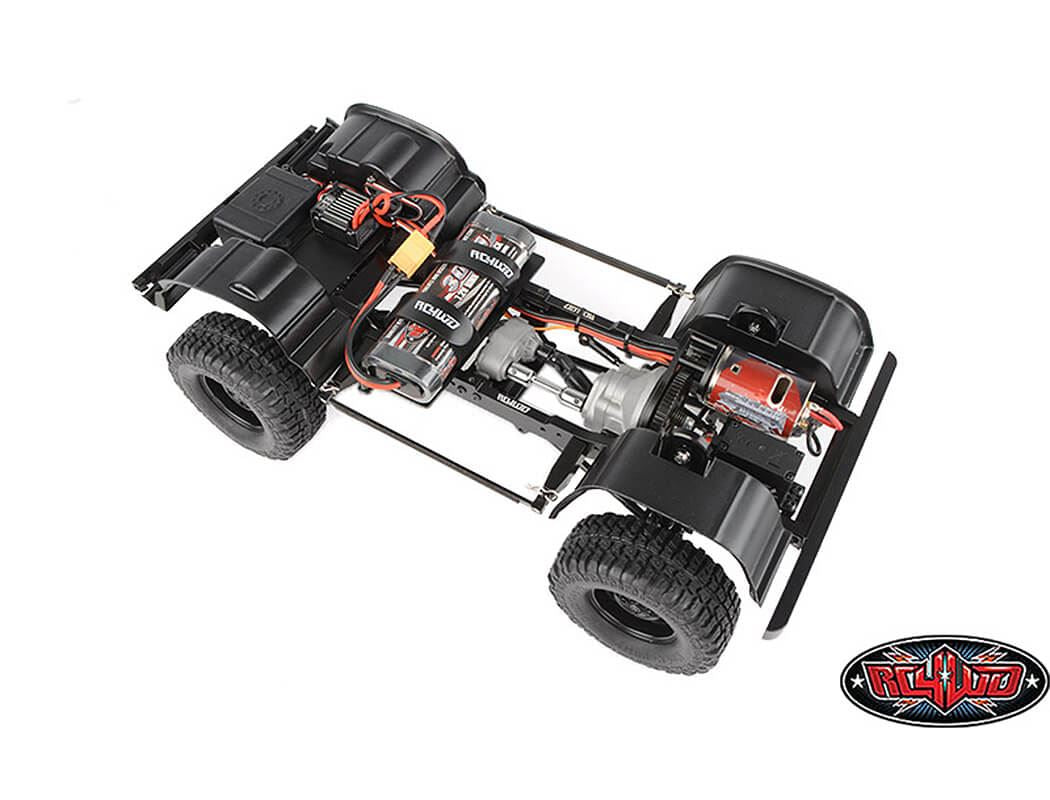

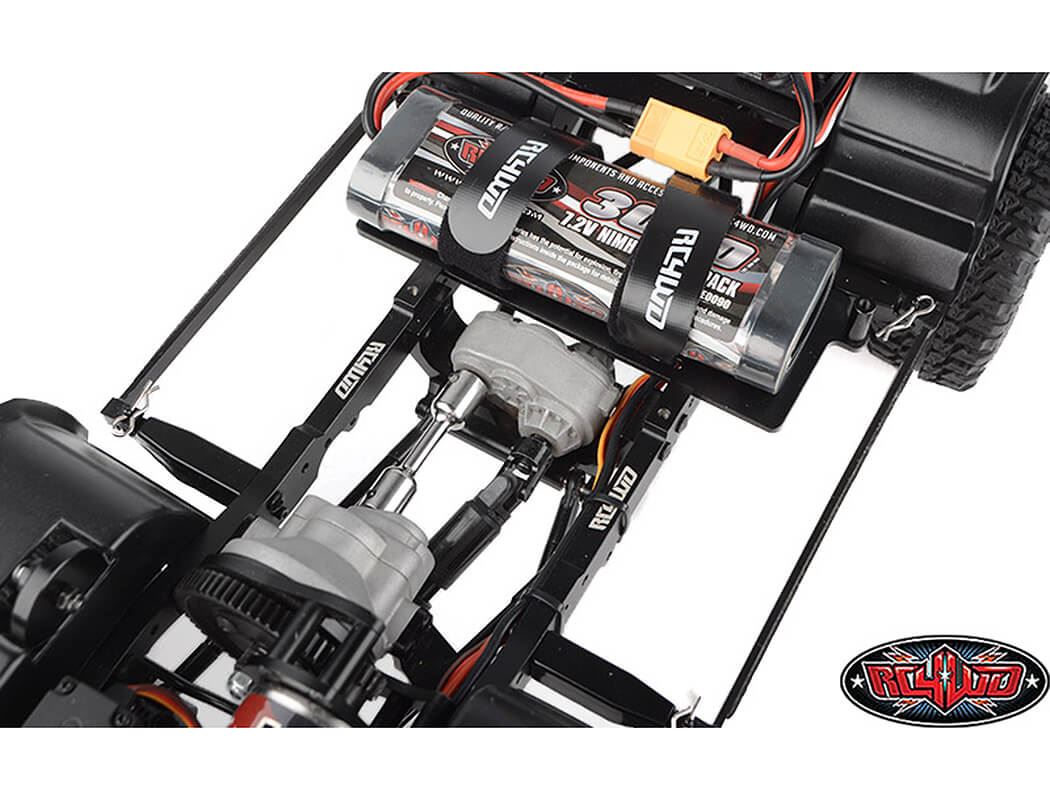

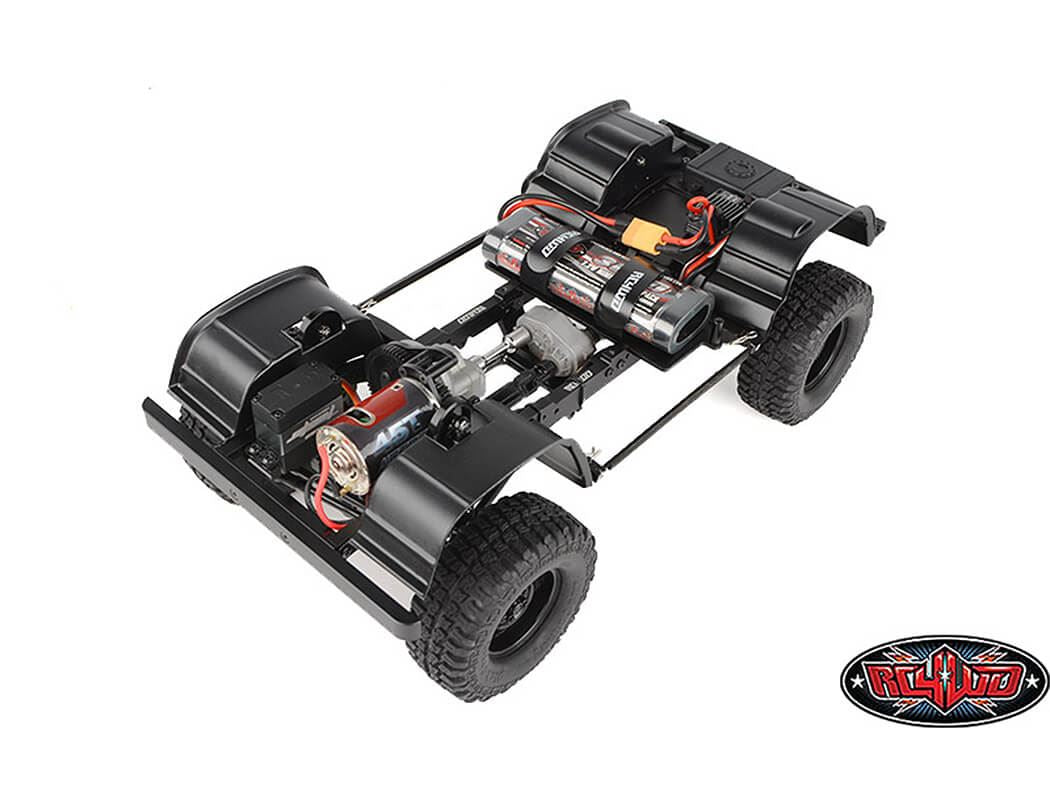

The Gelande II Chassis features a molded fuel cell that doubles as an electronics storage box plus an aluminum, frame-mounted under-cab electronics tray for multiple electronics mounting options. Also includes a sturdy battery tray with strap mounts.
The Gelande II boasts realistic-looking, high -performance X-ring technology Dual Spring Shocks. These rebuildable aluminum shocks feature dual springs and Titanium Nitride coated shafts for superior, long-lasting impact control.

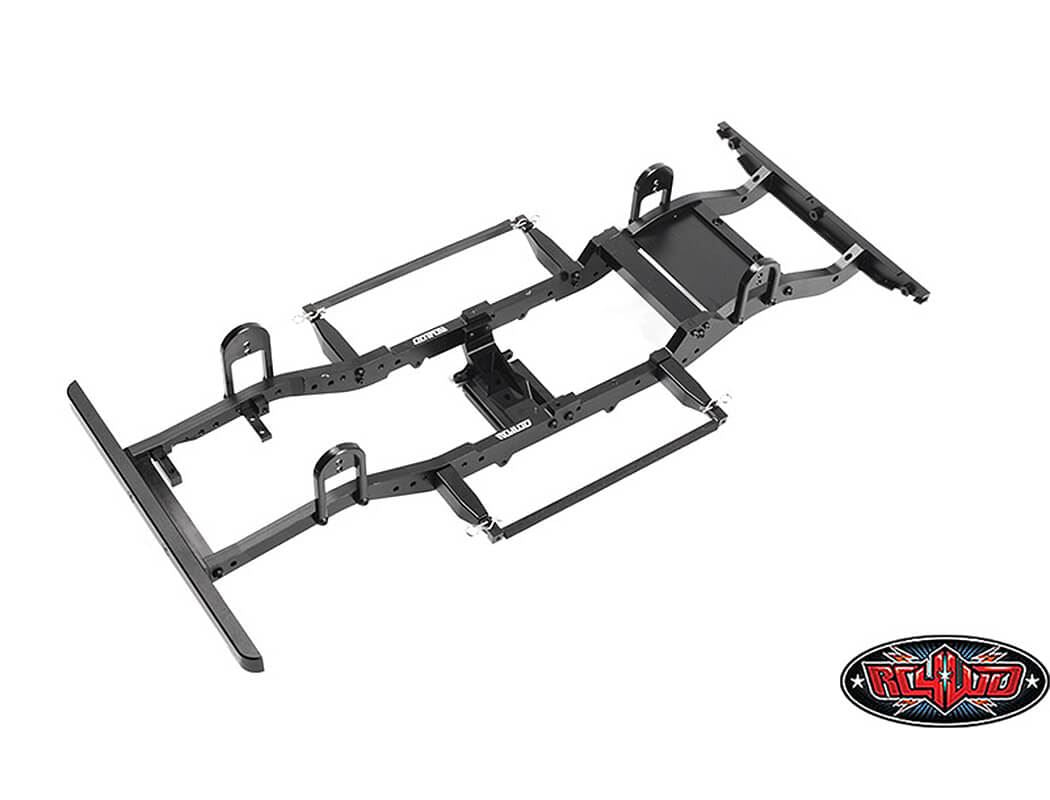

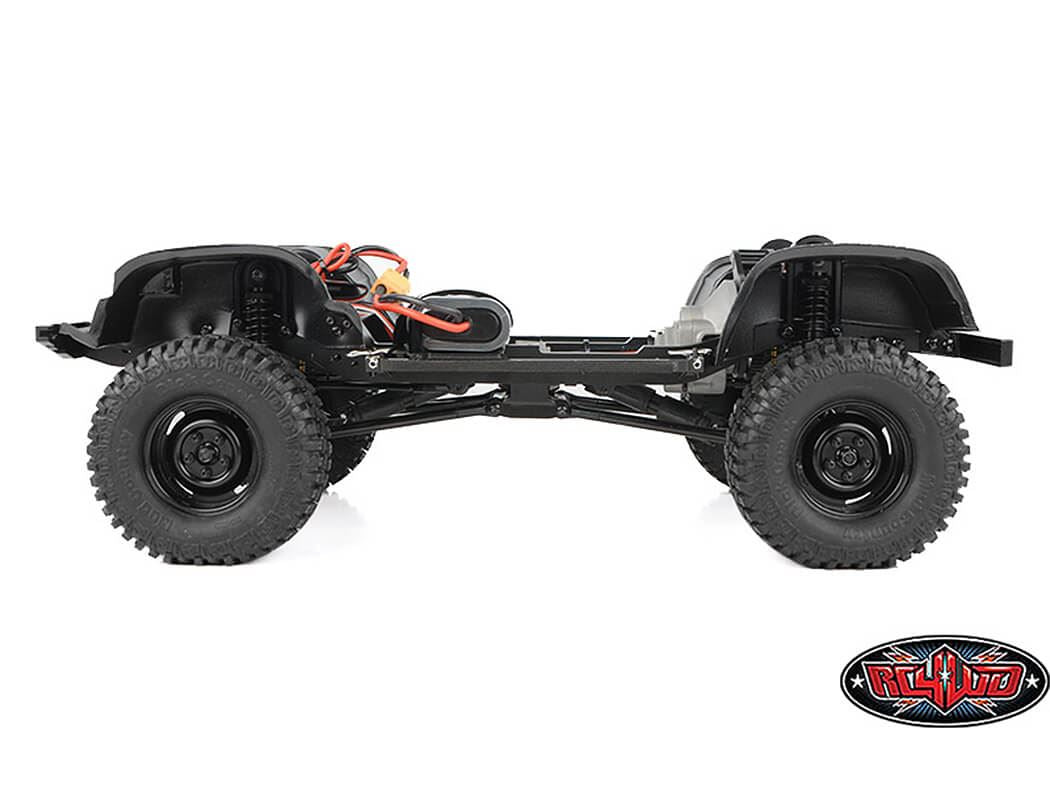

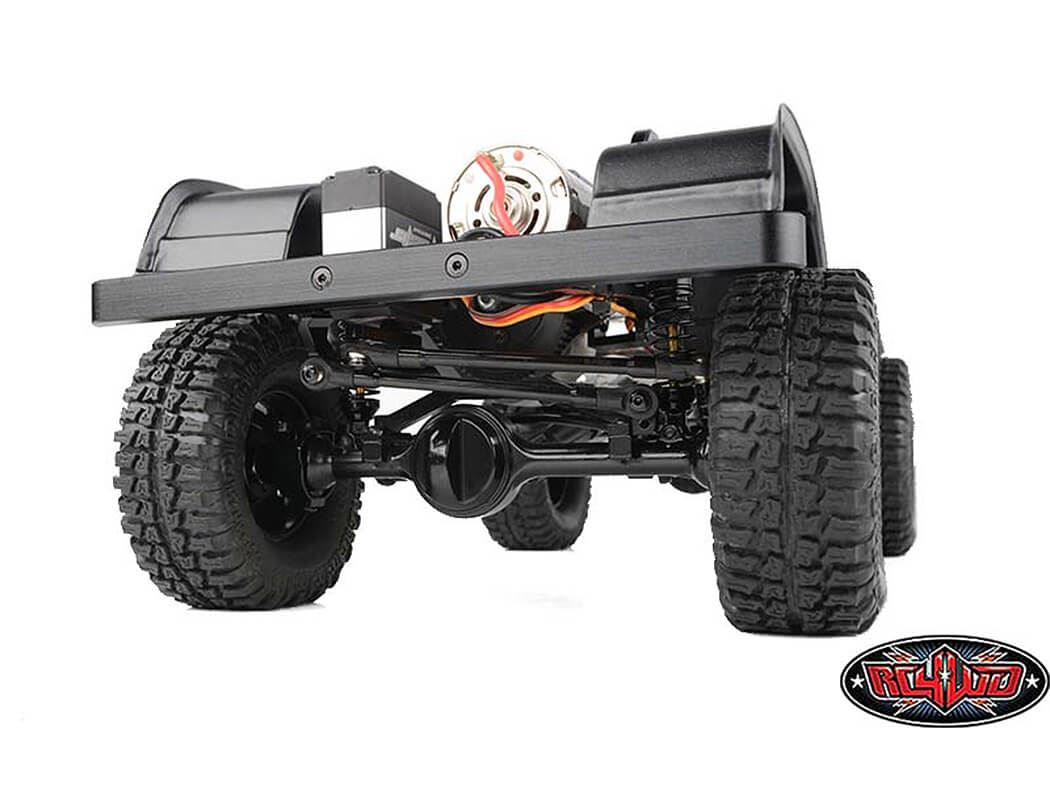

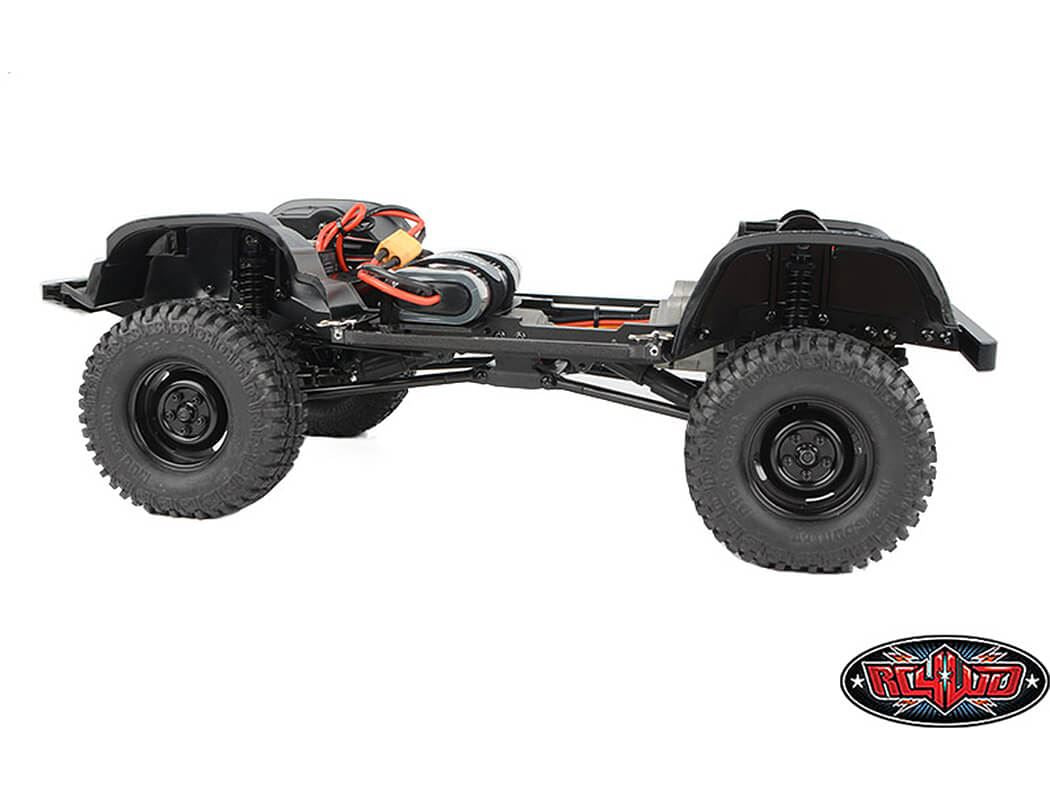

The Gelande II Chassis is a machined billet aluminum ladder frame with an all-link suspension design, scale shock hoops, chassis servo mounts, and hard body mounting points for the ultimate in strength.
The Gelande II Included are a set of 5 Lug Wagon Landies Vintage 1.9" Stamped Steel Beadlock Wheels! The wheels are made from stamped steel and have a smooth black finish for added detail.
This Gelande II comes with a set of Dick Cepek 1.9" Mud Country Scale Tires that deliver the perfect amount of traction with its advanced X3 soft and sticky compound. The scale details complete the look in just the right size.
Electronics
The Gelande II includes a high quality XR3 3 Channel 2.4Ghz Radio System. Use the third channel to control a winch and add even more fun to your scale adventure.
The Gelande II is powered by the RC4WD 45 Turn Crawler Motor. With its sealed end bell for increased durability and long lasting performance, you're sure to get where you're going!
The Gelande II features the popular RC4WD Outcry IIl Brushed Speed Controller with built-in drag brake for reliable, constant power on demand. Anytime.
A great truck needs a great servo to get you out of those tough spots and the Gelande II features the Twister. A high torque metal gear digital servo to handle all your steering duties.

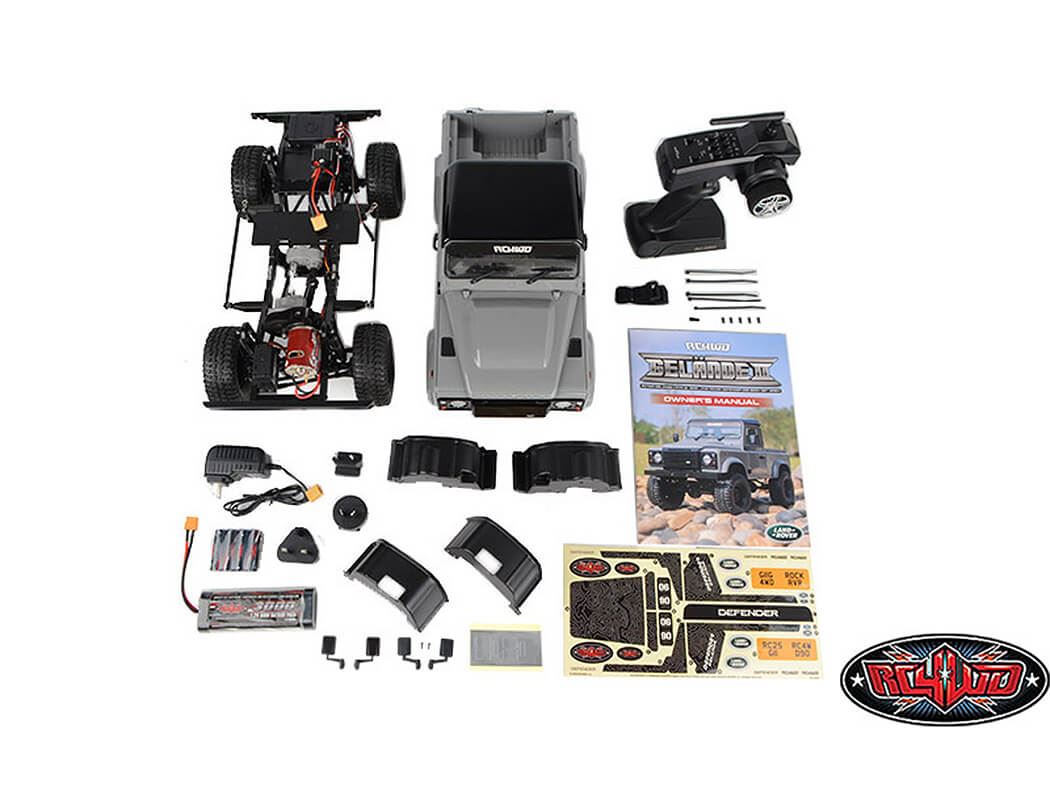

It's ALL in the box! Everything you need is provided to get you on the trails today!
Details

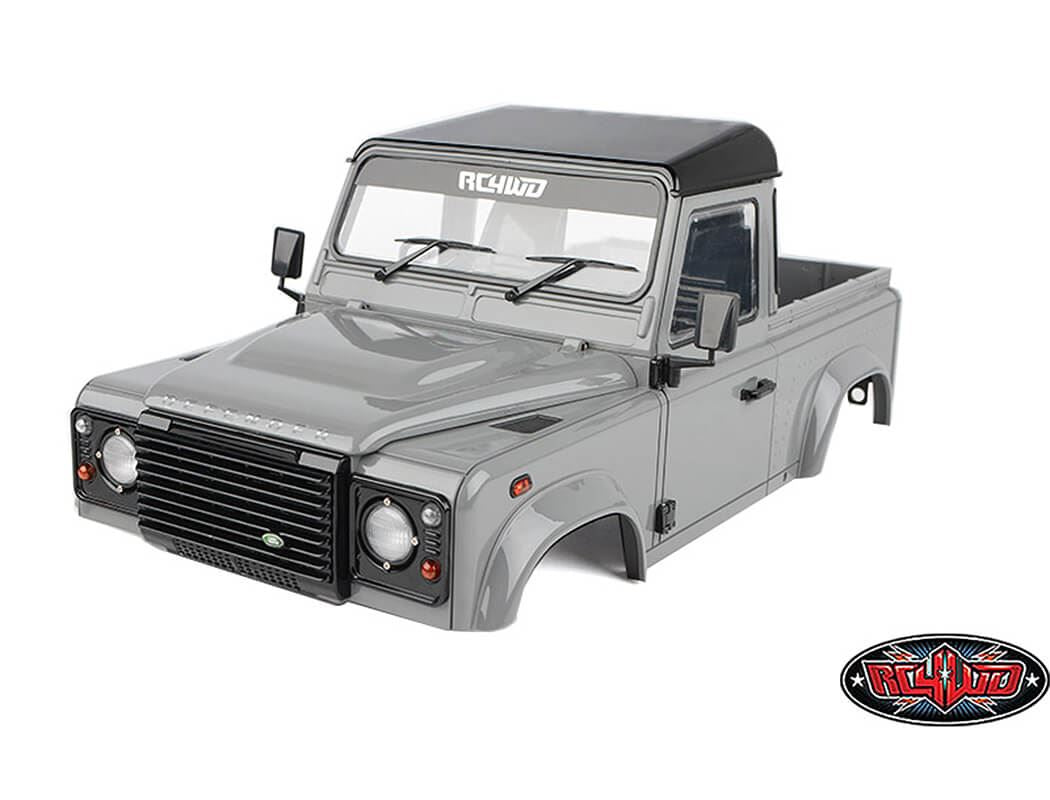

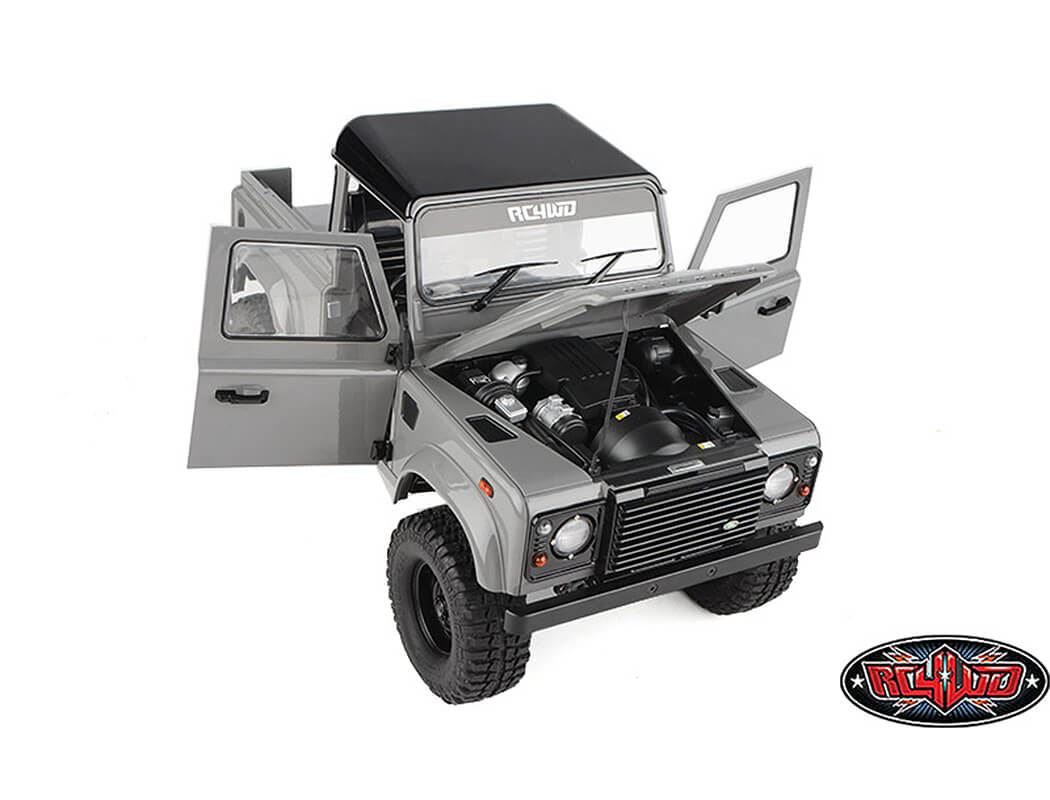

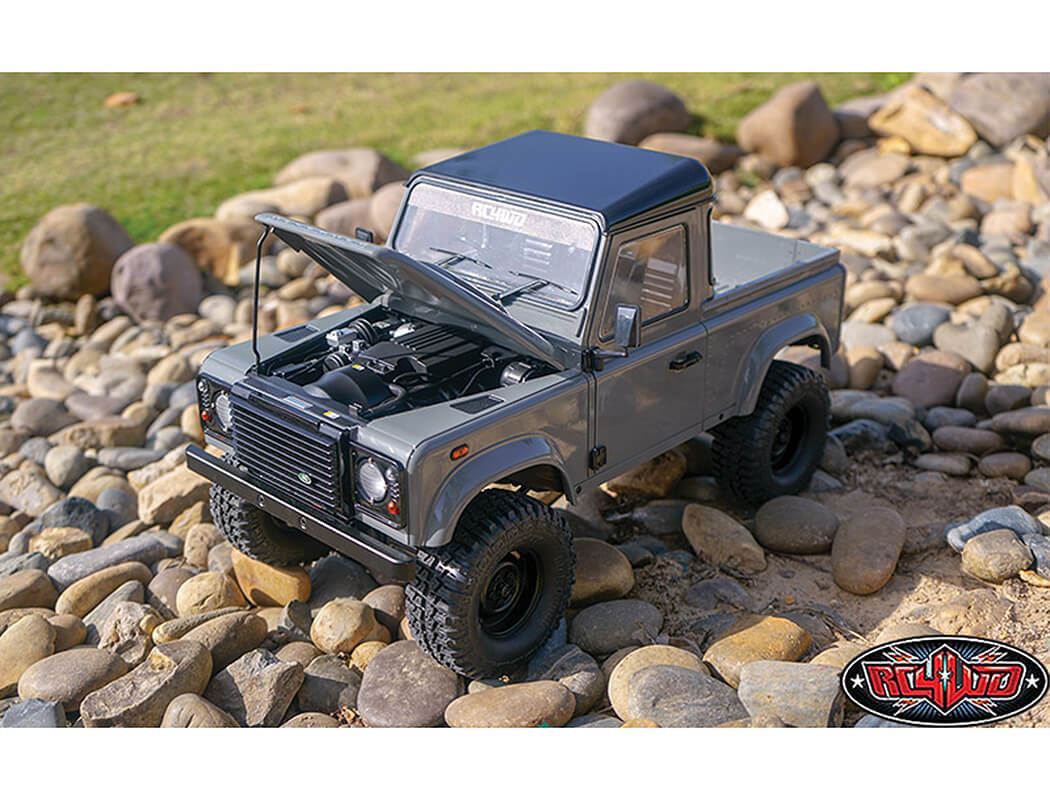

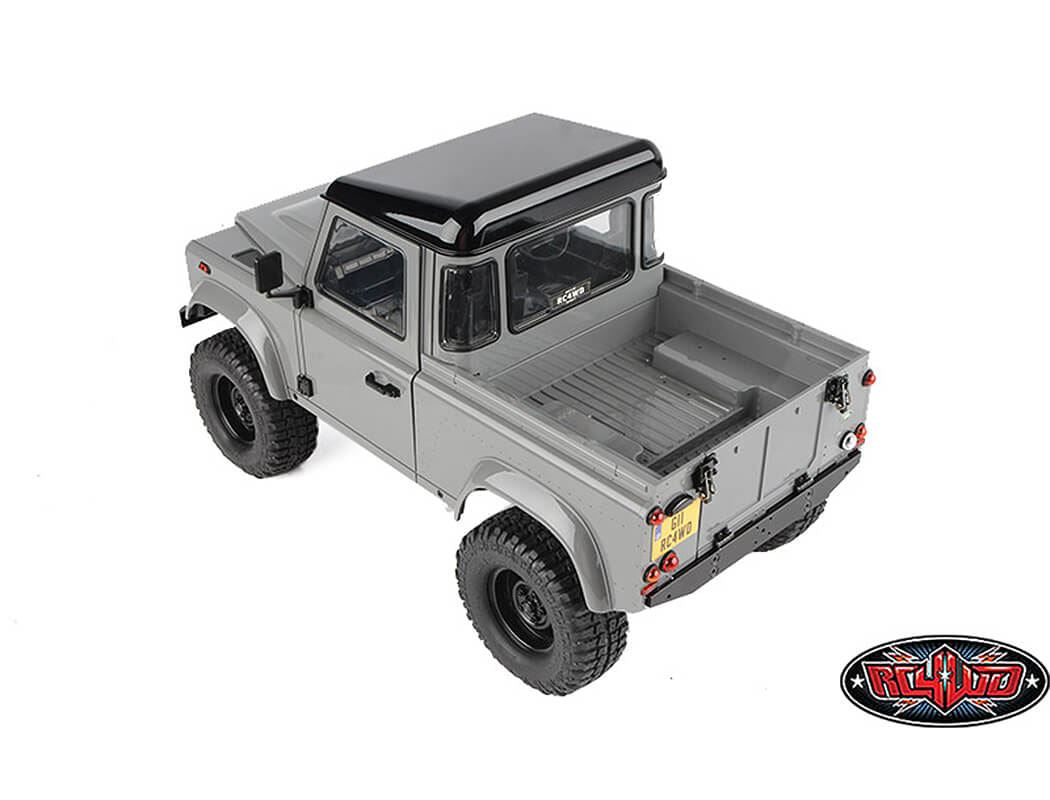

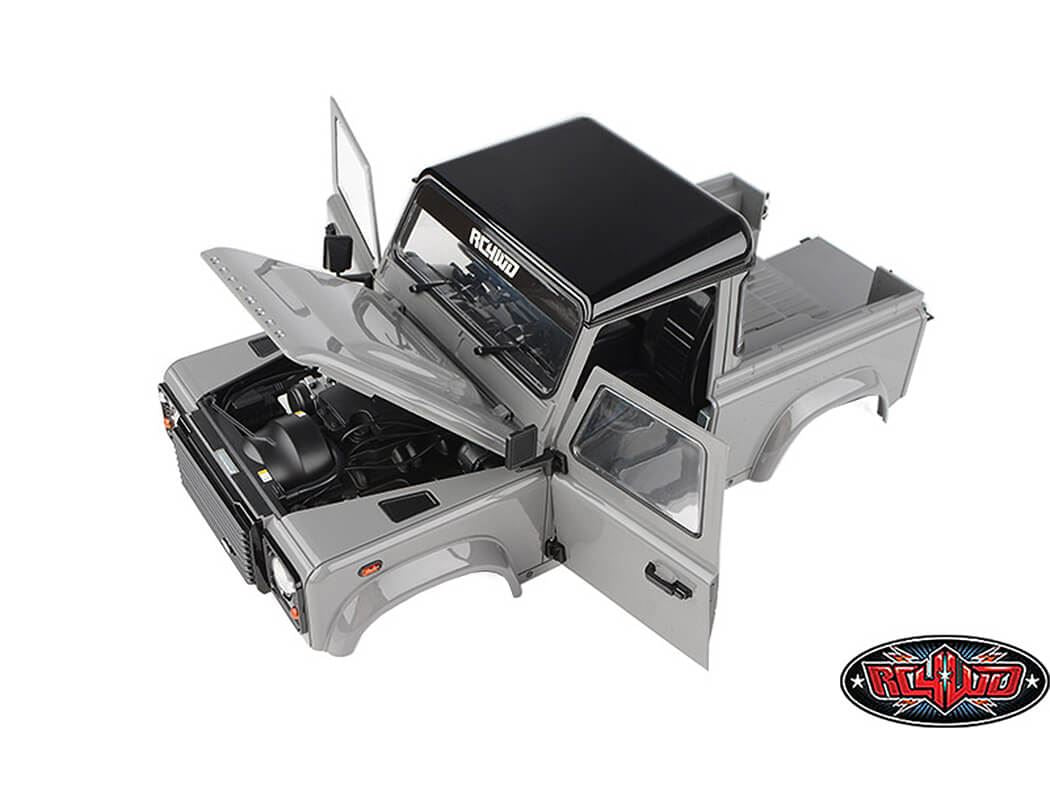

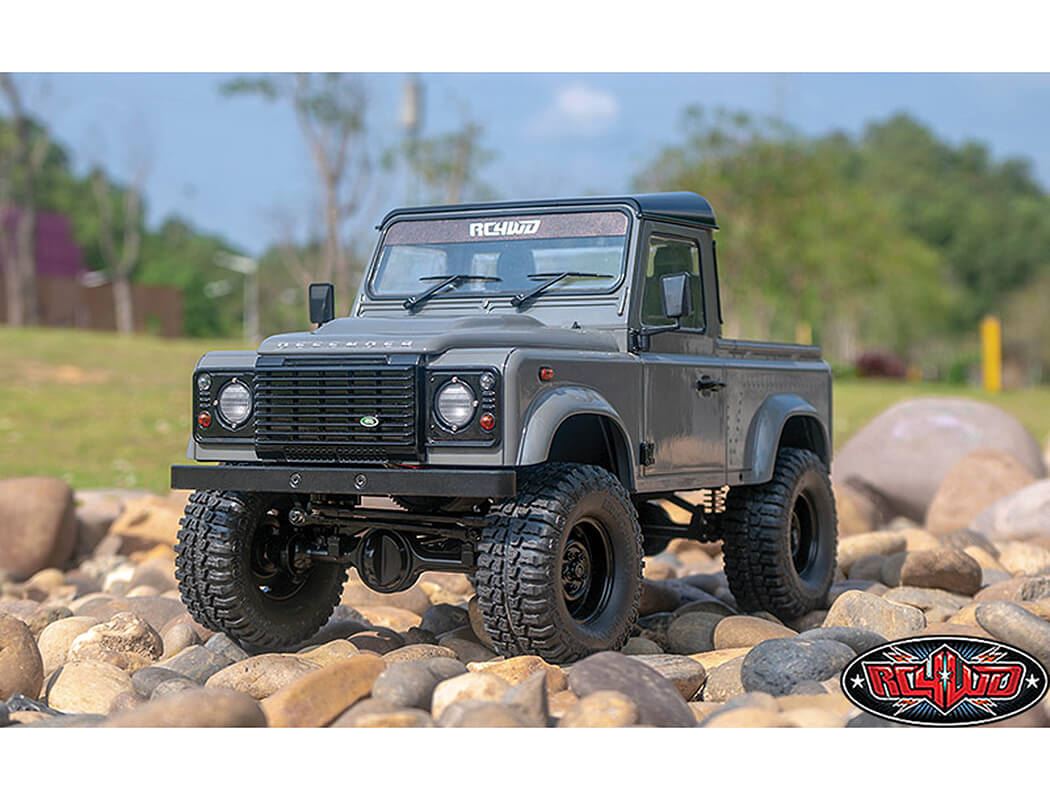

The Gelande II features the 2015 Land Rover Defender D90 Body Set, which comes with an awesome assortment of scale details including mirrors, door handles, vents and grille to match the 1:1 vehicle. It also has a complete molded plastic engine bay that comes painted with decals installed for an extremely scale appearance.

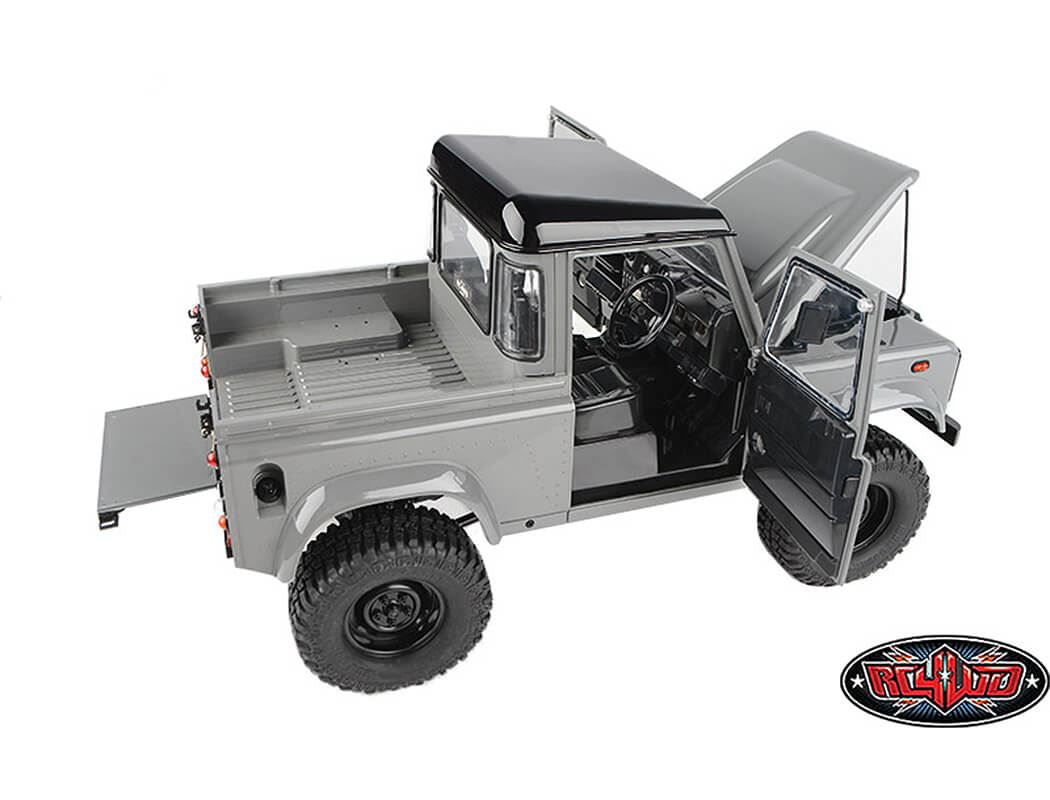

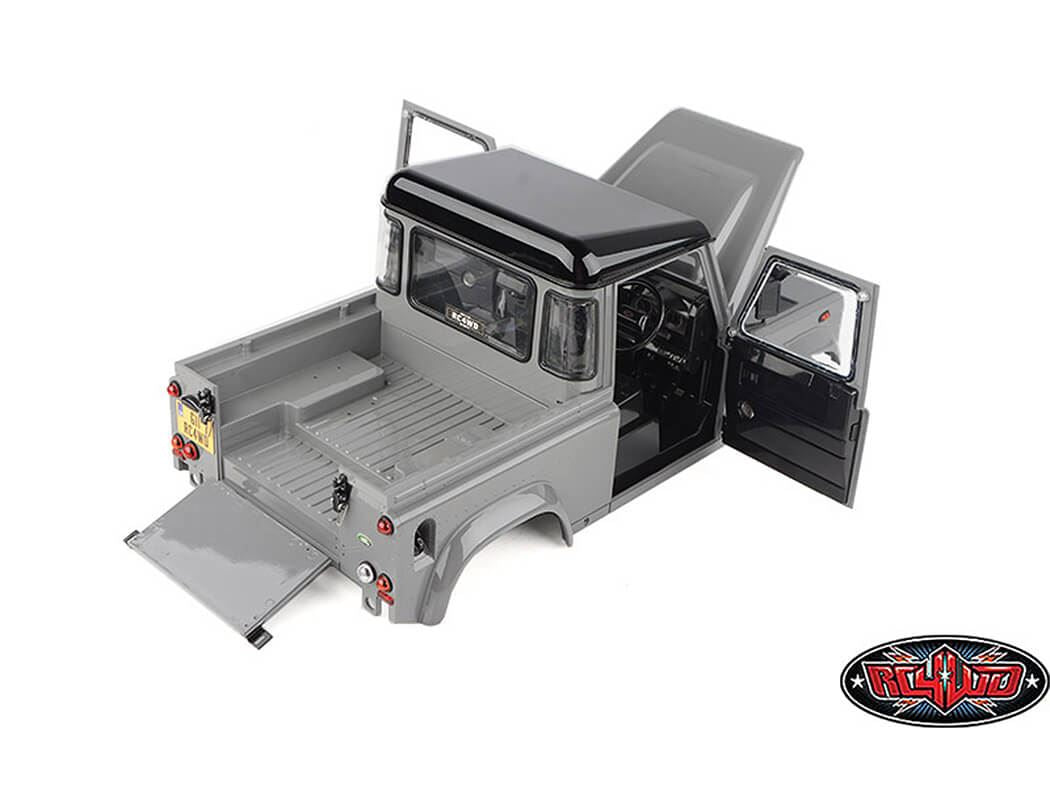

Officially licensed by Land Rover, the 2015 Land Rover Defender D90 Body Set is the most scale replica on the market, featuring opening doors, a rear tailgate, and a hood.

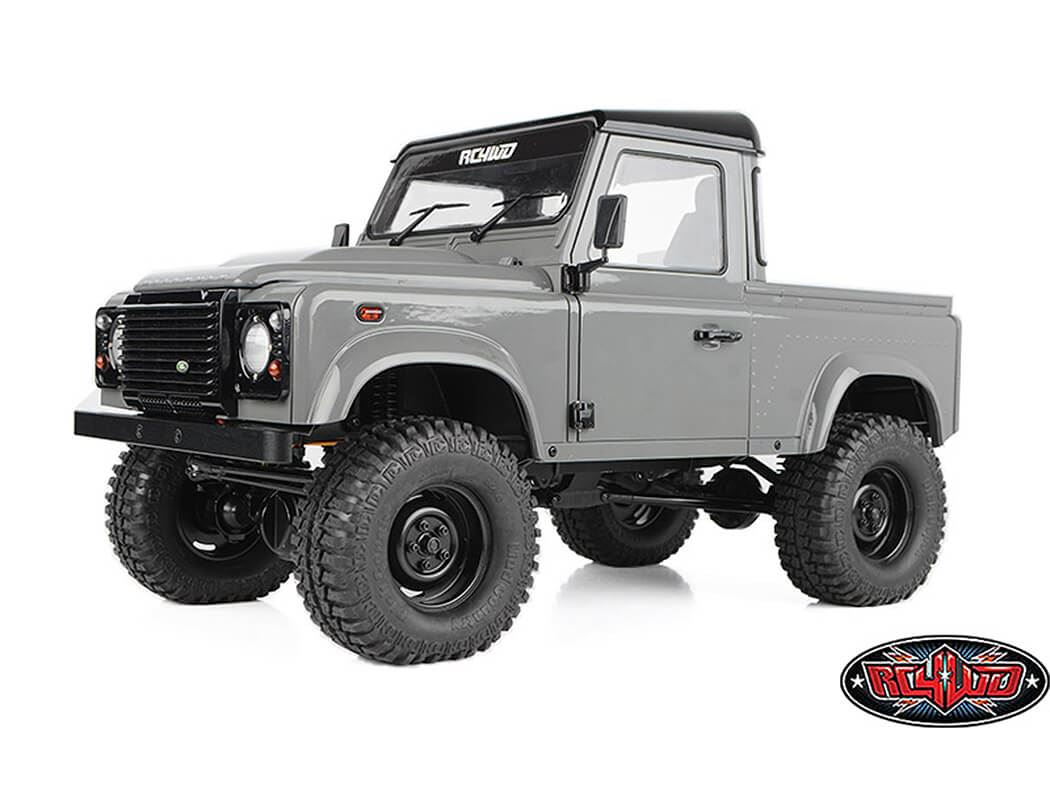

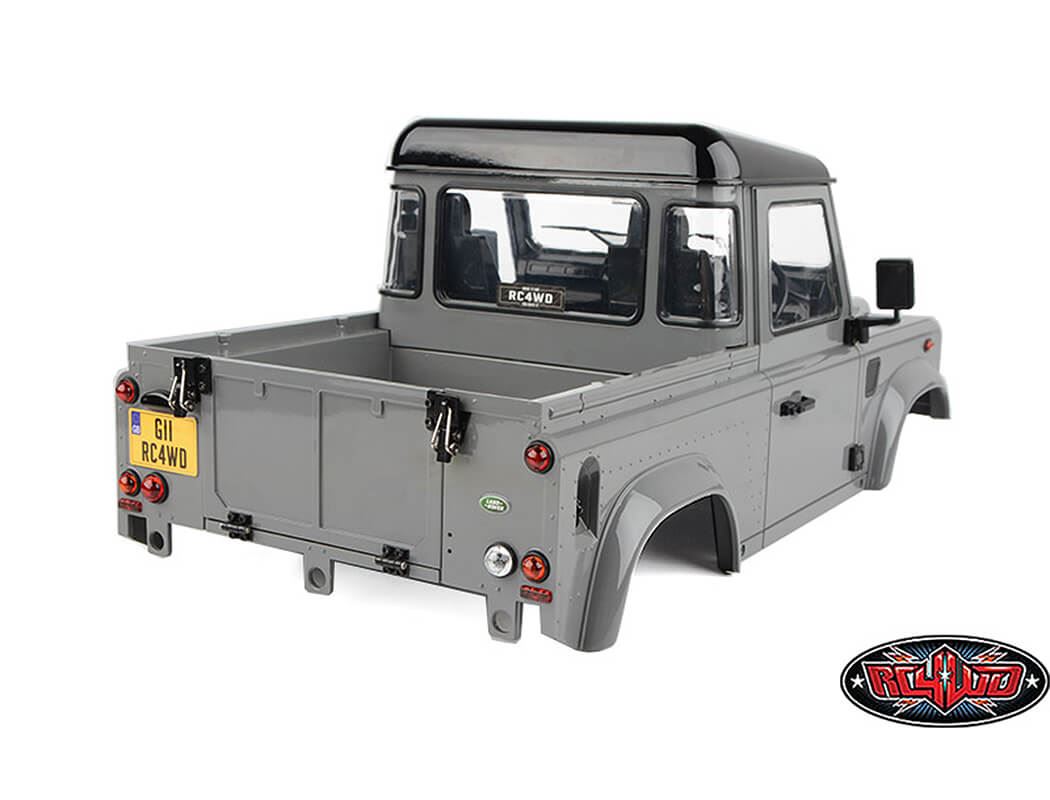

The Gelande II features the 2015 Land Rover Defender D90 Body Set, which comes in gloss grey paint, decals, a pre-installed lighting system, and a fully molded interior!

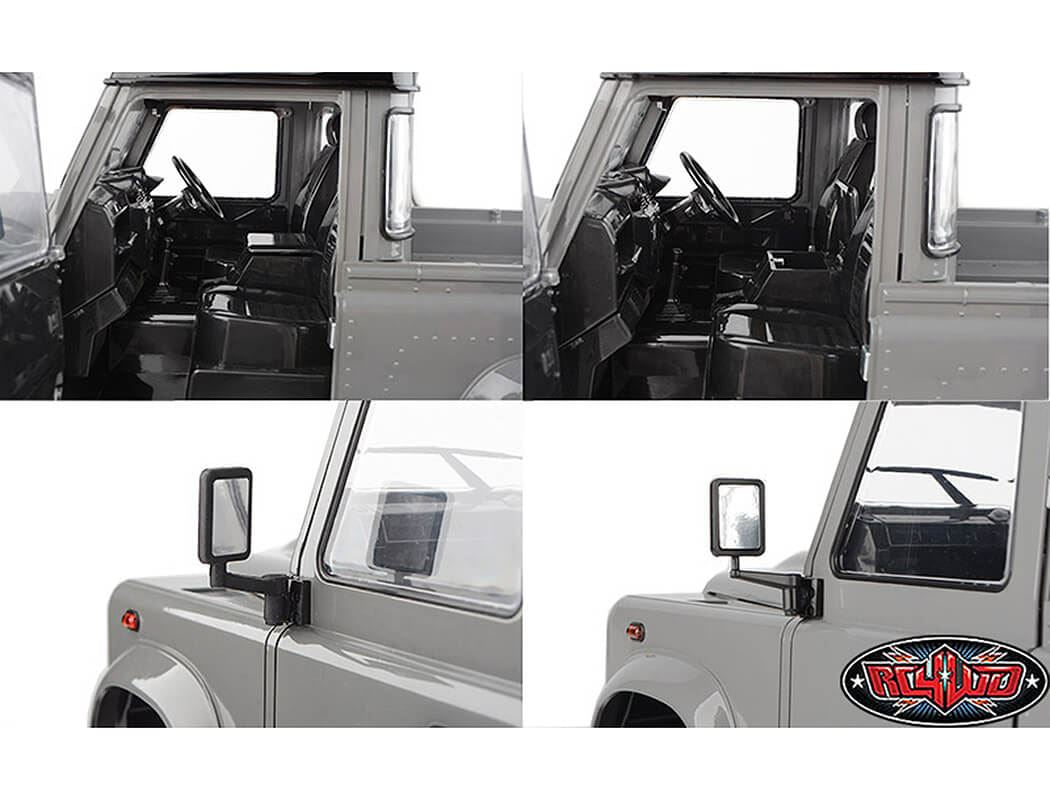

The body features a full detailed interior, seats, opening center console, plastic and rubber mirrors and a detailed dashboard. It's all here to bring your scale experience to a new level.

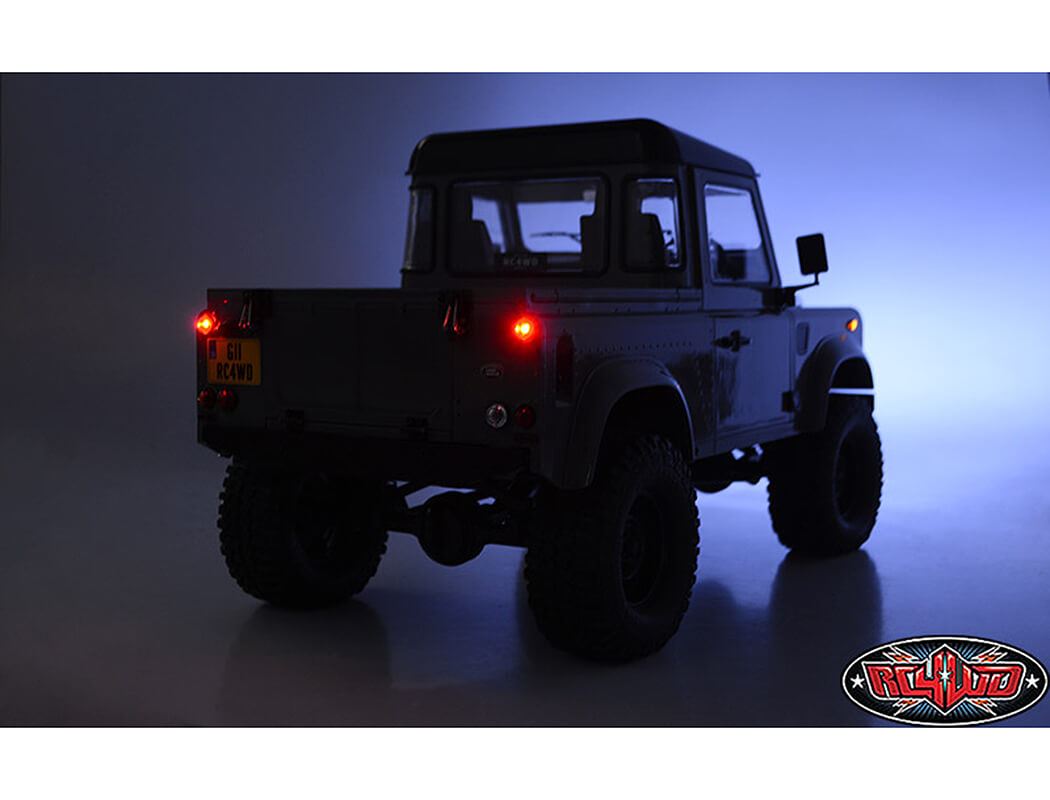

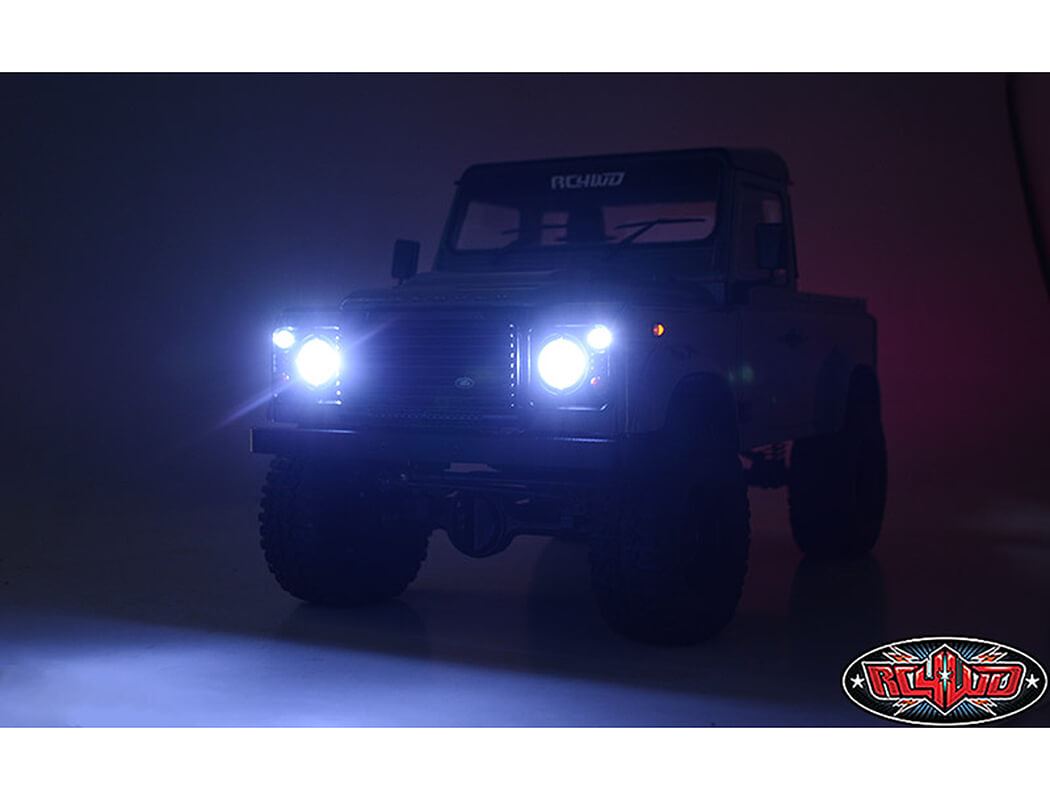

The body features many intricate details and is almost unmistakable from its full size counterpart. Signal lights have color lenses and come with a pre-installed light kit!
Specifications
Hammer Transfer Case
Ratio: 1.47:1
Gears: Wide 0.8 Mod Hardened Steel Gears
Features: 8 Bearings, Cast Casing, Hardened Gears
R3 Scale Single Speed Transmission
Ratios: Pinion/Spur 14/64 = 4.57:1
Internal Ratio: 1.78:1
Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch
Yota II Ultimate Scale Cast Axles
Ratio: 15/40 = 2.67:1
Width at Hex (Using 4mm TF2 Hexes): 178.2mm
Gelande II Chassis
Billet: Aluminum Construction
Adjustable Shock Hoops
Drive Shafts
High Quality Plastic Material
Durable High Steel Yokes
Wheels
Type: Landies Vintage 1.9" Stamped Steel Beadlock Wheels
Hub: 12mm Hex~
Width: 22.9mm (0.90")
OD: 52.5mm (2.06")
Gelande II Truck Dimensions
Wheelbase: 275mm (10.83")
Width: 215mm (8.46")
Height: 247mm (9.72")
Ground Clearance: 50mm (1.72")
Final Drive Ratio: 31.93:1
What's Included
- 1 x RC4WD Gelande II RTR W/ 2015 Land Rover Defender D90 Body Set (Grey)
Notes
- While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.
- Use good quality hex drivers to avoid stripping screw heads.
- Use thread lock when putting metal screws into metal parts.
- Steps marked with an asterisk (*) require thread lock.
- Use thread lock sparingly.
- Do not over tighten screws otherwise you may strip the thread.
-
