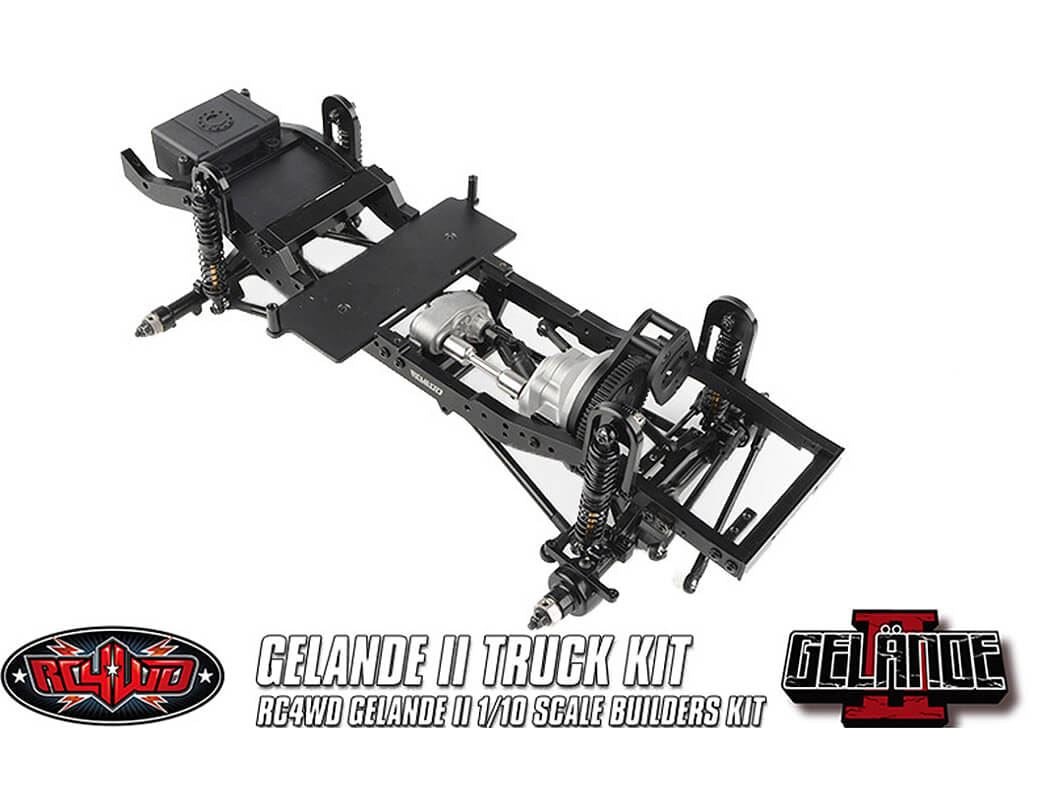

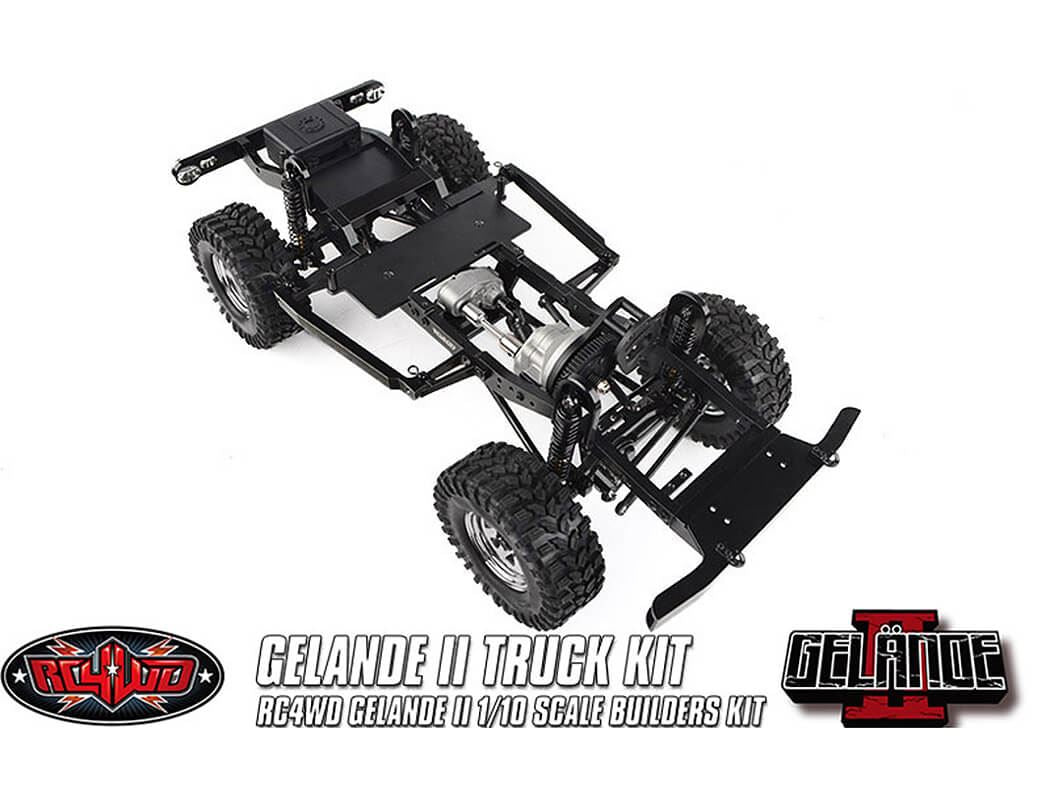

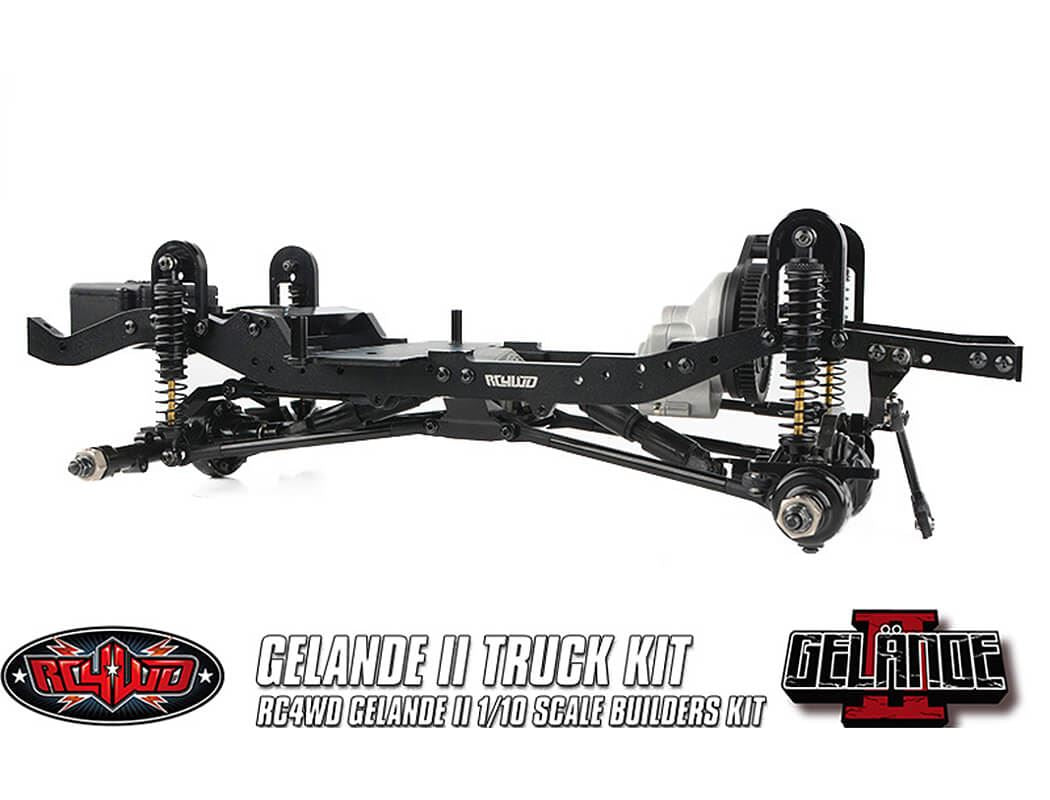

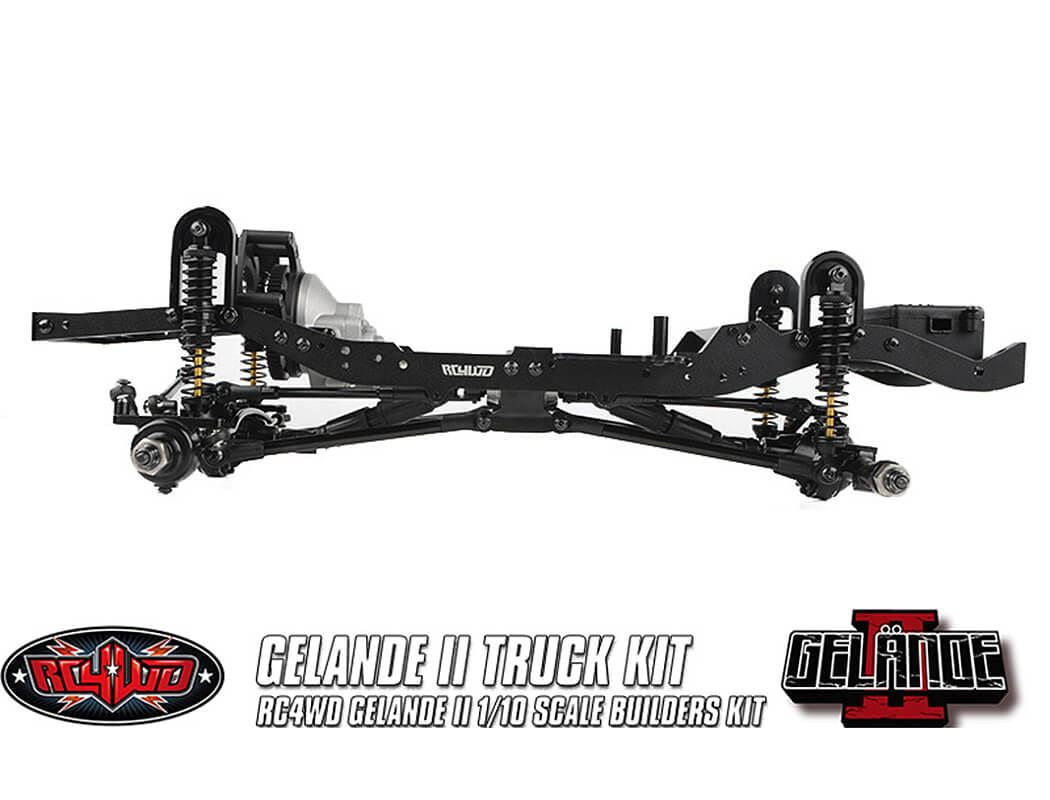

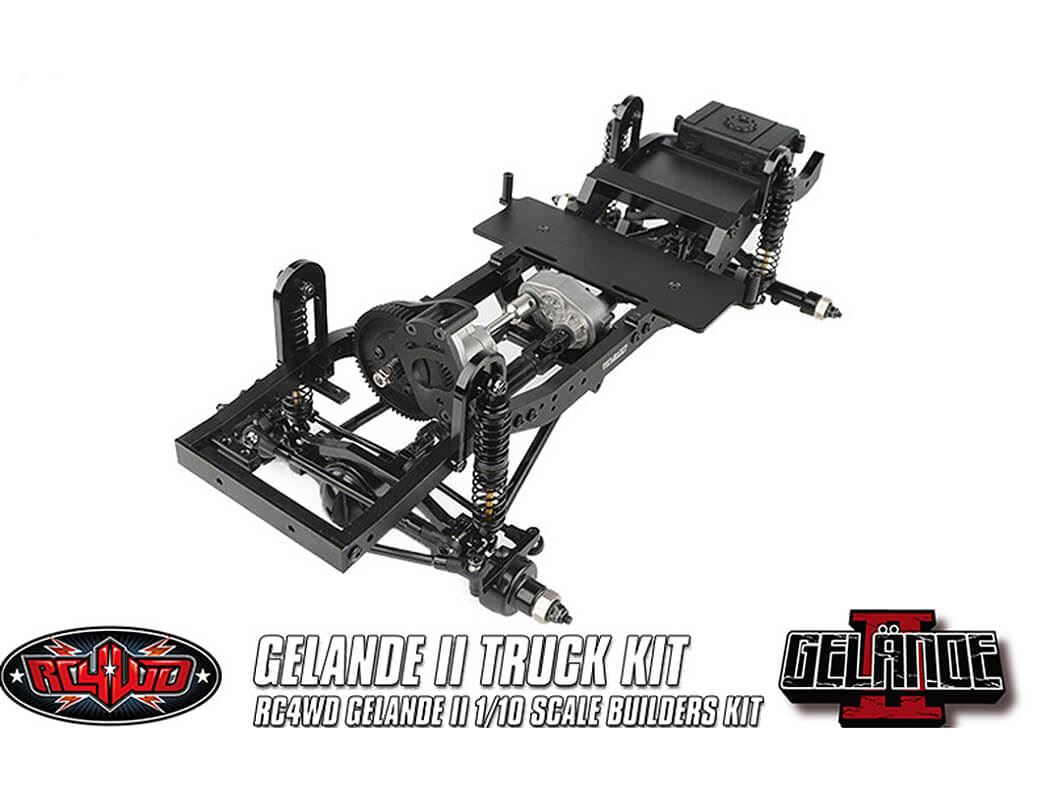

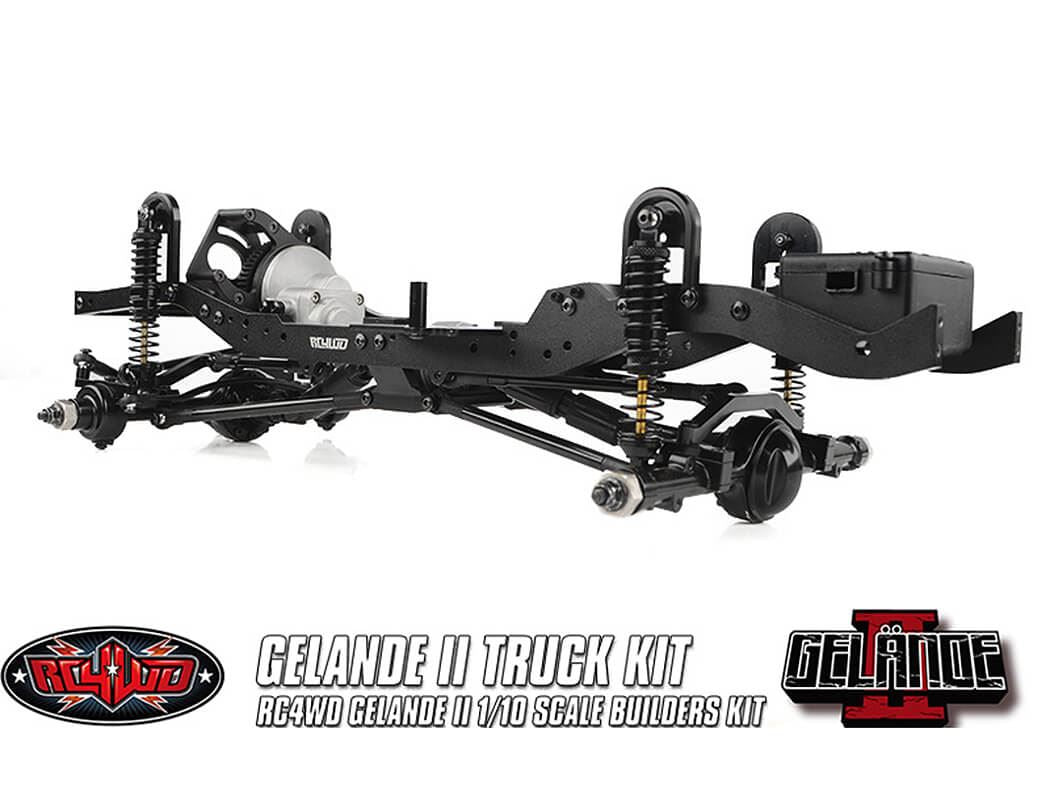

Rc4Wd Gelande Ii Truck Kit 1/10 Builders Kit

RC4WD GELANDE II TRUCK KIT 1/10 BUILDERS KIT

Experience the versatility and innovative design of the Gelande II firsthand! Now featuring exciting new upgrades, the Gelande II comes ready for challenging terrains. Put your off-road skills to the test and discover why the Gelande II is a fan favorite!

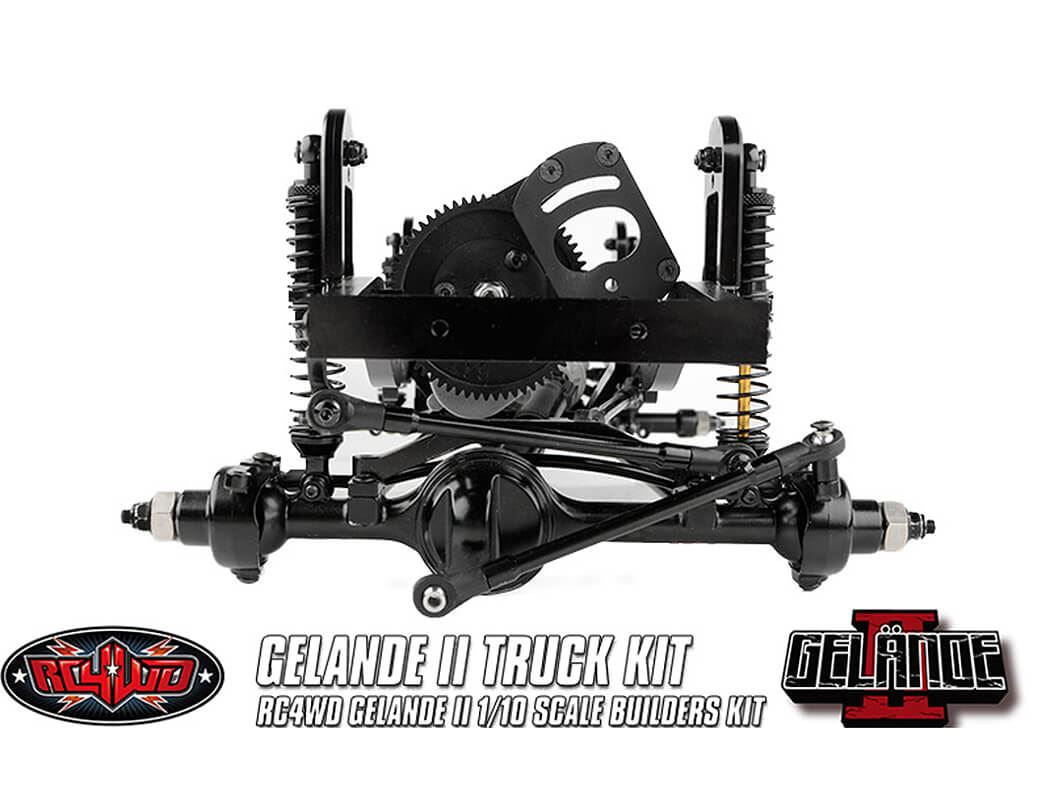

The Gelande II comes with a 4-link rear and 3-link Panhard rod suspension as a standard feature. The chassis-mounted servo is out of view for added realism.

The Gelande II platform is incredibly versatile, offering a wide range of styles and looks to bring any off-road enthusiast’s vision to life. With countless customization options, RC4WD allows you to personalize your Gelande II without sacrificing performance. Whether you're building an emergency vehicle, expedition rig, scale replica, or hard-core rock crawler, this unit is ready to explore endless possibilities!

Drivetrain

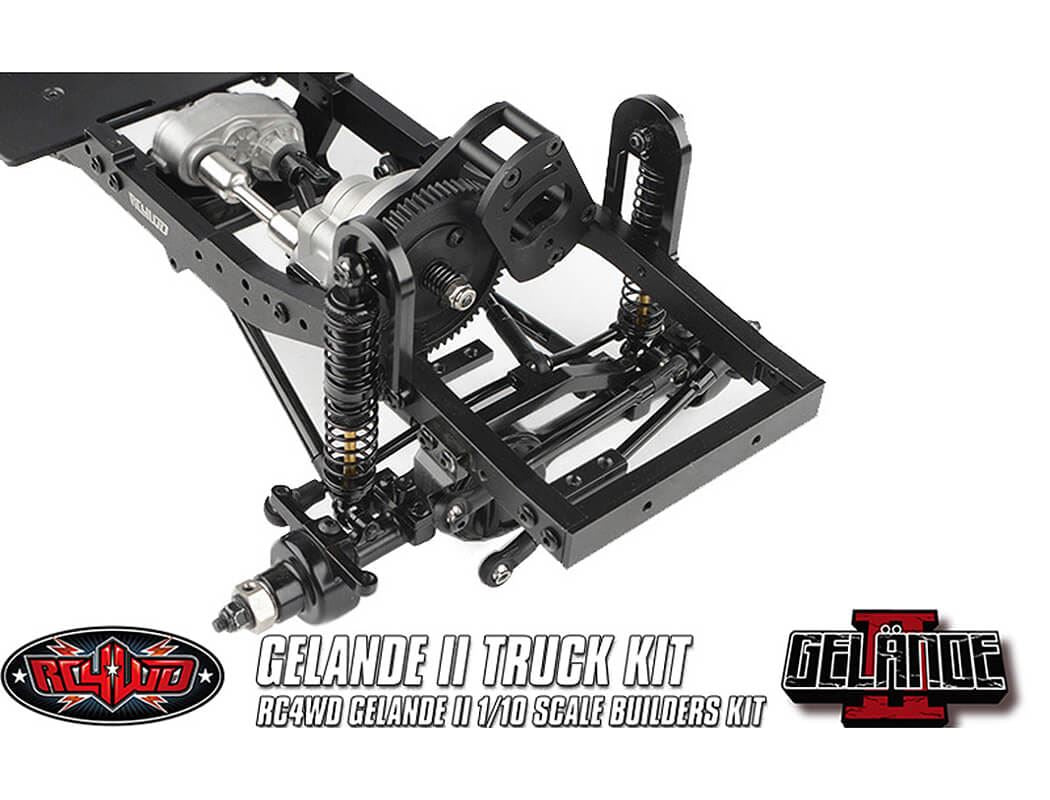

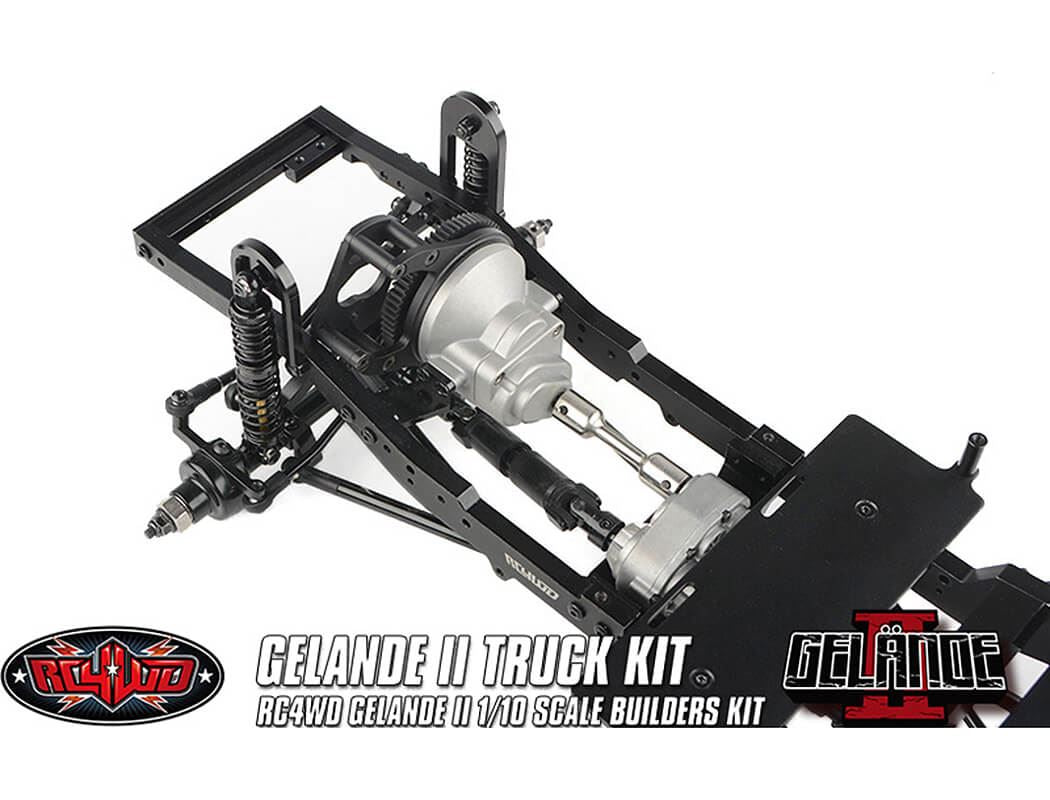

The R3 Single Speed Transmission comes with a tough cast metal case and wider gears for durability and a Delrin Spur with Slipper Clutch for performance. It also features a sturdy billet aluminium motor mount for added toughness.

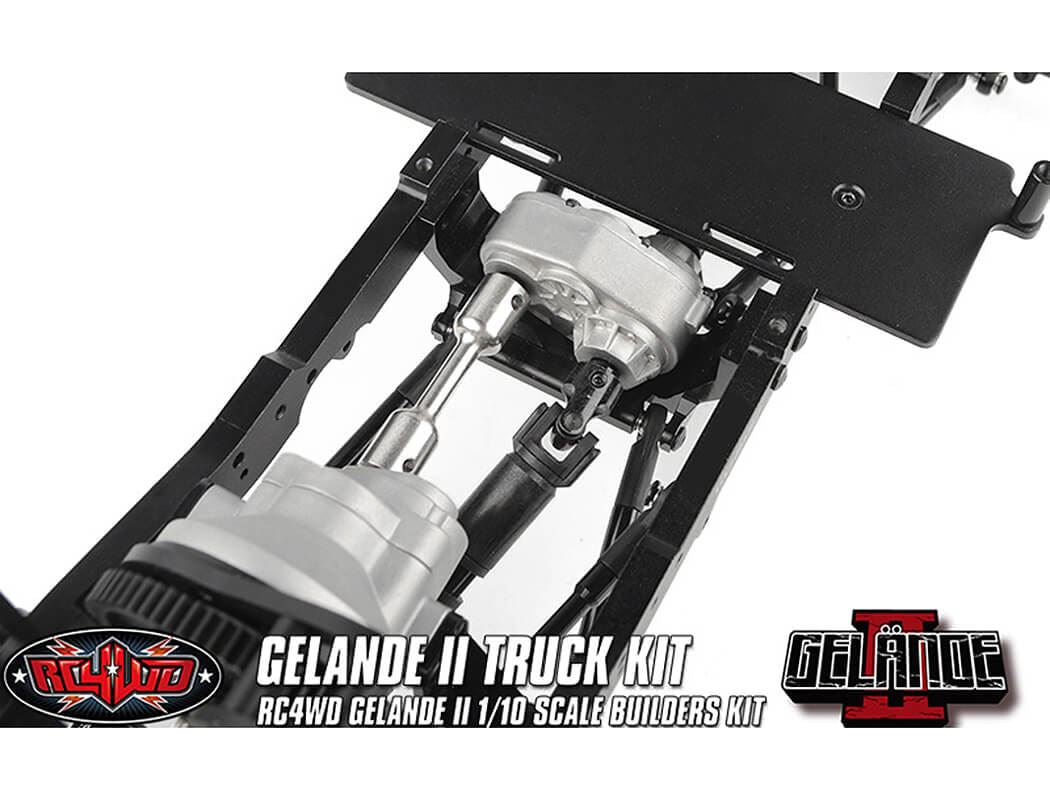

The Gelande II includes the new Hammer Transfer Case. Packed with scale detail, the Hammer features a cast metal exterior and heavy-duty .8 Mod widened gears for durability.

Drawing on the success of the RC4WD MOA Gear Sets, the Gelande II drivetrain has the most durable gears RC4WD has to offer, capable of staying on the trail day after day.

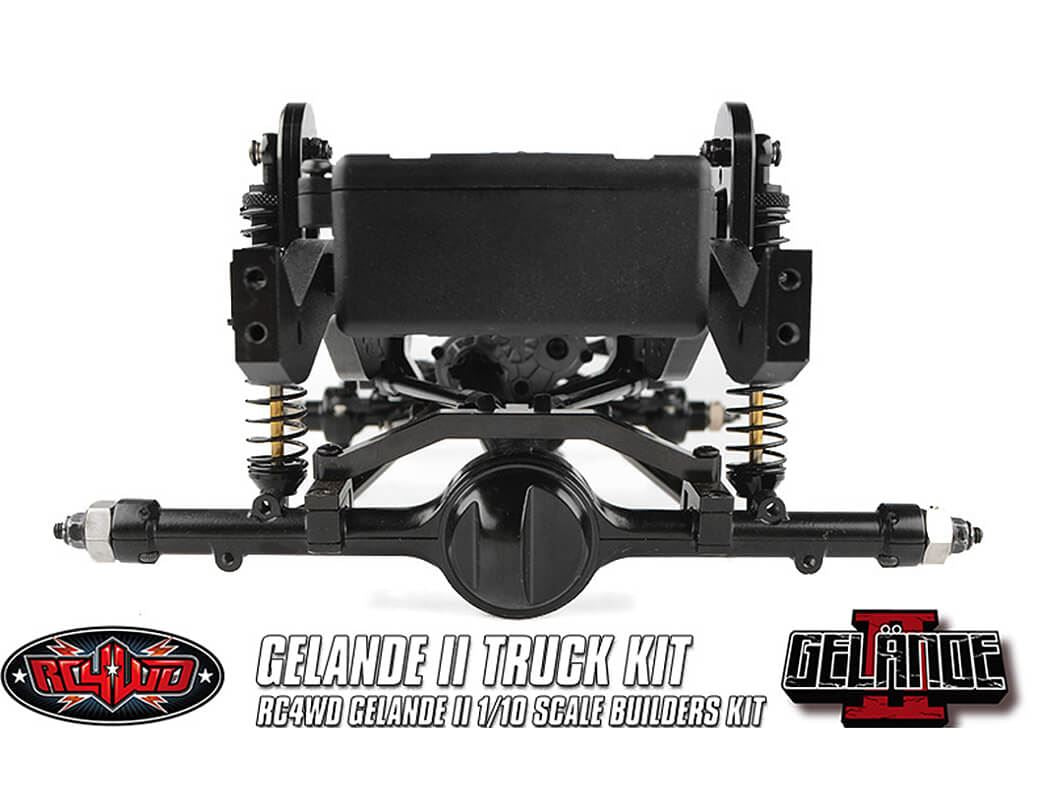

The most scale-accurate axles on the market, the RC4WD Yota II Ultimate Scale Cast Axle V2 (Front/Rear) set the standard for scale realism, featuring 8-degree round knuckles, removable diff covers, lower mounting points, and a compact offset pumpkin.

The driveshafts found on the Gelande II Chassis feature heavy-duty uni-joint metal shafts for great driveline angles and durability on the trail.

Suspension

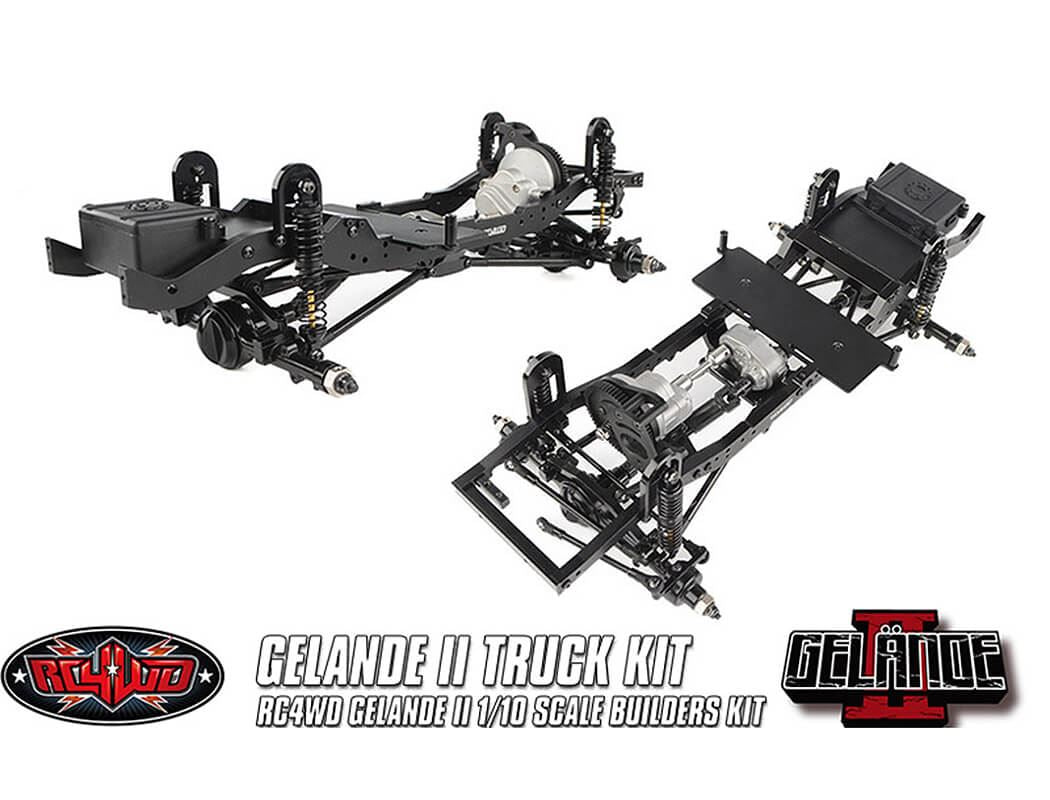

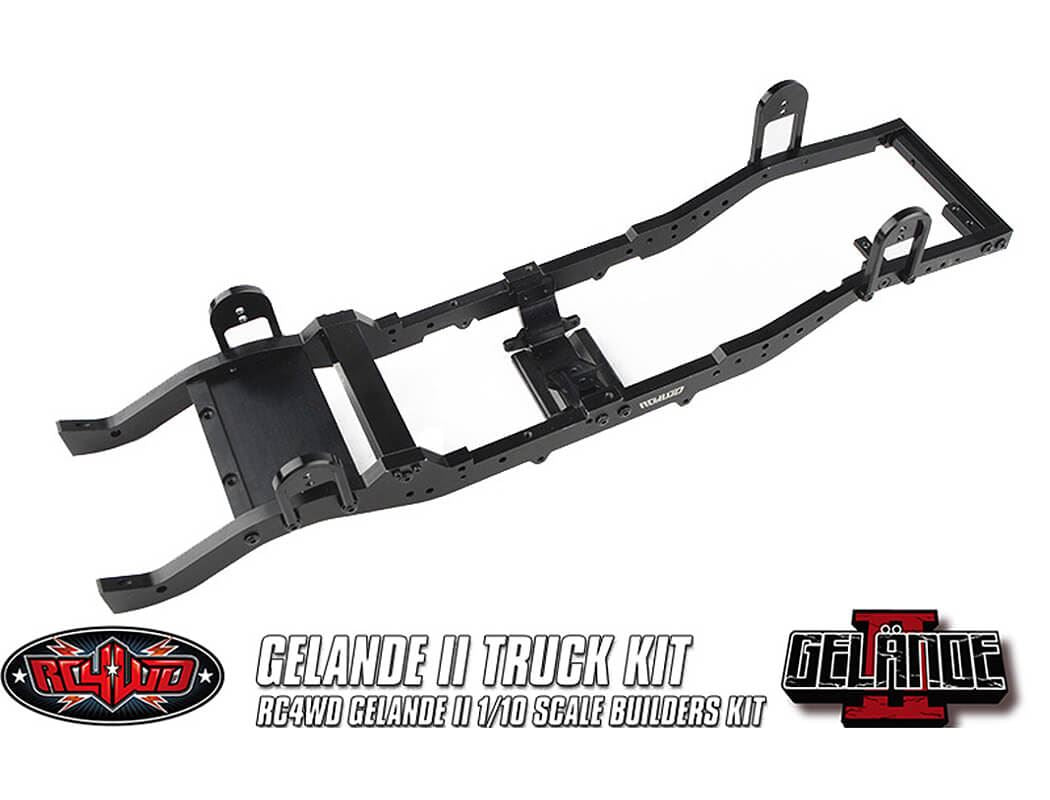

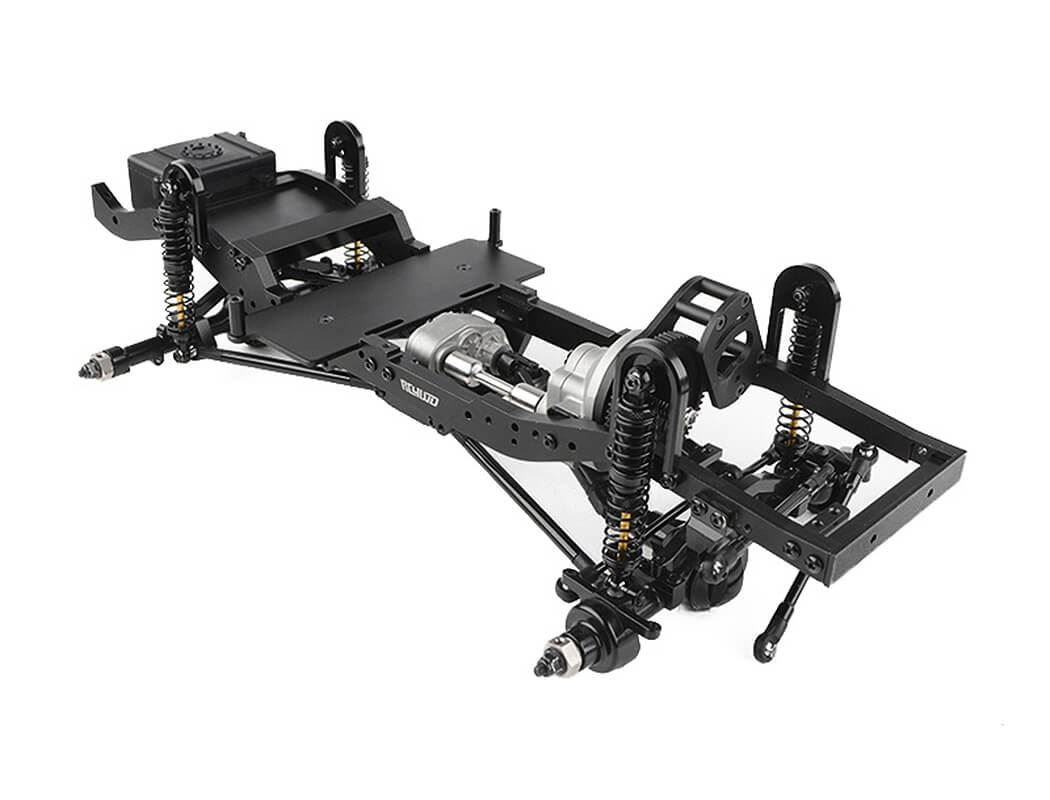

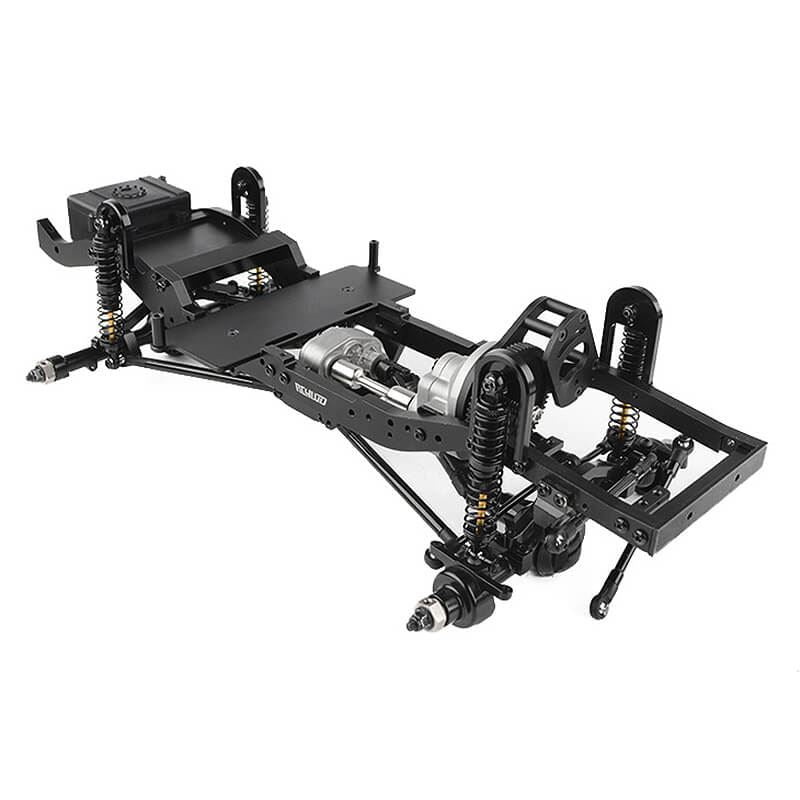

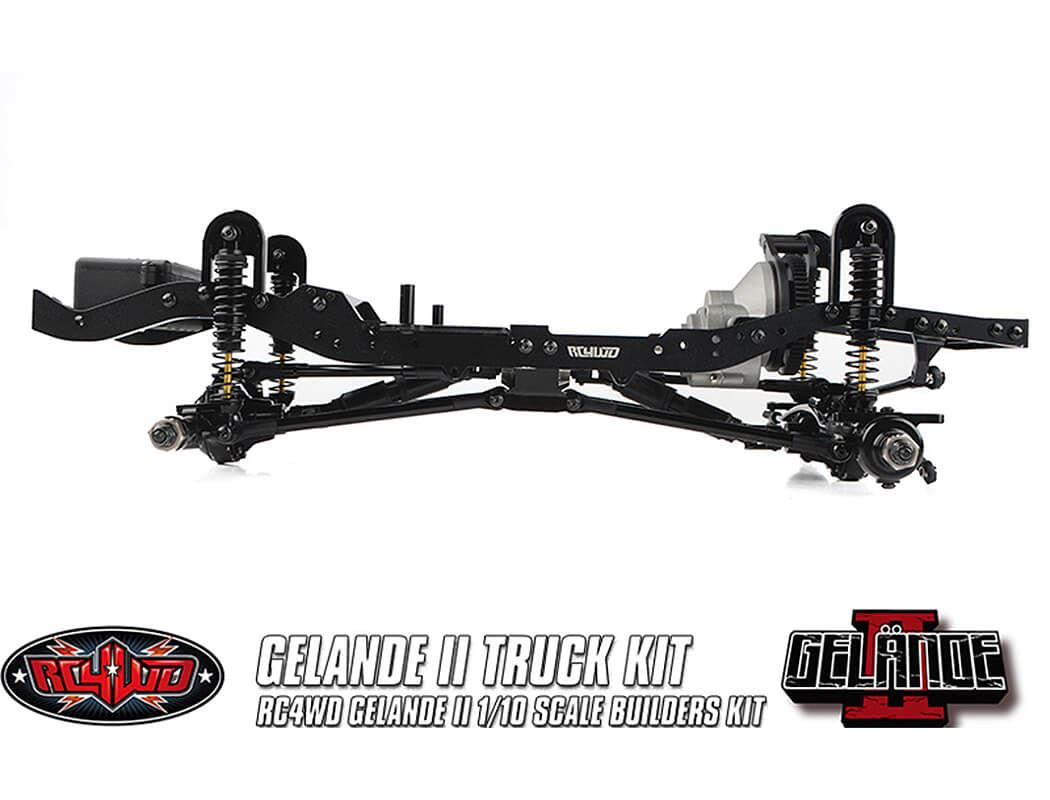

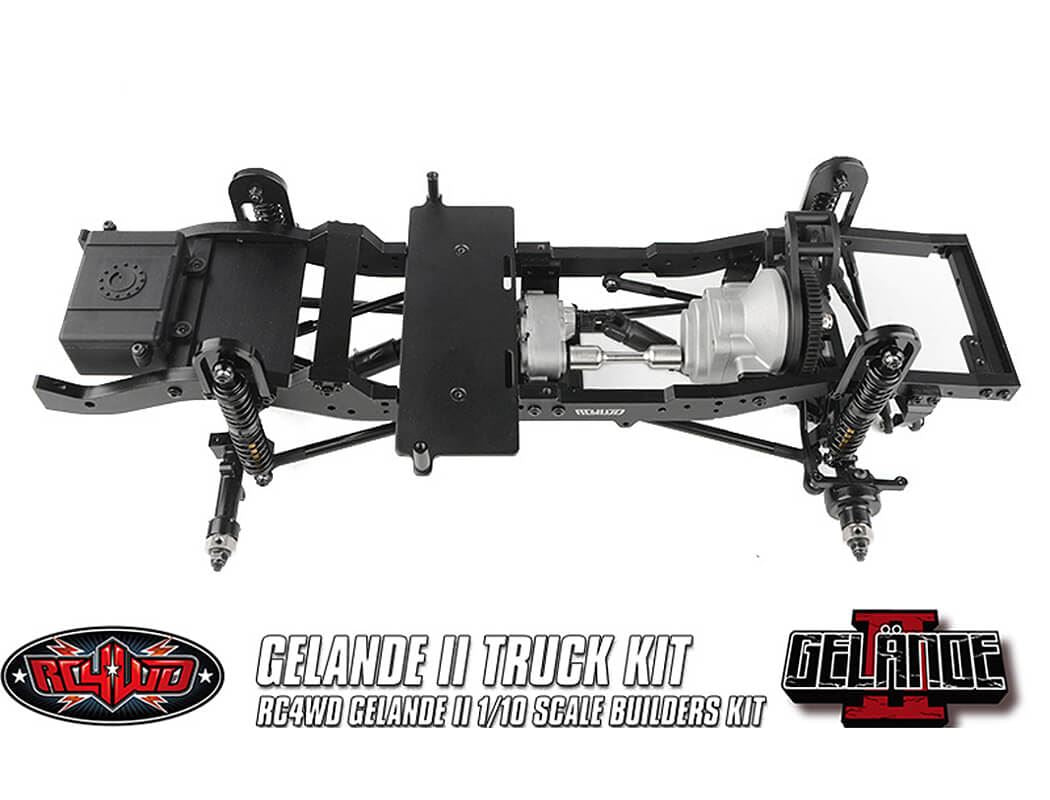

The all-new Gelande II Chassis is a machined billet aluminium ladder frame with an all-link suspension design, scale shock hoops, chassis servo mounts, and hard body mounting points for the ultimate in strength.

The Gelande II includes a set of new RC4WD Dual Spring Scale Black Shocks 80mm V3. With an all-new design, the shocks come with our new X-ring tech that provides multiple sealing points for superior protection against leaks and contamination, ensuring cleaner operation, longer performance life, and reliability!

The Gelande II Chassis Set is CNC machined with a smooth anodized black finish and integrated grooves for cross-bracing, giving it more texture and stability.

Dominate tough terrain with RC4WD Steering Links. Perform sharp turns and experience immediate responsiveness. Crafted from premium materials, these links deliver unmatched durability and control.

This Metal Drive Coupling is made of hardened steel, which provides sufficient durability, extending the lifespan of your drivetrain and withstanding the stresses of high-torque.

Features

• Realistic Billet Aluminium Ladder Frame Chassis.
• R3 Single-Speed Transmission.
• Center Mounted Realistic 4x4 Transfer Case.
• Metal Drive Coupling for Gelande II.
• Yota II Ultimate Scale Cast Axle V2 (XVD).
• Dual Spring 80mm Scale Black Shocks (Ver 3) (X-Ring).
• Aluminium Shock Hoops for Gelande II Chassis.

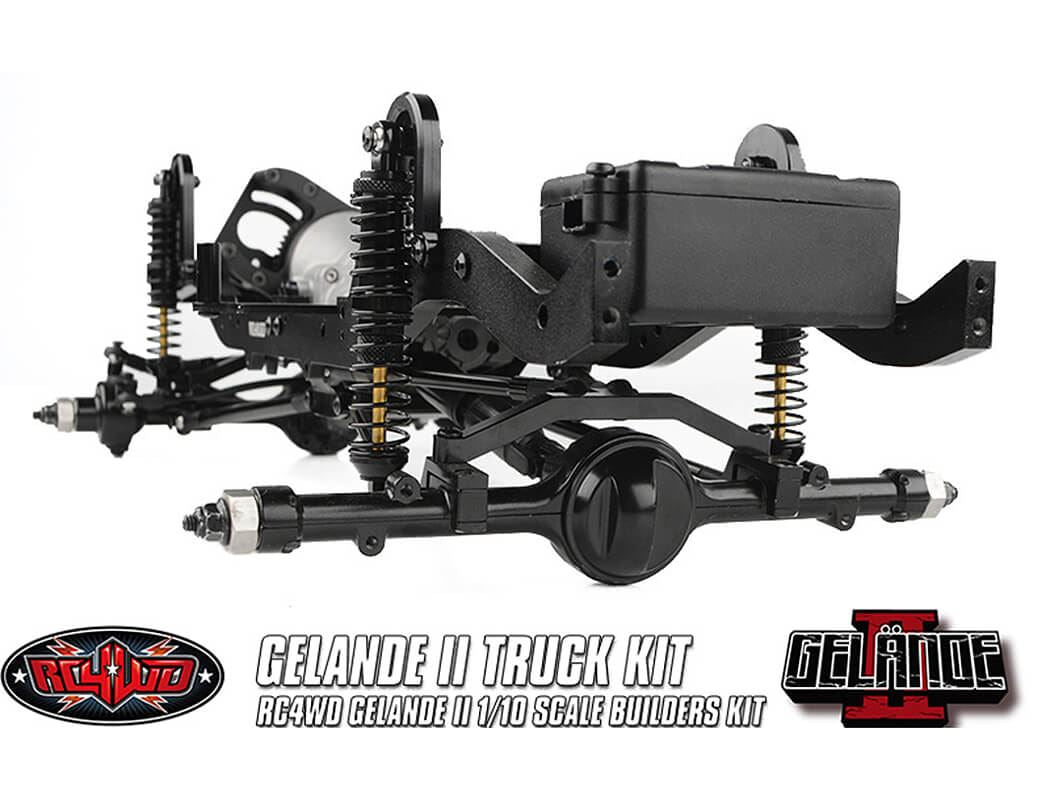

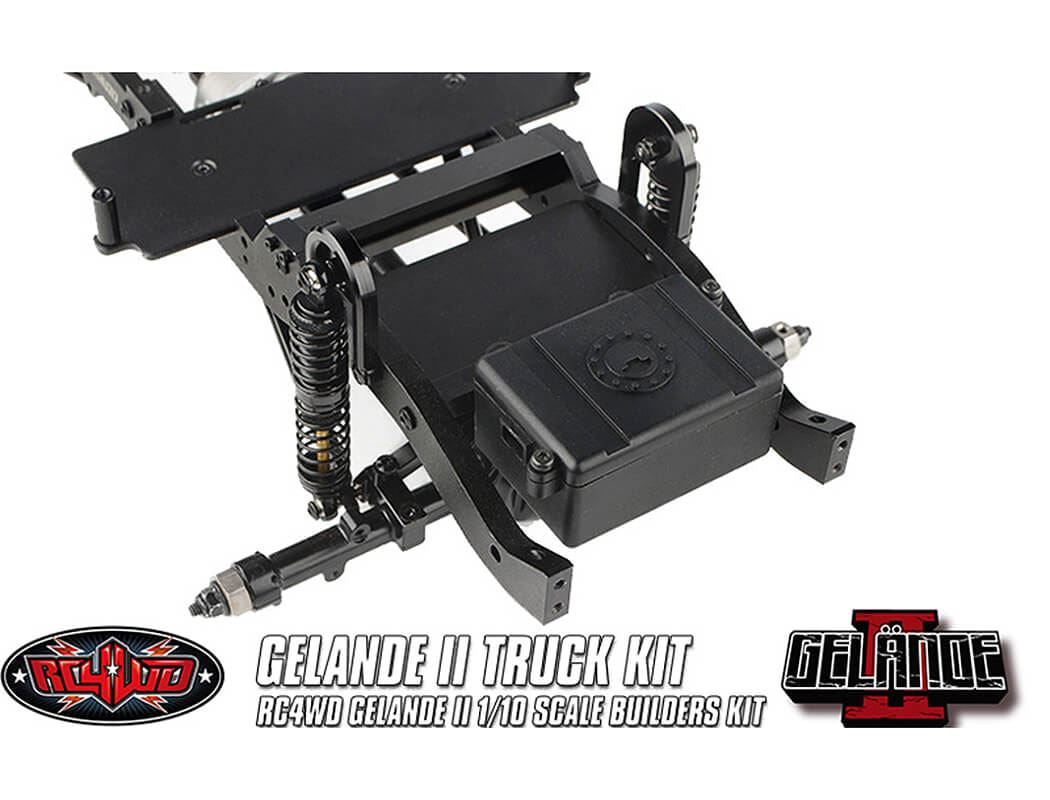

• Fuel Cell Radio Box.

Specifications

Hammer Transfer Case

Ratio: 1.47:1
Gears: Wide .8 Mod Hardened Steel Gears
Features: 8 Bearings, Cast Casing, Hardened Gears

R3 Scale Single Speed Transmission

Ratios: Pinion/Spur 14/64 = 1:4.57
Internal Ratio: 1.78:1
Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch

Yota II Ultimate Scale Cast Axles

Ratio: 15/40 = 2.67:1
Width at Hex: 178.2mm

Gelande II Chassis Set

Smooth Anodized Black Finish Integrated Notches for Cross Braces.

Drive Shafts

High Quality Plastic Material Durable Steel Yokes

Gelande II 1/10 Scale Builders Kit Dimensions

Wheelbase: 275mm (10.8")

Length: 440mm (17.3")

Width: 220mm (8.7")

Height: 140mm (5.5")

Ground Clearance: 50mm (1.97")

Final Drive Ratios: 31.9:1

What's Included

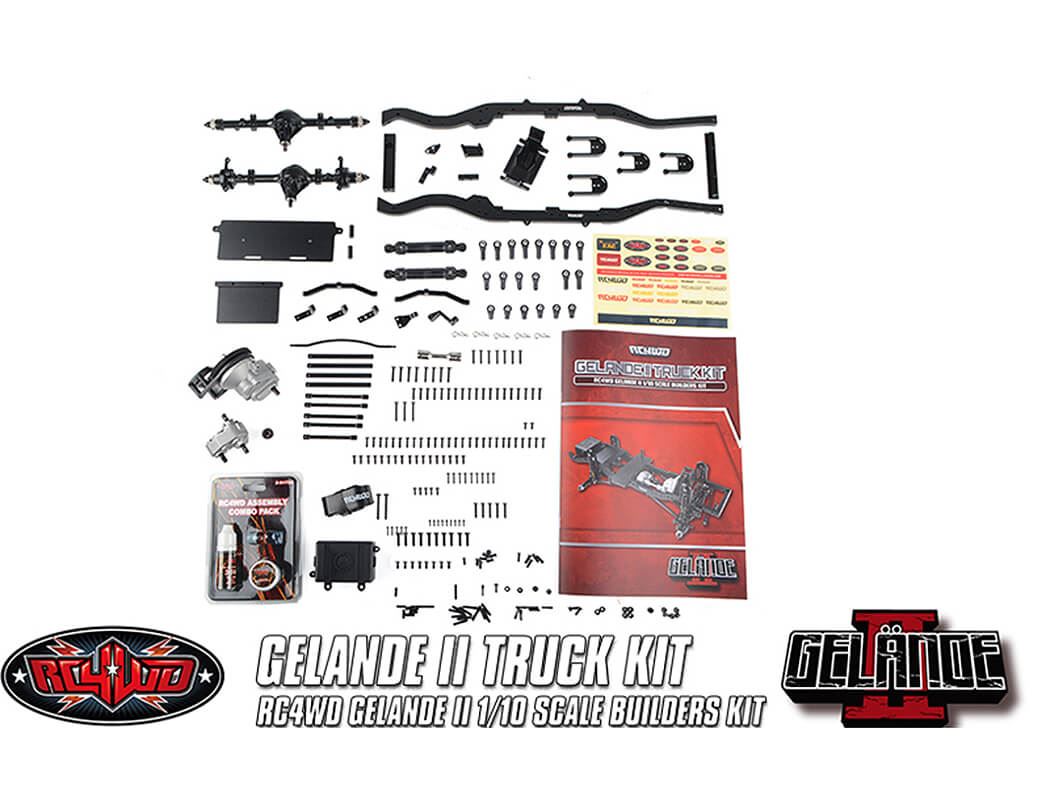

• 1 x RC4WD Gelande II Truck 1/10 Scale Builders Kit

Please Notes: This is a kit that requires building time (appro. 2-3 hours), electronics, tyres and wheels.

Required To Complete

Truck Kit

• Hex Drivers (1.5mm, 2mm, 2.5mm)
• Long Nose Pliers
• Associated Thread Locking Adhesive
• Cross Wrench or Nut Driver (4mm, 5.5mm, 7mm)

Electronics

• Motor (35t, 45t, or 55t)
• Radio and Receiver (2 Channels or more) (3 Channel Z-R0009, or 4 Channel Z-R0006)
• 1 x Twister High Torque Metal Gear Digital Servo (Z-E0035)
• Battery (Consult your "ESC" manual) Z-E0090 or 2 cell Lipo battery
• Charger (Consult your battery guide) Chargers

Suggested Bodies

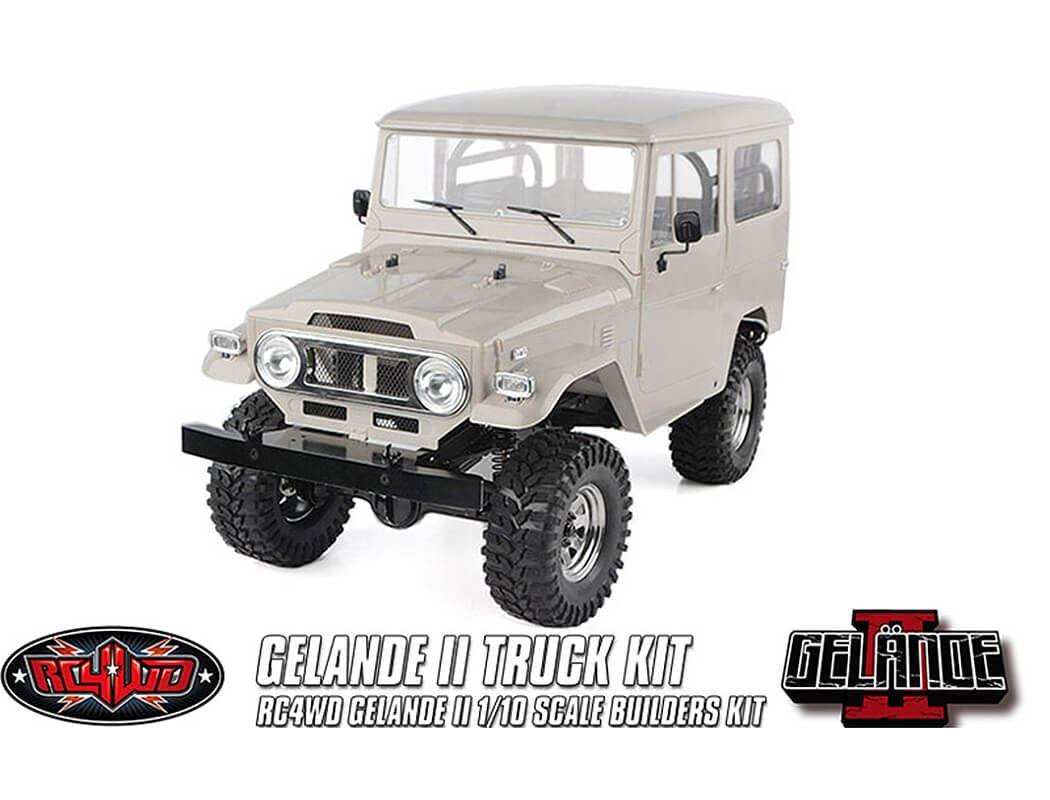

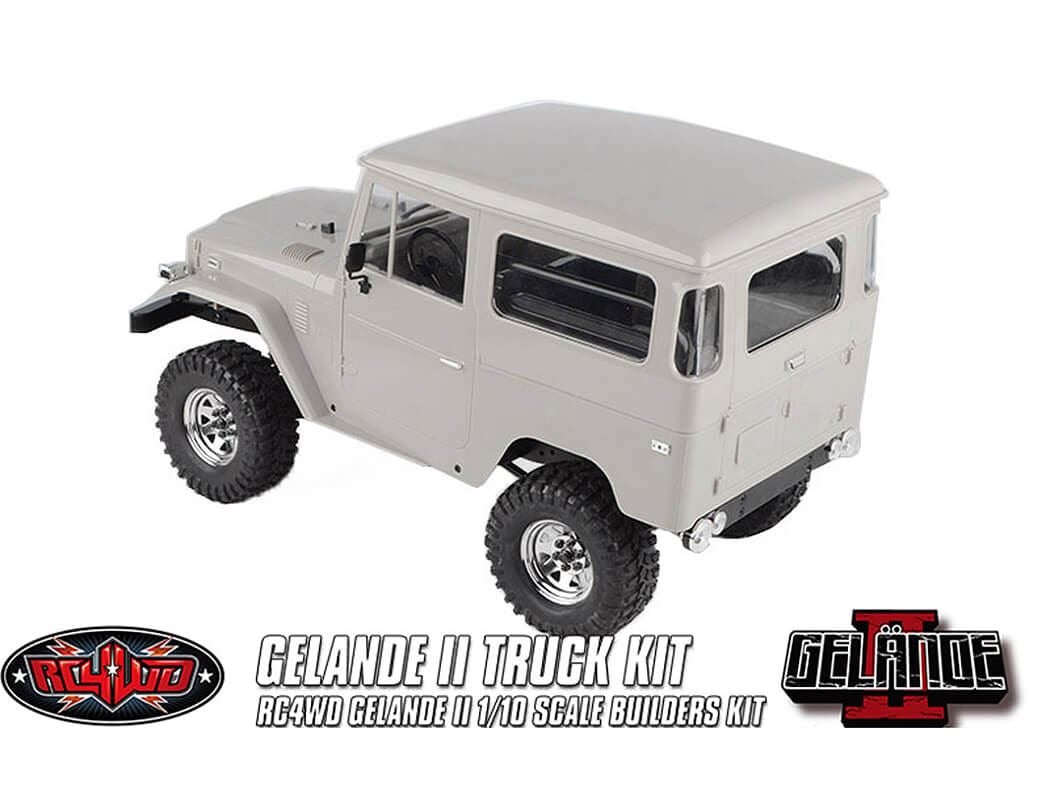

• RC4WD Complete Cruiser Body Set For Gelande II (Z-B0109)
• RC4WD 2015 Land Rover Defender D90 Body Set (Z-B0215)

Notes

• While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.
• Use good quality hex drivers to avoid stripping screw heads.
• Use thread lock sparingly.
• Do not over tighten screws, otherwise you may strip the thread.
