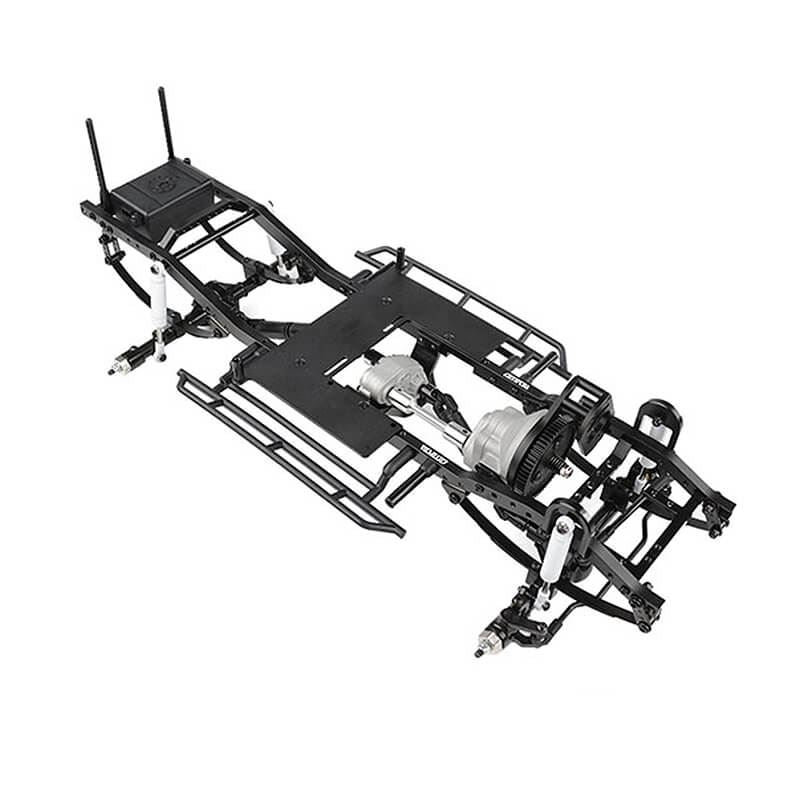

RC4WD TRAIL FINDER 2 LWB 1/10 SCALE BUILDERS KIT
Save £8.99
Couldn't load pickup availability
RC4WD TRAIL FINDER 2 LWB 1/10 SCALE BUILDERS KIT
The Trail Finder 2 LWB has both style and aggressive performance.You can find a balance of scale details and performance into every build.
Performance is smooth with its R3 Scale Single Speed transmission, 4WD drivetrain, Bulletproof Transfer Case, and quality metal components. The front axles have been upgraded with XVDs, providing sturdier construction and a greater steering angle than stock counterparts. The Trail Finder 2 LWB is a product of innovative engineering that impresses in appearance and performance.
The Trail Finder 2 LWB is fully compatible with an array of options and performance enhancements crafted to elevate the user experience and enhance the authenticity of a 1/10 off-road truck!
Features
- Realistic Billet Aluminum Ladder Frame Chassis
- R3 Scale Single Speed Transmission
- Center Mounted Realistic 4x4 Transfer Case
- K44 Ultimate Scale Cast Front Axle with Upgraded XVD's
- K44 Ultimate Scale Cast Rear Axle
- Super Scale 70mm White Shocks W/ Internal Springs
- RC4WD Marlin Crawler Side Plastic Sliders
- Soft Steel Leaf Springs
Specifications
Hammer Transfer Case
Ratio: 1.47:1
Gears: Wide .8 Mod Steel Gears
Features: 8 Bearings, Cast Casing, Hardened Gears
R3 Scale Single Speed Transmission
Ratios: Pinion/Spur 14/64 = 1:4.57
Internal Ratio: 1.78:1
Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch
K44 Ultimate Scale Cast Axles
Ratio: 2.67:1
Hex To Hex Width: 177mm (6.96")
Trail Finder 2 “LWB” Chassis
Features: Billet Aluminum Construction, Adjustable Shock Hoops
Drive Shafts
High Quality Plastic Material, Durable Steel Yokes
Trail Finder 2 "LWB" Truck Dimensions
Wheelbase: 314mm(12.4")
Width: 193mm(7.6")
Height: 118mm (4.65")
Final Drive Ratios: 31.9:1
What's Included
- 1x RC4WD Trail Finder 2 "LWB" 1/10 Scale Builders Kit
Required To Complete
This is a kit that requires building time (appro. 2-3 hours), electronics, tires and wheels.
Truck Kit
- Hex Drivers (1.5mm, 2mm, 2.5mm)
- Long Nose Pliers
- Associated Thread Locking Adhesive
- Cross Wrench or Nut Driver (4mm, 5.5mm, 7mm)
Electronics
- Motor (35t, 45t or 55t)
- Outcry Extreme Speed Controller ESC w/ Program Card (Z-E0118)
- Radio and Receiver (3 Channels or more) (3 Channel Z-R0009, or 4 Channel Z-R0006)
- Twister High Torque Metal Gear Digital Servo (Z-E0035)
- Battery (Consult your "ESC" manual) Z-E0090 or Lipo battery
- Charger (Consult your battery guide) Chargers
Suggested Bodies
- RC4WD 1987 Toyota XtraCab Hard Body Complete Set (Z-B0216)
- RC4WD Chevrolet K10 Scottsdale Hard Body Complete Set (Z-B0258)
Notes
- While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.
- Use good quality hex drivers to avoid stripping screw heads.
- Use thread lock sparingly.
- Do not over tighten screws, otherwise you may strip the thread.
-
