Ripmax  |  FCSSL0505

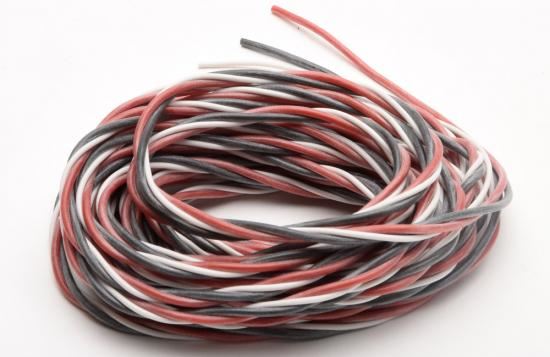

Ripmax Special Servo Cable 0.14/0.5mm 5000mm

£10.59
RRP: £11.75
Save £1.16
Home Delivery Available to order

        Allow 1-2 day(s) for order dispatch

The flexible wire is insulated with a special , extremely thin-walled plastic and therefore very thin and light . The surface is shiny, smooth and very lubricious , which simplifies installation and performing .
The insulation is temperature resistant up to 100 ° C and self-extinguishing .
Ideal for weight-saving wiring of servos in small and medium models , whether with or without S.BUS interface.The two live wires have a cross section of 0.5 mm² , the pulse wire is performed for reasons of weight with 0,14mm² . Weighing just 12.7 g / m , making it 33% lighter than a comparable Silicon .
The current carrying capacity is momentarily at 7.5A continuous and 12A .
dimensions :
Plus and minus wire : 0.5 mm²
Pulse wire : 0.14mm²
Colors: black , white, red
Length: 5m
Weight: 12.7 g / m
Diameter: 2.2 mm

Silikonlwire compared : weight 19 g /m, Diameter: 3.2 mm
Ripmax

Ripmax Special Servo Cable 0.14/0.5mm 5000mm

£10.59
The flexible wire is insulated with a special , extremely thin-walled plastic and therefore very thin and light . The surface is shiny, smooth and very lubricious , which simplifies installation and performing .
The insulation is temperature resistant up to 100 ° C and self-extinguishing .
Ideal for weight-saving wiring of servos in small and medium models , whether with or without S.BUS interface.The two live wires have a cross section of 0.5 mm² , the pulse wire is performed for reasons of weight with 0,14mm² . Weighing just 12.7 g / m , making it 33% lighter than a comparable Silicon .
The current carrying capacity is momentarily at 7.5A continuous and 12A .
dimensions :
Plus and minus wire : 0.5 mm²
Pulse wire : 0.14mm²
Colors: black , white, red
Length: 5m
Weight: 12.7 g / m
Diameter: 2.2 mm

Silikonlwire compared : weight 19 g /m, Diameter: 3.2 mm
