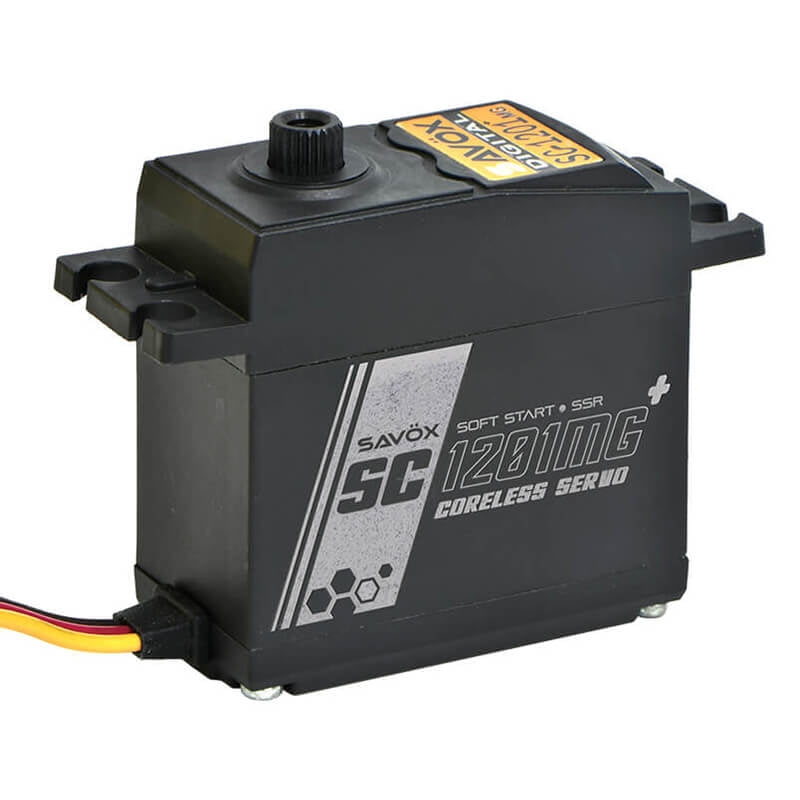

Savox  |  SAV-SC1201MG+

Savox Digital Coreless Servo 25Kg/0.15@6V


£47.19
RRP: £50.99
Save £3.80
Home Delivery Available to order

        Allow 1-2 day(s) for order dispatch

SAVOX DIGITAL CORELESS SERVO 25KG/0.15@6V


Features

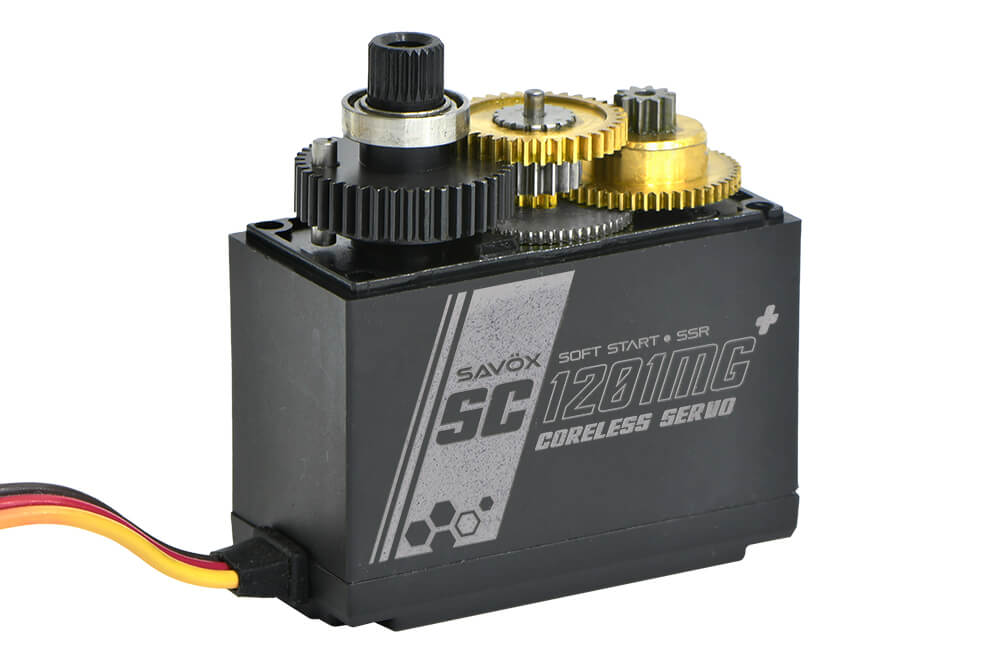

  • Metal gear train ensures durability and longevity.

  • Great replacement for RTR crawler, truck and buggy servos.

  • Excellent choice for budget-conscious customers.

  • Same height as the SW0231MG.


Specifications



  • Torque @ 4.8v - 20.0kg/278.0oz-in

  • Torque @ 6v - 25.0kg/347.0oz-in

  • Speed @ 4.8v - 0.19 sec/60 deg

  • Speed @ 6v - 0.16 sec/60 deg

  • Dimensions L x W x H (mm): 40.7 x 20.0 x 42.4

  • Weight: 69.0g


Technical Details


Operating Temperature: 14° - 122°F (-10° - 50°C)
Running Current (no load): 300mA @4.8V, 350mA @6.0V
Stall Current (at locked): 8000mA @4.8V, 10,000mA @6.0V
Idle Current: 5mA @4.8V, 5mA @6.0V
Wire Length: 300 +/- 5mm
Output Gear Spline: 25 Tooth
Bearings: 2BB
Operating Travel: 120° (1000 → 2000 µ second)
Neutral Position: 1500 µ second
Pulse Width Range: 800 → 2200 µ second
Maximum Travel: Appx 164° (800 → 2200 µ second)
Refresh Rate: 333 Hz
Motor Type: Coreless


New Savox servos : now feature the Soft Start Mode and Sanwa SSR compatibility as standard.
