Sky Rc  |  SK-500047-01

Sky Rc Itv500 Mini Heatvision

£63.37
RRP: £64.99
Save £1.62
Home Delivery In Stock

        Same Day Dispatch Available

Description


Heat is the first warning.  Invisible. Until you see it.
The motor runs hot — permanent magnets begin to demagnetize, and output performance drops for good.
The ESC is overloaded for too long — MOSFETs enter thermal runaway and eventually fail.
Battery temperature rises abnormally — aging accelerates and the risk of swelling increases dramatically.
Poor connector contact — higher resistance leads to overcurrent and localized melting.
Before anything breaks, it heats up.
The problem is, most RC drivers have never truly seen those temperatures

FIR Behind ITV500
How ITV500 Sees Heat
Every surface radiates invisible heat. ITV500 detects FIR(far-infrared) energy and converts it into accurate, contact-free temperature data — transforming it into a live thermal image, so you can see temperature, instantly.

Born for RC Tuning
Every degree matters when performance is on the line.
Whether you’re chasing lap consistency or fine-tuning gearing, ITV500 gives you instant thermal feedback — helping you protect your power system and extract every bit of speed.
Precision up to ± 2 °C means you always know what’s running hot.

Tuned for Every Material in Your RC Rig
From metal motors to carbon chassis, ITV500’s 0.01–1.00 adjustable emissivity 1 ensures accurate readings across every surface — capturing true temperatures without material bias.

Pocket-Sized.
Pit-Ready.
At just 38 g, ITV500 slips easily into your pocket or pit bag.

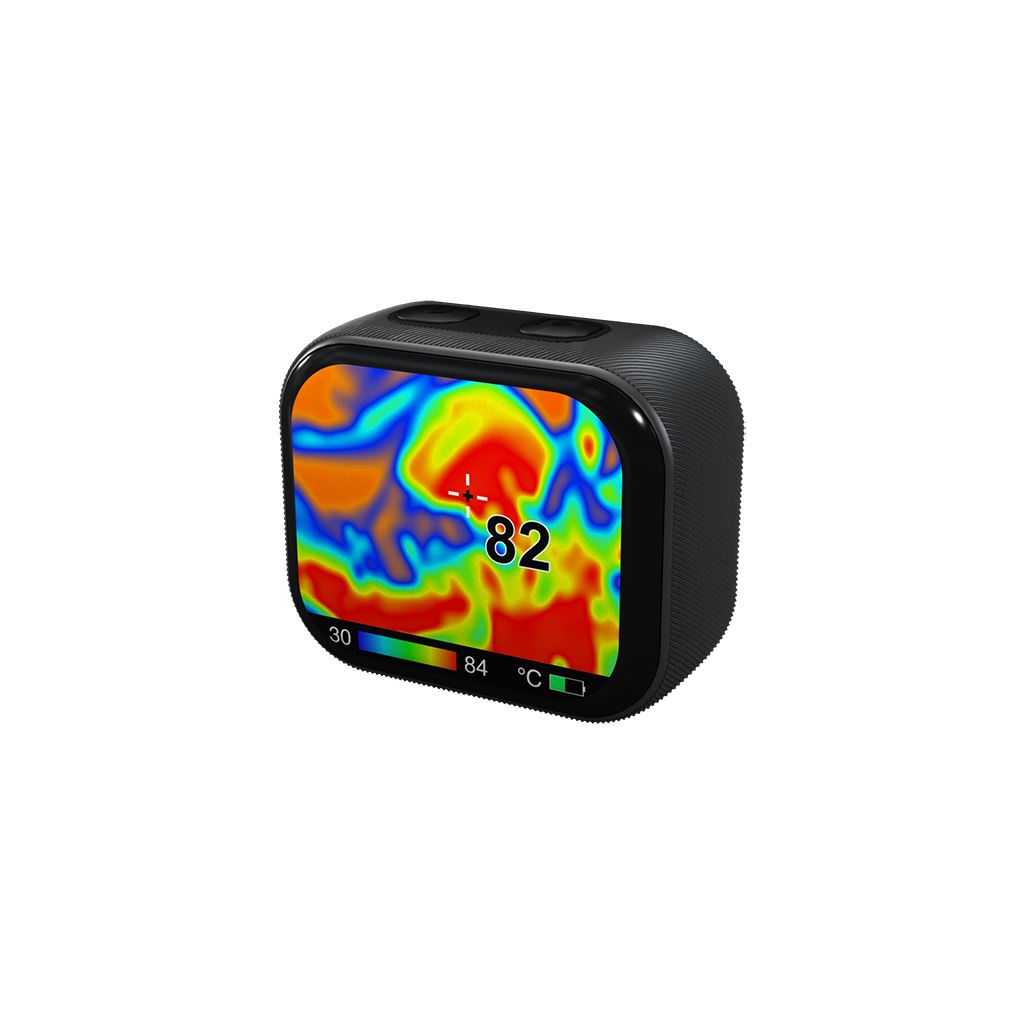

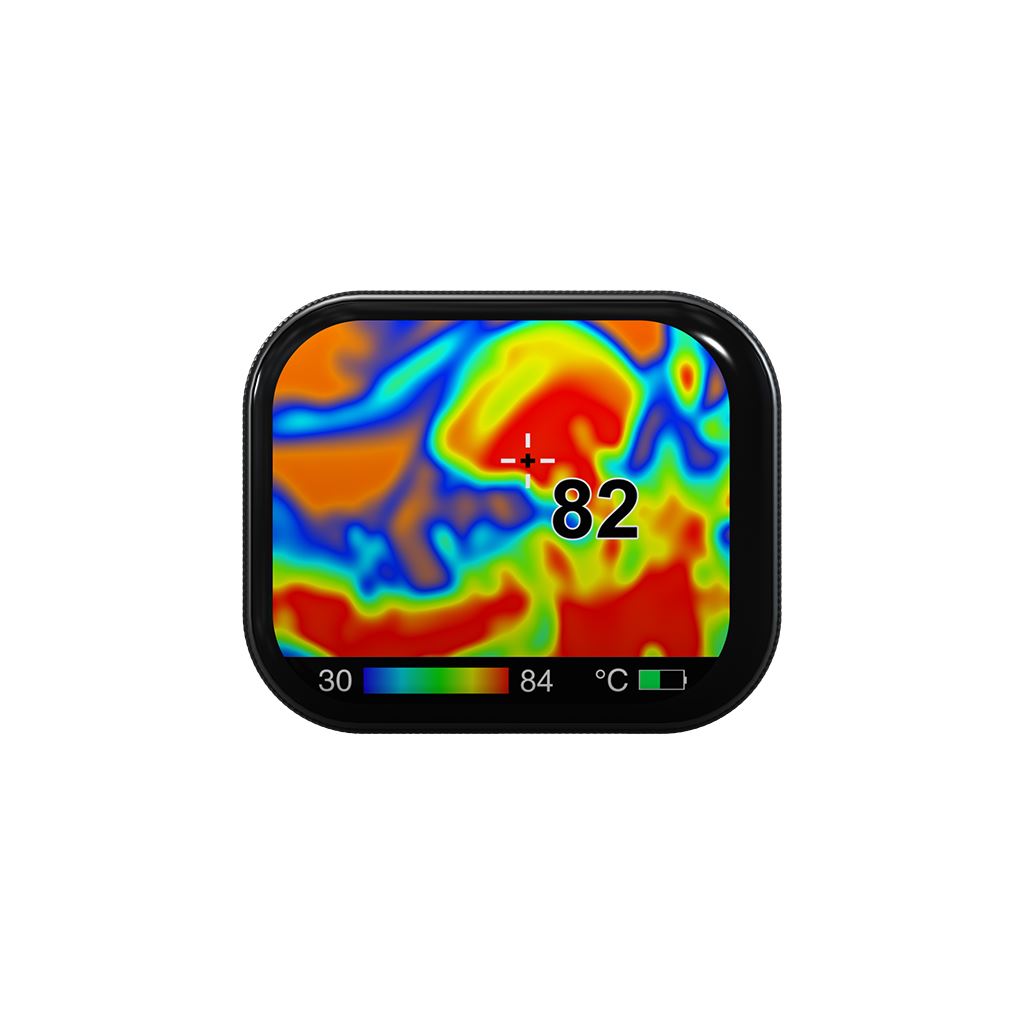

Its bright 1.83″ touch display visualizes temperature gradients in seconds — from brushless motors to LiPo packs, connectors, or even tire surfaces.

Smart Visualization
Rainbow, Iron Red, or White Hot — choose your thermal style.
Tap to spot-measure any point, and let the ITV500 automatically mark the hottest and coolest areas on screen.

Measure at Your Fingertip
Tap to measure any point on screen.
See the hottest and coldest spots automatically marked.
Switch between °C / °F / K, adjust brightness, fine-tune emissivity, or change settings — all with a touch on the intuitive display.
Six-language interface (EN / 中文 / FR / DE / ES / JP) and auto power-off options keep it smart and efficient.

Fast Charge.
Quick Update
Recharge via USB-C and upgrade firmware effortlessly with UF2 drag-and-drop — no tools, no hassle.

Specifications

Size and Weight

Size: 46 × 38 × 20.1 mm
Weight: about 38g

Display
Display Type: 1.83" capacitive touch screen 240 × 284 pixels
TechSpec
IR Resolution: 32 × 24 pixels
Thermal Sensitivity: 100mK @ 1Hz
Field of View: 55° × 35°
Frame Rate: 8 FPS
LCD Display: 240 × 284 pixels
Battery: 600 mAh rechargeable lithium battery
Charging Interface: USB Type-C
Charging Input Voltage: DC 5V
Temperature Measurement Range: -20°C(-4℉) ~ 300°C(572℉)
Measurement Accuracy: ±2.0℃(3.6℉)
Measuring Distance: <5 m (for high accuracy, within <20 cm)
Languages: EN / CN / FR / DE / ES / JP
Working and Storage
Operating temperature: -5℃-60℃
Working humidity: ≤85%RH, non-condensing
Storage temperature: 0°C–35°C
Storage humidity: ≤65% RH, non-condensing
