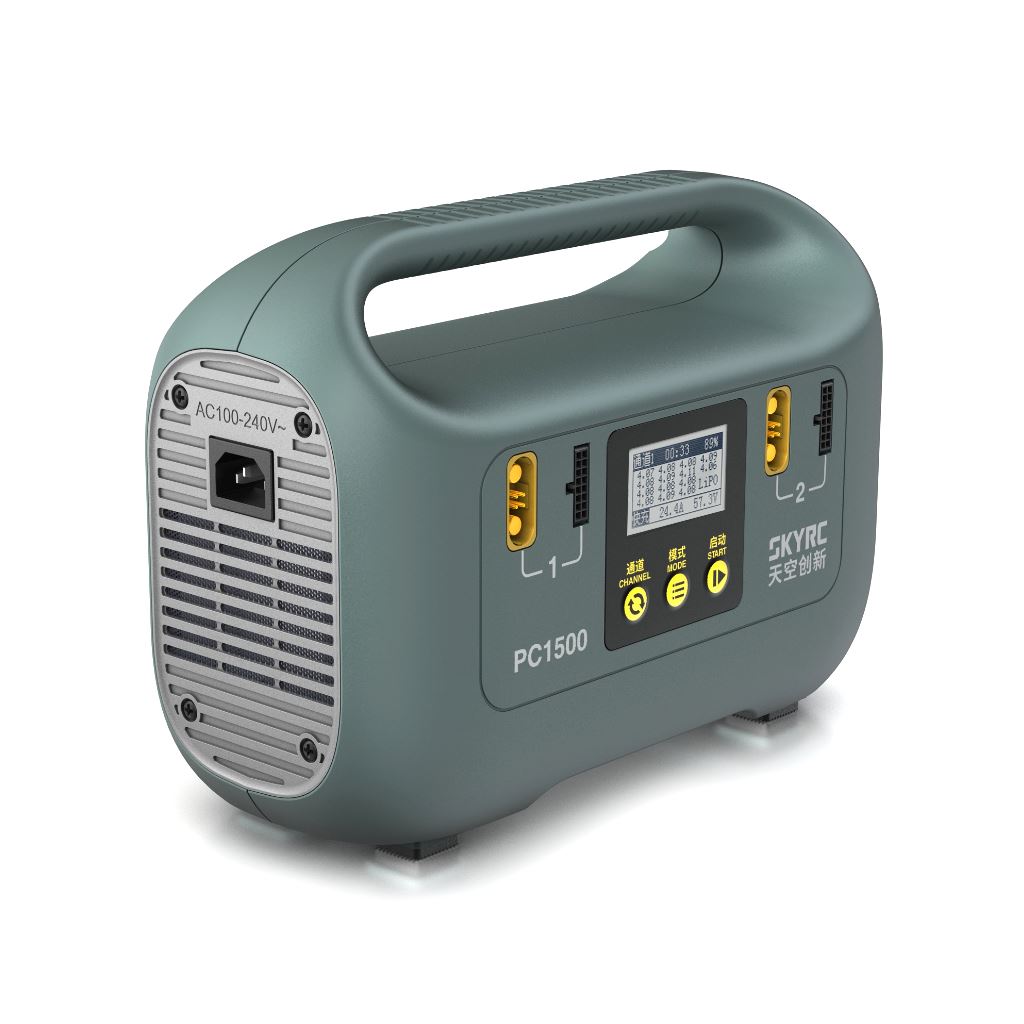

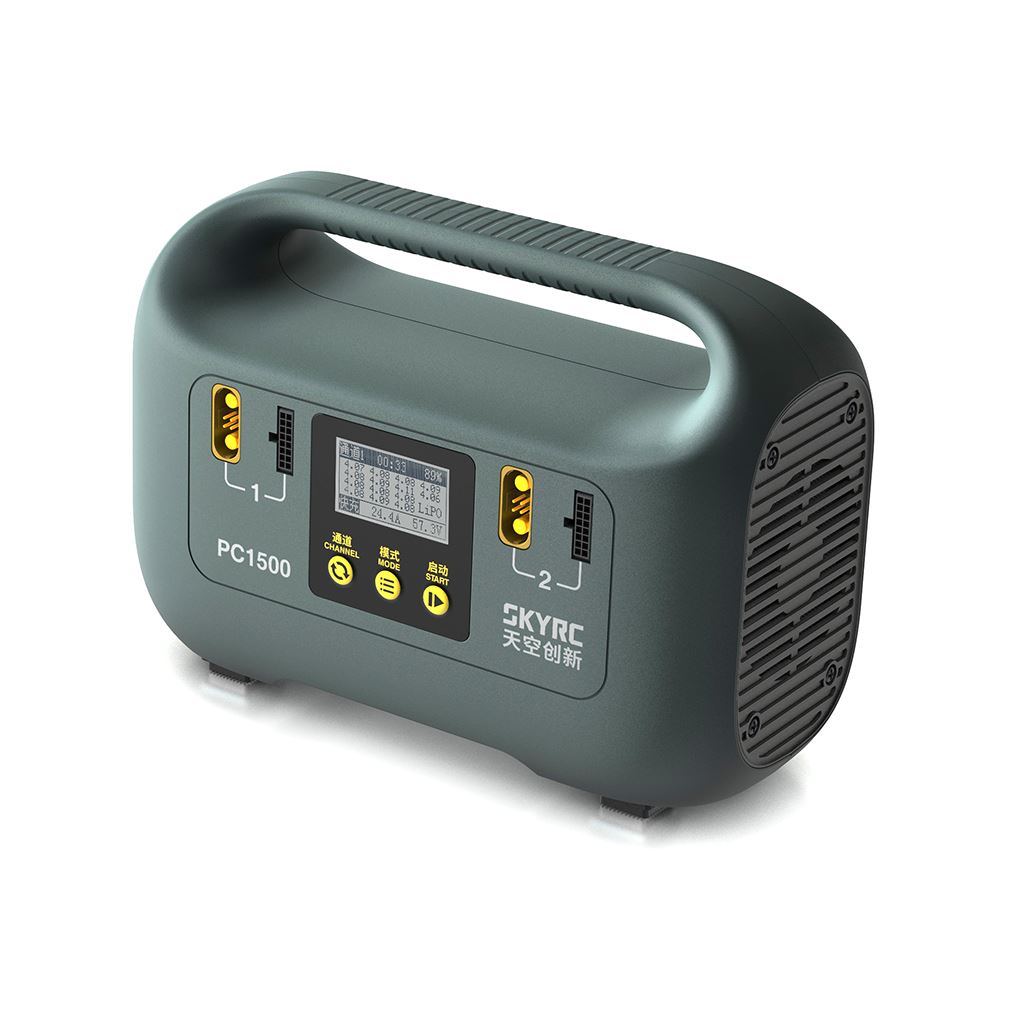

Sky Rc Pc1500 Ac 1500W Charger

PC1500 is a smart charger that integrates CAN communication for smart batteries and ordinary lithium batteries. It can connect two batteries at the same time. The charger's maximum output power is up to 1500W, with three modes of Fast(Fast Charge)/Charge(Slow Charge)/Storage. The charger can recognize the batteries with customized CAN communication instantly. Charging operation is convenient and straightforward, and better user experience is delivered.

Intuitive Operation Interface
Routine charging is made easy by the simple and intuitive interface with the operation procedure simplified. Users only need to select Fast(Fast Charge)/Charge(Slow Charge)/Storage and press the Start button to get the job started.

LCD Display
Real-time charging data at a glance!
During the charging process, the display screen displays charging time, battery power percentage, and every single cell's voltage in real-time.

Go parallel, one step faster!
High Performance With Dual Channels With high-power and dual channels, two batteries can be charged simultaneously in slow charging mode at a maximum charging power of 1500W.

CAN Bus Ready
PC1500 charger comes with the built-in CAN Bus communication. It can charge both smart batteries and common lithium batteries with balance ports in different circumstances.

Pre-charge Function to Extend Battery Life
The charger can detect the battery pack's overall voltage through the balance port and intelligently adjust the charging current according to the battery voltage.

Optimal Design Through the Convection Air Duct
The wing blade design reduces noise, provides high-wind performance, and significantly improves heat dissipation efficiency.

High-quality Ventilator, Effectively Filtering Dust and Sediment
Ventilators are mounted at the end of the fan convection. They are detachable design, easy to remove and clean: dust, sand, and other harmful substances are effectively filtered.

Compact but Powerful
PC1500 is highly optimized in structure, pursuing a better volume-to-power ratio. The size is compact, but its function is powerful and easy to carry.

Design and More Optimized Algorithm
Efficiency is significantly improved, and reliability gets increased. Stability and durability are ensured through the stunning modular industrial design, considerate space layout, and selection of well-known brand components.

Better Protection With Conformal Coating
Anti-corrosion paint is applied to protect the key circuit's electronic components from extreme environments like moisture, mildew, and smoke corrosion. The charger's reliability and stability are ensured for outdoor work.

Go Green with Active PFC
Universal AC input
Innovative active PFC
Industrial-grade Power Management
Conversion Rate: UP to 93%

Active PFC uses a circuitry to correct the amount of power drawn to obtain the best ratio of power factor, achieving high efficiency, 93%. Which makes the product more stable and reduces the interferences to the power grid.

Great Technical Support
With years' expertise in power system and accumulated architectural improvement, the software has been optimized to make the charger output current more stable and reliable.

Multiple Protection:
Short Circuit Protection
Reverse Polarity Protection
Over-temperature Protection
Customers can rest assured of our quality safety and reliability.

SPECIFICATIONS
Size and Weight
Material: Plastic (Flame Retardant PC-ABS)
Size: 294x136x212mm
Weight: 4.2Kg
Power Supply
AC Input: 100-240V
Charging Power:
AC220V：1500W
AC120V：600W 
Battery
Type：Lithium Battery
LiPo Battery Cells： 12S/14S
LiHV Battery Cells：12S
Charger/Discharge
AC 220V
Fast Charge Current: 25A
Slow Charge Current: 25A (Total 25A for two channels)

AC 120V
Fast Charge Current: 9A
Slow Charge Current：9A (Total 9A for two channels)

Discharge Power：60W
Charging Mode：Fast charge, Slow, Storage
Working and Storage
Working Temperature: 0℃-40℃
Working Humidity: 0%-75%
Storage Temperature: -10℃-70℃
Storage Humidity: 0%-75%
