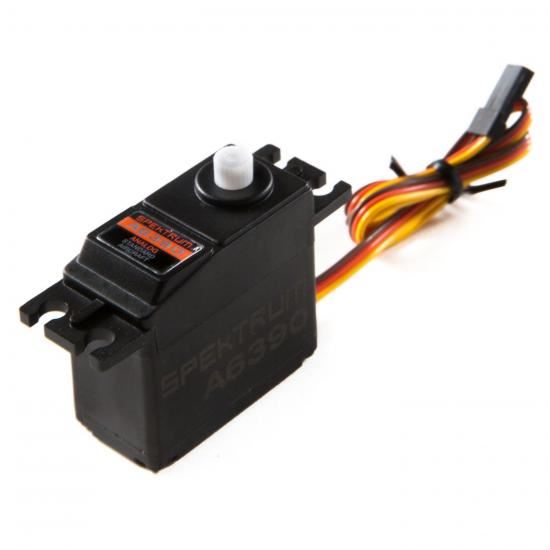

Spektrum A6390 Mid-Torque Mid-Speed Analog Standard Servo
Save £1
Couldn't load pickup availability

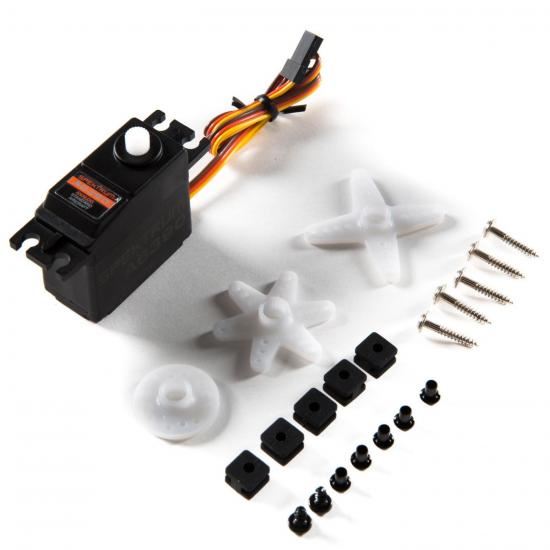

The Spektrum A6390 standard size analog sport servo is the perfect budget solution that offers a lightweight plastic gear train, a budget class leading torque rating of 66 oz/in and quick transit speed of 0.14/60. Single ball bearing output shaft and a robust composite plastic case offers durability you can depend on in your 60 size or smaller trainer and sport models. Includes all the mounting hardware and 3 Heavy Duty plastic arms needed for your project.
A6390 Mid-Torque Mid-Speed Analog Standard Servo Specfications:
- Application: : Trainer airplane
- Bearing: : Single
- Bushing Or Bearing: : Bearing
- Connector Type: : Z-Connector
- Connector Wire Gauge: : 22 AWG
- Connector Wire Length: : 12" (304mm)
- Gear Material: : Nylon
- Height: : 1.36" (34.6mm)
- Length: : 1.52" (38.6mm)
- Motor Type: : 3-pole ferrite
- Programmable: : No
- Rotation Range: : 120°
- Servo Operating Voltage: : 4.8-6.0V
- Servo Type: : Analog
- Speed: : 0.17 sec/60 deg; @ 4.8V, 0.14 sec/60 deg; @ 6.0
- Spline Count: : 23 Teeth
- Torque: : 48.6 oz-in (3.5 kg-cm) @ 4.8V, 66.7 oz-in (4.8 kg-cm) @ 6.0V
- Type: : A6390 mid torque, mid speed, standard size analog servo
- Weight: : 1.3oz (37g)
- Width: : 0.74" (18.8mm)
-
