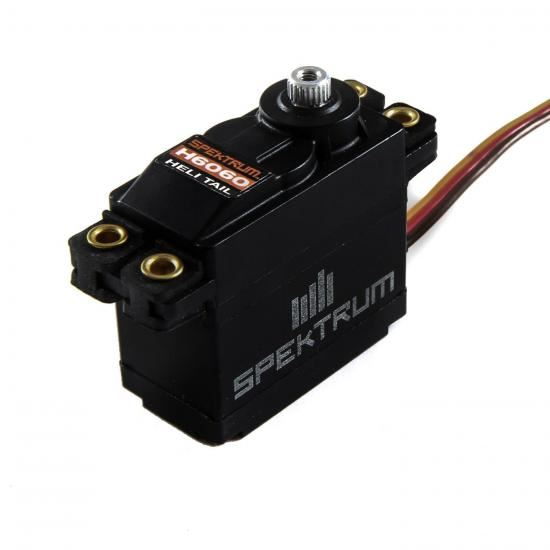

Spektrum H6060 Mid-Torque Ultra-Speed Heli Tail Servo (SPMSH6060)
Save £8
Couldn't load pickup availability
- Standard size servo for 500 size Helicopter models and smaller
- 160oz Torque and .056 sec speed at 6.0v
- 4.8v-6.0v input voltage
- Long 10 inch (255mm) connector wire to reduce the need for extensions
- 23 Tooth spline
- Bearing supported output spline
The H6060 is a budget friendly digital tail rotor servo that is purpose built for helicopter models up to 500 size. Featuring a powerful coreless motor that delivers a potent 86oz of torque and a blazing fast .056 sec (at 6.0V) and durable fully metal gear train. Built into a standard size case, this servo is a perfect fit for the Blade Fusion 480 and many other high performance heli models.
Compatible Products Spektrum H6060 Mid-Torque Ultra-Speed Heli Tail Servo SPMSH6060 is compatible with BLH4925SCH6060 Mid-Torque Ultra-Speed Heli Tail Servo Specfications:
- Application: : Heli Tail
- Bearing: : Dual
- Bushing Or Bearing: : Bearing
- Connector Type: : Z-Connector
- Connector Wire Gauge: : 22 AWG
- Connector Wire Length: : 10 in (255mm)
- Deadband: : Ex: 8õs
- Gear Material: : Alloy Metal
- Gear Type: : Metal
- Height: : 1.57 in (39.9 mm)
- Input Voltage: : 4.8-6.0V
- Length: : 1.57 in (39.9 mm)
- Motor Type: : Coreless
- Programmable: : No
- Rotation Range: : 120ð
- Servo Type: : Digital
- Speed: : 0.056 sec/60 deg @ 6.0V at no load
- Spline Count: : 23 Teeth
- Torque: : 86 oz-in (6.2 kg-cm) @ 6.0V
- Type: : H6050 Mid-Torque Mid-Speed Heli Cyclic Servo
- Weight: : 2.2 oz (62g)
- Width: : 0.78 in (19.8 mm)
-
