SRT  |  SRTBH125W

Srt Bh125W 1/5Th Hv Brushless Servo


£129.49
RRP: £139.99
Save £10.50
Notify me when available
Description


KEY FEATURES

-  Ideal for 1/5 on road and 1/5 off road scale applications
- Incredible efficiency and low power consumption
- NMB dual main bearings
- Superior waterproof
- 15T output shaft
- 1-Year Limited Warranty

Application :
 1/5 Nitro Touring  1/5 Nitro Buggy

PRODUCT SPECIFICATIONS

Type: Digital
Bearing: Dual
Motor Type: Brushless
Gear Type: Metal
Gear Material: Steel
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.12 sec/60 degrees at no load
operating speed (7.4v): 0.11 sec/60 degrees at no load
operating speed (8.4v): 0.085 sec/60 degrees at no load
stall torque (6.0v): 90.0kg.cm (1249.9 oz/in)
stall torque (7.4v): 110.0kg.cm (1527.6 oz/in)
stall torque (8.4v): 125.0kg.cm (1735.9 oz/in)
potentiometer drive: direct drive

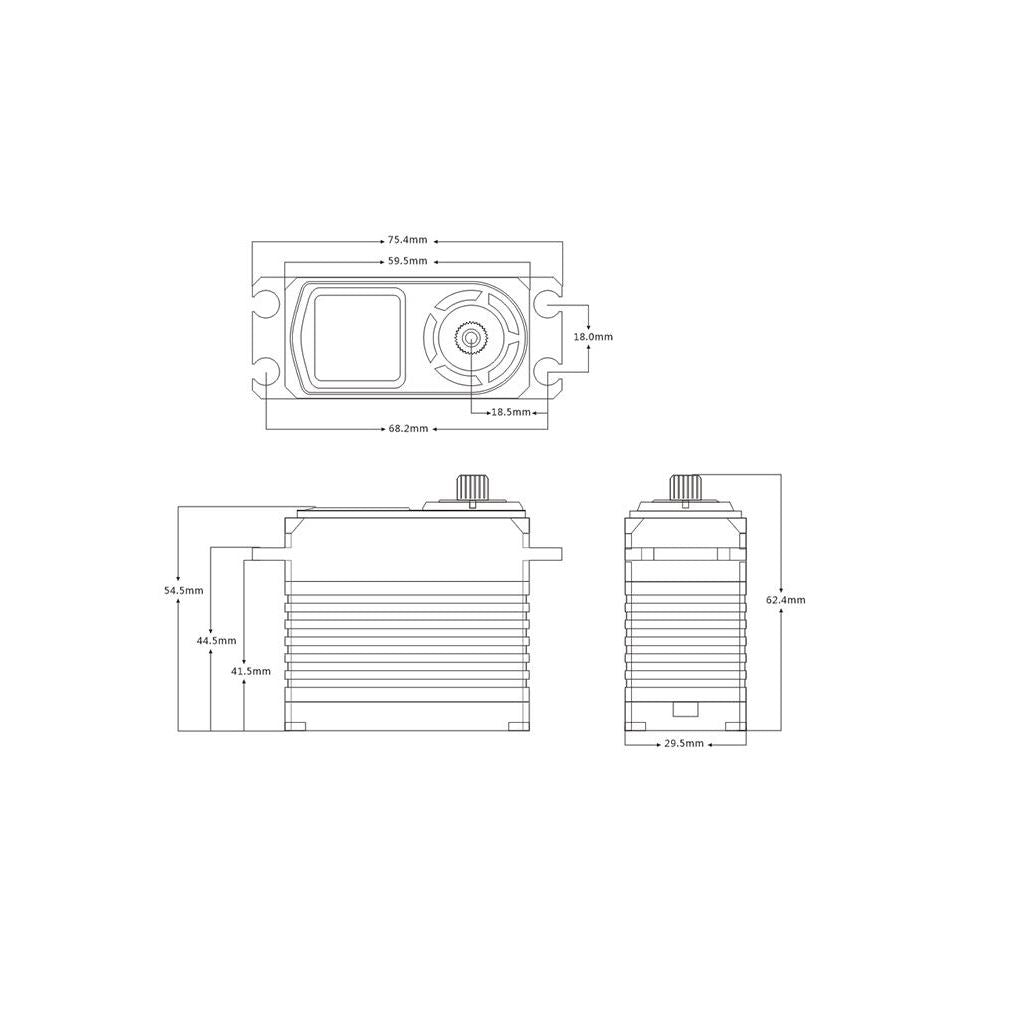

dimensions: 59.5x29.5x54.5 mm /2.34x1.16x2.15 in
weight: 209.0g (7.37 oz)
connector wire length: jr 350 mm
