SRT  |  SRTBHX2S-80MM

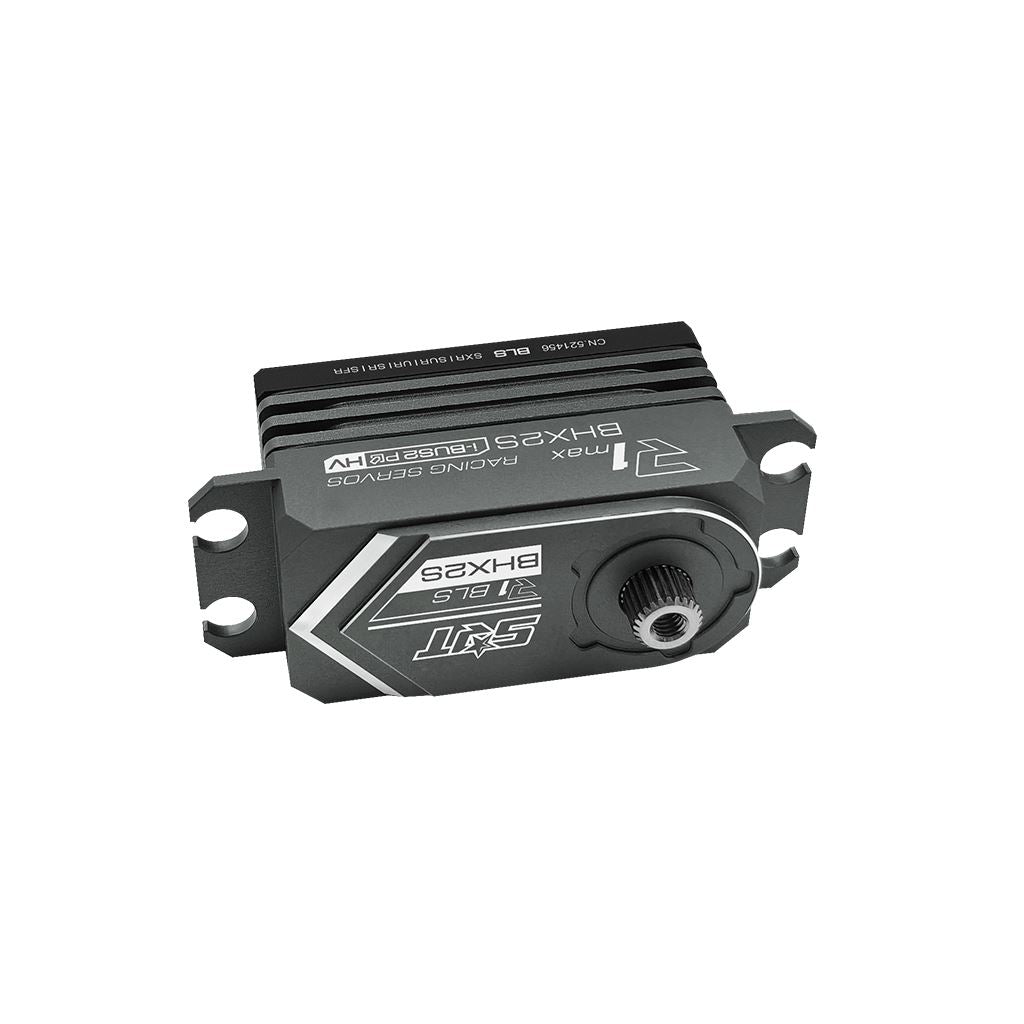

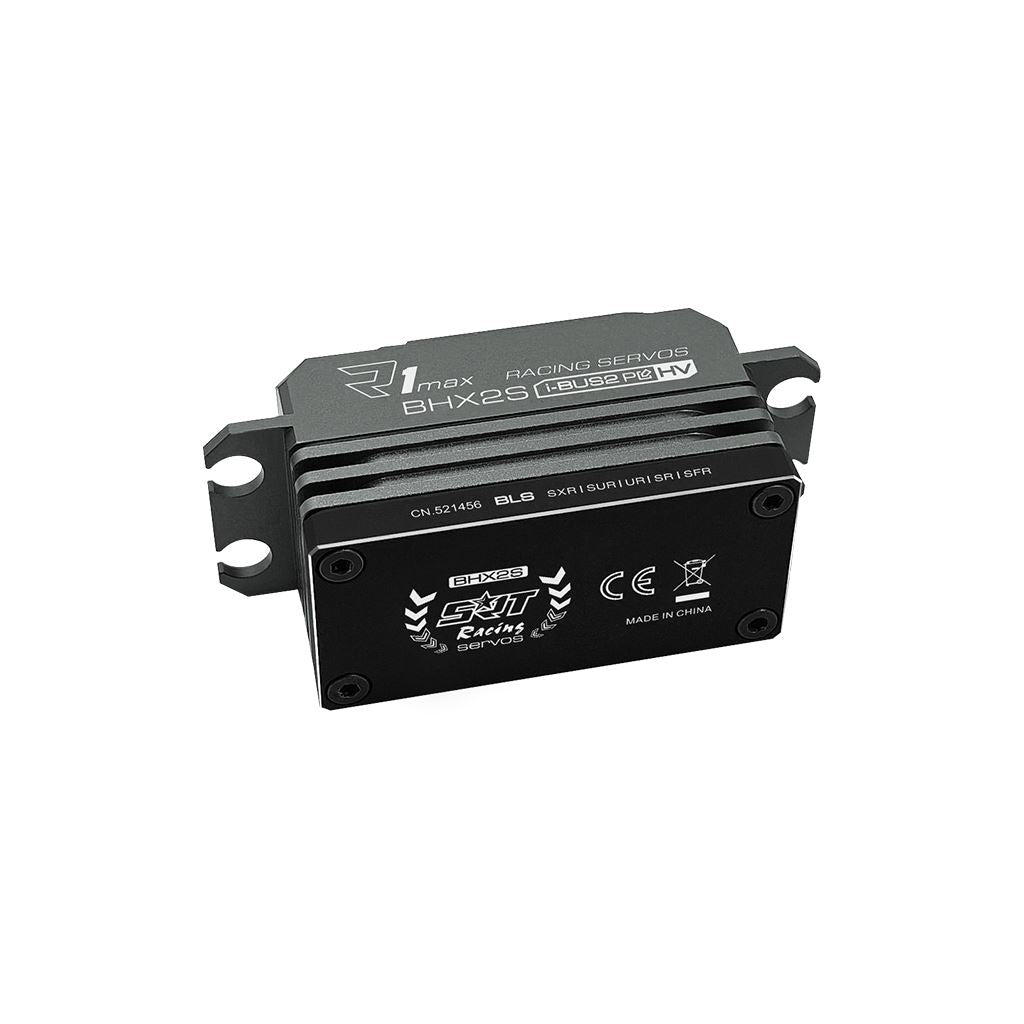

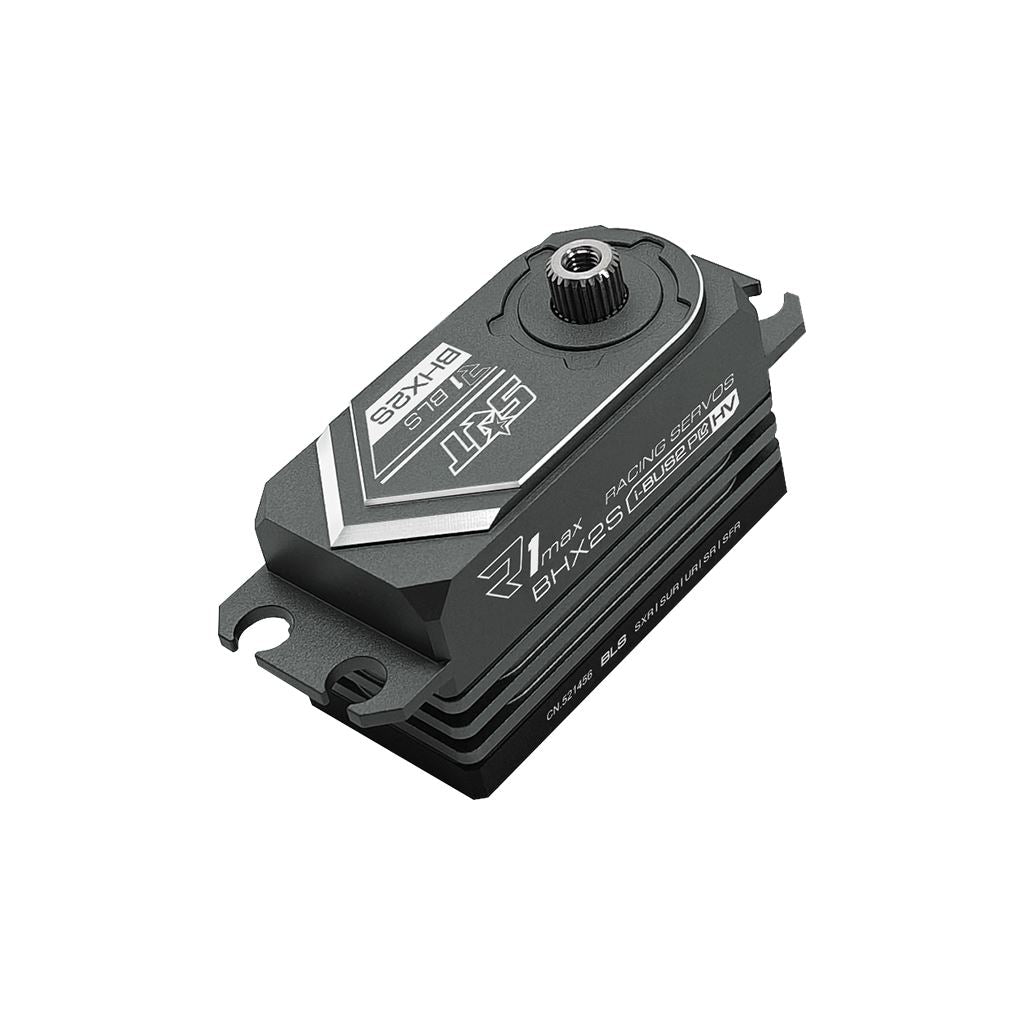

Srt Bhx2S Hv Brushless Servo - 80Mm Lead


£116.99
RRP: £119.99
Save £3
Notify me when available
Description
KEY FEATURES

- 4-Pole brushless motor with superior fast response
- Ultra low-profile, smaller & lighter & faster
- Extremely sensitive response speed
- NMB dual main bearings
- Supporting SXR, SUR, UR, SR, SFR multiple ultra high speed modes
- 1-Year limited warranty

PRODUCT SPECIFICATIONS

type: digital
bearing: dual
motor type: 4-Pole brushless
gear type: metal
gear material: TC4 pure-titanium & steel
control system: pulse width control
working frequency: 1520μs / 330hz
operating voltage: dc 6.0-8.4v
operating temperature range: -10 to +60 degree
operating speed (6.0v): 0.080 sec/60 degrees at no load
operating speed (7.4v): 0.073 sec/60 degrees at no load
operating speed (8.4v): 0.065 sec/60 degrees at no load
stall torque (6.0v): 15.0 kg/cm (208.3 oz/in)
stall torque (7.4v): 18.0 kg/cm (250.0 oz/in)
stall torque (8.4v): 23.0 kg/cm (319.4 oz/in)
potentiometer drive: direct drive

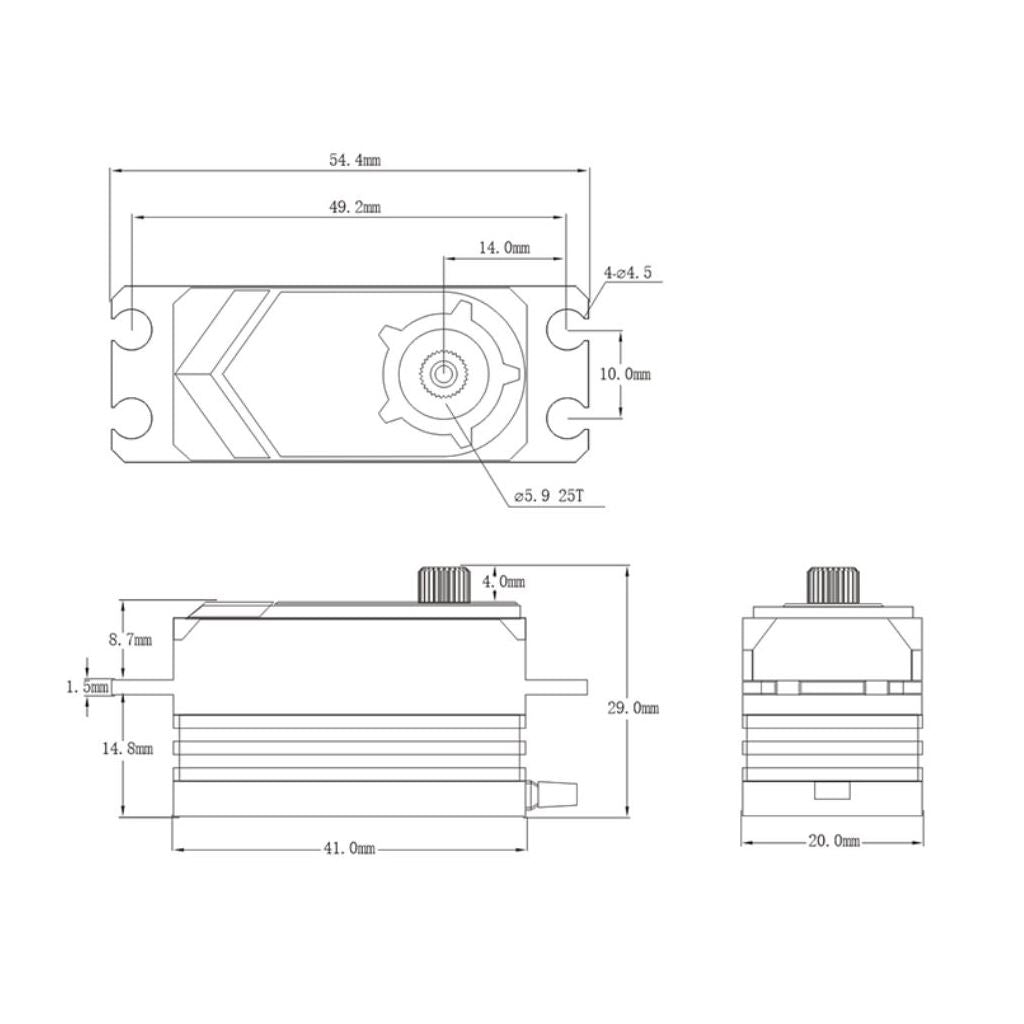

dimensions: 41.0x20.0x24.8 mm / 1.61x0.79x0.92 in
weight: 52.0 g (1.83 oz)
connector wire length: jr 80 mm (Specifically designed for electric car)

Application :
1/10th 1/10 Electric Touring
1/10 2WD Electric Buggy
1/10 Nitro Touring
1/8 Nitro Touring
