Make It Build It  |  SRTSP-MX082

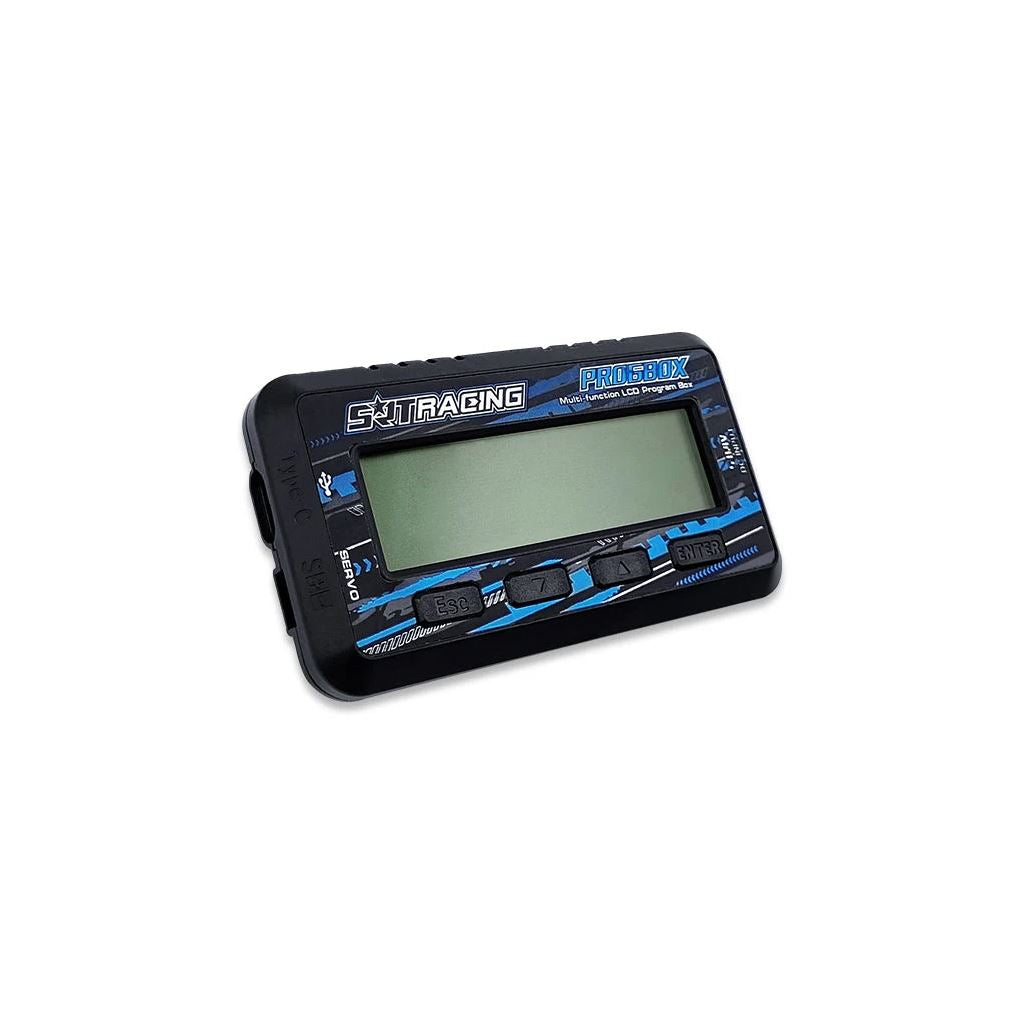

Srt Program Box Sp-Mx082


£38.99
RRP: £39.99
Save £1
Home Delivery Available to order

        Allow 1-2 day(s) for order dispatch

Description
Product Functions:

- Servo parameters setting
- Connect the computer to set the servo
- Servo testing

PRODUCT SPECIFICATIONS

- Operating Voltage:5-8.4V DC
- Idle Current:<20mA
- Operating Temperature:0-40°C
- Storage Temperature:-10-60°C
- Storage Humidity:20-75%RH
- Weight:40g
- Dimensions:87.0x47.0x12.0mm

KEY FEATURES

- Program box SP-MX082 has built-in high-performance 32-bit microprocessing, small size, simple and convenient operation.
- Connect the servo through the program box for parameter setting, so that the servo can adapt to different track conditions.
- Program box can store 20 sets different servo parameters.
- The program box has the function of central point adjustment, which makes the left and right angles of the chassis more consistent.
- Servo Testing: servo board band and narrow band PWM testing function.
- DEFAULT: one-key restore factory parameter function.
- Apply to a variety of SRT servos with programming marks, such as:

BH815S,BH922S,BH927S,CH712S,D1S,W35,W45,T45,T55,T65,T75,BHX6,BHX8, BHX9,Min6
