SRT  |  SRTT6S

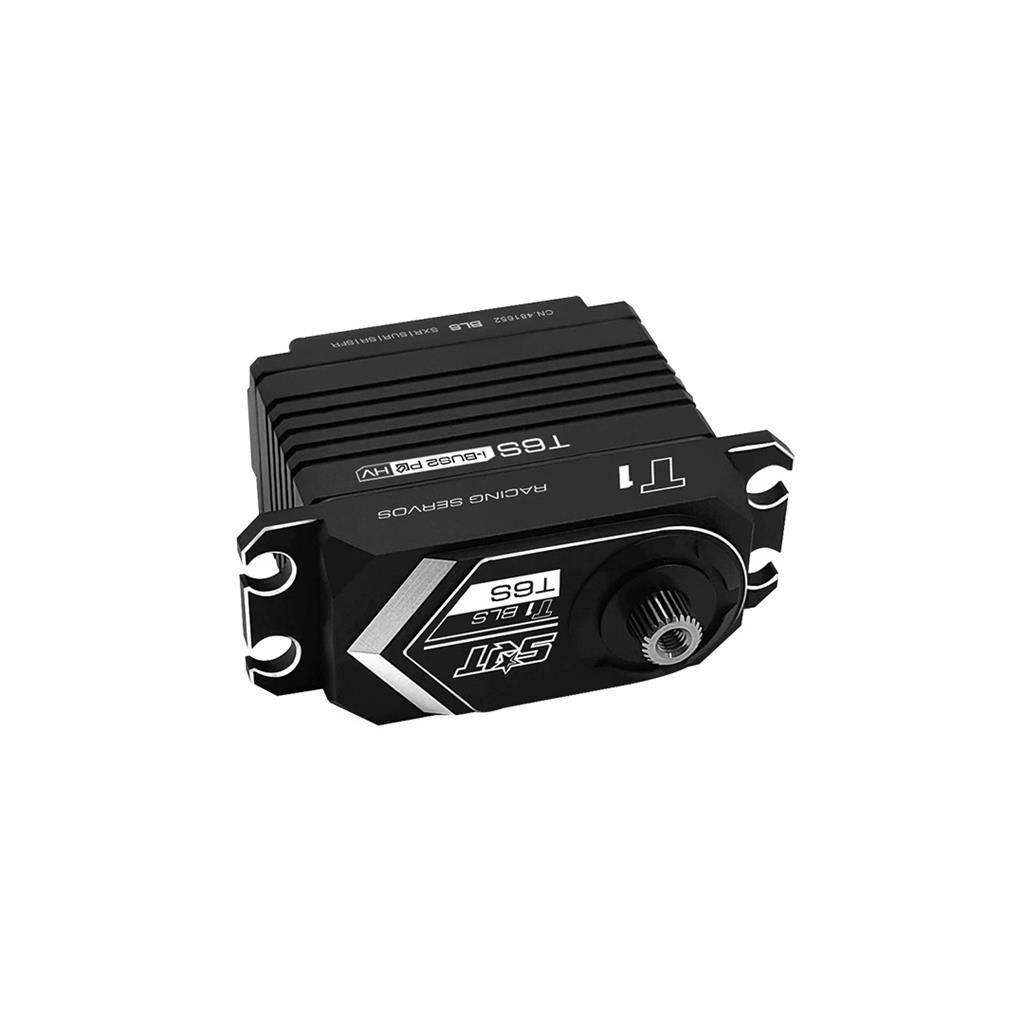

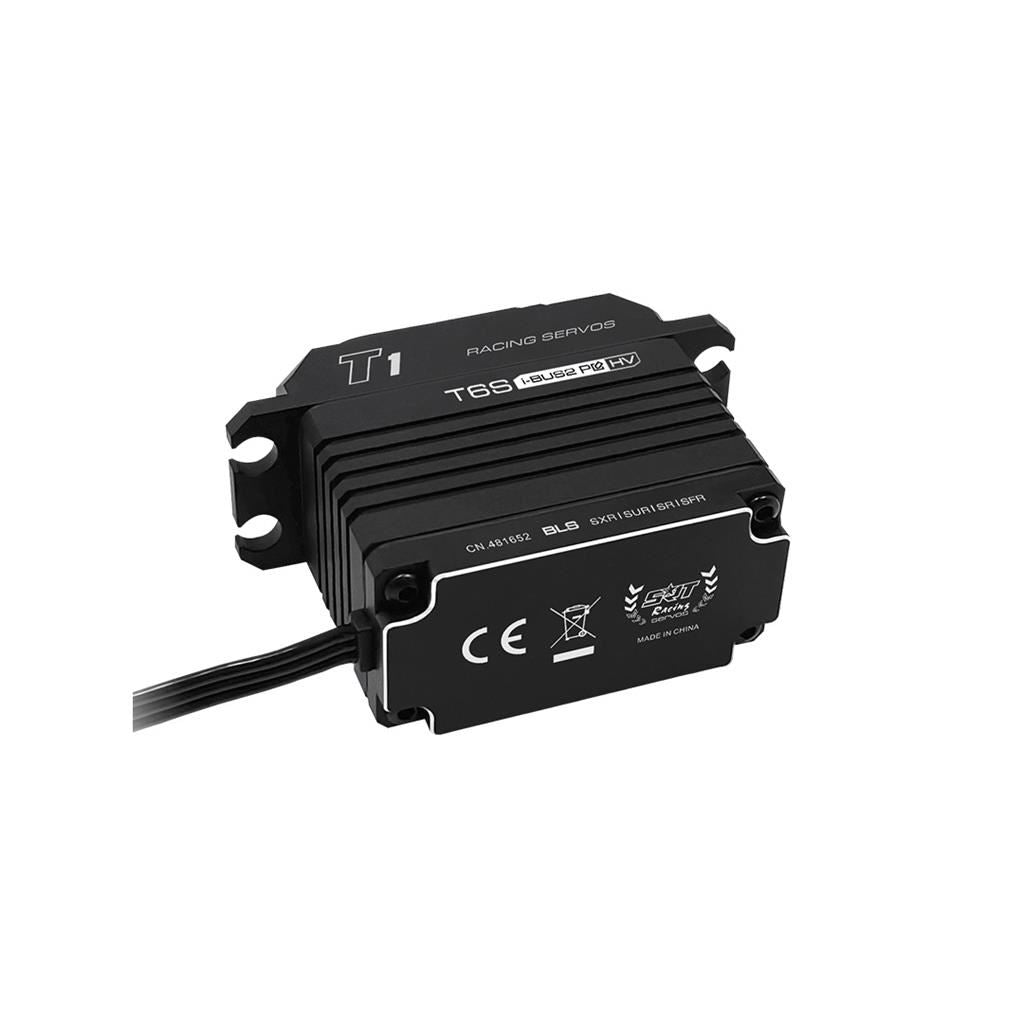

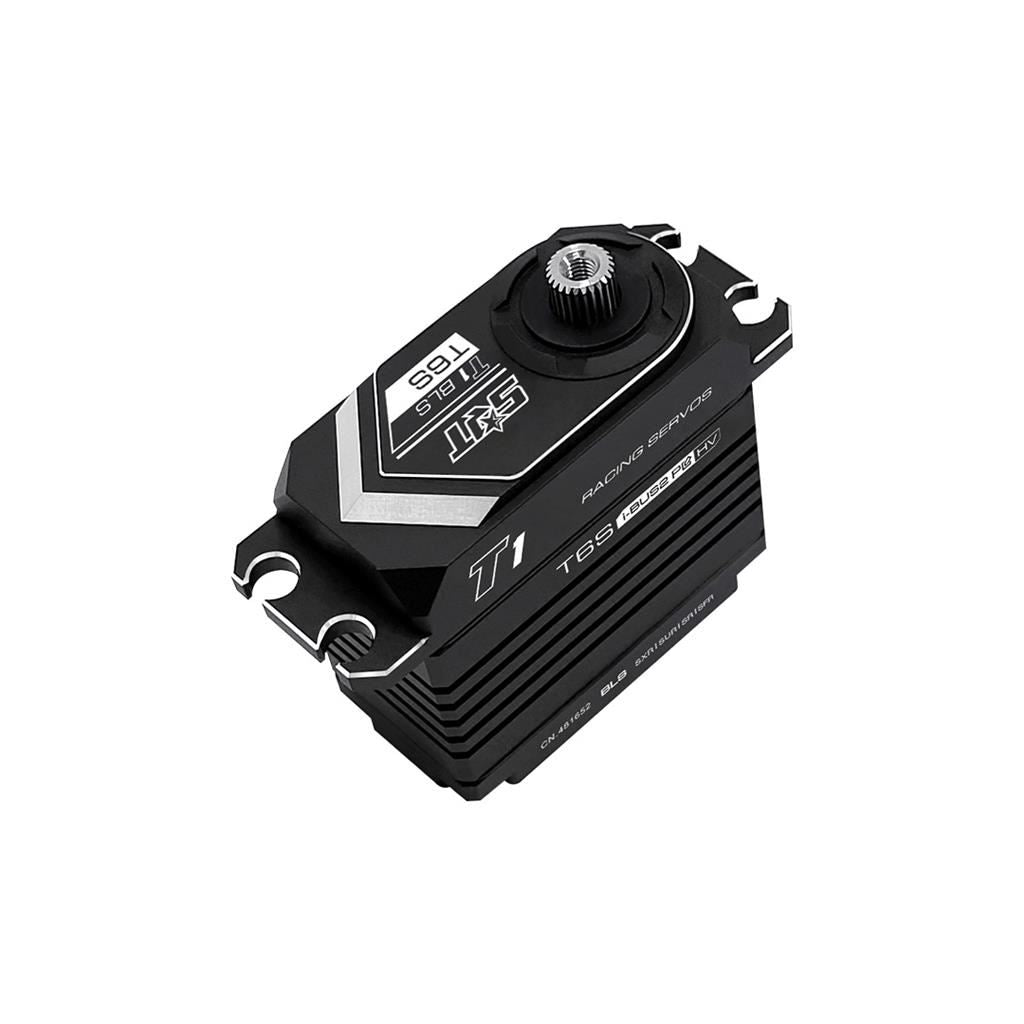

Srt T6S Hv Brushless Servo


£107.29
RRP: £115.99
Save £8.70
Home Delivery Available to order

        Allow 1-2 day(s) for order dispatch

Description


KEY FEATURES

- Superior Holding Torque
- Incredible efficiency and low power consumption
- Standard dimension make it perfect for vehicles that can benefit from a high quality servo
- CNC Machined aluminum case for exceptional cooling
- Programmable High torque Brushless servo
- Supporting SXR, SUR, SR, SFR multiple ultra high speed modes
- 25T output shaft
- 2 μsec Dead Band
- 1-Year Limited Warranty

PRODUCT SPECIFICATIONS

Type: Digital
Bearing: Dual
Motor Type: Brushless
Gear Type: Metal
Gear Material: Steel
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.092 sec/60 degrees at no load
operating speed (7.4v): 0.090 sec/60 degrees at no load
operating speed (8.4v): 0.085 sec/60 degrees at no load
stall torque (6.0v): 39.0kg.cm (541.6 oz/in)
stall torque (7.4v): 48.0kg.cm (666.6 oz/in)
stall torque (8.4v): 58.0kg.cm (805.5 oz/in)
potentiometer drive: direct drive

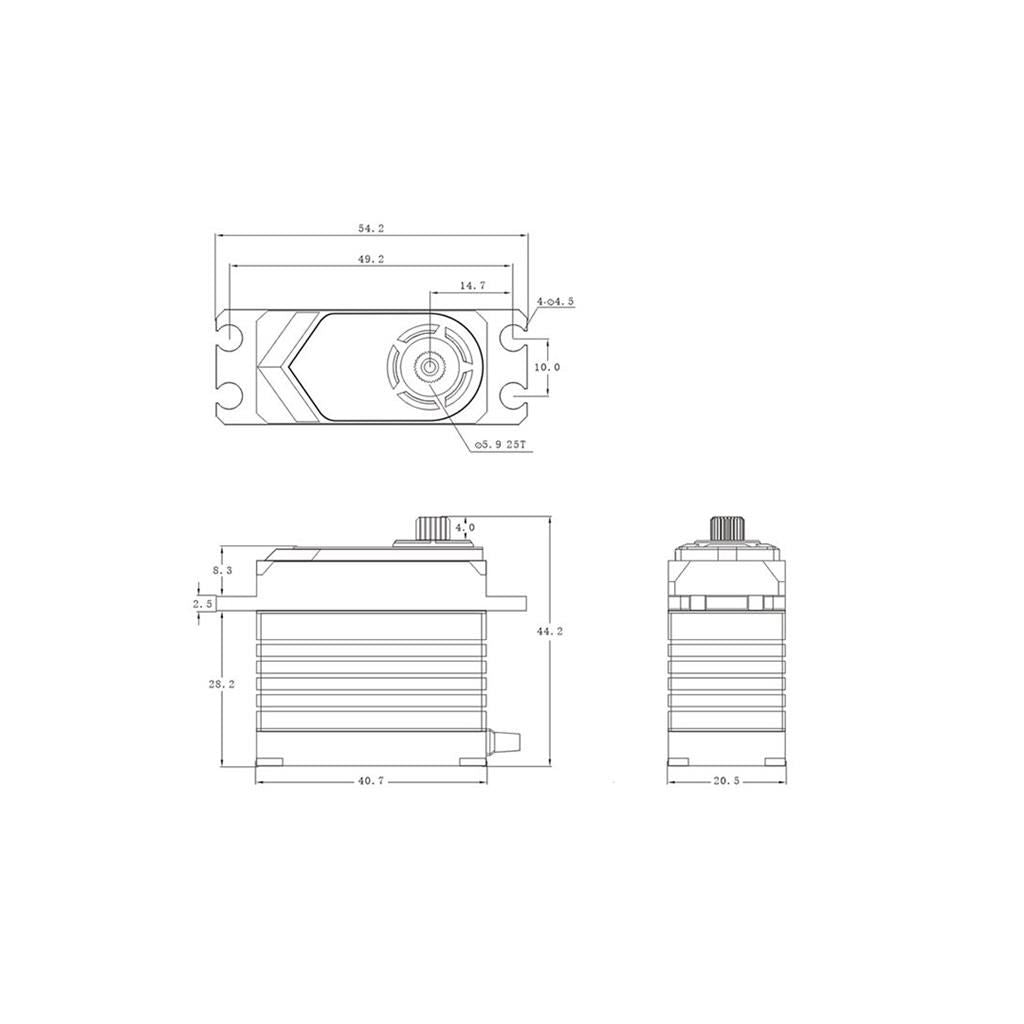

dimensions: 40.7x20.5x39.0 mm /1.60x0.81x1.54 in
weight: 83.0g (2.93 oz)
connector wire length: jr 300 mm
