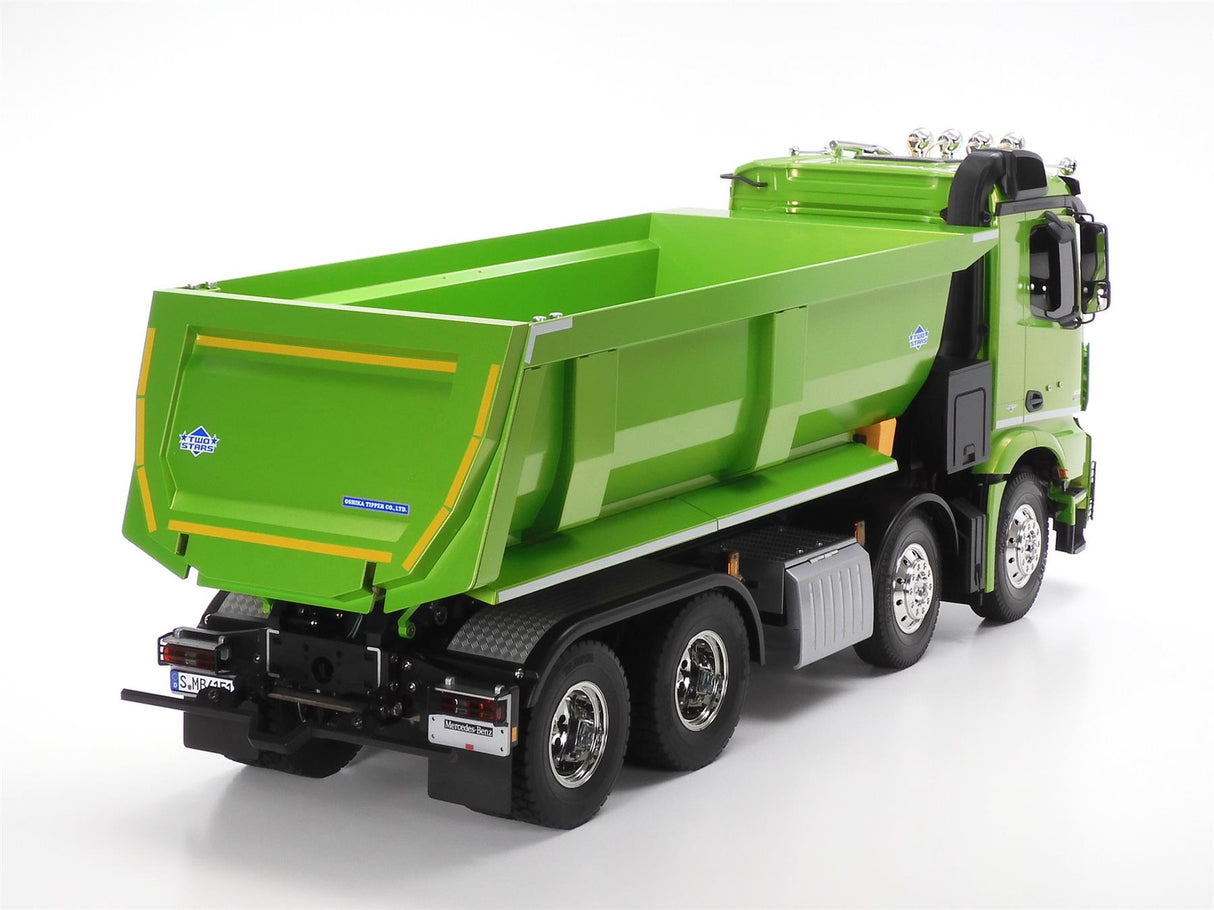

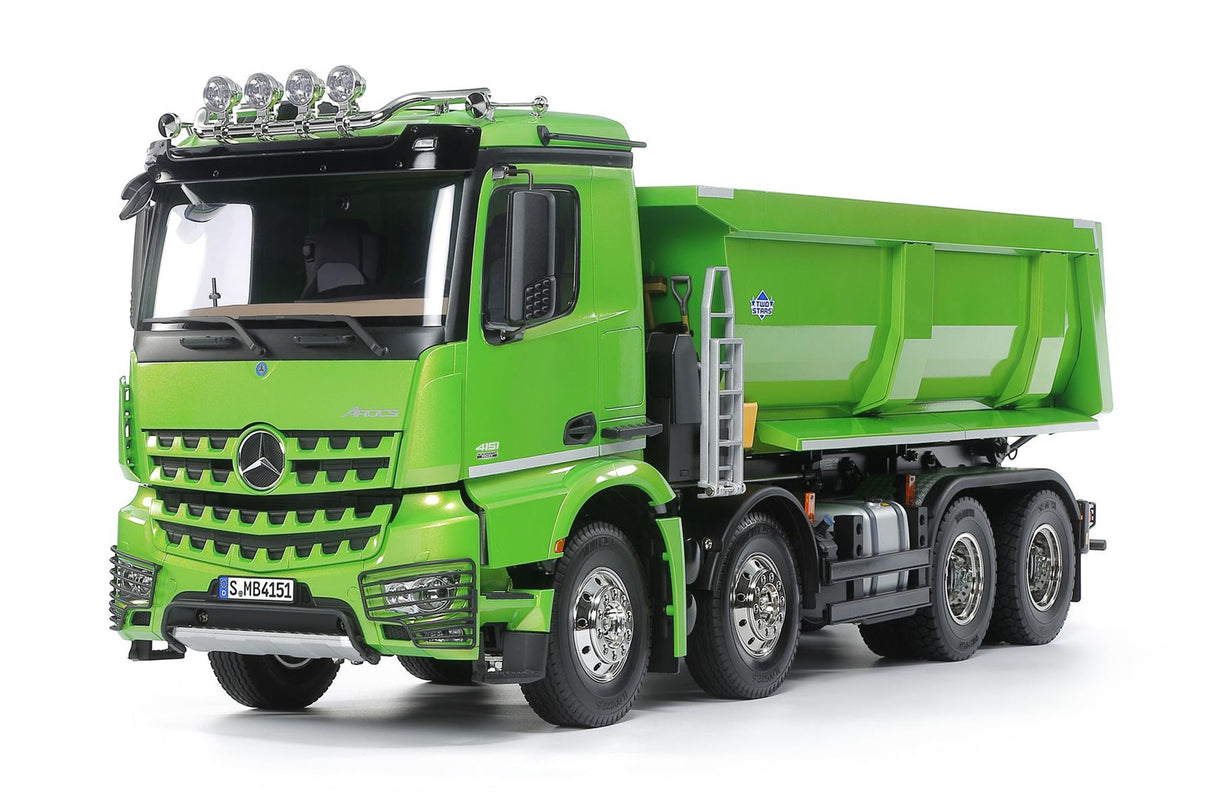

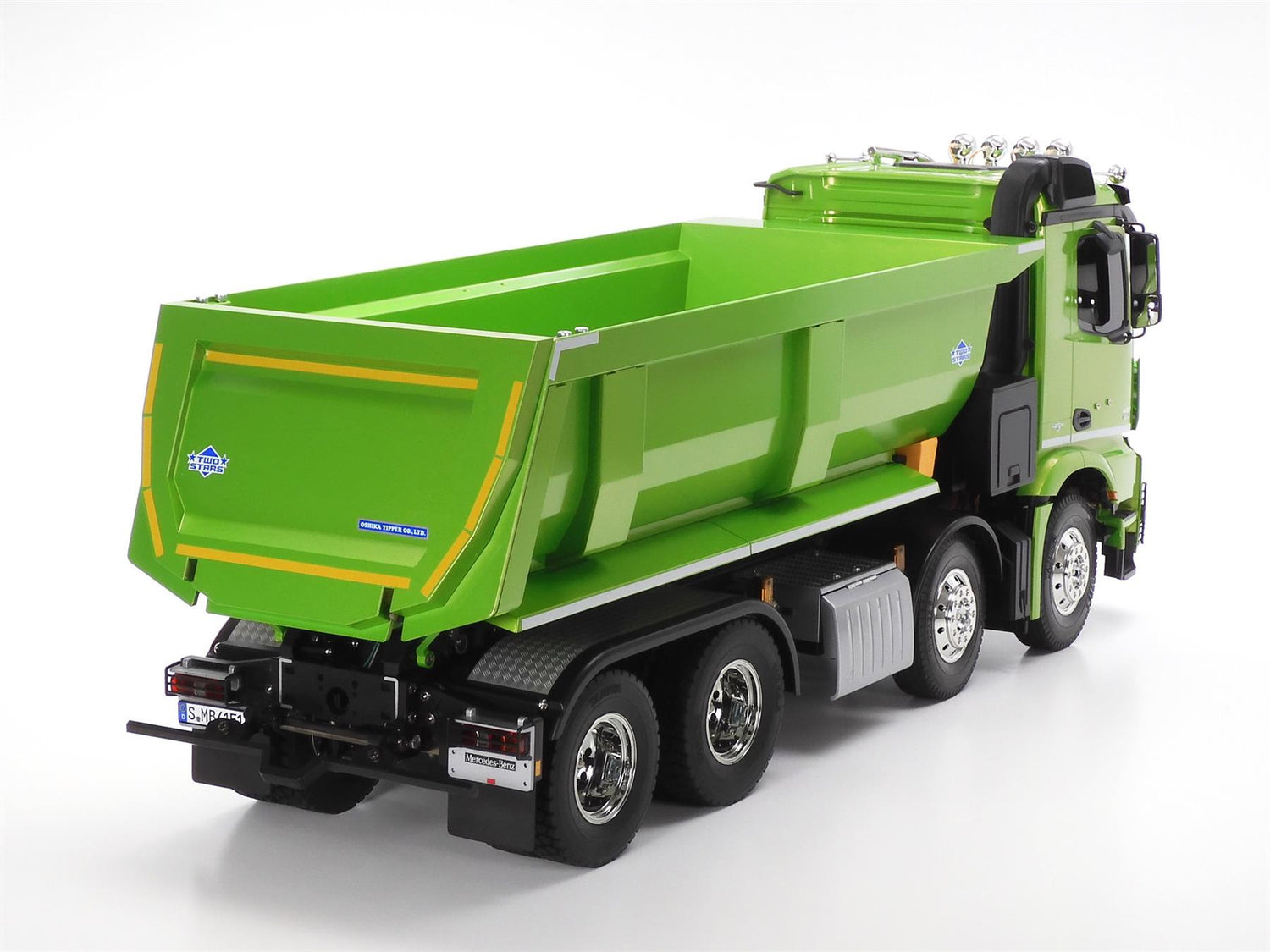

Tamiya Mercedes-Benz Arocs 4151 8X4 Tipper Truck (Candy Green Edition)
Save £98

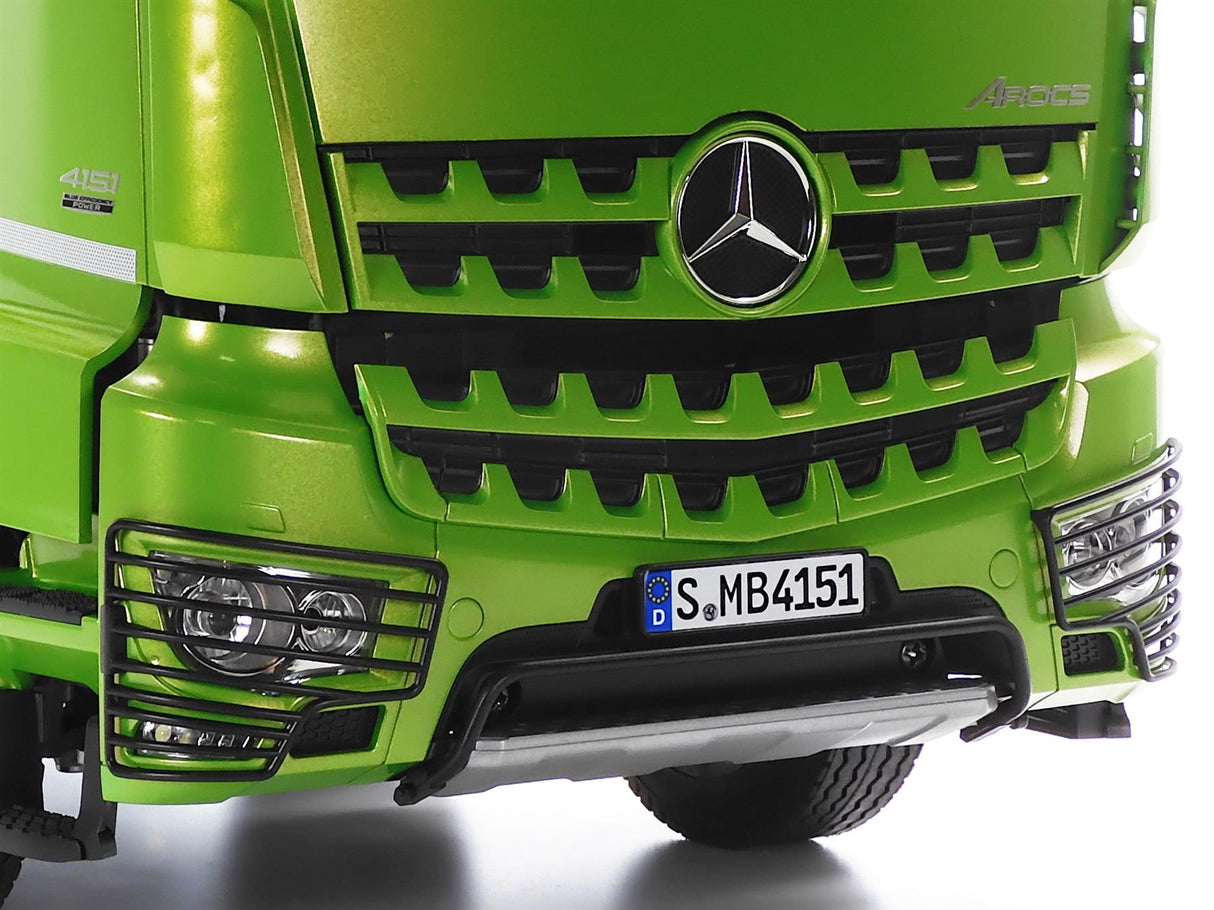

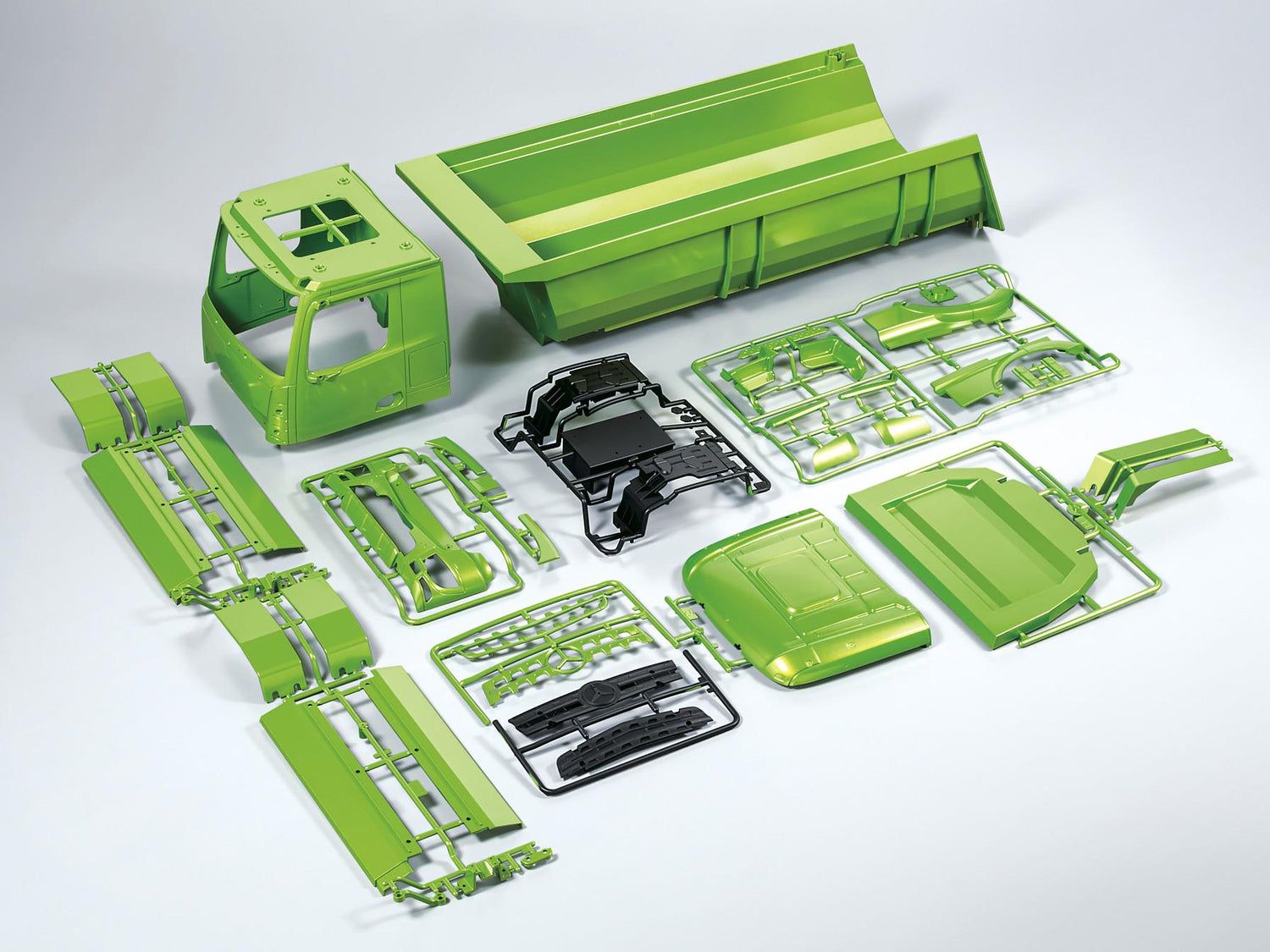

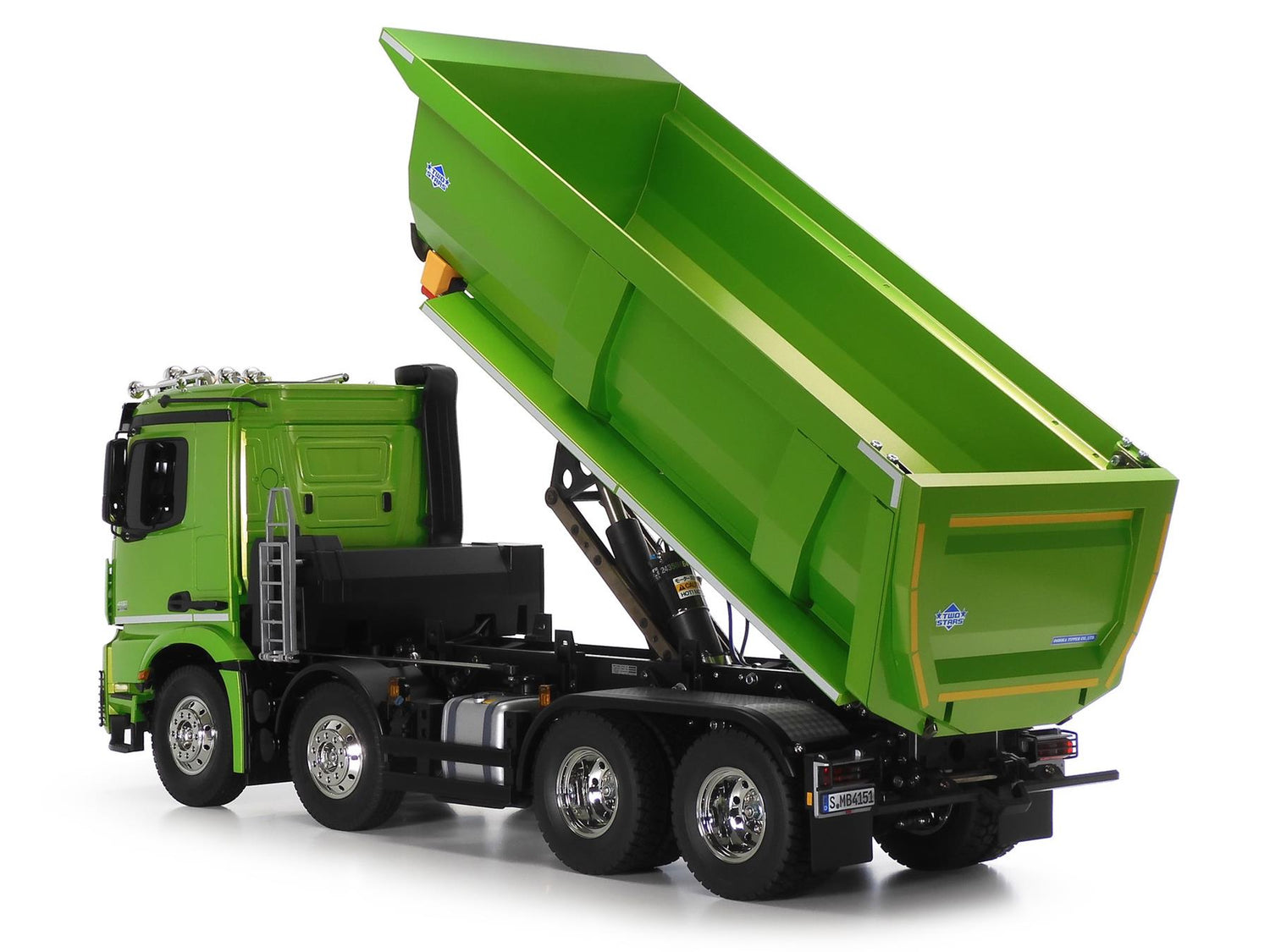

The Arocs series is a line of heavy-duty models introduced in 2013 by the world’s leading truck manufacturer, Daimler Truck AG (Germany). This R/C model assembly kit recreates the Arocs 4151 8x4 dump truck (gross vehicle weight: 41t), which runs on a 12.8-litre turbocharged inline-6 engine capable of 510hp. It features a highly detailed body and cab pre-painted in Candy Lime Green for your convenience, and given a lustrous urethane topcoat. Air tanks and other parts are pre-painted in semi-gloss black. The distinctive bucket tooth front grille is a separate part. The roof has a front bar with light pods, and the inside of the cab is also depicted. Behind the cab, the realistic one-piece plastic bed is reinforced with a metal frame, while the ladder frame chassis features aluminium side channels with resin cross members. The two front axles are steered via a single servo, and power from the front-mounted 35T motor is delivered to rear axles via propeller shaft, with a built-in differential gear on each rear axle for smooth cornering. Its highly-realistic suspension utilizes metal leaf springs and friction dampers. Tandem die-cast front axles have individual leaf springs, and reinforced resin rear axles are a trunnion design. The assembly type 3-speed transmission allows gear changes via a separately available 4-channel transmitter.
About the Model
- Length: 667mm, Width: 196mm, Height: 268mm, Weight (without optional parts): Approx. 5.1kg
- Wheelbase: 133mm + 215mm + 103mm
- Tread: 156mm (front), 138mm (rear, double tyre)
- Chassis: aluminium & polycarbonate resin ladder frame
- Front/rear leaf spring rigid suspension
- Caster angle (front/rear): 0°/0°
- Camber angle (front/rear): 0°
- Toe angle: 0° (front & rear)
- Aluminium dummy dampers (front & rear)
- Dual rear axle drive
- 3-gear transmission (gear shifting operated via transmitter)
- Gear ratio: (1st) 32.49:1, (2nd) 17.76:1, (3rd) 10.66:1
- 3-bevel differential gears
- TR Mighty Tuned Motor (35T)
- Tyre width/diameter: 22mm/83mm (front); 22mm/84mm (rear)
Separately Required Items
- Four-channel radio with ESC (MFC-03 or TBLE-02S recommended)
- R6/AA/UM3 batteries for transmitter
- Battery pack & charger
