Vanquish Incision Series 3 Light Kit
Save £1.60
Couldn't load pickup availability
Features:

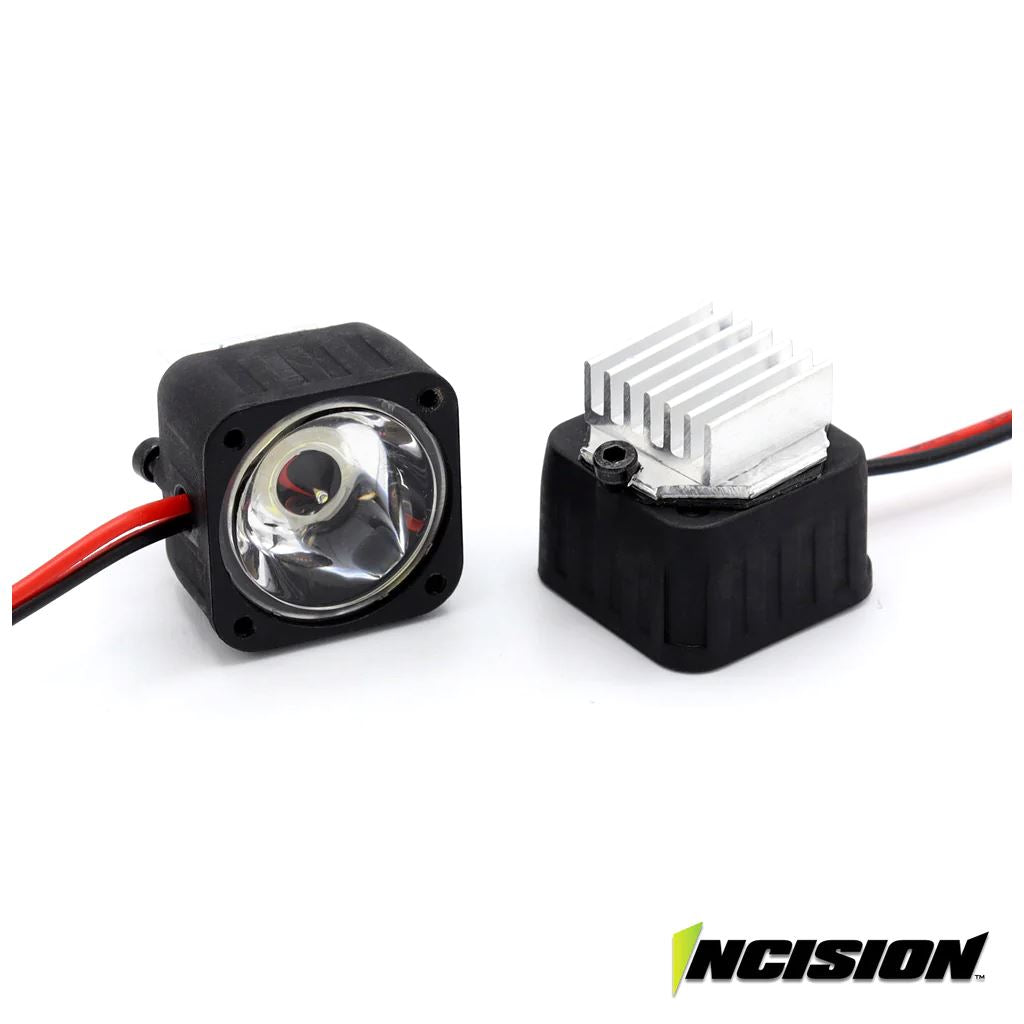

Molded front light buckets with high powered LED and heatsink
Red LED tail lights
White LED front/rear inner fender rock lights
LED light controller
Manual on / off function
Additional on / off control from aux receiver channel.
Headlights powered by 2-3S lipo balance plug on light controller
Aux control and red LED headlights powered by RX plug

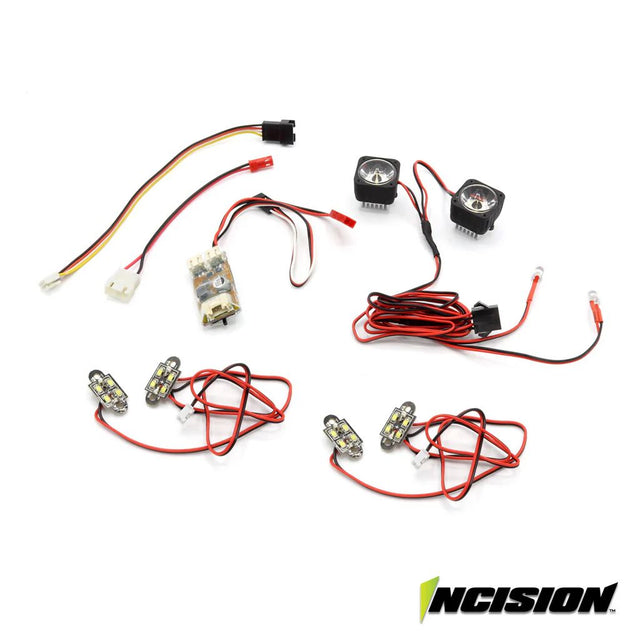

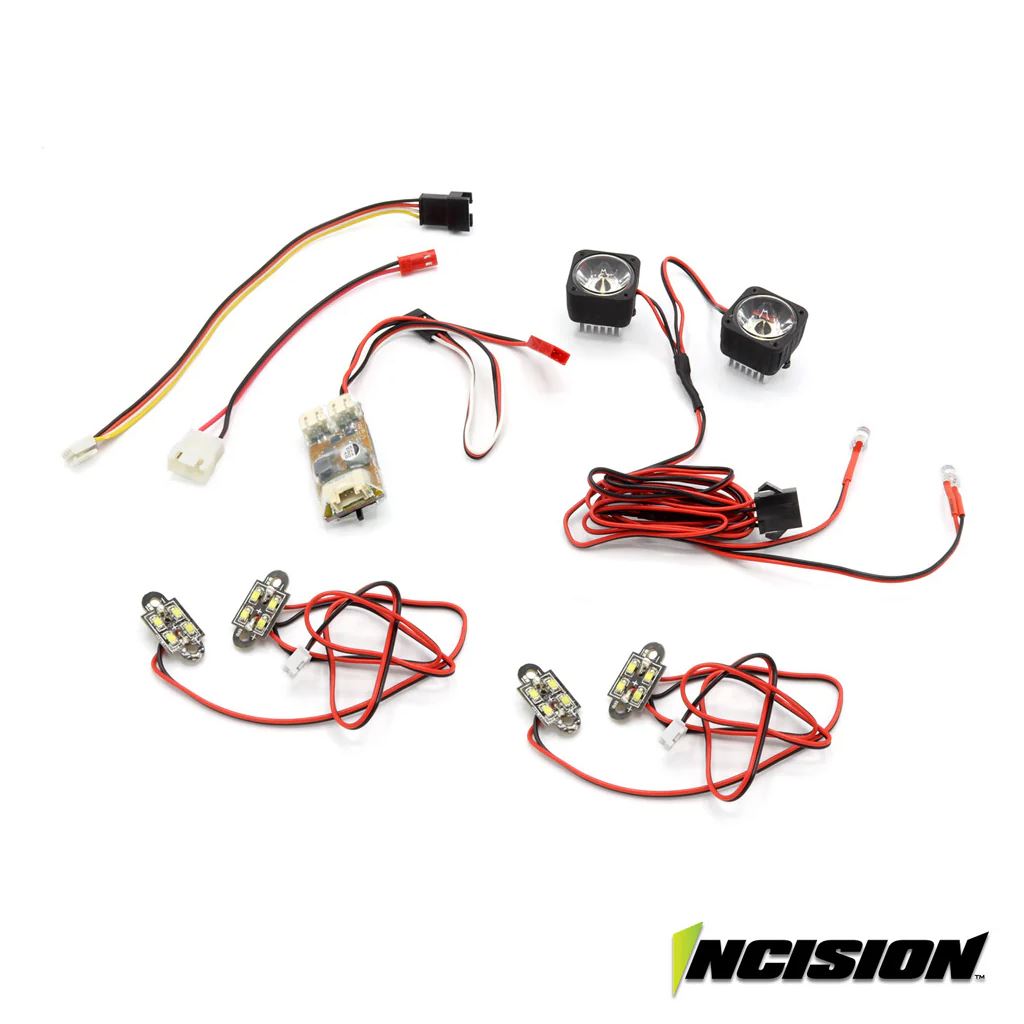

Package includes:
X2 Molded front led headlight housings with heat sink. direct fit / bolt pattern with Phoenix body grill
X2 5mm red LED tail lights
X4 PCB LED rock lights for use with Molded Inner Fenders (Use X4 on Origin, use X2 on Phoenix)
X1 LED controller with required power plugs
And a nifty parts box
Compatible with: VS4-10 Phoenix and Origin Body Sets
Installation Instructions
Remove stock light buckets from body set. Mount included light assembly to the
body with the existing 1-64 hardware. Red LED tail lights mount into stock
VS4-10 rear LED housings. Install Light controller to chassis and connect body
mounted LED lights using 4 pin connector. Install chassis mounted rock lights to
the inner fenders using hardware and brackets from VS4-10 Kits.
Connect LED plugs to the Light Controller. Connect Light Controller to 2s or 3s
Lipo battery for headlight power source. Connect Light Controller to receiver to
power red LED’s, for full functionality use an open auxiliary channel in receiver.
Program auxiliary channel on transmitter for 2 positions (On/Off) with endpoints
set to max for each position.
The 3-position switch located on the LED light controller selects mode
(Off/ Aux CH on/off control / ON). To control LED function through the transmitter
ensure the 3 position switch on LED light controller is in the middle position.
Note: Visual reference can also be found inside Origin Classic Kit Instructions.
Installation tips:
Attach LED controller and rock lights to chassis.
Connect and route headlight and tail light LED light wires to underside of body.
Use Black 4 pin connection plug for easy removal of body.
Use Balance plug and JST connection for power source and RX connection at chassis for easily removal.
Note: JST power source powers head lights and rock lights. RX Aux powers taillights. Both power sources must be connected for full functionality.
-
