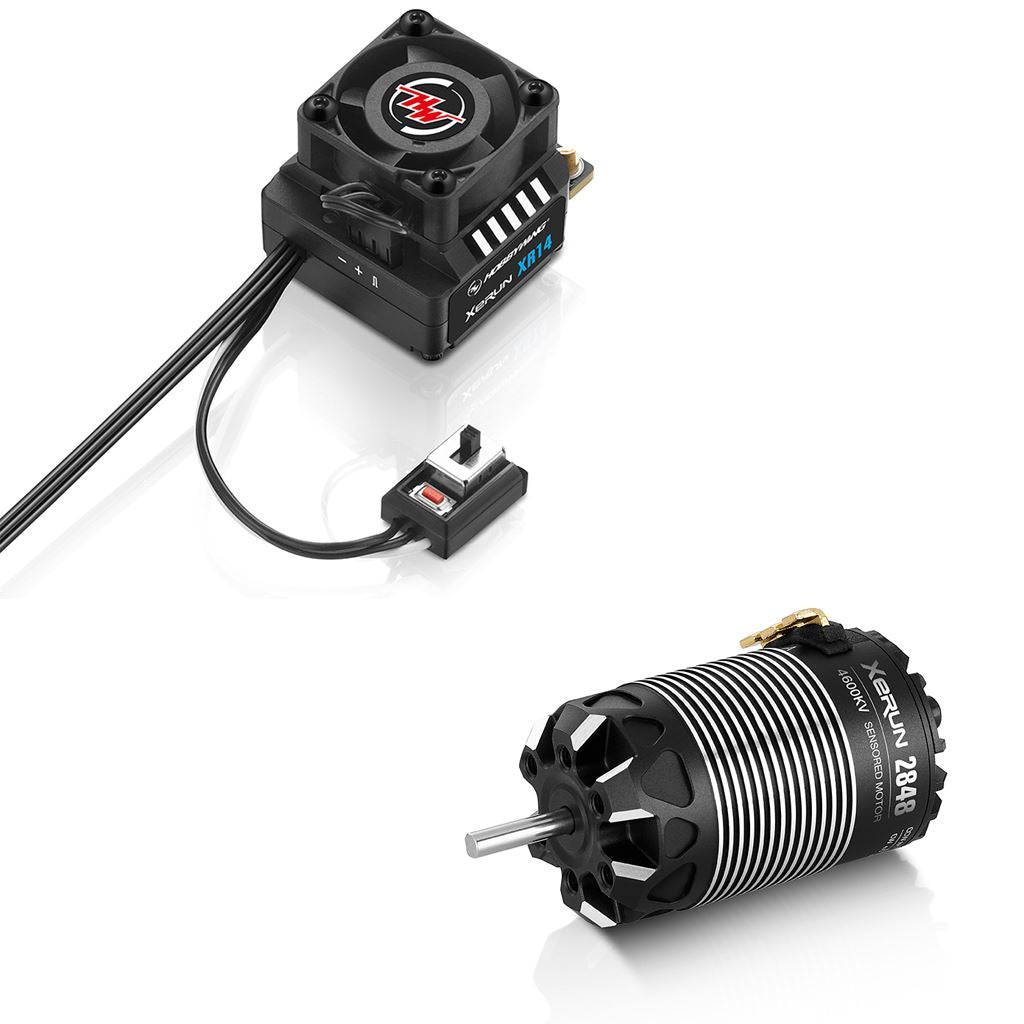

Xerun Combo Xr14 & 2848Sd 4600Kv

Introducing the Hobbywing XeRun XR14 Speed Control and 2848SD 4600KV Brushless Motor Combo.

Born for the 1/ 14th competition !
A versatile competition-grade design with powerful software, a high-performance competition ESC for brushless 1/14th scale on road and off-road vehicles.

High power, low temperature
The maximum continuous output current of the ESC is up to70A. The all-metal heat sink top case ensures the ESC is always at a safe operating temperature.

Built-in reverse polarity protection circuit
The ESC has a built-in reverse connection protection circuit , so you don’t need to worry about the ESC being damaged by reverse battery connection, which effectively solves the problem of ESC damage caused by reverse battery connection.
Note: Only by using the non-polarity filter capacitor option can the entire power system be protected against reverse connection. The standard electrolytic capacitors of the ESC do not have reverse connection protection. Reverse connection of the battery will damage the electrolytic capacitor pack, but the ESC will not be damaged.

Built-in BEC supporting high voltage servos
The ESC has a built-in switch-mode BEC , which can easily meet the input power requirements of high-torque and high-voltage servos.

-Maximum continuous current
-4A Maximum instantaneous current
-8A The output voltage is switchable between 6V and 7.4V

Built-in data logging function to easily obtain power operation status
The ESC has a built-in data recording function. The data includes the minimum voltage, maximum current, maximum speed, maximum ESC temperature , and maximum motor temperature.

After the ESC is connected to the OTA Bluetooth module, connect the ESC through the HW Link mobile app and turn on the real-time data recording function to view the throttle, voltage, current, temperature, speed and other data in real time; the OTA built-in memory can also record the above data, which is convenient for drivers to use HW Link for more detailed data analysis after the race. Note: Due to the Bluetooth transmission distance, the effective distance is about 5m!

Rich parameter items
The ESC has 26 adjustable parameters, including practical PWM frequency, Softening , initial start-up force, Boost/Turbo timing , etc., which can accurately adjust the power requirements and allow players to enjoy a more delicate control experience.

Dual App Mode
Two application modes, 1/ 14th On-Road and 1/14th Off -Road competition, are built in and can be used immediately.

Wide applicability
The power is suitable for 1/ 14th Blinky, Boost and other competition projects, and also meets the 1/ 10th Blinky competition application.

Specifications

Type
Scale - 1/14th、1/12th、 1/10th
Brushed/Brushless - BL
Sensored/Sensorless - SD
Waterproof - No

Specifications
Cont./Peak Current - 70A/300A
Input Voltage - 2S LiPo
BEC Output - Switch Mode 6V/7.4V @4A

Wires & Connectors
Input Wires - Black-10AWG-200mm*1 Black-14AWG-175mm*2
Output Connectors - Black-14AWG-175mm*3
Input Connectors - No
Output Connectors - No

ESC Programing via
SET Button on ESC - Not Supported
LED Program Box - Not Supported
LCD G2 Program Box - Supported
OTA Programmer - Supported
Program Port - Shared with Fan Port

Data Recording
Extreme Value - Supported
Real-time Date - Supported
Historical Date (Graph) - Supported

Firmware
Firmware Upgrade - Supported

Size & Weight
Size - 35.2*31.3*28.5mm
Weight - 66g (Included wires)

Applications
Motors -Sensorless / Sensored Brushless Motor

Vehicles - 1/14 Scale Racing, 1/12&1/10 Light load vehicles with zero-timing(blinky) mode
KV Rating/T Count - XERUN 2848

-----------------

Motor Specification

High power output designed for heavy duty 1/14th scale applications.
Power output is increased by 15% when compared to motors of equal size and specification.
The best choice for 1/14th scale competitions.
Efficiency is increased by 6% when compared to the competition.
The internal temperature is approximately 20 degC lower.
The external temperature is approximately 10 degC lower.

Excellent dust resistance
The protection level is IP5X with excellent dust proof performance. It is able to cope with various Off Road dusty track environments.

The mechanical endbell allows the motor to be set up for CW and CCW rotation.

Low cogging moment
The motor has a very low speed start up, offering extremely smooth and linear throttle response.

Easy to maintain
The motor's modular design allows it be easily disassembled for cleaning and maintenance. This will prolong the motor life and maintain overall performance and efficiency.

Industry-leading materials and excellent product design
Easily tackles rigorous racing competitions.
Adopts high-performance top-tier brand Iron core.
High-precision grade Bearings.
High temperature resistant wire (200°C).
High temperature resistant (180°C) Explosion-proof rotor.
The soldering terminals adopt customized widened U-shaped gold-plated curved copper bars that has extremely low internal resistance.
The gap between the copper bars has been increased to ease soldering.

Specifications

Type

Scale - 1/14th, 1/12th
Brushed/Brushless - BL
Sensored/Sensorless - SD
Pole Count - 4

Relevant Parameters

KV Rating - 4600KV
LiPo Cells - 2-3S
No-load Current(A) - 2.6A

Size & Weight

O.D.(mm) - 28.5
Length (mm) - 48
Shaft Diameter (mm) - 3.175
Weight (g) - 100
Front Bearing - D9.525*D3.175*t3.9675
Rear Bearing - D6.35*D3.175*t2.778

Applications - 1/14, 1/12th On Road, Off Road
