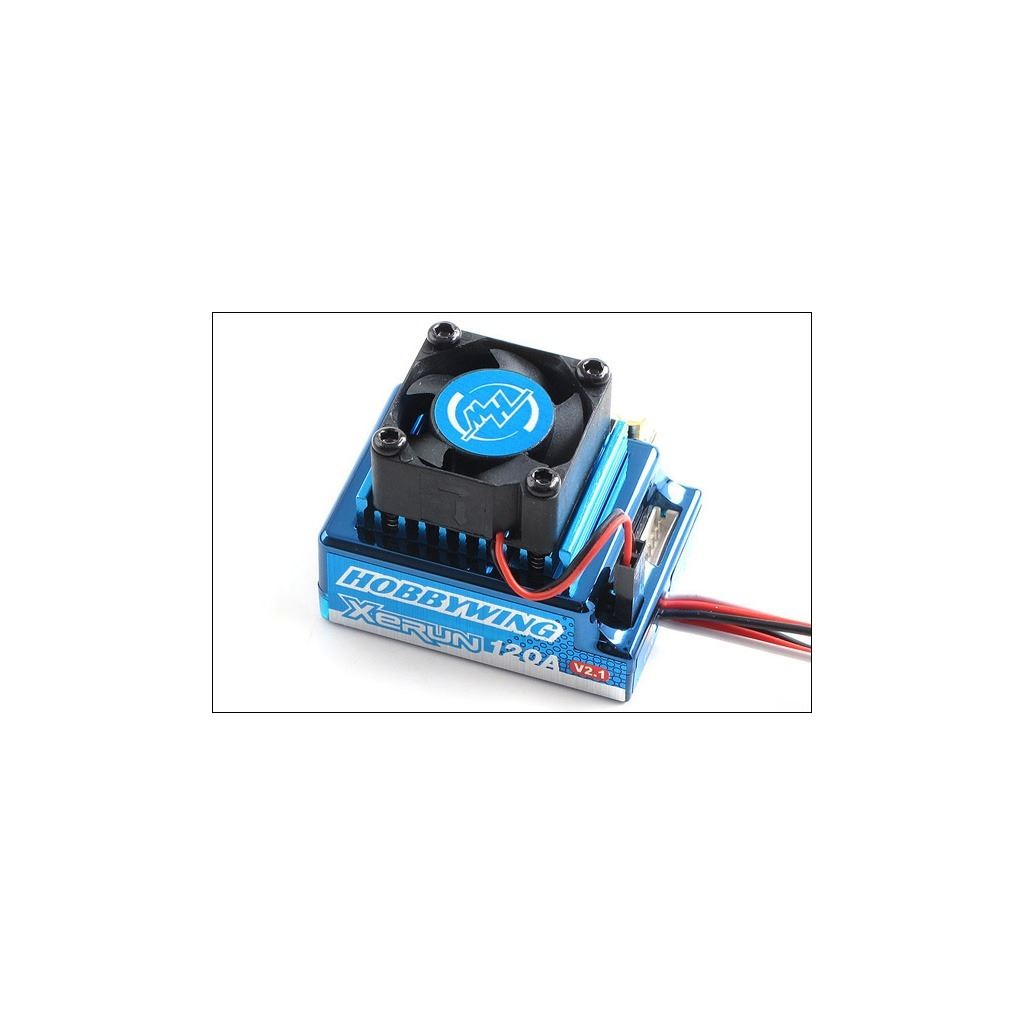

Xerun - V2.1 - Bl - Esc - 120A - Blue
Save £5
Couldn't load pickup availability
Specification
XERUN-120A-SD V2.1
XERUN-90A-SD V2.1
XERUN-60A-SD-V2.1
Current
Continuous: 120A
Burst: 760A
Continuous: 90A
Burst: 450A
Continuous: 60A
Burst: 360A
Input * Note #1
4-9 cells NiMH/NiCd
2-3S LiPo
Built-in BEC
5.75V@3A (linear mode)
Resistance
0.0003 Ohm
0.0005 Ohm
0.0006 Ohm
Motor Supported
Sensored and sensorless brushless motor
Suitable Motor
With 2 Lipo or 4-6 NiMH
1/10 on-road: >=3.5T
1/10 off-road: >=5.5T
With 3 Lipo or 7-9 NiMH
1/10 on-road: >=5.5T
1/10 off-road: >=8.5T
With 2 Lipo or 4-6 NiMH
1/10 on-road: >=5.5T
1/10 off-road: >=8.5T
With 3 Lipo or 7-9 NiMH
1/10 on-road: >=10.5T
1/10 off-road: >=17.5T
With 2 Lipo or 4-6 NiMH
1/10 on-road: >=5.5T
1/10 off-road: >=8.5T
With 3 Lipo or 7-9 NiMH
1/10 on-road: >=10.5T
1/10 off-road: >=17.5T
Suitable Car
1/10,1/12 all competitions
1/10,1/8 rock crawler
1/10,1/12 stock competition
1/10,1/8 rock crawler
1/10,1/12 stock competition
1/10,1/8 rock crawler
Cooling Fan
5V - HW30860200010
Size
43mm(L) * 36mm(W) * 33mm(H)
Weight
105g
80g
80g
Note #1
For 4-6 cells NiMH/NiCd or 2S LiPo, the standard cooling fan needn't be changed.
For 7-9 cells NiMH/NiCd or 3S LiPo, the standard cooling fan need be changed to 12V high voltage fan.
Features
2.1 Compatible with most of sensorless and sensored brushless motors such as Novak, LRP, Orion and Tekin, etc.
2.2 Large current endurance.
2.3 Most effective cooling structure.
2.4 Excellent start-up, acceleration and linearity features, best control feeling.
2.5 Plenty of programmable items, suitable for various of chassis's, tires and racing tracks.
2.6 Multiple protection features: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection.
2.7 Internal timing can be changed easily to make the ESC suitable for various of motors.
2.8 Easily programmed with the SET button, LED Program Box, Multifunction LCD Program Box and USB Link Software.
2.9 ESC firmware can be updated through the USB adapter in the LCD Program Box .
2.10 Plenty of firmware available for all kinds of competitions.
Standard firmware for MODIFY competition.
Supercharged firmware(with turbo timing) for SUPER STOCK competition.
Zero timing firmware for ROAR SPORTMAN race and other fair races.
2.11 Also suitable for rock crawler pro race when using “Crawler” working mode.
-
